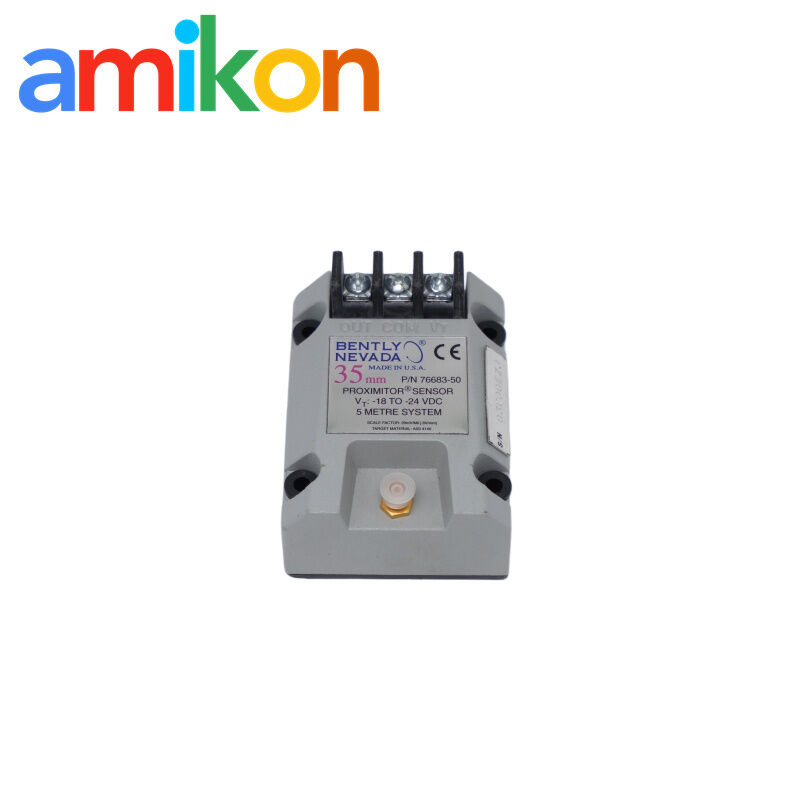

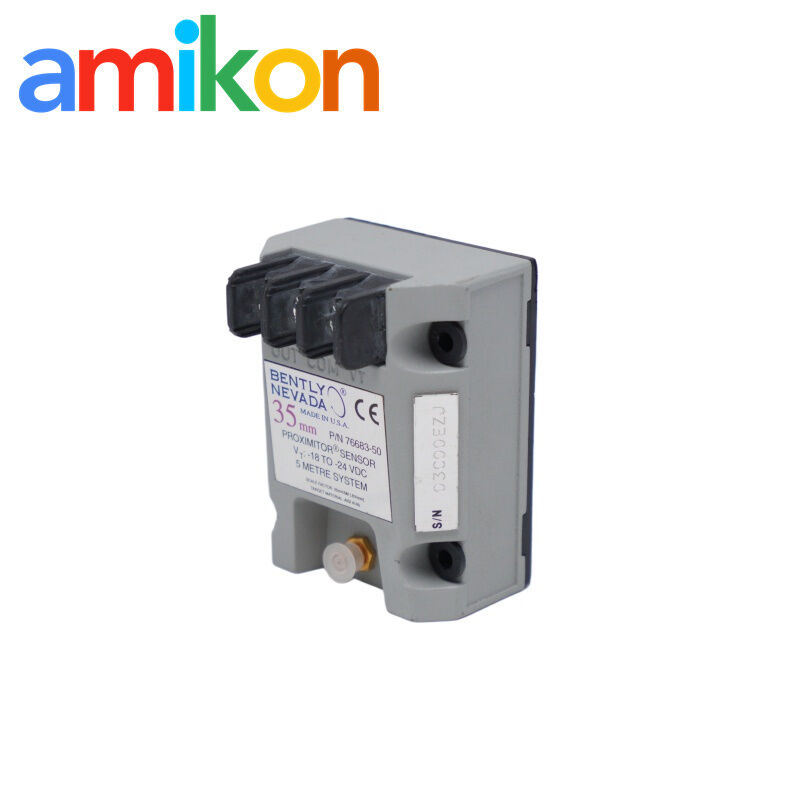

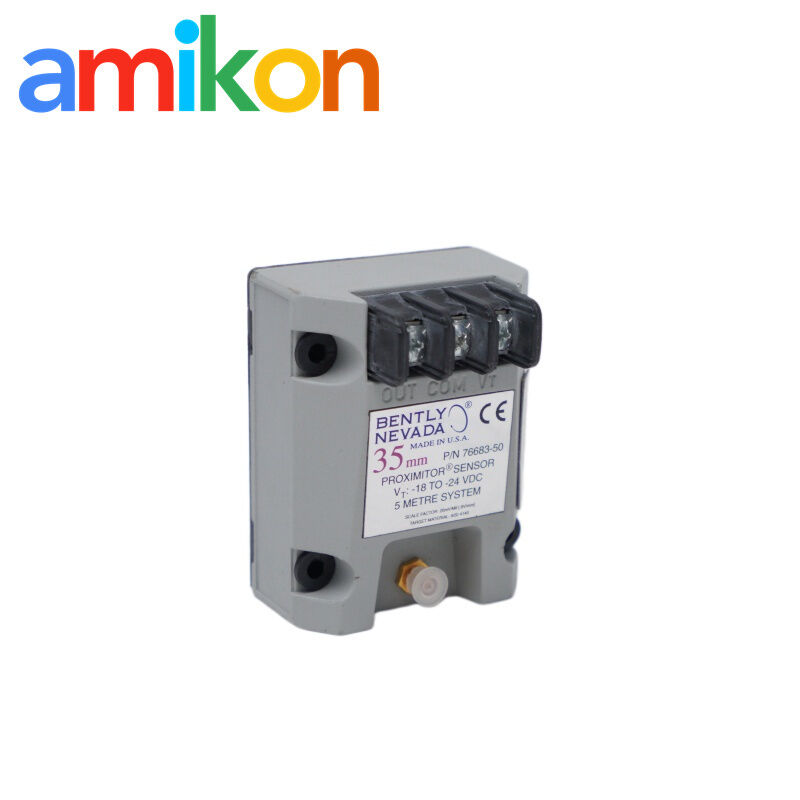

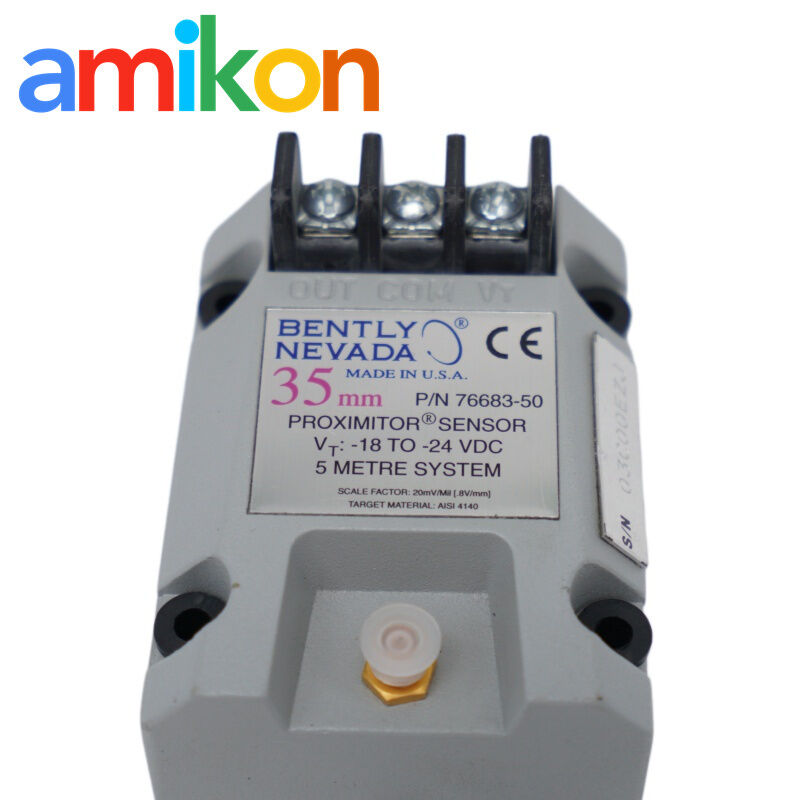

Bently Nevada 76683-50 35 mm Proximitor Sensor for Non-contact Distance and Axial Thrust Measurement

The Bently Nevada 76683-50 is a 35 mm Proximitor Sensor based on eddy current operation, typically used in turbine protection setups rather than general industrial sensing.

In practice, it shows up in steam turbine monitoring, especially on large generator trains where differential expansion monitor and axial thrust position measurement are part of the routine protection loop. It basically sits inside the TSI (Turbine Supervisory Instrumentation) chain, helping track non-contact distance measurement between rotor and casing. Nothing overly complicated on site, but it plays a key role in avoiding internal contact issues in big rotating machines.

The “-50” part is mainly about system length calibration. It means the 76683-50 is matched for a 5-metre electrical system length. So the probe + extension cable combination needs to land around that value for correct scaling. If the system is designed for something longer, like a 9-meter setup, then the 76683-90 version is normally used instead. In real installations, people usually treat this as a fixed matching rule rather than a flexible option, because wrong length pairing can affect measurement accuracy.

The 76683-50 works across both legacy and newer platforms. It’s commonly used in Bently Nevada 3300 Series setups as a 3300 XL proximity system interface, and it also integrates into Bently Nevada 3500 machinery protection systems, especially with the 3500/40M Proximitor Monitor. On the signal side, it supports typical conditioned outputs used in machinery protection sensor architectures, feeding into rack-based monitoring modules for continuous vibration and displacement tracking. In most plant configurations, it also connects into System 1 condition monitoring for higher-level diagnostics.

When sourcing a Bently Nevada 76683-50 replacement part, the main thing is matching the exact configuration, especially the 35 mm proximity sensor 5m setup. If the length or calibration differs, the system may need re-adjustment. In field use, people usually go for a direct Bently Nevada 76683-50 replacement, mainly to avoid reworking the whole loop inside the Bently Nevada 3300 series proximity sensor interface chain. Keeping it consistent also matters for long-term critical asset protection, especially in power plant instrumentation and steam turbine generator monitoring and protection environments. That’s where most of these sensors end up working anyway, inside heavy-duty rotating machinery systems where downtime is expensive.
