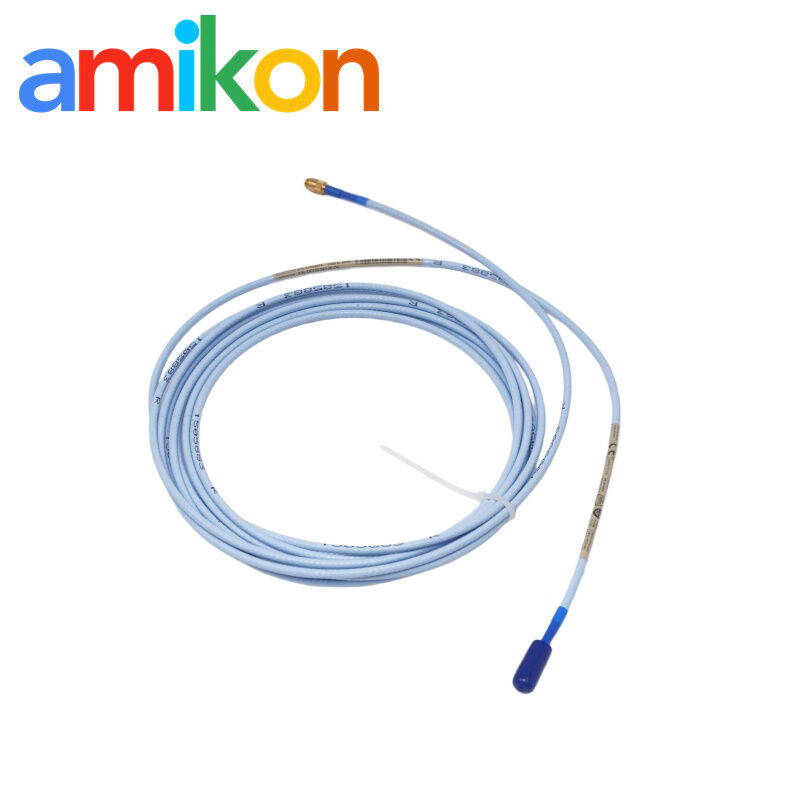

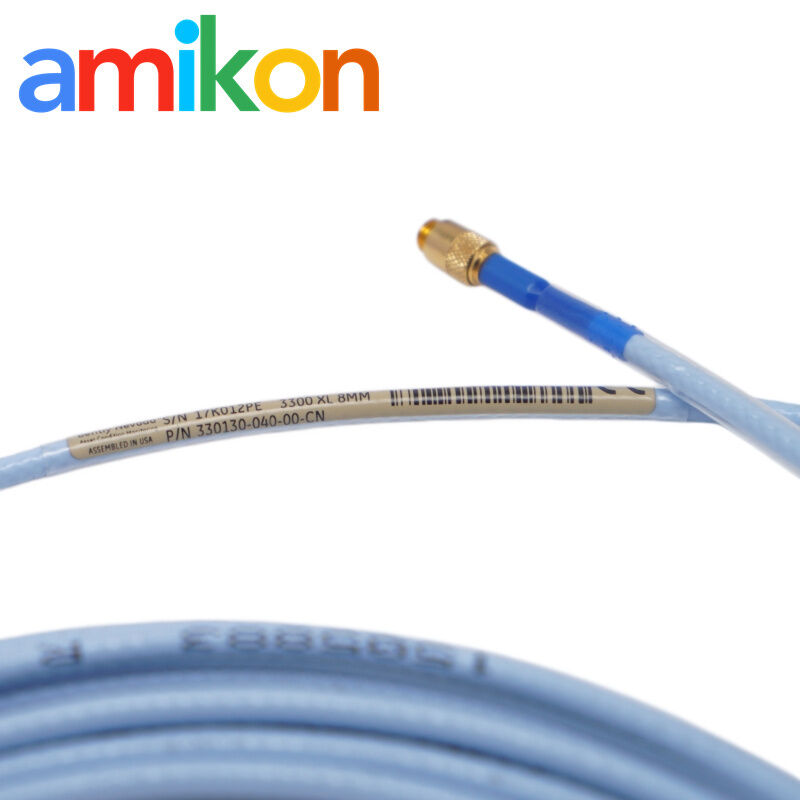

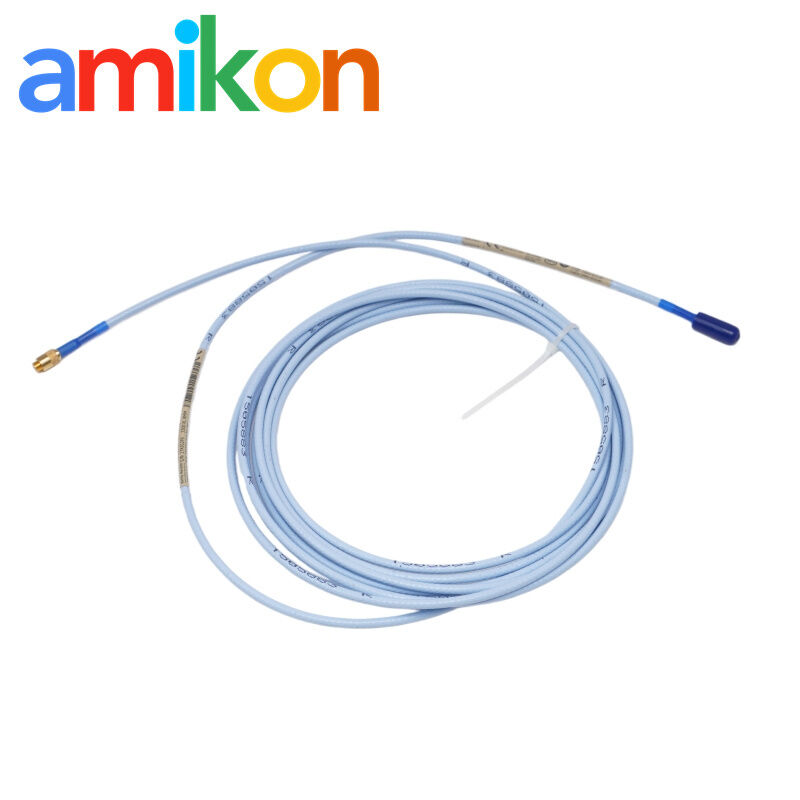

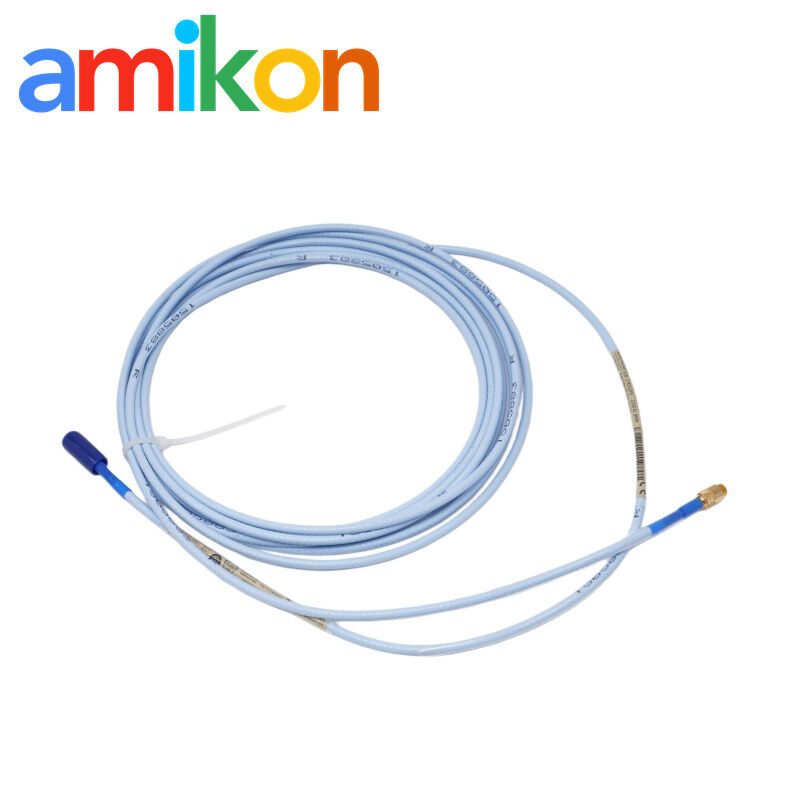

Bently Nevada 330130-040-00-CN 3300 XL 4.0 Metres 75 Ω Impedance FEP Insulated Extension Cable
Bently Nevada 330130-040-00-CN 3300 XL 4.0 Metres 75 Ω Impedance FEP Insulated Extension Cable
Bently Nevada 330130-040-00-CN Bently Nevada 3300 XL system
3300 XL 8mm Extension Cable steam turbine vibration monitoring
330130 Coaxial Cable shaft vibration signal transmission
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330130-040-00-CN
Contact Us
Request A Quote
Product Details
Model:
330130-040-00-CN
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
Bently Nevada 330130-040-00-CN Bently Nevada 3300 XL system
,3300 XL 8mm Extension Cable steam turbine vibration monitoring
,330130 Coaxial Cable shaft vibration signal transmission
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Bently Nevada 330130-040-00-CN 3300 XL Standard Extension Cable
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 3300 XL 8mm Extension Cable |
| Part Number Breakdown | 330130-040-00-CN (4.0m / Standard Cable / China Approvals) |
| Original Manufacturer | Bently Nevada |
| Physical Cable Length (040) | 4.0 metres (13.1 feet) |
| Characteristic Impedance | 75 Ω |
| Insulation Material | FEP (Fluorinated Ethylene Propylene) jacket |
| Armor Option (00) | Unarmored (Standard cable without stainless steel conduit) |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Connector Type | ClickLoc coaxial locking connectors |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +351 °F) |
| Minimum Bend Radius | 25.4 mm (1.00 inch) |
| Maximum Tensile Strength | 220 N (50 lb force) at cable-to-connector interface |
| Relative Humidity | 100% condensing |
| Agency Approvals (CN) | China-specific certifications |
| System Constraint | Probe length + 4.0m cable must match 5m or 9m Proximitor Sensor total length |
Key Features
- High-Precision Shaft Vibration Signal Transmission
Delivers attenuation-free eddy current signal transmission from the 3300 XL 8mm proximity probe to the Proximitor sensor for continuous rotating machinery monitoring. - 75 Ohm Impedance-Matched Connection
Maintains a 75-ohm characteristic impedance across the 4.0 meters unarmored cable length to eliminate signal reflection and protect system measurement linearity. - Secure ClickLoc Miniature Coaxial Locking
Utilizes premium gold-plated ClickLoc connectors to provide a vibration-proof, low-resistance mechanical interface that prevents accidental disconnection in harsh environments. - Advanced Triaxial Electromagnetic Shielding
Employs high-coverage triaxial braided shielding to offer superior immunity against plant-floor Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI). - Calibrated Proximity Sensor Interface Line
Acts as the dedicated 4m extension line to complete the balanced electrical length required by 5m or 9m total length machinery protection loops. - Hazardous Area Intrinsically Safe Integrity
Features a durable FEP insulated jacket withstanding up to 177°C, fully compliant with China-specific NEPSI/CCC hazardous area explosion-proof standards.
Frequently Asked Questions
Q1: What is the primary function of the Bently Nevada 330130-040-00-CN extension cable in a machinery protection system?
A1: The Bently Nevada 330130-040-00-CN sits in the middle of a 3300 XL 8mm Proximity Transducer System, basically acting like the signal bridge between probe and sensor. It carries eddy current sensor connection signals from the 3300 XL 8mm proximity probe to the Proximitor Sensor, keeping the waveform clean enough for shaft vibration signal transmission and thrust position reading. You’ll normally see it running on steam turbines and centrifugal compressors, where critical asset condition monitoring is not optional.
Q2: How do "-040", "-00", and "-CN" define the configuration of 330130-040-00-CN?
A2: Nothing too complicated once you read it through Bently Nevada nomenclature.
- -040 → fixed 4.0 meters unarmored cable length
- -00 → standard build, no armor, no connector protectors
- -CN → China-related approvals, typically tied to NEPSI hazardous area system / CCC explosion-proof requirements and intrinsically safe installations
So in practice, it’s just a 3300 XL extension cable 4m version with regional compliance tagging.
Q3: What probes and systems does the 330130-040-00-CN match with?
A3: This is a 75 ohm triaxial shielding type cable, so matching matters. It’s usually paired inside a Bently Nevada 3300 XL system with compatible 3300 XL Proximitor Sensor and 330104 proximity probe setups. In some configurations, people align it with 5m or 9m system lengths for proper measurement linearity calibration inside rotating machinery monitoring system loops.
Q4: What about connectors and installation on 330130-040-00-CN?
A4: On both ends you get gold-plated ClickLoc connectors, the typical proximity sensor interface cable design in this series. It’s basically plug, twist, and you hear that click — nothing overcomplicated. For legacy interfaces, installers sometimes go a bit old-school and add a small extra turn after finger-tight, but in most machinery protection loops, ClickLoc already does the job.
Q5: Can the 330130-040-00-CN handle harsh environments?
A5: Yeah, usually it can. Even though it’s an unarmored cable, the jacket is built for industrial use, and the shielding helps with Radio Frequency Interference (RFI) and EMI noise in plant environments. That’s why it still shows up in steam turbine vibration monitoring, gas turbine asset protection, and other industrial rotating machinery applications where signal stability matters more than anything else.
