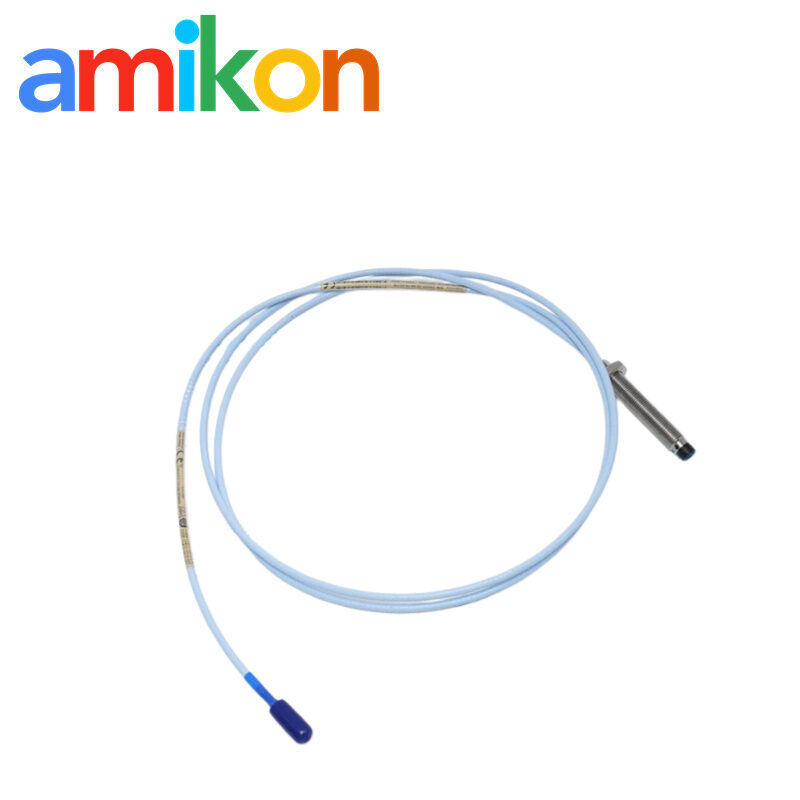

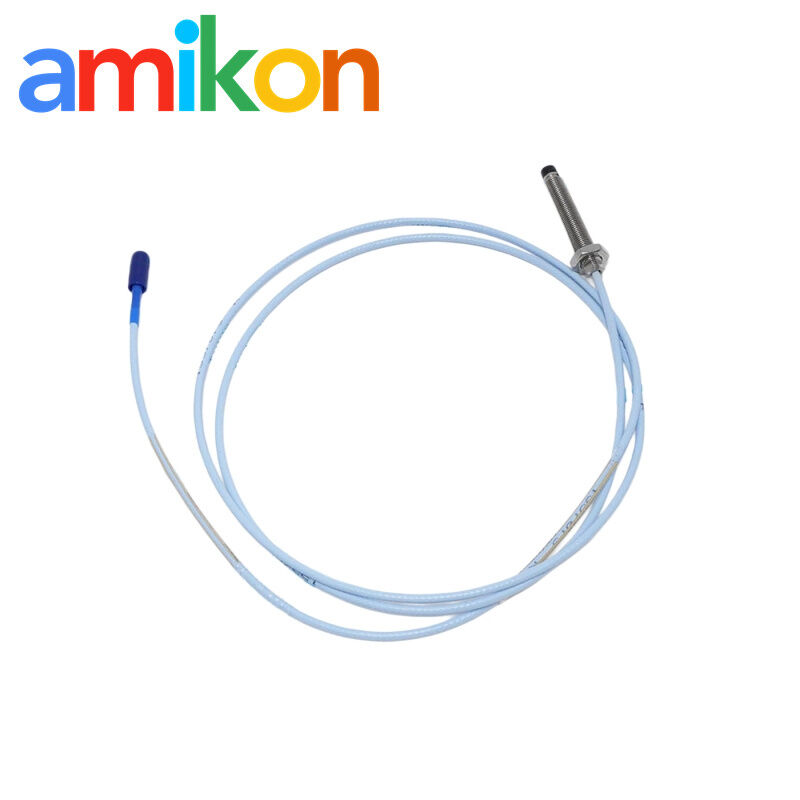

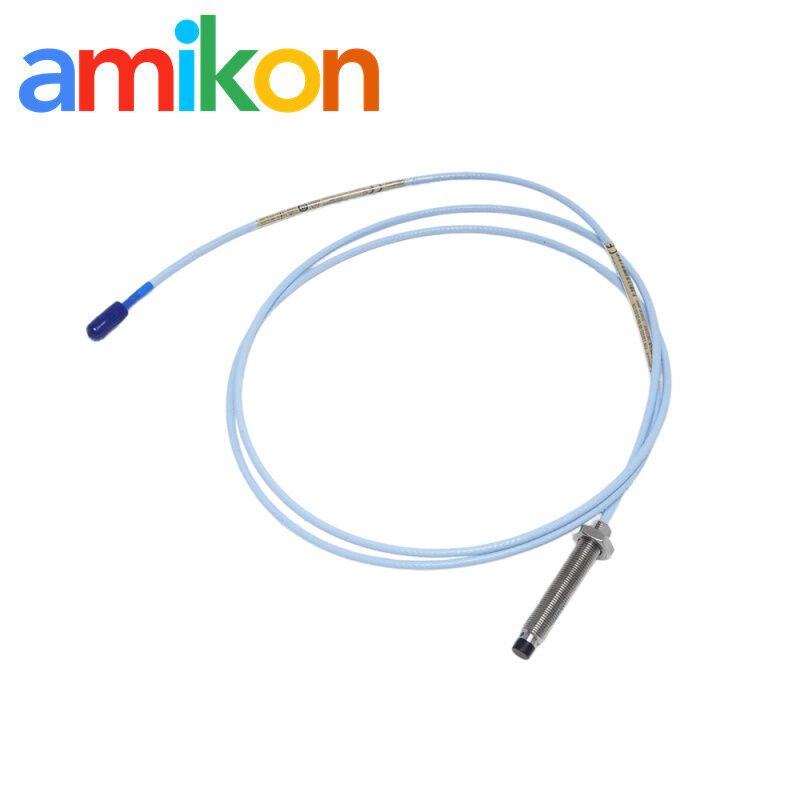

Bently Nevada 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe with API 670 Compliance and Miniature ClickLoc Connector

Bently Nevada 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe with API 670 Compliance and Miniature ClickLoc Connector

Bently Nevada 330103 3300 XL extension cable

3300 XL 8mm Probe steam turbine vibration loop

330103-00-06-15-02-CN eddy current sensor

Place of Origin:

USA

Brand Name:

Bently Nevada

Model Number:

330103-00-06-15-02-CN

Contact Us
Request A Quote
Product Details
Model:
330103-00-06-15-02-CN
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:

Bently Nevada 330103 3300 XL extension cable

,

3300 XL 8mm Probe steam turbine vibration loop

,

330103-00-06-15-02-CN eddy current sensor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
Bently Nevada 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe
Applications
Bently Nevada 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe with API 670 Compliance and Miniature ClickLoc Connector 0
  • Steam Turbines: continuous monitoring of radial shaft vibration, axial thrust position, rotor eccentricity — this part basically stays the core use case for 330103-00-06-15-02-CN in turbine protection loops, especially where stability matters under long-running load conditions
  • Gas Turbines: used in real-time protection systems, tied into emergency shutdown logic when vibration or displacement goes out of range, nothing fancy but very critical in operation safety
  • Hydro Turbines: mainly for shaft swing detection, runner clearance tracking, and structural displacement measurement, usually in wet and high-load environments where mechanical shift is slow but continuous
  • Centrifugal and Axial Compressors: helps with bearing wear monitoring and surge control in oil & gas systems, especially in compressor trains running 24/7
  • Industrial Fans and Blowers: vibration monitoring for imbalance and misalignment, common setup in large ventilation or process airflow systems
  • Boiler Feed Pumps (high pressure): thrust position + shaft vibration monitoring, basically protecting pump stability under high pressure cycling
  • Electric Motors / Generators: air gap monitoring and rotor dynamic tracking, used to avoid long-term degradation and unexpected shutdowns in power units
  • System Compatibility: works with Bently Nevada 3500/40M and 3500/42M rack modules, also fits into existing 3500 system architecture without much adjustment
  • Hazardous Environments: CN certified for use in hazardous zones, suitable for explosive or high-risk industrial areas where safety certification is required
Bently Nevada 330103-00-06-15-02-CN 3300 XL 8 mm Proximity Probe with API 670 Compliance and Miniature ClickLoc Connector 1
Technical Specifications
What are the main physical dimensions of the 330103-00-06-15-02-CN proximity probe?
M10×1 thread, nothing special on the unthreaded part (basically 0 mm). Body length sits around 60 mm, more or less. Cable is 1.5 m integrated type, around 4.9 ft, ending with a ClickLoc coax connector.
Which vibration monitoring systems are compatible with the 330103-00-06-15-02-CN?
It’s for Bently Nevada 3500 system use, mainly 3500/40M and 3500/42M modules. In most real setups you won’t see it running standalone — there’s usually a 3300 XL extension cable in the loop as well. System length ends up being either 5 m or 9 m, depending on how the machine is actually wired, not just theory.
What specific machinery parameters does the 330103-00-06-15-02-CN measure?
Eddy current, non-contact style. It picks up radial vibration, axial thrust position, shaft eccentricity, and structural displacement. This kind of probe is commonly used in API 670 monitoring systems, especially steam turbines and centrifugal compressors where shaft condition changes gradually but must be tracked continuously.
What does the "CN" suffix indicate in the 330103-00-06-15-02-CN part number?
CN basically points to China certification. It means the unit is cleared for local hazardous area use and meets intrinsic safety requirements. In practice, it’s more about site approval and compliance sign-off than anything else.
What is the scale factor and output performance of the 330103-00-06-15-02-CN probe system?

With a 3300 XL Proximitor sensor, the output is 7.87 V/mm (200 mV/mil), linear response. This signal is what the monitoring system uses for alarms and protection logic, and sometimes it feeds into shutdown actions if vibration goes beyond the limit.
