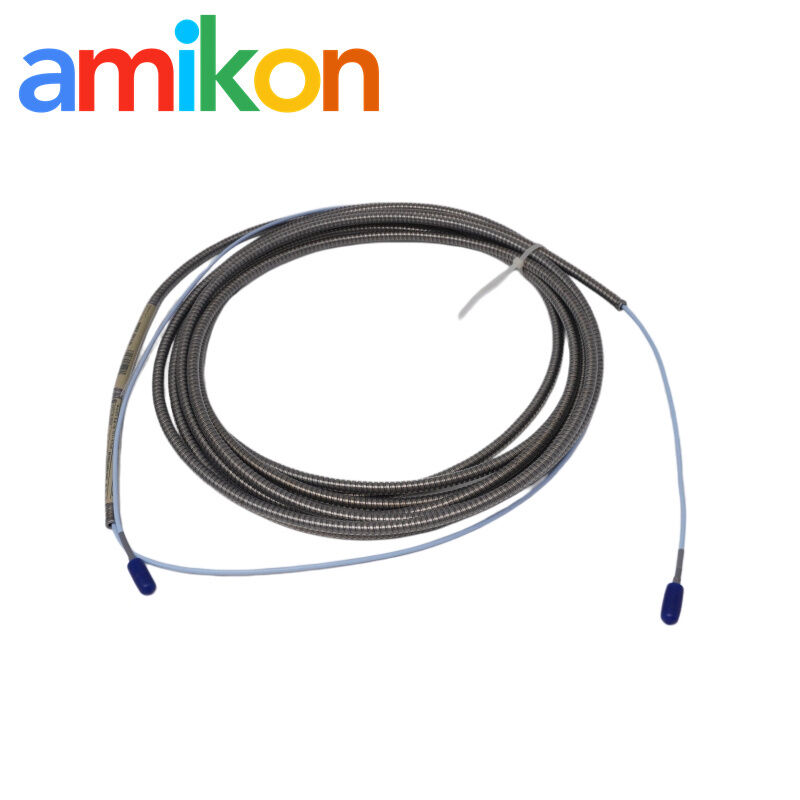

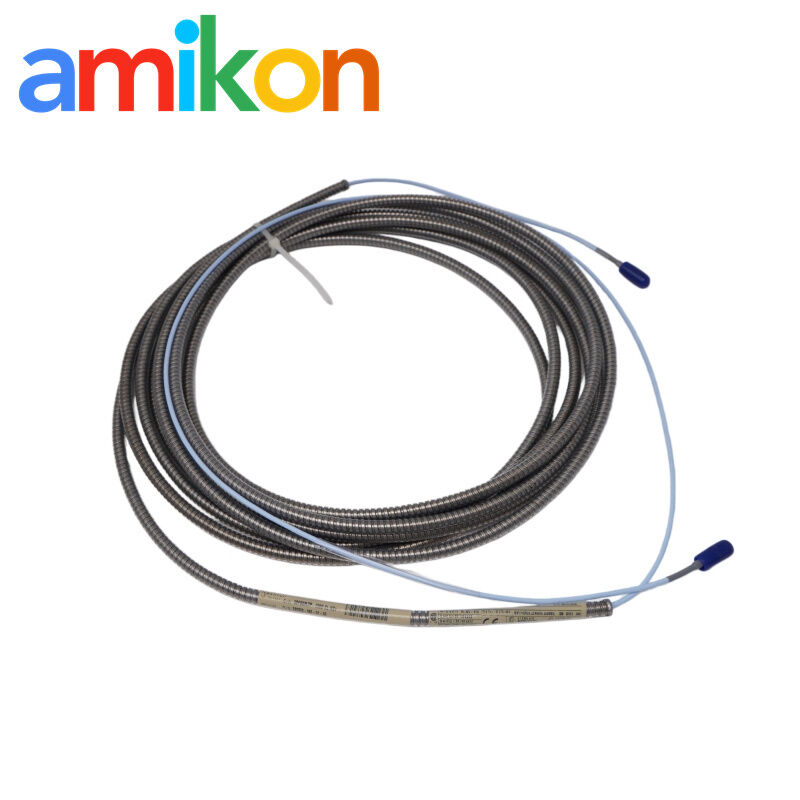

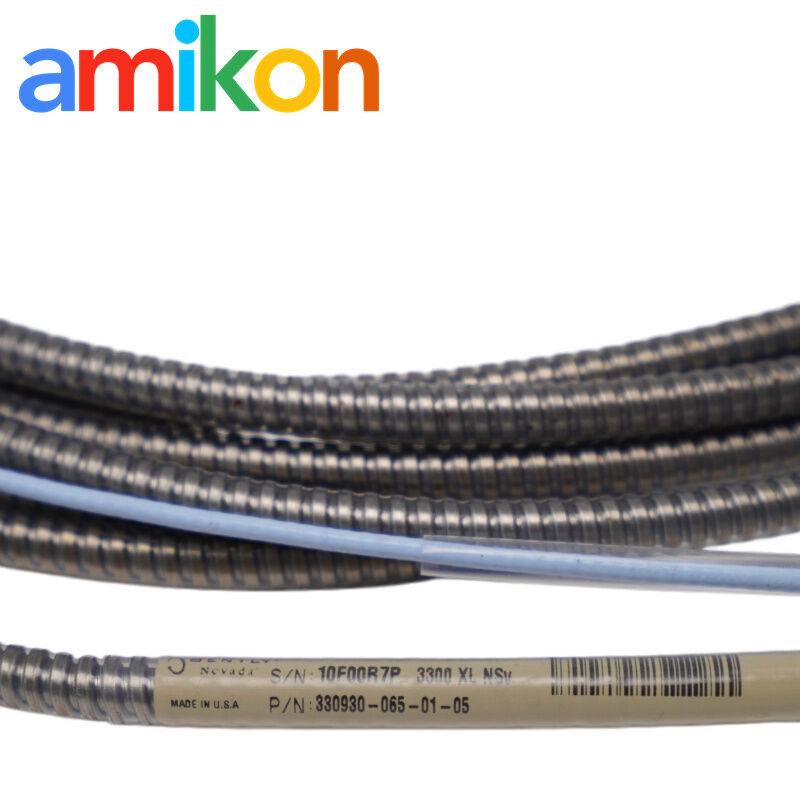

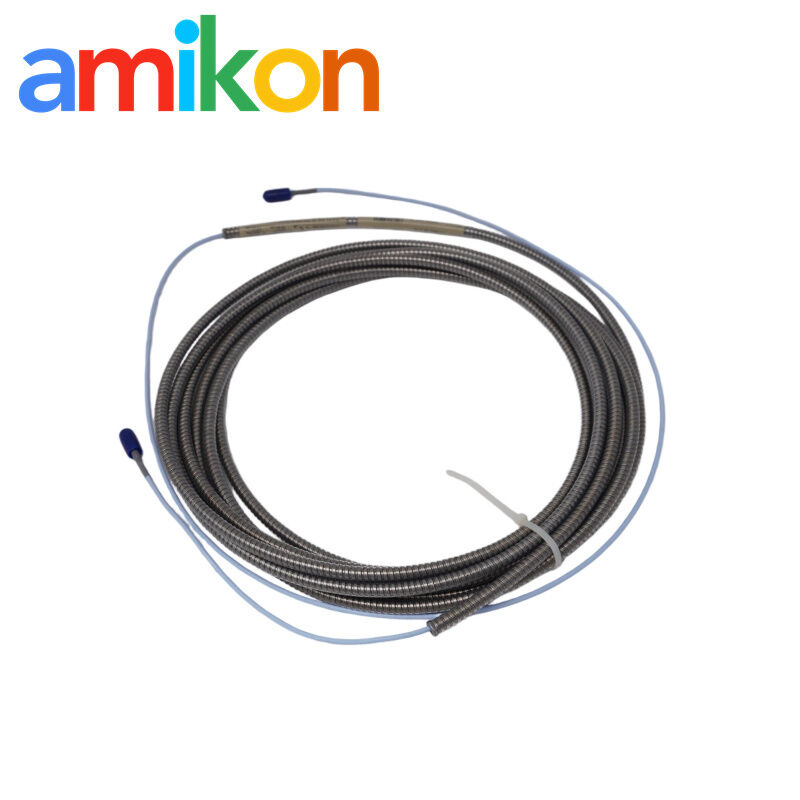

Bently Nevada 330930-065-01-05 6.5 Metres Proximity Transducer Extension Cable with Stainless Steel Armor and FEP Jacket
Bently Nevada 330930-065-01-05 6.5 Metres Proximity Transducer Extension Cable with Stainless Steel Armor and FEP Jacket
330930-065-01-05 Extension Cable 3300 XL NSv Proximity Transducer System
Bently Nevada 330930 radial vibration measurement
3300 NSv Extension Cable 6.5m ClickLoc coaxial connector
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330930-065-01-05
Contact Us
Request A Quote
Product Details
Model:
330930-065-01-05
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
330930-065-01-05 Extension Cable 3300 XL NSv Proximity Transducer System
,Bently Nevada 330930 radial vibration measurement
,3300 NSv Extension Cable 6.5m ClickLoc coaxial connector
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330106-05-30-05-02-CN 3300 XL 8mm Reverse Mount Proximity Probe - API 670 Compliant Eddy Current Sensor
Get Best Price
video
Bently Nevada 330103-03-06-05-02-00 3300 XL 8 mm Proximity Probe with M10 x 1 Metric Thread and API 670 Compliance
Get Best Price
Contact Us
Contact Now
Product Description
Bently Nevada 330930-065-01-05 3300 XL NSv Proximity Transducer Extension Cable
| Parameter / Item | Technical Data (330930-065-01-05) |
|---|---|
| Manufacturer / Series | Bently Nevada / 3300 NSv System |
| Full Part Number | 330930-065-01-05 |
| Total Cable Length (065) | 6.5 Metres (Approx. 21.3 feet) |
| Mechanical Protection (01) | Stainless Steel Armor |
| Outer Cable Jacket (01) | FEP (Fluorinated Ethylene Propylene) |
| Agency Approvals (05) | Multiple Hazardous Area Approvals |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Miniature coaxial (ClickLoc design) |
| System Compatibility | 3300 NSv Proximity Probe & Proximitor |
Partnering with Amikon
- Fast Delivery: We usually keep a solid stock of critical parts, so you don’t really have to wait for long factory lead times when something urgent comes up in maintenance.
- Technical Precision: Everything supplied is 100% genuine original hardware, matched to the required system specifications — nothing mixed, nothing questionable.
- Cost Efficiency: And because of our global sourcing setup, pricing tends to stay competitive, plus shipping is handled in a way that helps reduce unexpected downtime as much as possible.
Get a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Frequently Asked Questions
Q1: What are the exact physical and material specifications of the Bently Nevada 330930-065-01-05 extension cable?
A1: The Bently Nevada 330930-065-01-05 is a 6.5m extension cable used in the 3300 XL NSv Proximity Transducer System. You will usually see it working together with a 3300 NSv Proximity Probe for radial vibration measurement and other machinery monitoring jobs.
This version uses a 75Ω coaxial cable design for stable eddy current signal transmission. The “01” option means FEP jacket insulation with a stainless steel armor cable, so it is generally a better fit for rough industrial conditions. A ClickLoc coaxial connector is also included to keep signal connection stable when vibration levels are high.
As for the “05” code, that mainly relates to international approvals for hazardous area instrumentation.
Q2: How is the 330930-065-01-05 cable matched within a 3300 NSv transducer system to prevent calibration errors?
A2: This part matters more than many users expect. A 330930-065-01-05 Extension Cable has a fixed length of 6.5 meters, and it is normally matched with a 0.5m 330901 probe or 330902 probe.
Together, they make the standard 7-meter system length required by the 3300 XL NSv Proximitor Sensor. If probe length changes, calibration can drift. For axial position monitoring or radial vibration measurement, the signal may start looking off even when the sensor itself seems fine.
Q3: What are the critical environmental and mechanical installation limits for the extension cable?
A3: The cable is fairly rugged, though installation still needs some care. Minimum bend radius is 25.4 mm (1 inch). Bending it too tightly can affect impedance and sometimes introduce signal noise.
Thanks to the FEP jacket insulation and armored construction, operating temperature is roughly -51°C to +177°C. In a machinery protection system, installers usually insulate connectors when routing through conduit or junction boxes to avoid grounding issues.
Q4: Why is the 330930-065-01-05 configuration preferred over unarmored versions in critical asset protection?
A4: In real plant environments, armored cable usually survives longer. Around industrial rotating machinery or a centrifugal air compressor, cables can get pinched or hit during maintenance. The stainless armor helps protect the inner coaxial cable, which matters because even small signal issues can affect vibration monitoring. That is one reason this version is often used with a 3500/40M Proximitor Monitor or inside a Bently Nevada 3500 rack module.
Q5: What electrical parameters should be checked during loop verification of the 330930-065-01-05 extension cable?
A5: During maintenance, technicians generally check center conductor-to-shield resistance and insulation resistance. A healthy cable should show an open circuit between center and shield, while insulation resistance to ground is usually expected to stay above 50 megohms. If readings start dropping, moisture, connector contamination, or damage to the FEP jacket insulation is often the first thing to check.
Compatible Parts Reference
| Part Number | Compatible With |
|---|---|
| 3500/42E | 330910-03-09-05-02-05 |
| 3500/50E | 330709-000-070-10-02-00 |
| 330101-30-63-10-02-00 | 3500/61 163179-02 |
| 330130-035-00-CN | 1900/65A 172323-01/1900/65A 167699-02 |
| 330130-035-01-CN | 3500/15 106M1079-01 |
| 330130-045-01-CN | 3500/65 145988-02 |
| 330104-00-07-05-02-00 | 3500/92 136180-01 |
| 330130-085-01-00 | 3500/94 145988-01 |
| 40113-02 | 330104-00-10-10-02-05 |
| 330130-035-00-00 | 330910-00-05-10-02-00 |
| 330130-040-00-CN | 3500/44M 176449-03 |
| 84661-50 | TK3-2E 14700-02A |
| 330130-045-03-05 | 3500/42M 140734-02 |
| 330703-000-060-10-02-00 | 3500/92 |
| 106M1081-01 | 330103-00-05-10-02-00 |
| 3500/42M 176449-02 | 330703-000-060-10-02-00 |
| 3500/15 AC 127610-01 | 330103-00-09-10-02-00 |
| 128276-01E 131151-01 | 135813-01 |
| 18745-04 | 990-05-XX-01-00 |
| 330102-22-58-10-02-00 | 330180-X1-05 MOD:145004-02 |
