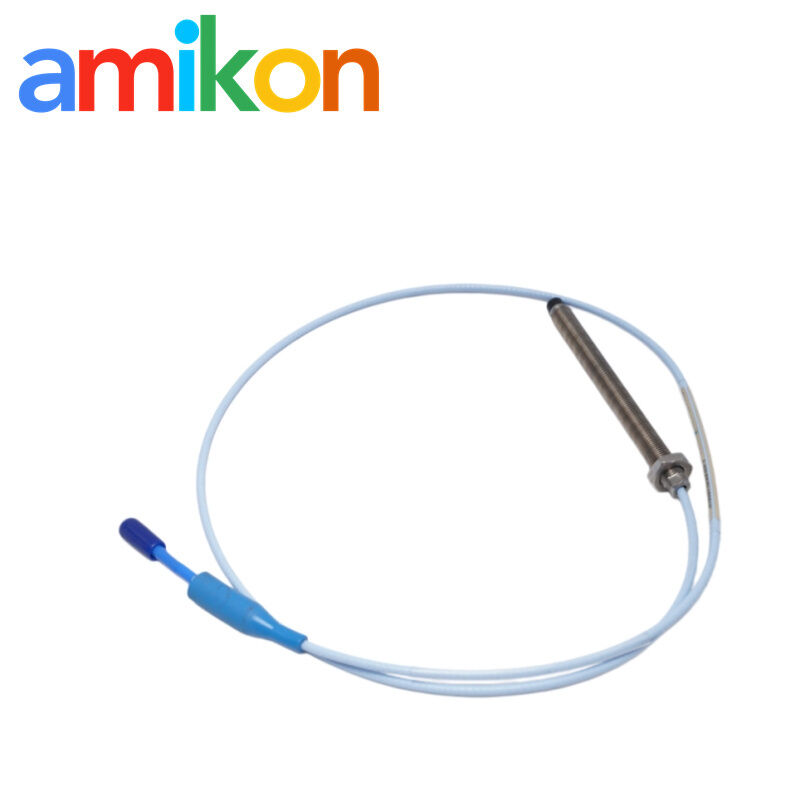

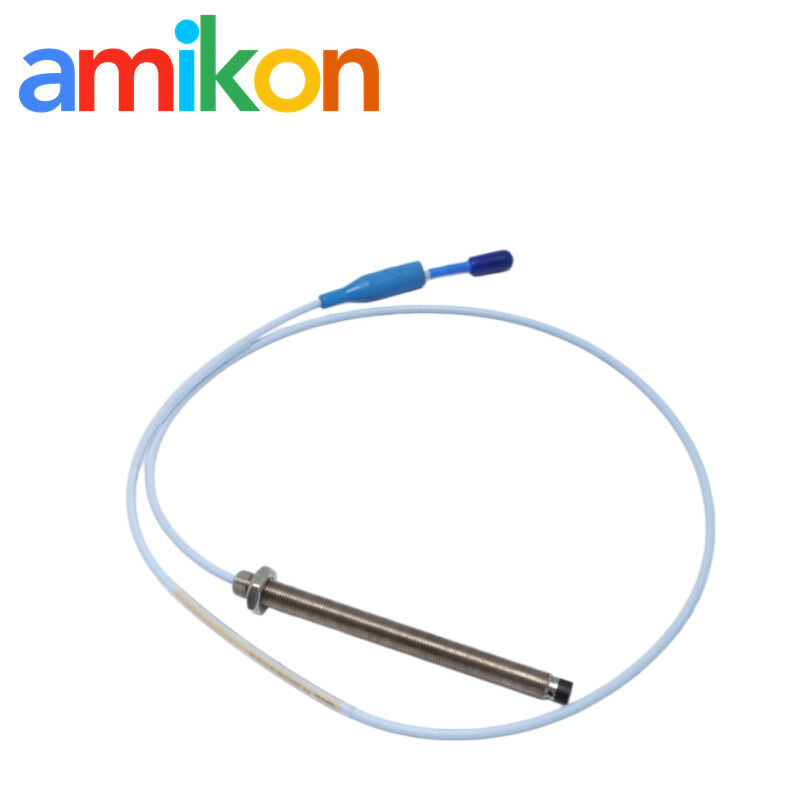

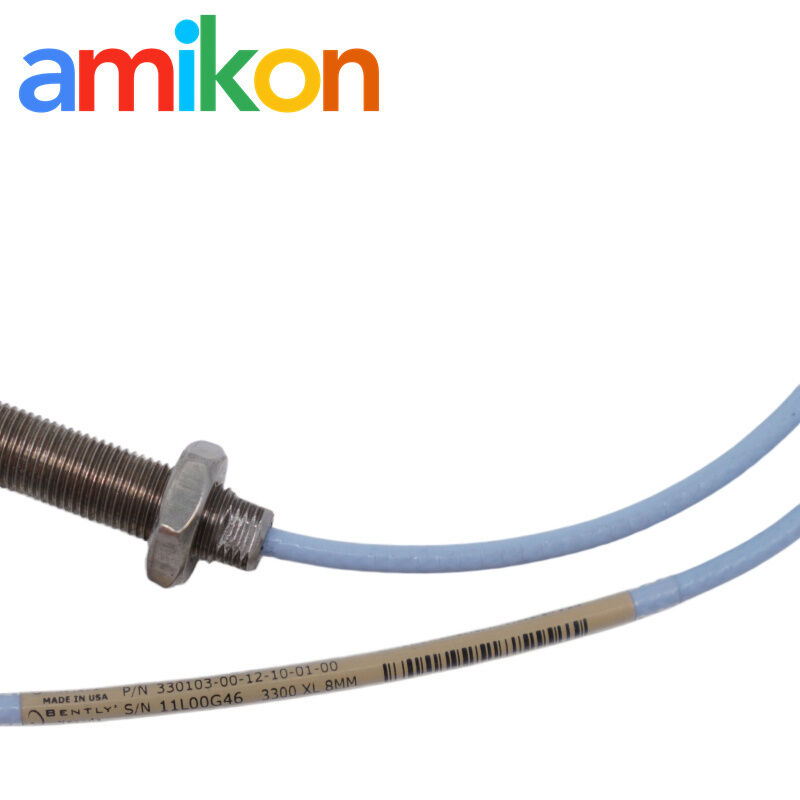

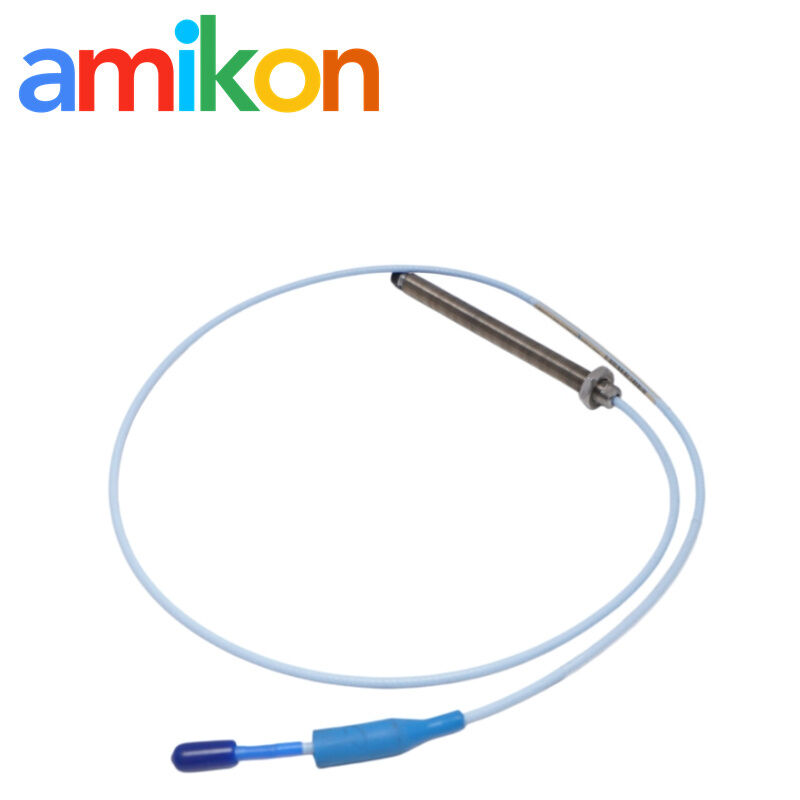

Bently Nevada 330103-00-12-10-01-00 8 mm API 670 Compliant Proximity Probe with M10 x 1 Metric Thread
Bently Nevada 330103-00-12-10-01-00 8 mm API 670 Compliant Proximity Probe with M10 x 1 Metric Thread
3300 XL 8mm Proximity Probe steam turbine vibration loop
shaft vibration measurement non-contact position sensing
fluid-film bearing monitoring 3300 XL Proximitor sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330103-00-12-10-01-00
Contact Us
Request A Quote
Product Details
Model:
330103-00-12-10-01-00
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
3300 XL 8mm Proximity Probe steam turbine vibration loop
,shaft vibration measurement non-contact position sensing
,fluid-film bearing monitoring 3300 XL Proximitor sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330878-50-00 3300 XL Proximitor Sensor with 27.9 mm Linear Range, 5.0-Metre Panel-Mount System, and API 670 Compliance
Get Best Price
video
Bently Nevada 330101-10-27-05-02-05 3300 XL 8 mm Proximity Probe with Hazardous Area Certification and API 670 Compliance
Get Best Price
Contact Us
Contact Now
Product Description
Bently Nevada 330103-00-12-10-01-00 3300 XL 8mm Proximity Probe
Product Overview
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-12-10-01-00 |
| Product Series | 3300 XL 8mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 metric thread |
| Unthreaded Length (00) | 0 mm |
| Overall Case Length (12) | 120 mm |
| Total Cable Length (10) | 1.0 metre (3.3 feet) |
| Connector Type (01) | Miniature coaxial ClickLoc with connector protector |
| Agency Approval (00) | No approvals (Standard version) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 304 stainless steel (SST) |
| Target Material | AISI 4140 steel |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temp | -51 °C to +177 °C (-60 °F to +350 °F) |
Key Features
- Premium Eddy Current Displacement Technology - Utilizes advanced eddy current technology for precise, non-contact position and shaft vibration measurement. It delivers high-accuracy performance even under the most demanding industrial environments.
- Fully API 670 Compliant Performance - Engineered to strict industry standards, providing a linear range of 2.0 mm (80 mils) and a precise scale factor of 7.87 V/mm (200 mV/mil). It is perfectly optimized for critical asset condition monitoring.
- Secure ClickLoc Coaxial Connector with Protector - Equipped with a miniature coaxial ClickLoc connector and an integrated connector protector. This design ensures maximum signal integrity and prevents moisture or dust ingress at the cable joint.
- Rugged M10x1 Metric Thread Housing - Features a robust 120 mm overall case length made of AISI 304 stainless steel and a high-durability PPS tip. It offers excellent resistance against corrosive oils and harsh chemicals in fluid-film bearings.
- Seamless 3300 XL & 3500 System Integration - Acts as a direct, drop-in replacement sensor within the 3300 XL 8mm transducer series. It integrates flawlessly with 3300 XL Proximitor sensors, 3500/40M monitors, and the newer Orbit 60 systems.
- Engineered for Critical Rotating Machinery Protection - An ideal solution for predictive maintenance and emergency shutdown systems (ESD) on critical assets. It excels in monitoring steam turbines, gas turbines, centrifugal compressors, and hydroturbines.
Applications
- Critical Industrial Rotating Machinery Protection - In real plants, this kind of probe is basically sitting there all the time watching rotating machines. It’s used for continuous asset condition monitoring on high-speed equipment, the kind where you really don’t want surprises. Helps prevent serious mechanical failure and usually ties into emergency shutdown systems (ESD) when things start going out of range.
- Shaft Vibration & Thrust Position Monitoring - It picks up shaft vibration and axial thrust movement inside fluid-film bearings. What you get is a live picture of radial vibration and displacement. From there, issues like unbalance, misalignment, shaft eccentricity or even oil whirl can be caught early, not after damage shows up.
- Steam and Gas Turbine Instrumentation - In turbine setups, especially steam or gas types, it tracks things like casing expansion, differential expansion, and shaft centerline position. These are not small changes—under high load and temperature, even slight shifts matter a lot in operation stability.
- Centrifugal and Axial Compressor Defense - For compressors, it’s more about rotor dynamics at higher frequencies. The probe keeps an eye on shaft position and vibration patterns, helping operators avoid surge conditions or aerodynamic instability that can get expensive pretty fast.
- Hydroturbine and Large Generator Tracking - In hydropower or big generator units, things move slower but heavier. It monitors low-frequency rotor movement, structural deflection, and alignment drift. Basically useful for large utility assets where mechanical mass is high and changes are gradual but critical.
- API 670 Compliant Machinery Protection - Designed to fit API 670 compliant systems, so it can be used in regulated oil, gas, and chemical environments. The 7.87 V/mm scale factor requirement is supported, so it integrates without issues into standard protection architecture.
- Bently Nevada 3500 Rack System Integration - Works with the Bently Nevada 3500 system setup. The signal goes into 3500/40M Proximitor monitors and 3500/42M displacement cards. So it’s not standalone—it’s part of the full rack-based monitoring chain.
- Predictive Maintenance Data Collection - Output is a clean non-contact gap voltage signal, feeding into plant condition monitoring systems. Usually used for predictive maintenance planning, so operators can schedule overhauls ahead of time instead of reacting after downtime happens.
General Questions
Q: What does Amikon do?
A: We supply original PLC, DCS, and TSI spare parts to factories worldwide. If you need heavy industry components like the Bently Nevada 330878-50-00, we can source them quickly to keep your plant running.
Q: Are the parts brand new?
A: Yes, everything we ship is 100% brand new and factory-sealed. All parts come with our standard warranty and full tracking.
Q: How fast can you ship?
A: We keep a large inventory of major industrial brands in our own warehouse. This means we can pack and ship your orders immediately, cutting down your waiting time from weeks to days.
Q: Why get a quote from us?
A: You deal with a professional team, get wholesale prices, and receive real-time updates on your shipment. We help you cut procurement costs without risking quality.
Technical Questions
Q: What are the exact physical and mechanical dimensions of the Bently Nevada 330103-00-12-10-01-00 proximity probe?
A: The 330103-00-12-10-01-00 is basically an 8 mm probe tip design, with an M10 × 1 metric thread. In real use, people usually just refer to it as part of the 3300 XL 8mm Proximity Probe series. The coding does carry the mechanical details inside it: the “-12” points to an overall case length of around 120 mm, while the “-10” indicates a 1.0 meter integral cable. The “-01” version comes with a ClickLoc coaxial connector and connector protector. The “-00” parts in the code generally mean standard configuration, no special modifications on the case length or approvals side.
Q: Which monitoring systems and components are fully compatible with the 330103-00-12-10-01-00 sensor?
A: This probe is not meant to work alone. It sits inside the full 3300 XL transducer system. Normally it’s paired with a matching 3300 XL Proximitor Sensor plus a 3300 XL extension cable. Depending on setup, total system length is built to either 5 m or 9 m. On the system side, it feeds directly into Bently Nevada 3500 rack protection hardware, especially the 3500/40M Proximitor Monitor and 3500/42M displacement card. In practice, it becomes one of the front-end inputs in a full machinery protection loop.
Q: What are the primary machinery monitoring applications for the 330103-00-12-10-01-00 eddy current probe?
A: The 330103-00-12-10-01-00 is mainly used for non-contact measurement of shaft vibration and displacement in fluid-film bearing machines. You’ll see it on radial vibration monitoring, axial thrust position tracking, and also for detecting shaft eccentricity or misalignment. It’s pretty common in steam turbines, gas turbines, centrifugal compressors, and high-pressure pumps. In those environments, even small changes in shaft movement can tell you a lot about early-stage mechanical issues.
Q: Does the 330103-00-12-10-01-00 probe comply with standard API 670 requirements for critical plant asset protection?
A: Yes, when it’s used as part of a complete 3300 XL system, it aligns with API 670 requirements. The system supports the standard 2.0 mm (80 mils) linear range and the 7.87 V/mm (200 mV/mil) scale factor, which is the typical reference used in machinery protection setups.With an AISI 4140 steel target, it’s suitable for protection loops in ESD systems and also fits well into predictive maintenance configurations in oil, gas, and chemical plants.
Q: What are the temperature limits and environmental specifications for the 330103-00-12-10-01-00 probe tip and cable?
A: The probe is built for harsh industrial conditions. The body uses AISI 304 stainless steel, and the tip is made from high-durability PPS material. In terms of temperature, both the probe and cable can handle roughly -51 °C up to +177 °C (-60 °F to +350 °F). That range makes it stable enough for hot turbine zones and general industrial lubrication environments, including exposure to typical machine oils and chemicals.
Related Parts
| Part Number | Part Number |
|---|---|
| 990-04-50-02-00 | 330103-07-12-10-02-00 |
| 81545-01 | 330104-01-05-10-02-00 |
| 82926-01 | 330703-050-120-10-02-00 |
| 84140-01 | 330709-050-120-10-02-00 |
| 84145-01 | 76686-040-01 |
| 84152-01 | 81305-040-00 |
| 330103-00-04-10-02-05 | 135489-04 |
| 330730-040-03-00 | 128031-01C 128031-01 |
| 330104-00-25-10-02-05 | 330904-05-14-05-02-00 |
| 330103-00-07-20-02-00 | 330930-040-00-00 |
| 126599-01 | 330909-00-60-10-02-05 |
| 990-04-70-01-00 | 21000-16-10-15-057-03-02 |
| 330103-00-15-05-01-00 | 21000-16-10-15-102-03-02 |
| 330905-00-10-10-02-00 | 21000-16-10-15-114-03-02 |
| 991-06-50-01-00 | 21000-16-10-15-144-03-02 |
| 330103-00-15-10-02-00 | 991-01-XX-01-CN |
| 1X35668 | 3500/93 135799-02 |
| 330103-02-07-10-02-00 | 22810-00-10-10-02 |
| 330103-02-12-10-02-00 | 330193-00-05-10-00 |
| 330103-05-13-10-02-00 | 330103-02-12-05-02-CN |
