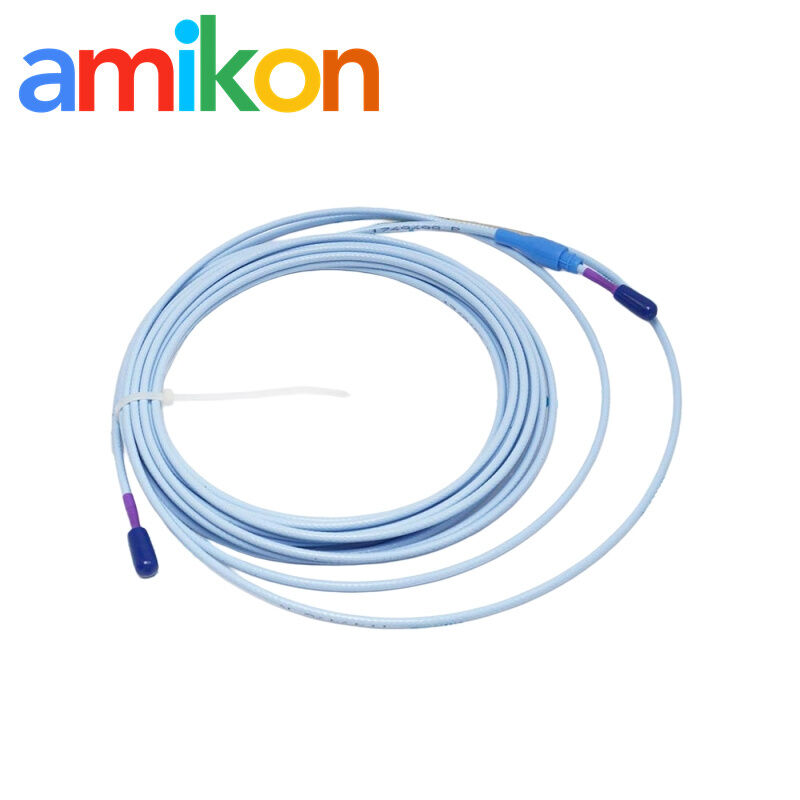

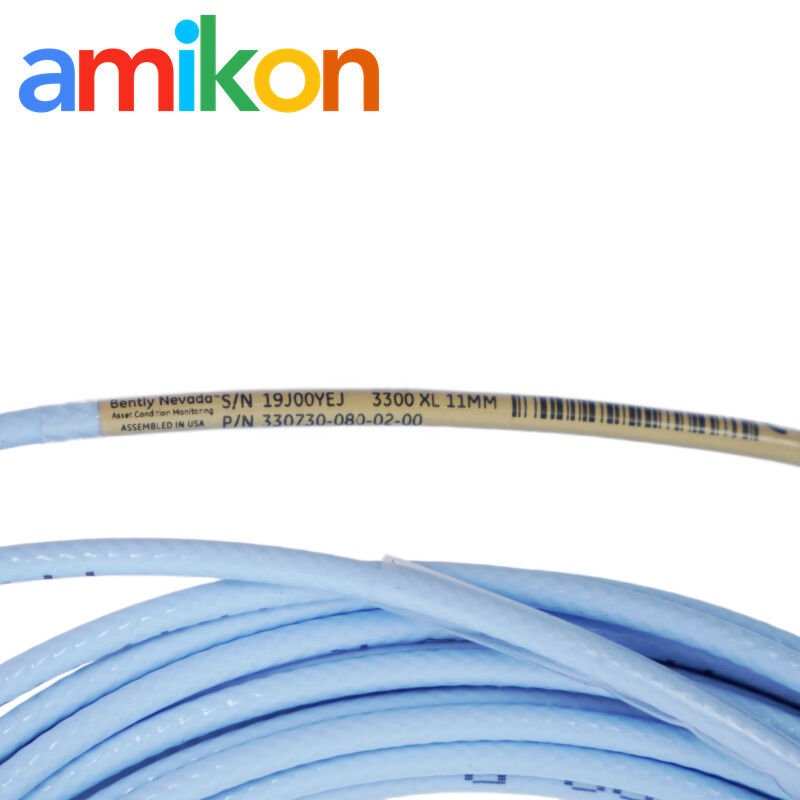

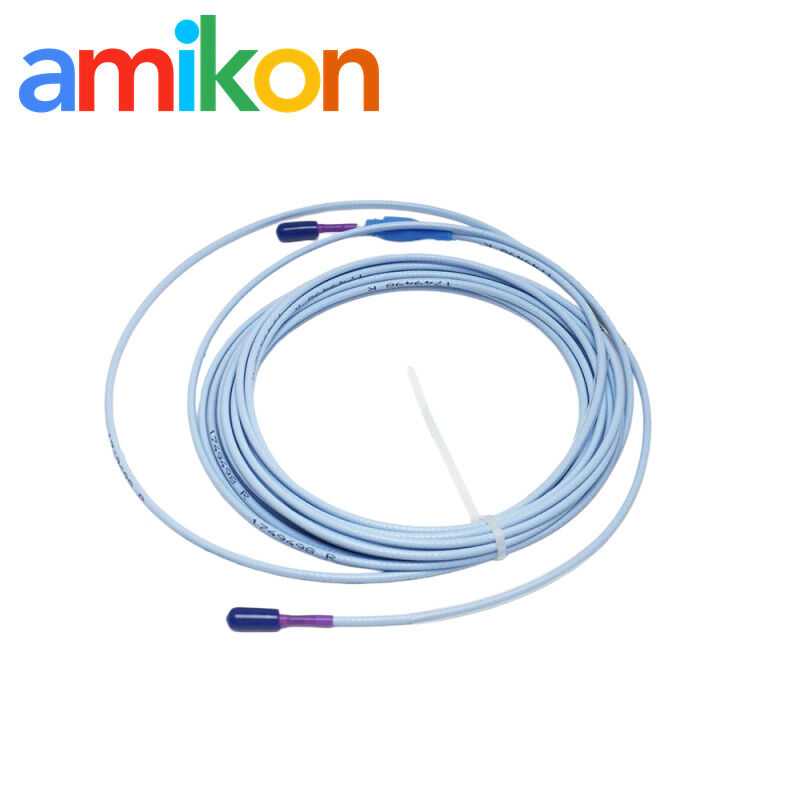

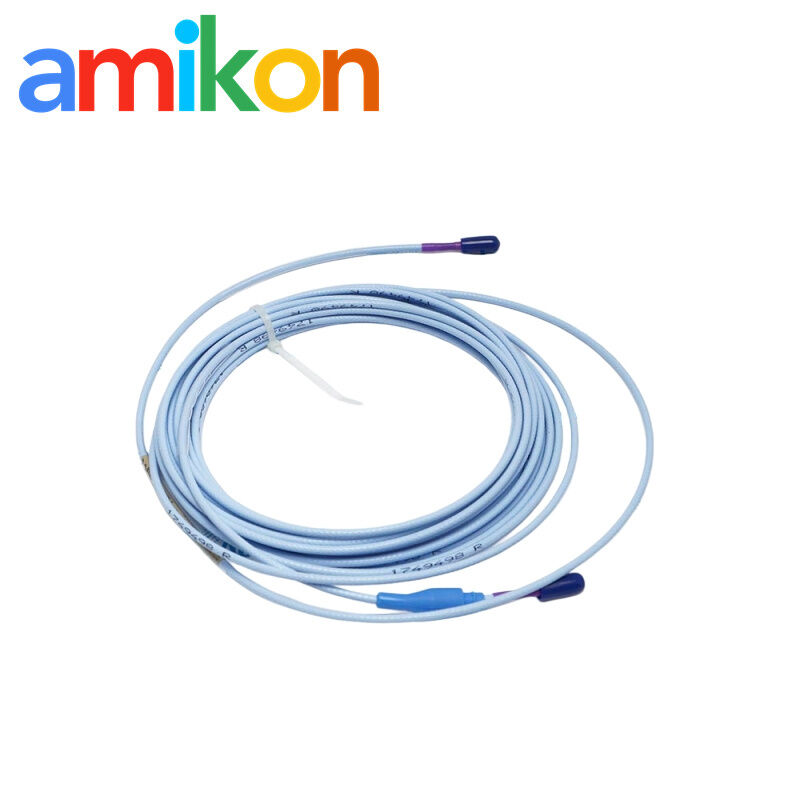

Bently Nevada 330730-080-02-00 3300 XL 8.0 Meters Extension Cable with ClickLoc™ Connector for API 670 Compliant Systems
Bently Nevada 330730-080-02-00 3300 XL 8.0 Meters Extension Cable with ClickLoc™ Connector for API 670 Compliant Systems
3300 XL 11 mm Extension Cable Bently Nevada 330730
radial vibration monitoring axial displacement measurement
steam turbine vibration monitoring Bently Nevada 3500/40M monitor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330730-080-02-00
Contact Us
Request A Quote
Product Details
Model:
330730-080-02-00
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Estimated Shipping Size:
20x20x2cm
Weight:
0.28 Kg
Highlight:
3300 XL 11 mm Extension Cable Bently Nevada 330730
,radial vibration monitoring axial displacement measurement
,steam turbine vibration monitoring Bently Nevada 3500/40M monitor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330173-00-18-10-02-05 3300 5mm Proximity Probe with API 670 Standard and ATEX/IECEx/CSA Certification for Precision Displacement Sensing
Get Best Price
video
Bently Nevada 330104-13-20-10-02-00 8 mm Proximity Probe with API 670 Compliance and ClickLoc Miniature Coaxial Connector
Get Best Price
Contact Us
Contact Now
Product Description
Bently Nevada 330730-080-02-00 3300 XL 11 mm Extension Cable
Product Overview
| Parameter | Core Specifications |
|---|---|
| Model (330730) | 3300 XL 11 mm Extension Cable |
| Part Number | 330730-080-02-00 |
| Manufacturer | Bently Nevada |
| Cable Length (080) | 8.0 meters (26.2 ft) |
| Connector Option (02) | With connector protectors |
| Agency Approval (00) | No approvals |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +350 °F) |
| System Linear Range | 4 mm (160 mils) *Requires matching 3300 XL 11mm probe and Proximitor |
Contact Information
Key Features
- Genuine Bently Nevada 3300 XL Spares - basically a 100% original replacement for the 3300 XL 11 mm Proximity Transducer System. In real field use, it’s the kind of cable people rely on when machinery condition monitoring can’t afford noise or signal drift, especially on critical rotating assets.
- 8.0-Meter High-Grade Coaxial Cable (080) - comes in a fixed 8.0 m (26.2 ft) length. This isn’t just a random cut, the electrical length is tuned for radial vibration monitoring and axial displacement measurement, so the signal stays consistent across longer routing inside the skid or turbine housing.
- Interlocking ClickLoc™ Connector with Protectors (02) - uses gold-plated brass ClickLoc™ connectors, and yes, it includes the standard connector protector sleeves. Sounds simple, but in practice it helps avoid oil ingress and those small mechanical hits at the connection point that usually cause intermittent issues later on.
- Advanced Machinery Protection (API 670 Compliant) - works in continuous data transmission to the Bently Nevada 3500/40M monitor, fitting into an API 670 compliant machinery system. Usually used in setups where machinery protection system integrity is non-negotiable, like plant-wide monitoring racks.
- Built for Industrial Rotating Machinery Applications - you’ll typically see this in steam turbine vibration monitoring, gas turbine asset protection, and centrifugal compressor safety systems. Basically anything running hot, heavy, and nonstop in power plant instrumentation or industrial condition monitoring environments.
- Non-Contacting Fluid-Film Bearing Monitoring - designed to pair with 330701 / 330703 proximity probe setups and Proximitor sensor systems. It handles shaft eccentricity and differential expansion measurement without physical contact, so wear is not really a concern over long cycles.
- Excellent Harsh-Environment Reliability - rated for around -51 °C to +177 °C operating range. In the field this matters more than it sounds, especially where vibration transducer cable runs through heat zones, oil mist areas, or enclosed turbine compartments.
Applications
- Critical Rotating Machinery Protection - basically a core element inside machinery protection systems (MPS) for large industrial rotating assets. In real applications, it sits in the background doing early fault detection, catching abnormal trends before they turn into something serious like catastrophic mechanical failure. Not flashy, but very essential in continuous monitoring setups.
- Steam and Gas Turbine Monitoring - commonly used in steam turbine monitoring and gas turbine protection environments. Rotor dynamics change fast, especially under high temperature conditions, so the signal stability matters more than people expect. Usually this cable runs as part of a full protection chain rather than a standalone piece.
- Centrifugal Compressor Safety - widely applied in centrifugal compressor monitor systems, especially in oil & gas and petrochemical plants. The signal transmission needs to stay clean and consistent, otherwise the interpretation of process line behavior can drift. In practice, this part is often treated as a “don’t touch unless necessary” component in the loop.
- Fluid-Film Bearing Condition Assessment - designed for fluid-film bearing condition monitoring where real-time data matters. It supports radial vibration monitoring and thrust position measurement directly from shaft behavior. Basically, it helps turn mechanical movement into readable signals without physical contact, so wear isn’t really part of the equation.
- Shaft Motion and Alignment Tracking - used for shaft eccentricity monitor and differential expansion monitor systems. It’s more about catching early signs of rotor unbalance or misalignment. In many cases, small deviations show up here first before anything becomes visible elsewhere in the system.
- Power Plant Instrumentation - fits into power plant instrumentation setups as a stable signal link inside control rooms and emergency shutdown systems (ESD). It’s often part of a larger architecture focused on grid uptime and overall plant reliability, not just individual machine health.
- API 670 Compliant System Integration - built around API 670 compliant system requirements, bridging 330701 / 330703 proximity probes with the Bently Nevada 3500/40M 4-channel monitor module. In simple terms, it’s the connection layer that keeps measurement data flowing consistently through the machinery protection system.
Frequently Asked Questions
Q1: What is the primary function of the Bently Nevada 330730-080-02-00 in a machinery protection system?
A: It’s basically just an 11 mm extension cable in the 3300 XL system. It sits between the proximity probe and the Proximitor sensor, carrying the eddy-current signal through. Mostly used for radial vibration monitoring, axial displacement measurement, and shaft eccentricity monitoring. Nothing complicated, but in practice, if this cable is not stable, the whole signal chain can get affected.
Q2: What do the specific numbers in the part number 330730-080-02-00 mean?
A: Once you’re familiar with Bently part numbers, it’s actually quite easy. 330730 = 3300 XL 11 mm extension cable. 080 = 8.0 meters (about 26 ft). 02 = it includes connector protectors for the ClickLoc™ connectors. 00 = standard version, no special approvals or add-ons.
Q3: Is the 330730-080-02-00 cable compatible with an API 670 compliant system?
A: Yes, it’s widely used in API 670 compliant system setups. It usually works inside a machinery protection system (MPS), sending clean signals to modules like the Bently Nevada 3500/40M monitor. In simple terms, it just helps keep measurement signals stable in industrial rotating machinery monitoring.
Q4: Why does the 330730-080-02-00 include the "02" option for connector protectors?
A: The “02” means the connectors come with protective sleeves. It’s a small detail, but in real field environments—oil mist, vibration, moisture—it helps keep the ClickLoc™ connection clean and stable. Over time, it really helps avoid those annoying intermittent contact issues.
Q5: Can the 330730-080-02-00 extension cable be used for extreme temperature steam turbine monitoring?
A: Yes, it can handle around -51 °C to +177 °C (-60 °F to +350 °F). That’s why it’s commonly seen in steam turbine monitoring, gas turbine protection, and power plant instrumentation. It performs quite steadily even in heat + vibration combined conditions.
Q6: Which proximity probes and sensors must be paired with the 330730-080-02-00?
A: It’s designed for the 3300 XL 11 mm system. Normally it goes with 330701 or 330703 proximity probes and the matching Proximitor sensor. Best not to mix systems—keeping everything matched helps maintain correct calibration and stable measurement range.
Compatible Products
| Product 1 | Product 2 |
|---|---|
| 3500/42M 176449-02 | 330703-000-060-10-02-00 |
| 3500/15 AC 127610-01 | 330103-00-09-10-02-00 |
| 128276-01E 131151-01 | 135813-01 |
| 18745-04 | 990-05-XX-01-00 |
| 330102-22-58-10-02-00 | 330180-X1-05 MOD:145004-02 |
| 330910-03-09-05-02-05 | 133323-01 |
| 330709-000-070-10-02-00 | 330905-00-08-10-02-00 |
| 3500/61 163179-02 | 990-04-50-01-00 |
| 1900/65A 172323-01/1900/65A 167699-02 | 330101-XX-XX-10-02-05 MOD:147773-00-12 |
| 3500/15 106M1079-01 | 330104-00-04-10-02-00 |
| 3500/65 145988-02 | 330104-00-06-10-02-00 |
| 3500/92 136180-01 | 330851-04-000-023-10-01-05 |
| 3500/94 145988-01 | 330910-05-10-02-00 |
| 330104-00-10-10-02-05 | 330101-00-16-10-02-00 |
| 330910-00-05-10-02-00 | 3300/12 |
| 3500/44M 176449-03 | 330850-50-05 |
| TK3-2E 14700-02A | 330730-080-00-00 |
| 3500/42M 140734-02 | 330930-040-01-00 |
| 3500/92 | 990-08-XX-01-00 |
| 330103-00-05-10-02-00 | 330130-040-03-00 |
