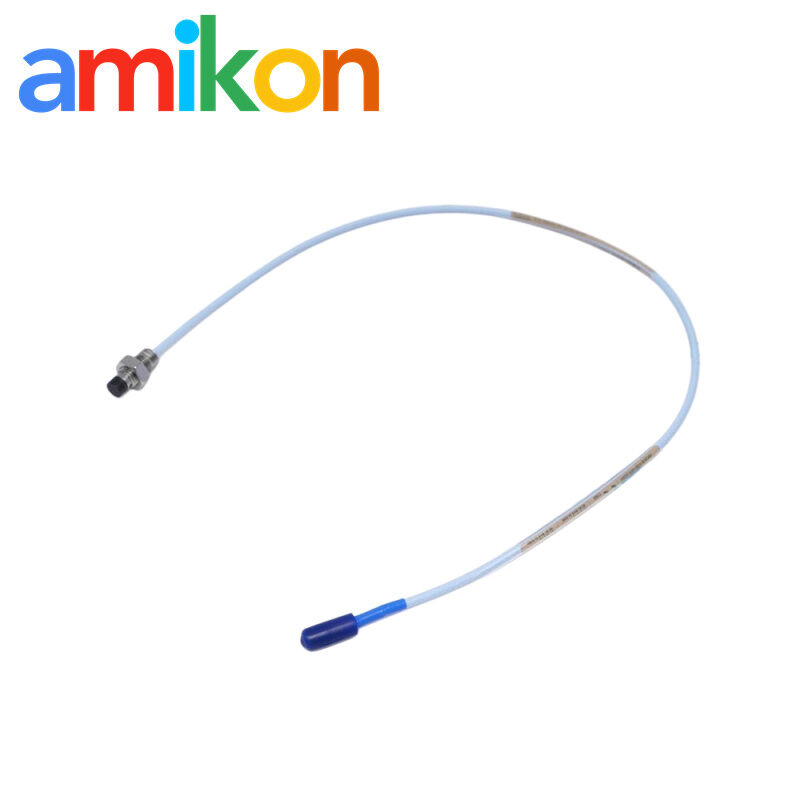

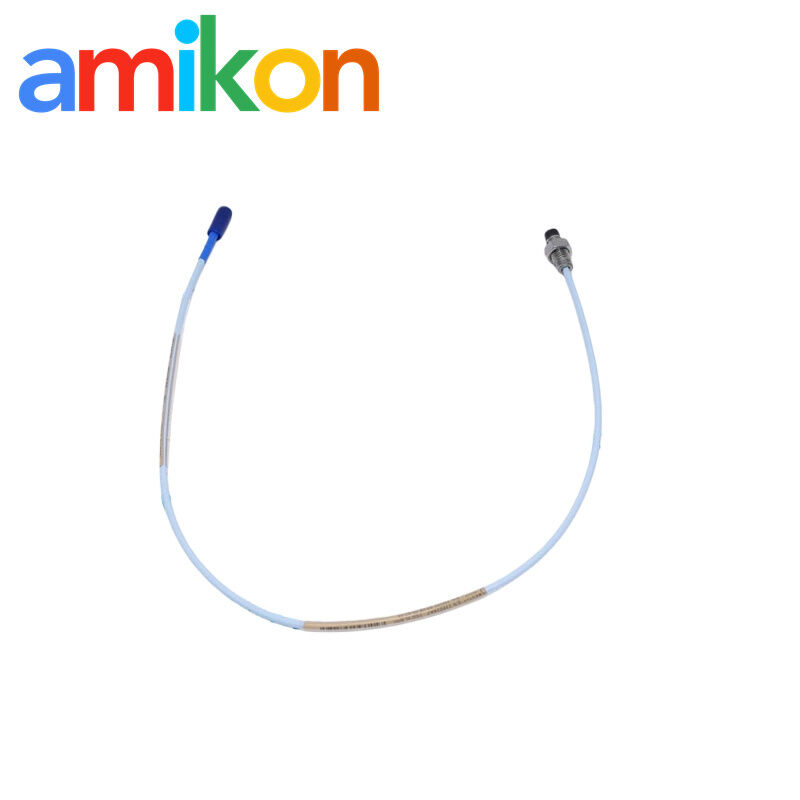

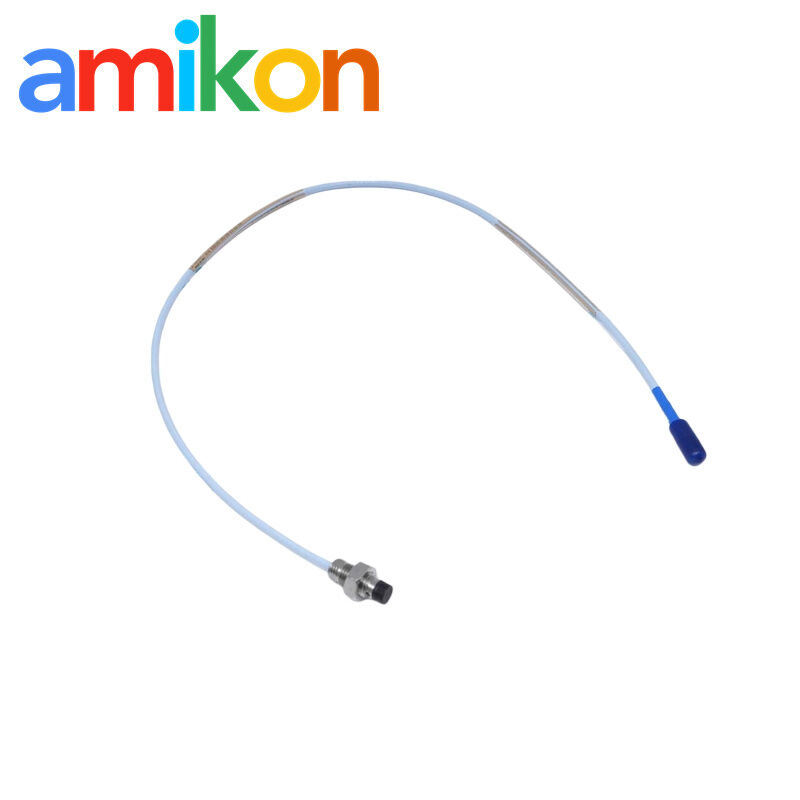

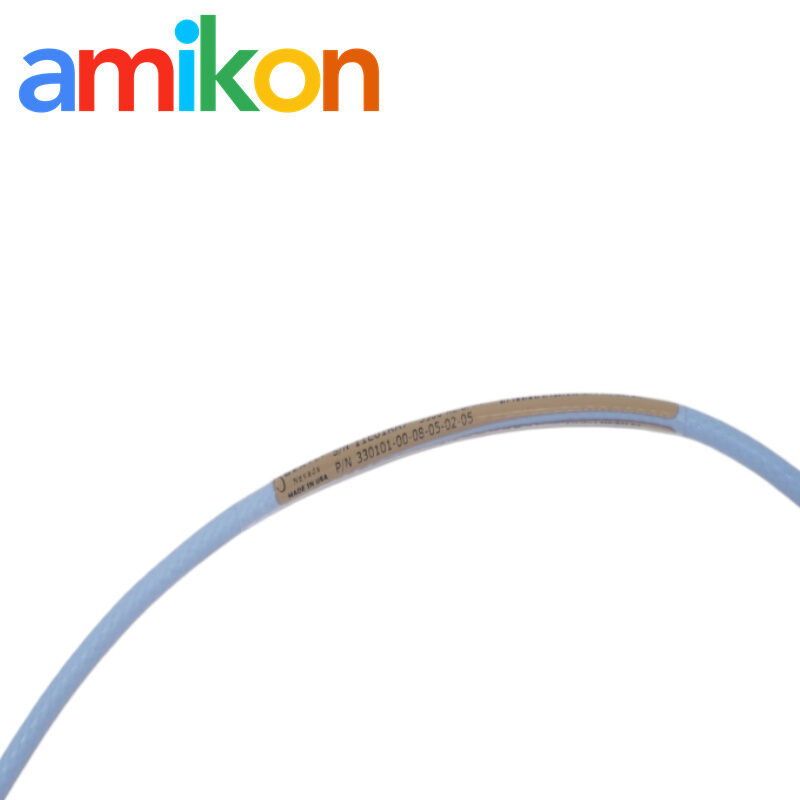

Bently Nevada 330101-00-08-05-02-05 API 670 Compliant Proximity Probe with Miniature Coaxial ClickLoc Connector and 0.8-inch Compact Case Profile
Bently Nevada 330101-00-08-05-02-05 API 670 Compliant Proximity Probe with Miniature Coaxial ClickLoc Connector and 0.8-inch Compact Case Profile
3300 XL 8mm Proximity Probe steam turbine vibration monitoring
shaft vibration measurement axial position monitoring
industrial rotating machinery 3300 XL Proximitor Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330101-00-08-05-02-05
Contact Us
Request A Quote
Product Details
Model:
330101-00-08-05-02-05
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
3300 XL 8mm Proximity Probe steam turbine vibration monitoring
,shaft vibration measurement axial position monitoring
,industrial rotating machinery 3300 XL Proximitor Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330173-00-18-10-02-05 3300 5mm Proximity Probe with API 670 Standard and ATEX/IECEx/CSA Certification for Precision Displacement Sensing
Get Best Price
video
Bently Nevada 330104-13-20-10-02-00 8 mm Proximity Probe with API 670 Compliance and ClickLoc Miniature Coaxial Connector
Get Best Price
Contact Us
Contact Now
Product Description
Bently Nevada 330101-00-08-05-02-05 3300 XL 8 mm Proximity Probe
Technical Specifications
| Model | Bently Nevada 3300 XL 8mm |
| Part Number | 330101-00-08-05-02-05 |
| Thread | 3/8-24 UNF |
| Unthreaded Length (0 0) | 0.0 in |
| Overall Case Length (0 8) | 0.8 in |
| Total Length (0 5) | 0.5 m (1.6 ft) |
| Connector (0 2) | Miniature coaxial ClickLoc |
| Agency Approval (0 5) | Multiple Approvals |
| System Compatibility | 5-metre system / API 670 compliant |
Contact Us for Pricing or Technical Support:
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Key Features
- Built for API 670 Vibration Monitoring: The Bently Nevada 330101-00-08-05-02-05 probe is mainly used for shaft vibration measurement and axial position monitoring on rotating machinery. It follows API 670 requirements, so it’s commonly seen on turbine and compressor protection systems where stable non-contact measurement really matters.
- Helps Protect Critical Rotating Equipment: This 3300 XL 8mm Proximity Probe continuously sends accurate eddy current displacement sensor signals during machine operation. In real applications, that usually means earlier detection of shaft movement issues on steam turbines, gas turbines, and centrifugal compressors before they turn into expensive shutdown problems.
- Fits a Wide Range of Industrial Systems: You’ll find this model in many industrial rotating machinery environments — power plant instrumentation, hydroelectric turbine diagnostics, predictive maintenance monitoring systems, and even emergency shutdown system (ESD) projects. Basically, anywhere reliable machine condition monitoring is required.
- Short Body Design for Tight Installations: The probe uses a standard 3/8-24 UNF thread body with a compact 0.8-inch case length, which makes installation easier when space around the bearing housing is limited. For older machinery skids or compact turbine cabinets, this design is usually much more convenient.
- ClickLoc Connector for Stable Signal Connection: A miniature ClickLoc coaxial connector is included for secure cable attachment. Under constant vibration or harsh operating conditions, the connection tends to stay more stable compared with traditional loose-style connectors, especially in fluid-film bearing vibration applications.
- Suitable for Hazardous Industrial Areas: The sensor carries multiple international hazardous-area approvals, including ATEX and IECEx certifications. Because of that, it is widely used in oil & gas facilities, petrochemical plants, and other environments where intrinsic safety requirements are part of the specification.
- Works with Standard 3300 XL 5m Systems: This Bently Nevada probe is fully compatible with the 3300 XL 5m System and matching 330130 extension cable assemblies. For customers managing Bently Nevada probe spares or upgrading existing monitoring setups, interchangeability is usually straightforward.
- Direct Connection to 3500 Monitoring Hardware: The probe can be connected directly into the Bently Nevada 3500 rack system, including the popular 3500/40M Proximitor Monitor modules used for machinery protection and continuous condition monitoring.
- Ready for System 1 Diagnostics Integration: The output signal is suitable for System 1 software integration and plant-wide asset management programs. Maintenance teams often use the data for rotational speed sensing trends, non-contact distance measurement analysis, and long-term predictive maintenance planning.
Applications
- Steam & Gas Turbine Monitoring: This 330101-00-08-05-02-05 probe is often used on steam turbine vibration monitoring and gas turbine setups. It tracks shaft vibration and axial position without touching the shaft, more like a steady “watching signal” for high-speed machines that don’t really allow room for error.
- Centrifugal & Axial Compressor Protection: On centrifugal and axial compressors, especially in refineries or gas processing plants, it’s used to pick up shaft eccentricity and displacement changes. Usually these machines run nonstop, so having continuous data helps catch abnormal vibration early before it escalates.
- General Rotating Equipment Use: For pumps, fans, blowers, and motor shafts, the probe gives stable eddy current displacement sensor output. Nothing fancy in daily operation, but reliable enough for fluid-film bearing vibration monitoring where consistency matters more than anything.
- Hydroelectric Applications: In hydroelectric turbine diagnostics, it handles low-frequency vibration and slow structural movement. These units are big and slow compared to gas turbines, so the signal behavior is a bit different, but the probe still works fine for long-term tracking.
- API 670 Based Protection Systems: It’s commonly tied into API 670 compliant sensor systems. In many projects, this probe is just the front-end piece feeding data into the wider machinery protection setup.
- ESD and Protection Logic Integration: Connected with Bently Nevada 3500 rack systems, including 3500/40M Proximitor Monitor cards, it can support emergency shutdown system (ESD) actions. When vibration goes beyond set limits, the system can trigger trips automatically.
- Predictive Maintenance Use: The signal output is usually fed into System 1 software integration platforms. Maintenance teams use it for trend checking and early fault detection, nothing complicated, just steady condition monitoring over time.
- Hazardous Area Deployment: With ATEX and IECEx approvals, it’s commonly installed in oil, gas, and petrochemical environments. Basically where safety rules are strict and equipment still has to run 24/7.
Frequently Asked Questions
What is the main use of the 330101-00-08-05-02-05 probe in machinery monitoring?
It’s mainly there for shaft vibration monitoring and axial position work on rotating machines. You’ll see it a lot on steam turbines, gas turbines, and centrifugal compressors. Basically, anywhere the machine is expensive and can’t afford to go out of control, this probe is usually part of the setup.
Does the 330101-00-08-05-02-05 meet API 670 requirements?
Yes, it’s built around API 670 compliant sensor requirements. In real projects, that just means it fits into standard machinery protection systems and can be used in plant instrumentation or emergency shutdown system (ESD) designs without compatibility concerns.
What do the 330101-00-08-05-02-05 options actually mean?
For 330101-00-08-05-02-05, the code is just describing the build. 3/8-24 UNF thread style, 0.8-inch case length, 0.5 m integral cable, ClickLoc connector, plus the agency approval package. It looks complicated on paper, but in practice it’s a standard 3300 XL 8mm proximity probe configuration.
Which systems can the 330101-00-08-05-02-05 work with?
It’s commonly paired with the Bently Nevada 3500 rack system, especially the 3500/40M Proximitor Monitor card. The signal also goes into System 1 software for condition monitoring and trend analysis. Nothing special needed for integration if you’re already in the Bently ecosystem.
Is the 330101-00-08-05-02-05 safe for hazardous areas?
Yes, the unit carries ATEX and IECEx intrinsic safety approvals. That’s why it’s often installed in oil & gas plants, petrochemical sites, and other hazardous environments where certification isn’t optional.
What cable setup is needed for 330101-00-08-05-02-05?
Since this version has a 0.5 m built-in cable, it’s normally used together with a Bently Nevada 330130 extension cable (typically 4.5 m). Together they form the standard 5 m 3300 XL system that most installations are designed around.
Compatible Components
| 3500/42M 176449-02 | 330703-000-060-10-02-00 |
| 3500/15 AC 127610-01 | 330103-00-09-10-02-00 |
| 128276-01E 131151-01 | 135813-01 |
| 18745-04 | 990-05-XX-01-00 |
| 330102-22-58-10-02-00 | 330180-X1-05 MOD:145004-02 |
| 330910-03-09-05-02-05 | 133323-01 |
| 330709-000-070-10-02-00 | 330905-00-08-10-02-00 |
| 3500/61 163179-02 | 990-04-50-01-00 |
| 1900/65A 172323-01/1900/65A 167699-02 | 330101-XX-XX-10-02-05 MOD:147773-00-12 |
| 3500/15 106M1079-01 | 330104-00-04-10-02-00 |
| 3500/65 145988-02 | 330104-00-06-10-02-00 |
| 3500/92 136180-01 | 330851-04-000-023-10-01-05 |
| 3500/94 145988-01 | 330910-05-10-02-00 |
| 330104-00-10-10-02-05 | 330101-00-16-10-02-00 |
| 330910-00-05-10-02-00 | 3300/12 |
| 3500/44M 176449-03 | 330850-50-05 |
| TK3-2E 14700-02A | 330730-080-00-00 |
| 3500/42M 140734-02 | 330930-040-01-00 |
| 3500/92 | 990-08-XX-01-00 |
| 330103-00-05-10-02-00 | 330130-040-03-00 |
