Bently Nevada 330104-00-10-10-02-05 3300 XL 8 mm Proximity Probe with M10 x 1 Thread and Miniature Coaxial ClickLoc Connector
Bently Nevada 330104-00-10-10-02-05 3300 XL 8 mm Proximity Probe with M10 x 1 Thread and Miniature Coaxial ClickLoc Connector
3300 XL 8mm proximity probe gas turbine shaft displacement
non-contact vibration measurement axial position sensing
steam turbine vibration monitoring Bently Nevada 3500 rack integration
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330104-00-10-10-02-05
Contact Us
Request A Quote
Product Details
Model:
330104-00-10-10-02-05
Country Of Origin:
USA
Place Of Shipment:
Xiamen,China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Estimated Shipping Size:
1.8x1.5x118cm
Weight:
0.16 Kg
Highlight:
3300 XL 8mm proximity probe gas turbine shaft displacement
,non-contact vibration measurement axial position sensing
,steam turbine vibration monitoring Bently Nevada 3500 rack integration
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 330173-00-18-10-02-05 3300 5mm Proximity Probe with API 670 Standard and ATEX/IECEx/CSA Certification for Precision Displacement Sensing
Get Best Price
video
Bently Nevada 330104-13-20-10-02-00 8 mm Proximity Probe with API 670 Compliance and ClickLoc Miniature Coaxial Connector
Get Best Price
Contact Us
Contact Now
Product Description

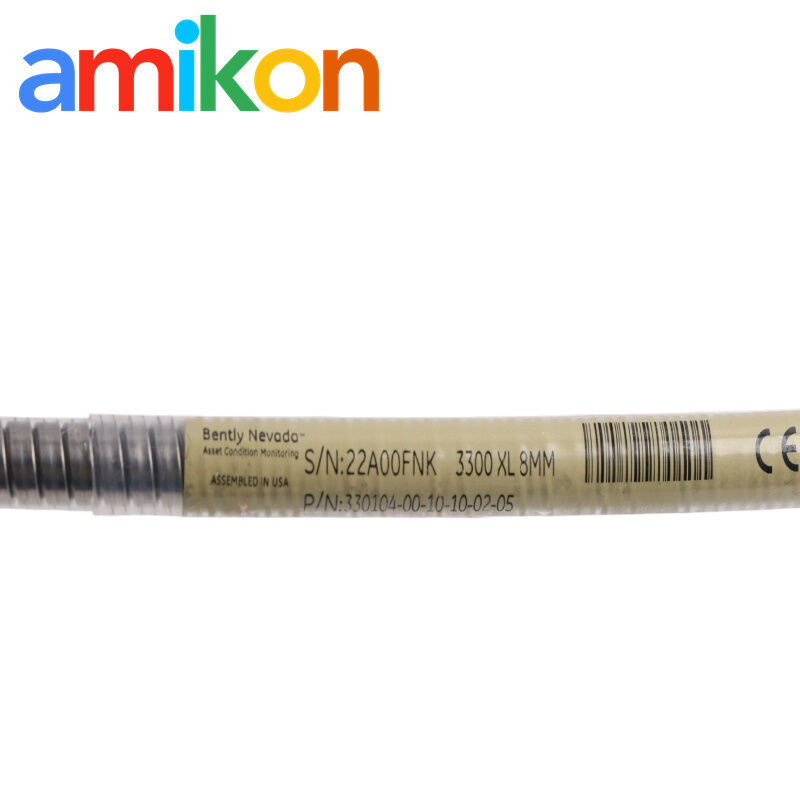

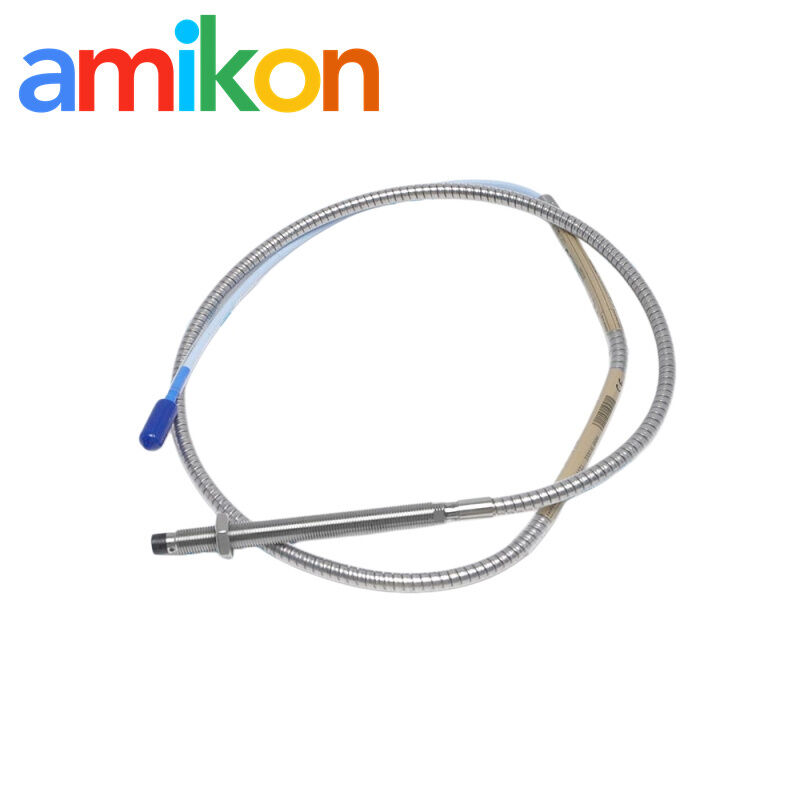

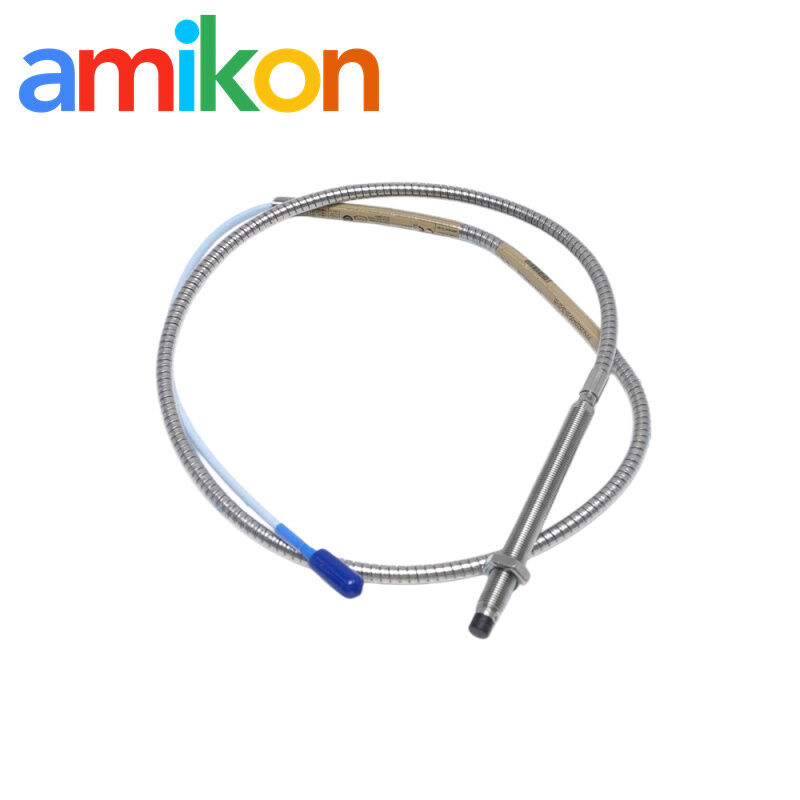

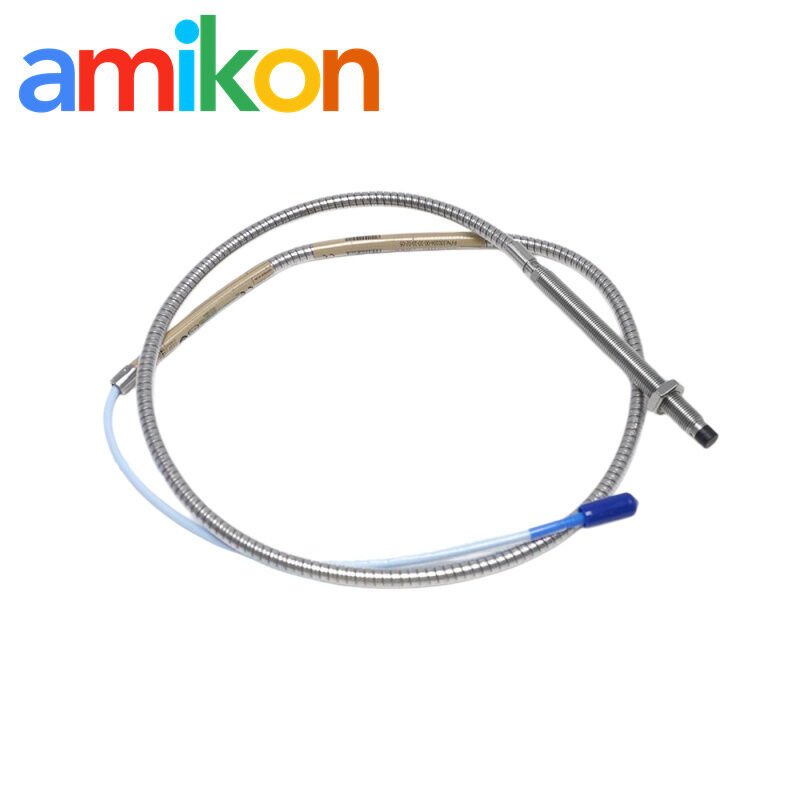

Bently Nevada 330104-00-10-10-02-05 3300 XL 8 mm Proximity Probe
| Parameter | Technical Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Sensor Type | 3300 XL 8 mm Eddy Current Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 thread with protective armor |
| Unthreaded Length (00) | 0 mm |
| Overall Case Length (10) | 100 mm |
| Total Cable Length (10) | 1.0 meter (3.3 feet) |
| Connector Type (02) | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval (05) | Multiple Approvals (including CSA, ATEX, IECEx) |
| Linear Range | 2.0 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) |
Contact Us for Pricing or Technical Support
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Key Features
- Non-Contact Eddy Current Technology: The Bently Nevada 330104-00-10-10-02-05 uses non-contact eddy current technology for continuous shaft vibration monitoring. Since the probe does not physically touch the shaft surface, there’s basically no mechanical wear during operation. It’s mainly used for measuring relative shaft displacement, radial vibration, and axial position changes on high-speed rotating equipment.
- Industry-Standard Performance: For plants already following API 670 machinery protection requirements, this 3300 XL 8mm proximity probe fits in quite naturally. A lot of users install it in critical asset condition monitoring systems where stable long-term vibration data is important for turbines, compressors, and generators.
- Rugged Armored Mechanical Design: Mechanically, the probe body is pretty rugged. The M10x1 threaded design combined with stainless steel armor helps it survive harsh industrial conditions — vibration, oil contamination, heat, and cable stress are all common in these environments anyway. That’s one reason this type of Bently Nevada spare part is still widely used in older and newer systems alike.
- Secure ClickLoc Coaxial Connector: The miniature ClickLoc coaxial connector is another practical detail. Compared with traditional connections, it reduces the chance of loose wiring or accidental disconnects during maintenance work, especially in crowded machinery cabinets.
- Global Hazardous Area Approvals: For hazardous locations, the 330104-00-10-10-02-05 already comes with several international approvals, including ATEX, CSA, and IECEx certifications. So it’s commonly seen in petrochemical plants, power plant instrumentation systems, and oil & gas processing areas where hazardous-area compliance matters.
- Seamless System Compatibility: Compatibility is also straightforward. The probe works directly with the Bently Nevada 3300 XL Proximitor sensor, matching 3300 XL extension cable assemblies, and 3500/40M monitor interface modules. In most machinery protection system (MPS) setups, integration is relatively simple without needing special modifications.
Applications
- Steam Turbine Vibration Monitoring: In steam turbine vibration monitoring systems, the Bently Nevada 330104-00-10-10-02-05 is usually used to keep an eye on high-speed shaft vibration and relative shaft displacement. In large power generation units, even a small change in vibration can turn into a serious mechanical issue pretty fast, so stable non-contact vibration measurement really matters.
- Gas Turbine Shaft Protection: For gas turbine applications, this 3300 XL 8mm proximity probe helps detect axial movement, thermal growth, and dynamic shaft position changes during operation. Especially under high temperature conditions, operators normally rely on eddy current transducer signals to avoid unexpected shaft contact or alignment problems.
- Centrifugal Compressor Monitoring: You’ll also see this model in centrifugal compressor protection systems. It continuously tracks shaft eccentricity and radial vibration, which is important for long-cycle oil & gas processing equipment where downtime can become very expensive. A lot of plants still prefer the Bently Nevada 3300 XL system because integration with existing machinery protection system (MPS) setups is straightforward and reliable.
- Critical Asset Condition Monitoring: In many cases, the 330104-00-10-10-02-05 works as a core input device for critical asset condition monitoring platforms. The probe feeds real-time data into predictive maintenance systems, helping maintenance teams identify bearing wear, imbalance, or shaft instability before the problem gets worse.
- Hazardous Area Instrumentation: For hazardous industrial environments — petrochemical plants, refinery units, pipeline stations, sometimes even hydroelectric generator monitoring projects — this type of high accuracy displacement probe is commonly selected because the design supports demanding operating conditions and long-term stability. The M10x1 armored probe structure and ClickLoc coaxial connector also help during field installation where vibration and cable stress are constant issues.
- Machinery Protection System Integration: Another reason many users keep choosing Bently Nevada spare parts like this one is compatibility. The sensor can be integrated directly with Bently Nevada 3500 rack integration systems, including 3500/40M monitor interface modules and related 3300 XL Proximitor sensor assemblies. Once vibration or shaft displacement exceeds the configured limit, the machinery protection system can automatically trigger alarms or ESD functions to protect critical rotating assets.
Frequently Asked Questions
What kind of probe is the Bently Nevada 330104-00-10-10-02-05?
The 330104-00-10-10-02-05 is part of the Bently Nevada 3300 XL 8mm proximity probe family. It uses an M10x1 threaded body and comes with a 1.0 meter cable already attached. The overall housing length is about 100 mm. This version also uses the small ClickLoc coaxial connector, so wiring work in the field is usually pretty convenient, especially inside compact turbine cabinets or compressor skids.
Can the 330104-00-10-10-02-05 work with existing Bently Nevada systems?
Yes, no problem. Most users install it together with a 3300 XL Proximitor sensor and matching extension cable. After that, the signal can go directly into Bently Nevada 3500 rack systems, including 3500/40M monitor modules used for machinery protection system applications. A lot of plants still keep this setup because it’s stable and easy to integrate with older monitoring systems.
What is the 330104-00-10-10-02-05 mainly used to measure?
Mostly shaft-related movement. The probe handles non-contact vibration measurement, relative shaft displacement, shaft eccentricity, axial position sensing, and radial vibration monitoring. You’ll see it on steam turbines, gas turbines, centrifugal compressors, and similar rotating equipment where continuous shaft vibration monitoring is needed.
Does the 330104-00-10-10-02-05 meet API 670 requirements?
Yes. In a complete 3300 XL transducer system, the probe is generally used in API 670 compliant sensor applications. That’s why it’s common in power plants, oil & gas sites, and heavy industrial machinery protection projects.
Can the 330104-00-10-10-02-05 be installed in harsh industrial areas?
Usually yes. The probe has a stainless steel armored structure and carries hazardous area approvals like ATEX, CSA, and IECEx. So in places like refineries, petrochemical plants, or other volatile process environments, it’s already a pretty common choice.
What about measuring range and sensitivity of the 330104-00-10-10-02-05?
The linear measuring range is 2.0 mm, or 80 mils. System sensitivity is around 200 mV/mil when matched with the correct transmitter and calibration setup. For most eddy current transducer applications, that level of accuracy works well for long-term machinery monitoring.
Compatible Part Numbers
| 3500/53M 286566-01 | 330101-00-56-10-02-00 |
| 330103-00-04-05-02-05 | 330103-00-03-10-02-00 |
| 330103-00-05-05-02-CN | 330106-05-30-15-02-CN |
| 330103-03-06-05-02-00 | 21000-28-10-00-098-04-02 |
| 330106-05-30-05-02-CN | 21000-28-10-00-217-04-02 |
| 330180-91-CN | 330104-00-05-10-02-00 |
| 330103-00-07-05-02-00 | 330101-00-08-20-02-05 |
| 330930-065-01-05 | 330130-070-00-00 |
| 990-05-50-02-01 | 330130-080-01-05 |
| 136483-01 | 330703-000-060-50-12-00 |
| 81544-01 | 330103-00-06-15-02-CN |
| 82365-01 | 330130-030-01-CN |
| 82367-01 | 102044-00-18-10-02 |
| 84147-01 | 144181-50 |
| 18622-030-01 | 3500/42E |
| 330101-30-63-10-02-CN | 3500/50E |
| 330104-03-06-05-02-00 | 330101-30-63-10-02-00 |
| 330104-05-15-05-02-00 | 330130-035-00-CN |
| 330101-00-60-10-02-00 | 330130-035-01-CN |
| 330709-000-070-10-02-00 | 330130-045-01-CN |
