Bently Nevada 3300/47 Differential Expansion Monitor with Complementary Input Programmable Alarm Setpoints and API 670 Compliance

In large rotating machinery such as steam turbines and gas turbines, the rotor and casing expand at different rates during start-up, shutdown, and load changes. The Bently Nevada 3300/47 is specifically engineered to track this thermal growth by measuring differential expansion. By providing real-time data on the relative axial position of the rotor, it ensures critical asset protection and prevents catastrophic internal friction or contact.

Standard displacement monitors are often limited by the linear range of a single sensor. The 3300/47 utilizes a unique complementary input configuration, interfacing with dual proximity probes. This setup allows for rotor expansion measurement across a range up to double the capacity of a single transducer. This dual proximity probe tracking is essential for large-scale industrial turbines where axial movement exceeds standard limits.

As a dedicated machinery protection card, the 3300/47 features four programmable alarm setpoints (Alert and Danger for both directions). When expansion levels exceed safety thresholds, the monitor triggers integrated relays that can be interfaced with an Emergency Shutdown System (ESD). This automated response is a cornerstone of power plant instrumentation and industrial turbine maintenance strategies.

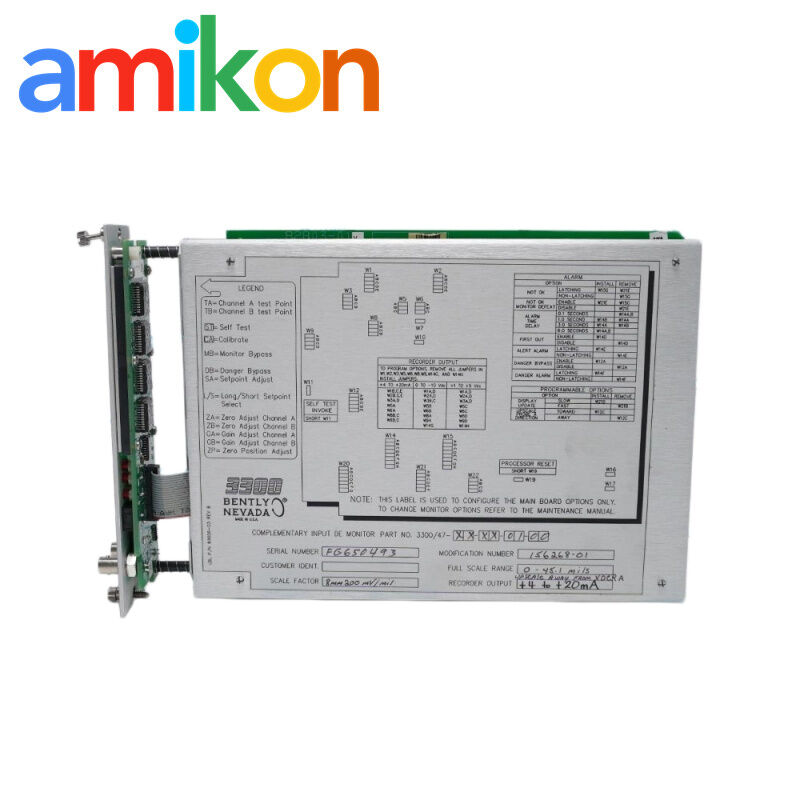

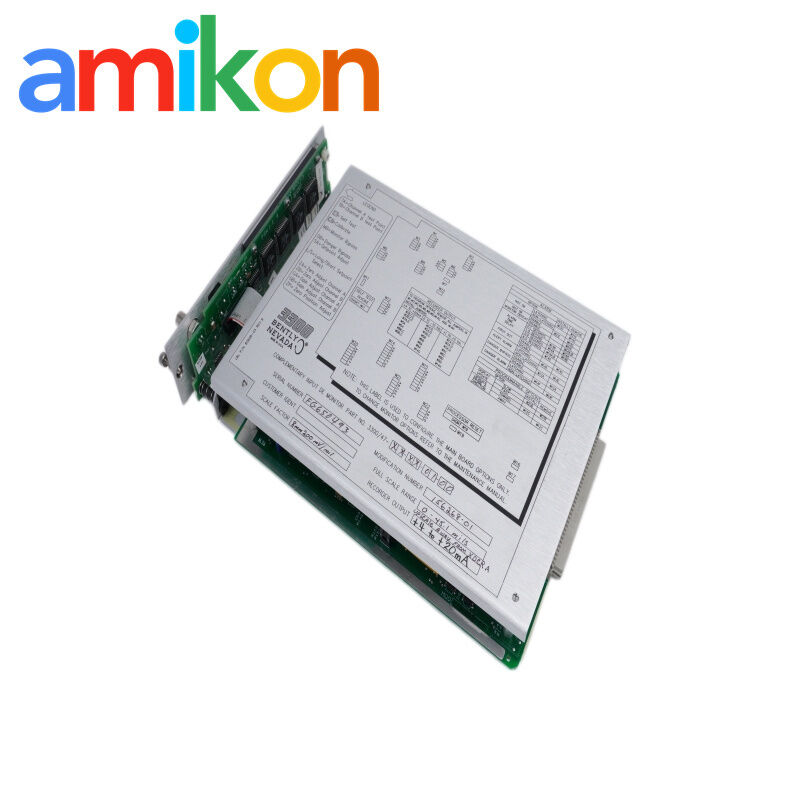

Designed for the Bently Nevada 3300 rack, this module provides seamless integration with legacy monitoring environments. It features front-panel buffered outputs for high-speed data acquisition, enabling engineers to perform specialized machinery diagnostic services. Additionally, its recorder outputs (4-20 mA or Vdc) allow for continuous trending in DCS or PLC systems, supporting long-term condition monitoring.

As the 3300 series is currently obsolete, the 3300/47 serves as a vital system spare for plants not yet ready for a full 3500-series upgrade. It provides a cost-effective way to maintain API 670 compliant protection on older machines, ensuring continued reliability in centrifugal compressor monitoring and other heavy-duty applications.

• Complementary Input Technology: The 3300/47 uses a complementary input setup, so it can directly work with dual proximity probes. In practice this means it’s able to track axial displacement over a wider span, roughly up to twice the range of a single transducer. For large rotor systems or thermal expansion monitoring, this kind of arrangement is usually what engineers prefer.
• Comprehensive Machinery Protection: On the protection side, the module is more than just a signal card. It comes with four alarm setpoints that can be set independently. People typically configure both Alert and Danger levels for “Over” and “Under” expansion directions. In real turbine applications, especially steam turbines or other large rotating machinery, this helps cover thermal growth from both sides without blind spots.

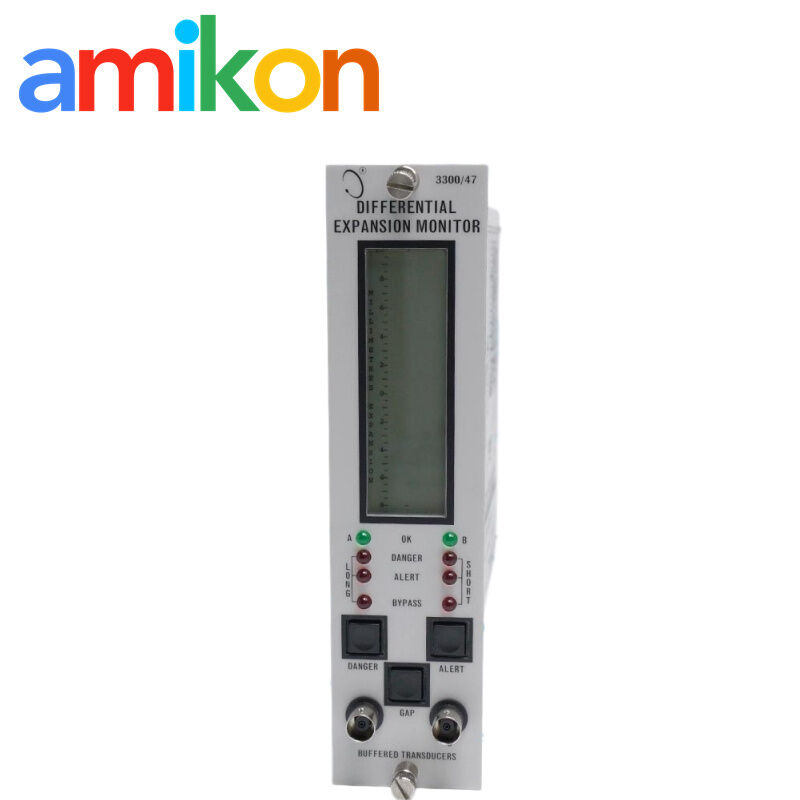

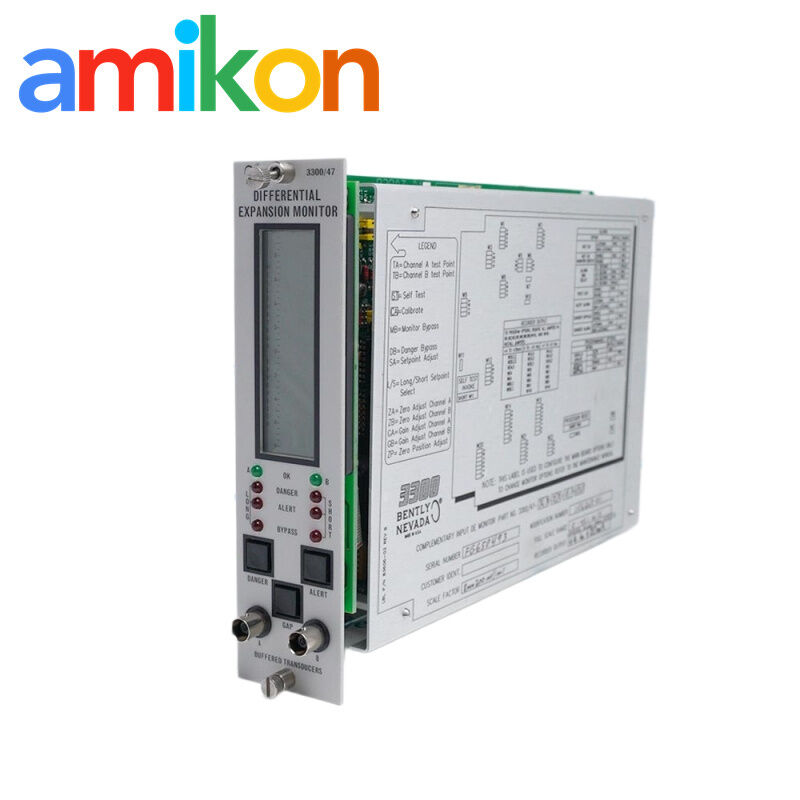

• Real-Time Visual Diagnostics: The front LCD is pretty straightforward but effective. High contrast, easy to read even in control rooms with mixed lighting. You get a vertical bargraph showing expansion level, and a direction indicator that tells you whether the movement is going up or down. Nothing complicated here, operators usually just glance at it and already know the machine trend.
• Flexible Signal Outputs: For integration, the 3300/47 is quite flexible. It supports user-strappable outputs like 4-20 mA, 1-5 Vdc, or even 0 to -10 Vdc. This makes it easier to connect into existing DCS or PLC systems. In older plants especially, this kind of compatibility saves a lot of rework when adding or maintaining monitoring points.
• Front-Panel Buffered Outputs: There are also buffered outputs available on the front panel via coax connectors. This is mainly for field diagnostics. Maintenance engineers can hook up portable vibration analyzers or oscilloscopes directly without breaking the protection loop, which is very useful during troubleshooting or machinery diagnostic work.
• API 670 Compliant Reliability: The design follows API 670 requirements, so reliability is not an issue here. It supports stable “OK” limit checking and keeps running in harsh environments. Even though it belongs to the legacy Bently Nevada 3300 system, many power plants still use it in 3300 racks as spare modules for critical asset protection and turbine monitoring setups.
