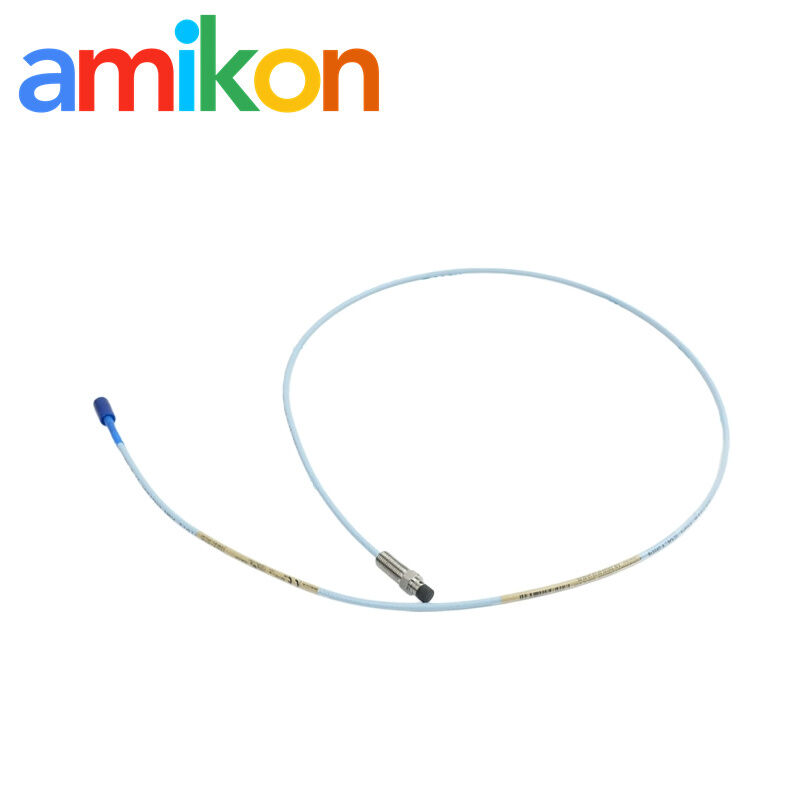

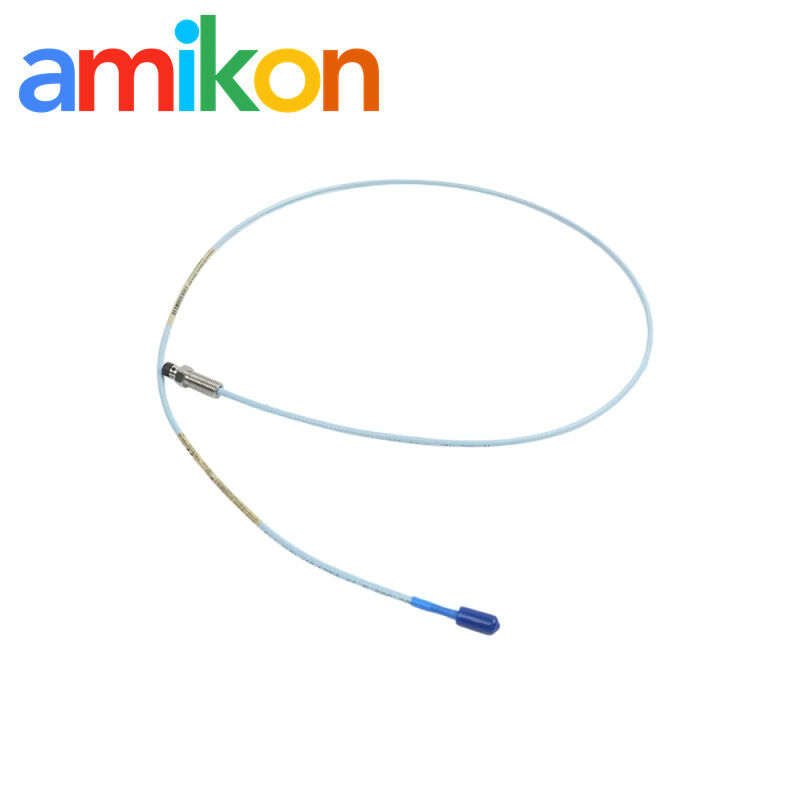

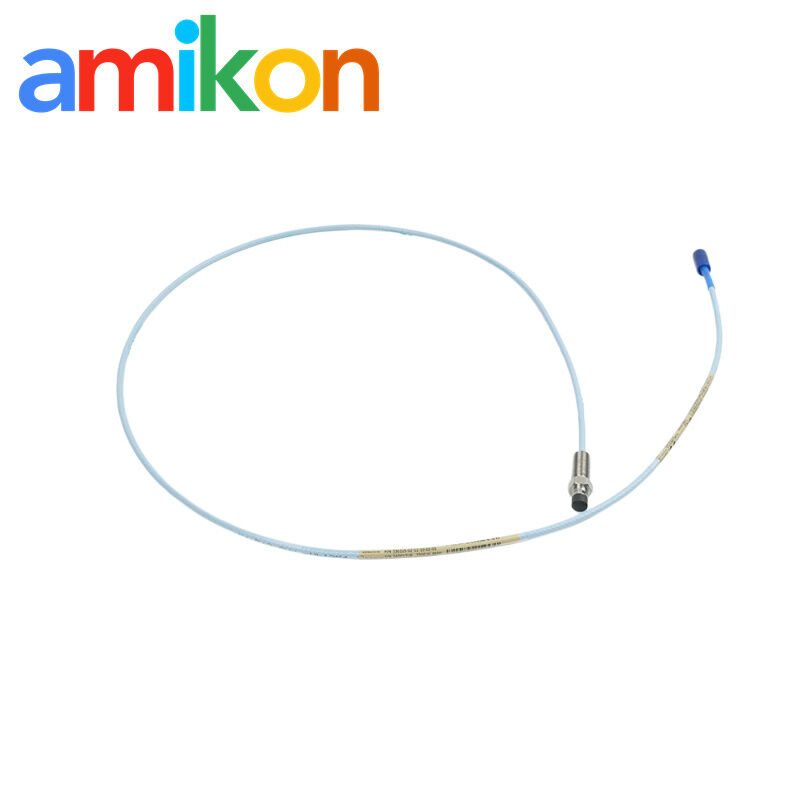

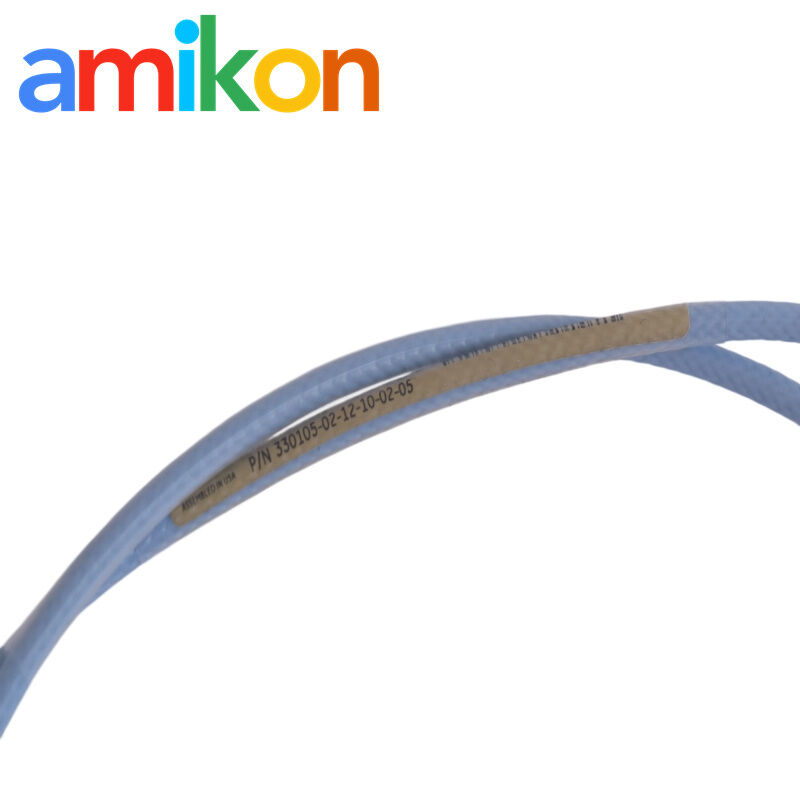

Bently Nevada 330105-02-12-10-02-05 3300 XL 8 mm Reverse Mount Probe
| Parameter | Specification |
|---|---|
| Model Series | 3300 XL 8 mm Reverse Mount Probe (330105) |
| Unthreaded Length | 0.2 in (02) |
| Overall Case Length | 1.2 in (12) |
| Total Length | 1.0 metre / 3.3 feet (10) |
| Connector Type | Miniature ClickLoc™ coaxial connector (02) |
| Agency Approval | Multiple Approvals (05) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +351 °F) |
| Thread Type | 3/8-24 UNF-2A |
Contact Us for Pricing or Technical Support:
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Key Features
- Precision Reverse Mount Design (02-12)
Specifically engineered for reverse mount applications where internal clearance is critical. Features a 0.2-inch unthreaded length (02) and a 1.2-inch overall case length (12) with 3/8-24 UNF threads for stable and accurate machine housing integration. - High-Performance Eddy Current Technology
As a core part of the 3300 XL 8 mm system, it provides non-contact measurement of radial vibration and axial thrust position. It ensures high-resolution data for critical rotating machinery. - Robust ClickLoc™ Connectivity (02)
Equipped with the Miniature ClickLoc™ coaxial connector, designed to prevent accidental loosening and ensure low-loss signal transmission between the probe and the 330130 extension cable. - Optimized 1.0 Meter Length (10)
The 1.0-meter (3.3 feet) total length provides a standardized configuration that balances signal integrity and installation flexibility within the 3500 system architecture. - Exceptional Environmental Durability
Constructed with a Polyphenylene sulfide (PPS) tip and stainless steel case, the probe is rated for extreme temperatures (-51 °C to +177 °C) and is fully API 670 compliant for harsh industrial environments. - Certified for Global Safety (05)
The Multiple Approvals (05) option ensures compliance with international hazardous area standards (such as ATEX, CSA, and IECEx), making it suitable for global power plant and oil & gas instrumentation. - Seamless System Integration
Fully interchangeable with Bently Nevada 3300 XL Proximitor® Sensors (330180), providing a linear range of 2.0 mm (80 mils) and a standard scale factor of 200 mV/mil for reliable machinery protection.
Applications
- Critical Rotating Machinery Protection
In rotating machinery protection, this probe is kind of a core piece in the system. It’s mainly used for monitoring radial vibration and axial thrust position, giving the kind of data you really want before things go wrong. On high-speed equipment like centrifugal compressors and industrial gas turbines, even small vibration changes matter, so this device is often relied on to catch issues early and avoid serious failures. - API 670 Compliant Monitoring Systems
This 3300 XL probe fits right into API 670 compliant setups and is widely used in that space. You’ll typically see it in centrifugal compressor monitoring and steam turbine protection applications. In refinery and petrochemical environments, where conditions are pretty demanding, it still keeps a stable and accurate displacement sensing performance, which is why it’s often the go-to choice in these systems. - Power Plant Instrumentation
In power plants, it’s commonly used for hydroelectric turbine protection and generator shaft monitoring. With its Multiple Approvals (05), it’s basically treated as a global-standard component for critical asset protection, whether it’s conventional generation or renewable energy installations. It’s not unusual to see it specified in long-term plant instrumentation setups. - Harsh Environment Condition Monitoring
The probe is built with a pretty solid structure — PPS tip and stainless steel housing — so it handles harsh environments without much trouble. In real-world use, it’s often applied to shaft eccentricity monitoring and differential expansion measurement, especially where temperatures are extreme or chemical exposure is involved. This kind of reliability is important for keeping emergency shutdown system (ESD) integrity intact. - Seamless Integration with Bently Nevada 3500 Racks
It’s designed to work directly with the Bently Nevada 3500 system. Signals go through the 330180 Proximitor® Sensor and then into modules like 3500/40M or 3500/42M vibration monitors. In practice, this setup allows pretty detailed machinery diagnostics, and it also supports integration with TDI modules for more advanced condition monitoring configurations.
Frequently Asked Questions
Q1: What is the primary function of the Bently Nevada 330105-02-12-10-02-05?
A: It’s basically a 3300 XL 8 mm reverse mount probe for non-contact measurement of shaft vibration and position. Mainly used for radial vibration and axial thrust monitoring. You’ll usually see it on steam turbines, centrifugal compressors, that kind of rotating equipment.
Q2: What do the option codes 02-12-10 in the 330105-02-12-10-02-05 mean?
A: In this 330105-02-12-10-02-05, the codes just define dimensions. “02” is unthreaded length 0.2 inch, “12” is case length 1.2 inch, “10” means 1.0 meter probe length (around 3.3 ft). It’s basically to match reverse mount installation requirements.
Q3: Which extension cable and sensor should be used with the 330105-02-12-10-02-05?
A: Normally it goes with Bently Nevada 330130 extension cable. Then connects to a 330180 Proximitor® Sensor, and from there into 3500 system modules like 3500/42M or 3500/40M vibration monitors. Standard 3500 setup, nothing special.
Q4: Is the 330105-02-12-10-02-05 suitable for use in hazardous industrial environments?
A: Yes, it has the “05” approvals package. Includes ATEX, CSA, IECEx. So it’s fine for hazardous or explosion-proof areas, like refineries or power plants.
Q5: What are the benefits of the ClickLoc™ connector used on the 330105-02-12-10-02-05?
A: It uses the Miniature ClickLoc™ coax connector (option 02). The main point is it locks tight, won’t easily loosen under vibration. Helps keep signal stable in long-term operation.
Q6: Can the 330105-02-12-10-02-05 handle high temperature?
A: Yes. It’s built with PPS and stainless steel, so it can run in pretty harsh conditions. Temperature range is roughly -51°C to +177°C (-60°F to +351°F). Common for turbine and industrial monitoring.
Compatible Parts
| 84147-01 | 144181-50 |
| 18622-030-01 | 3500/42E |
| 330101-30-63-10-02-CN | 3500/50E |
| 330104-03-06-05-02-00 | 330101-30-63-10-02-00 |
| 330104-05-15-05-02-00 | 330130-035-00-CN |
| 330101-00-60-10-02-00 | 330130-035-01-CN |
| 330709-000-070-10-02-00 | 330130-045-01-CN |
| 330101-00-56-10-02-00 | 330104-00-07-05-02-00 |
| 330103-00-03-10-02-00 | 330130-085-01-00 |
| 330106-05-30-15-02-CN | 40113-02 |
| 21000-28-10-00-098-04-02 | 330130-035-00-00 |
| 21000-28-10-00-217-04-02 | 330130-040-00-CN |
| 330104-00-05-10-02-00 | 84661-50 |
| 330101-00-08-20-02-05 | 330130-045-03-05 |
| 330130-070-00-00 | 330703-000-060-10-02-00 |
| 330130-080-01-05 | 106M1081-01 |
| 330703-000-060-50-12-00 | 3500/42M 176449-02 |
| 330103-00-06-15-02-CN | 3500/15 AC 127610-01 |
| 330130-030-01-CN | 128276-01E 131151-01 |
| 102044-00-18-10-02 | 18745-04 |
