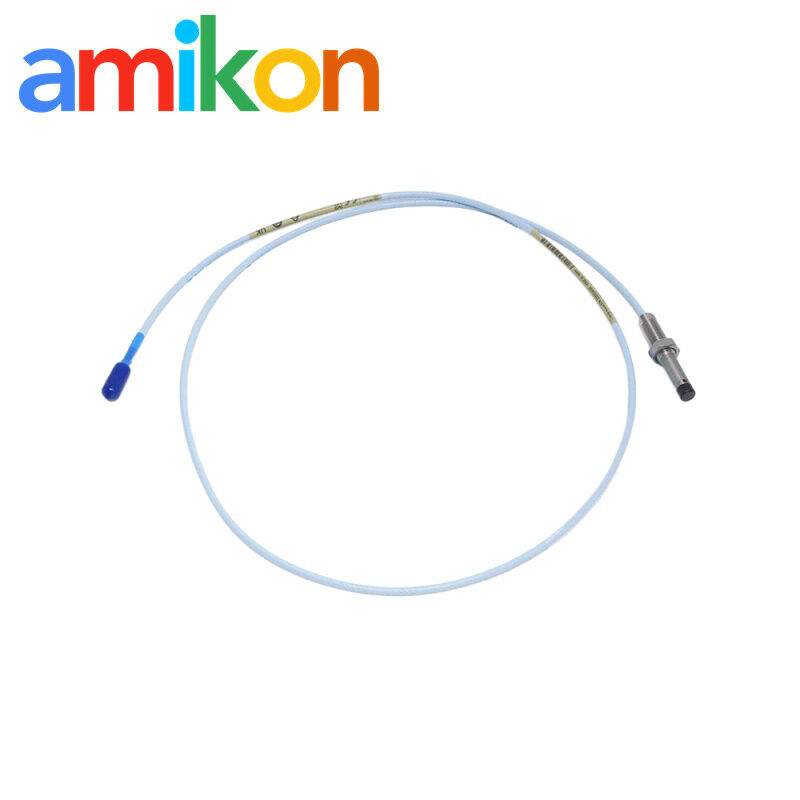

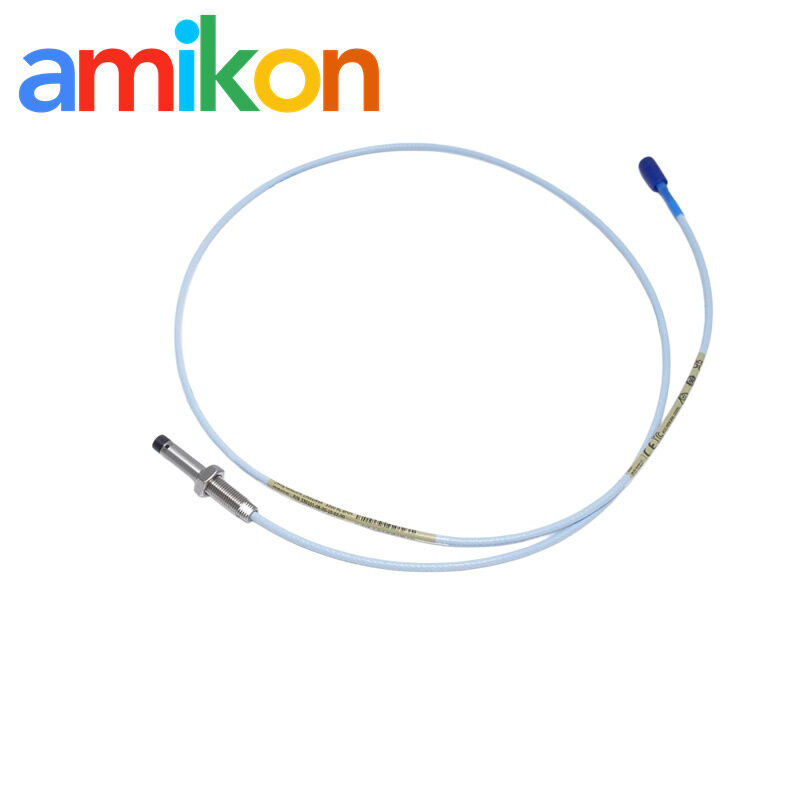

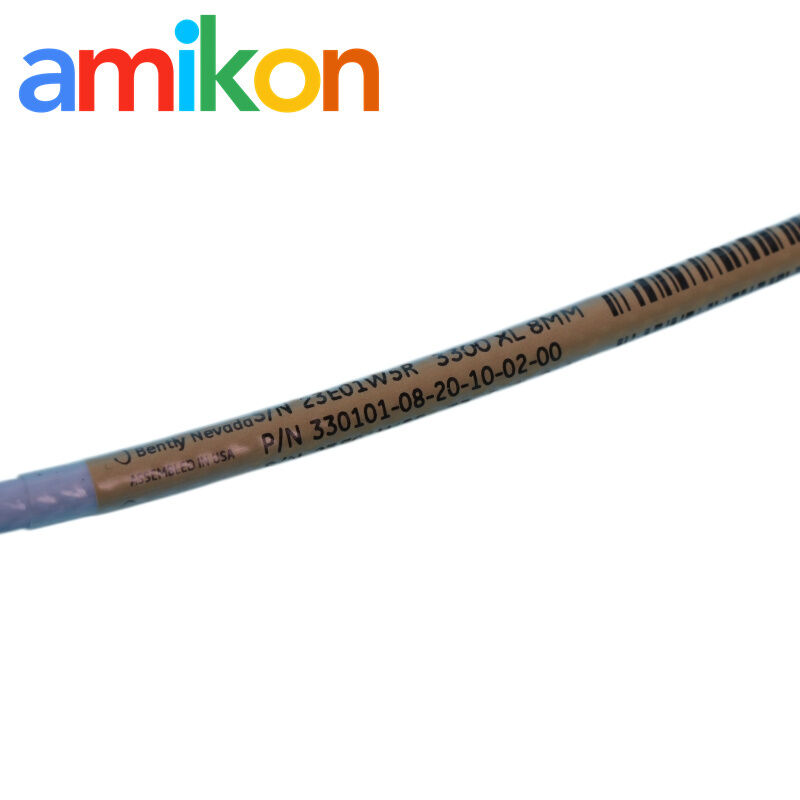

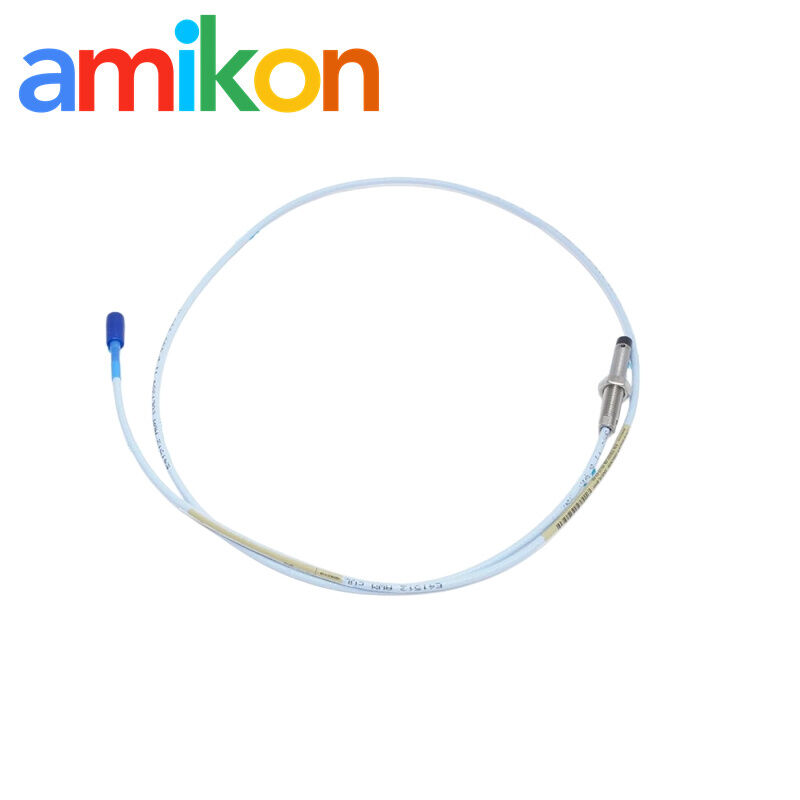

Bently Nevada 330101-08-20-10-02-00 3300 XL 8 mm Proximity Probe
Eddy Current Transducer Rugged Non-Armored Flexibility
High-Temp PPS Encapsulation API 670 Compliance
Field-Replaceable Without Re-Calibration
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330101-08-20-10-02-00
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
1.5x1.3x116cm
Brand:
Bently Nevada
Condition:
100% Original
Model:
330101-08-20-10-02-00
MOQ:
1 Piece
Packaging:
Original New Packaging
Product Type:
3300 XL 8 Mm Proximity Probes
Weight:
0.05 Kg
Highlight:
Eddy Current Transducer Rugged Non-Armored Flexibility
,High-Temp PPS Encapsulation API 670 Compliance
,Field-Replaceable Without Re-Calibration
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Bently Nevada 330101-08-20-10-02-00 3300 XL 8 mm Proximity Probe
Technical Specifications:
Unthreaded Length: 0 8 = 0.8 in
Overall Case Length: 2 0 = 2.0 in
Total Length: 10 1.0 meter (3.3 feet)
Connector and Cable-Type: 02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval: 00 Not required
Unthreaded Length: 0 8 = 0.8 in
Overall Case Length: 2 0 = 2.0 in
Total Length: 10 1.0 meter (3.3 feet)
Connector and Cable-Type: 02 Miniature coaxial ClickLoc connector, standard cable
Agency Approval: 00 Not required
Lifecycle Support for Critical Industrial Assets
When OEM support ends and legacy systems become difficult to maintain, Amikon delivers certified, original-source industrial hardware to keep your operations running without interruption.
System Coverage Breakdown
- DCS / Safety Systems: Advanced control processors and safety-rated modules
- PLC / I/O Systems: Control racks, processing units, and digital/analog interface cards
- HMI / Industrial PCs: Operator interfaces and hardened computing solutions for industrial environments
- Drives / VFD Solutions: Precision motor control systems and frequency regulation units
Service Commitments
- Verified Quality: Every batch gets checked before shipping. Not just ticking boxes—people actually look through the details to make sure everything is legit and performs the way it should.
- Rapid Deployment: When things are urgent, we can usually move fast. We’ve got an international logistics setup that helps a lot, especially for downtime situations where customers just need parts ASAP.
- Long-Term Reliability: This isn’t a short-term setup. We’ve been supporting the MRO supply chain for around 20 years, so long-term reliability and steady supply are kind of the baseline for you.
Key Features and Benefits
Complete Interchangeability: Parts are fully interchangeable across the probe, extension cable, and Proximitor sensor. So if one piece fails, you can just swap that single item out—no need for special tools or going through a full system recalibration.
High Precision and Linearity: Measurement stays very stable and linear, basically the output voltage tracks the distance in a pretty direct way. It’s built to line up with API 670 requirements for vibration and position monitoring, or even go beyond what the standard asks in some cases.
Ruggedized Design:
- Advanced Tip Material: Probe tip uses PPS material, basically a tough engineering plastic. It holds up fine against moisture, oil, and chemical exposure, so you don’t need to worry too much about corrosion in normal industrial environments.
- ClickLoc Connectors: It comes with ClickLoc connectors, gold-plated and corrosion-resistant. Once they snap in, they really don’t loosen easily—even on machines that keep vibrating all the time.
Environmental Resilience:
- Temperature Range: Range is roughly from -51°C up to +177°C. So whether it’s cold outdoor setup or high-temp industrial area, it usually keeps running without issues.
- Pressure Rated: The probe tip is designed to maintain sealing inside bearing housings, even when pressure is not exactly gentle.
Backward Compatibility: One nice point is backward compatibility. If you already have older 3300 series systems, you don’t need to replace everything—just upgrade part by part if needed.
Enhanced EMI/RFI Immunity: The Proximitor sensor has improved EMI/RFI immunity, so in places near big motors or power lines, the signal is less likely to get messed up.
Specific Configuration Benefits (330101-08-20-10-02-00)
- Customizable Fit: This 330101-08-20-10-02-00 setup is actually pretty practical when you’re dealing with different housing thicknesses. The short unthreaded section (0.8") plus the overall case length gives you some room to fine-tune how deep it sits, especially on thicker machine casings where space isn’t always ideal.
- Standard Length:The 1.0-meter lead is basically the common industry length. It connects straight to an extension cable without any hassle, so in most setups you don’t need to modify or rethink the wiring side.
Frequently Asked Questions
1. What is the specific mechanical configuration of this part number?
This part number refers to a 3300 XL 8 mm probe with a 3/8-24 UNF English thread. The suffix basically breaks down the physical specs: 0.8-inch unthreaded length, 2.0-inch overall case length, and a 1.0-meter (about 3.3 ft) total cable length. It comes with standard miniature coaxial connectors, and there’s no fluid-style cable armor included on this version.
This part number refers to a 3300 XL 8 mm probe with a 3/8-24 UNF English thread. The suffix basically breaks down the physical specs: 0.8-inch unthreaded length, 2.0-inch overall case length, and a 1.0-meter (about 3.3 ft) total cable length. It comes with standard miniature coaxial connectors, and there’s no fluid-style cable armor included on this version.
2. Does this probe require field calibration upon installation?
No. One of the core features of the 3300 XL series is complete interchangeability. The probe, extension cable, and Proximitor sensor are manufactured to such tight tolerances that they can be replaced or interchanged without the need for individual system calibration or "trimming," provided the total system length (5m or 9m) is maintained.
No. One of the core features of the 3300 XL series is complete interchangeability. The probe, extension cable, and Proximitor sensor are manufactured to such tight tolerances that they can be replaced or interchanged without the need for individual system calibration or "trimming," provided the total system length (5m or 9m) is maintained.
3. What is the maximum operating temperature for this probe and cable?
The 330101 probe and its built-in cable are made for pretty harsh industrial conditions. It can run from about -51°C up to +177°C (or -60°F to +351°F), so it’s fine for high-heat spots like steam turbine housings or large compressor internals without much concern.
The 330101 probe and its built-in cable are made for pretty harsh industrial conditions. It can run from about -51°C up to +177°C (or -60°F to +351°F), so it’s fine for high-heat spots like steam turbine housings or large compressor internals without much concern.
4. Can this 1.0-meter probe be connected directly to a Proximitor sensor?
It can connect directly in a physical sense, but that’s not really how the system is meant to be used. It’s designed around a total length of either 5 m or 9 m, so this 1.0 m probe normally has to go with a 4.0 m or 8.0 m extension cable to make things match up. If the length is off, you’ll start seeing measurement drift and the linearity just won’t be right.
It can connect directly in a physical sense, but that’s not really how the system is meant to be used. It’s designed around a total length of either 5 m or 9 m, so this 1.0 m probe normally has to go with a 4.0 m or 8.0 m extension cable to make things match up. If the length is off, you’ll start seeing measurement drift and the linearity just won’t be right.
5. What is the purpose of the "02" connector option in the part number?
The “02” basically means it uses a Miniature Coaxial ClickLoc™ connector. It’s gold-plated, so corrosion isn’t a big issue, and the locking design helps it stay tight even under vibration. This version is the standard cable type without an extra connector protector.
The “02” basically means it uses a Miniature Coaxial ClickLoc™ connector. It’s gold-plated, so corrosion isn’t a big issue, and the locking design helps it stay tight even under vibration. This version is the standard cable type without an extra connector protector.
6. What are the target material requirements for accurate vibration readings?
It’s calibrated mainly for AISI 4140 steel, which is the reference target. It still works on other conductive metals, but the readings can shift a bit. The scale factor (typically 200 mV/mil or 7.87 V/mm) may change depending on the material, so in some cases you might need a corrected calibration or adjustment if the shaft material is different.
It’s calibrated mainly for AISI 4140 steel, which is the reference target. It still works on other conductive metals, but the readings can shift a bit. The scale factor (typically 200 mV/mil or 7.87 V/mm) may change depending on the material, so in some cases you might need a corrected calibration or adjustment if the shaft material is different.
Compatible Part Numbers
| Part Number | Part Number |
|---|---|
| 3500/32 125712-01 | 330103-03-06-05-02-00 |
| 991-01-XX-02-05 | 330106-05-30-05-02-CN |
| 9200-06-05-05-00 | 330180-91-CN |
| 330101-00-28-05-02-00 | 330103-00-07-05-02-00 |
| 330103-00-06-05-02-00 | 330930-065-01-05 |
| 330106-05-30-15-02-00 | 990-05-50-02-01 |
| 330101-00-63-10-02-00 | 136483-01 |
| 330103-00-08-05-02-00 | 81544-01 |
| 330103-00-07-10-02-00 | 82365-01 |
| 330103-07-18-10-02-00 | 82367-01 |
| 330130-075-00-00 | 84147-01 |
| 330104-00-16-10-02-00 | 18622-030-01 |
| 330703-000-040-10-02-00 | 330101-30-63-10-02-CN |
| 330930-065-00-05 | 330104-03-06-05-02-00 |
| 3500/22M 138607-01 | 330104-05-15-05-02-00 |
| 330103-00-05-50-12-00 | 330101-00-60-10-02-00 |
| 330703-000-060-10-02-CN | 330709-000-070-10-02-00 |
| 3500/53M 286566-01 | 330101-00-56-10-02-00 |
| 330103-00-04-05-02-05 | 330103-00-03-10-02-00 |
| 330103-00-05-05-02-CN | 330106-05-30-15-02-CN |
