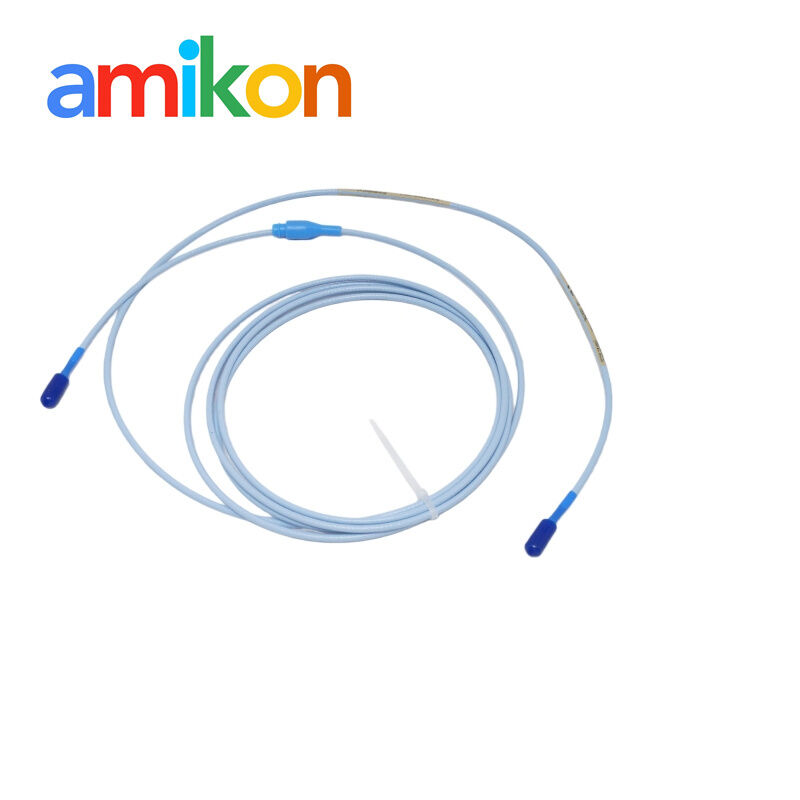

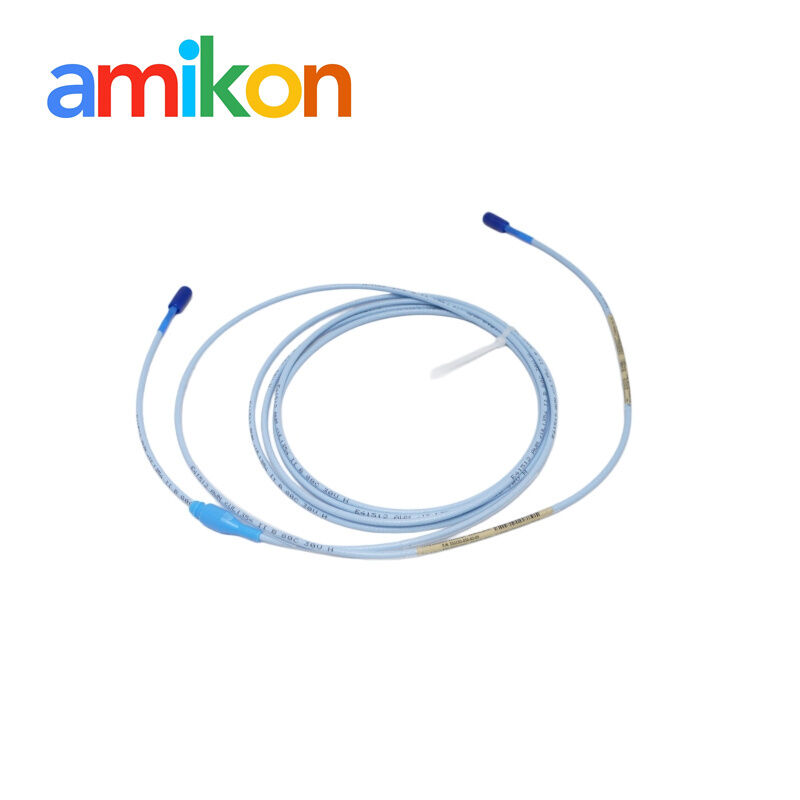

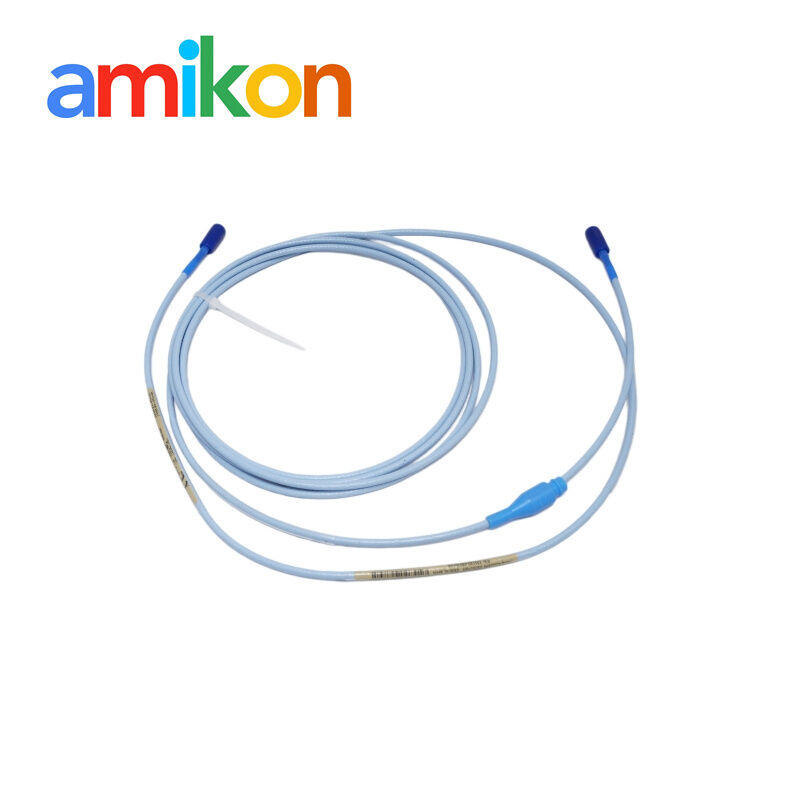

Bently Nevada 330130-030-02-05 3300 XL Standard Extension Cable
Standard Extension Cable
Proximitor System Cable 3300 XL Probe Extension
Vibration Monitoring System Sensor Extension Lead
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:

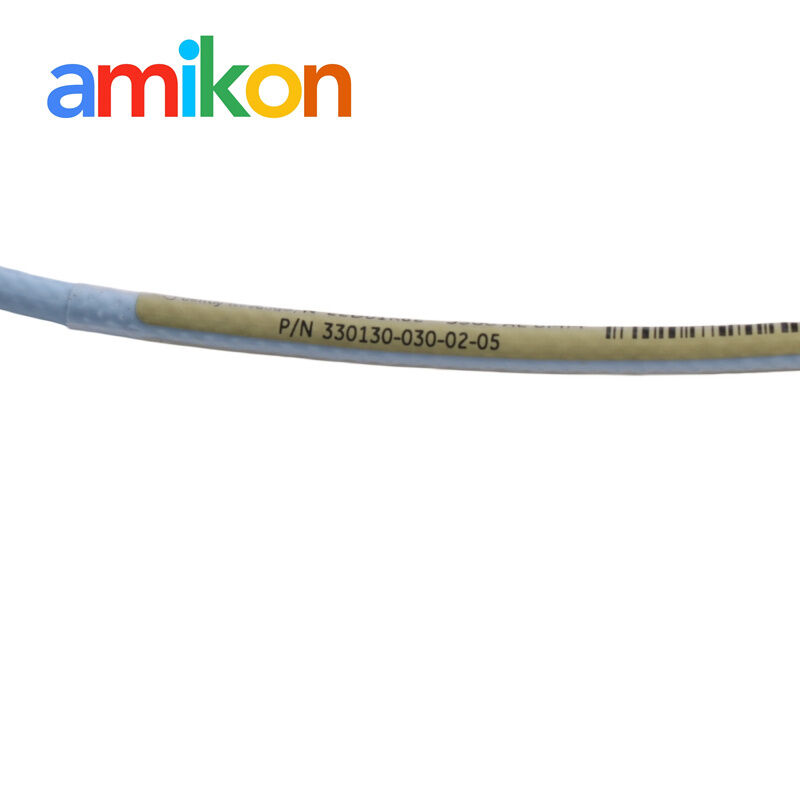

330130-030-02-05
Standard Extension Cable
,Proximitor System Cable 3300 XL Probe Extension
,Vibration Monitoring System Sensor Extension Lead
video
Bently Nevada 149992-02 16-Channel High Density Failsafe Relay Output Module API 670 Compliant
video
Bently Nevada 146031-02 100Base-FX Multi-mode Fiber Optic I/O Module with MT-RJ (Male) Connector and 2000 m Max Distance
330130-030-02-05 is a Bently Nevada 3300 XL standard extension cable used in the 3300 XL 8 mm proximity transducer system. It is designed for vibration and position measurement in industrial rotating machinery, such as compressors and fluid-film bearing equipment.
- Cable Length: 030 - 3.0 meters (9.8 feet)
- Connector Protector and Cable: 02 - Standard cable with connector protector
- Agency Approval: 05 - CSA, ATEX, IECEx Approvals
- System Interchangeability: It’s part of the 3300 XL system, so probes and sensors can be swapped out freely without needing bench calibration. That helps keep measurements consistent and reliable.
- Built for tough environments:: Should be fine in most rough conditions. With FEP insulation and a protected connector, moisture, chemicals, and normal wear are usually not a big problem.
- Signal quality: It’s a 75-ohm triaxial cable, mainly to keep noise lower, so the signal stays more consistent.
- Safety approval: It has ATEX, IECEx, and CSA approvals, so it’s generally ok to use in hazardous areas with possible gas risks.
- Vibration & Position Monitoring
- Fluid-Film Bearing Machinery
- Keyphasor & Speed Sensing
- Hazardous Area Use
We’ve been in this for over 20 years, and over time we’ve built a supply network that covers more than 150 countries. In some cases, shipping can be pretty quick—sometimes just 1 to 3 days.
Before anything goes out, we always check the parts to make sure they’re in good condition and meet the basic requirements.
We also offer a 12-month warranty, so if there’s any issue later, you’re still covered.
Mainly we just try to help keep your machines running and cut down downtime with parts that actually work.
If you don’t see what you need, just tell us—we can check it on our side.
1. How does the 3 m cable length fit into the system?
This cable is used as part of a 3300 XL setup where the total length needs to reach either 5 m or 9 m. It’s combined with different probe lengths to make up the full system length.
2. What is the -02 connector protection?
It just means the connectors come with protective covers. They help keep out dust, oil, and moisture, and also reduce wear on the connection points over time.
3. What does the -05 approval mean?
It means the cable is certified under ATEX, IECEx, and CSA standards, so it’s approved for use in hazardous areas where explosive gases or similar risks may exist.
4. Can it be used with older systems?
Yes. It works with older 3300 5 mm and 8 mm systems, but performance will follow the older system if mixed.
5. How much can it bend?
| 330101-30-63-10-02-CN | 330904-05-14-05-02-00 |
| 330104-03-06-05-02-00 | 330930-040-00-00 |
| 330104-05-15-05-02-00 | 330909-00-60-10-02-05 |
| 330101-00-60-10-02-00 | 21000-16-10-15-057-03-02 |
| 330709-000-070-10-02-00 | 21000-16-10-15-102-03-02 |
| 330101-00-56-10-02-00 | 21000-16-10-15-114-03-02 |
| 330103-00-03-10-02-00 | 21000-16-10-15-144-03-02 |
| 330106-05-30-15-02-CN | 991-01-XX-01-CN |
| 21000-28-10-00-098-04-02 | 3500/93 135799-02 |
| 21000-28-10-00-217-04-02 | 22810-00-10-10-02 |
| 330104-00-05-10-02-00 | 330193-00-05-10-00 |
| 330101-00-08-20-02-05 | 330103-02-12-05-02-CN |
| 330130-070-00-00 | 330103-06-13-05-02-CN |
| 330130-080-01-05 | 330104-00-04-10-02-CN |
| 330703-000-060-50-12-00 | 990-05-XX-01-CN |
| 330103-00-06-15-02-CN | 330101-30-63-15-02-CN |
| 330130-030-01-CN | 330104-00-04-50-11-00 |
| 102044-00-18-10-02 | 330104-00-12-10-02-00 |
| 144181-50 | 330104-00-15-10-02-00 |
| 3500/42E | 3300/05 |
| 3500/50E | 330103-00-07-20-02-00 |
| 330101-30-63-10-02-00 | 126599-01 |
| 330130-035-00-CN | 990-04-70-01-00 |
| 330130-035-01-CN | 330103-00-15-05-01-00 |
| 330130-045-01-CN | 330905-00-10-10-02-00 |
| 330104-00-07-05-02-00 | 991-06-50-01-00 |
| 330130-085-01-00 | 330103-00-15-10-02-00 |
Would you like a quote for these P/Ns?
