Bently Nevada 2300/20-CN Vibration Monitor
Dual-Channel Monitoring Seamless DCS Integration
Ruggedized Protection On-Board Alarming
Cost-Effective Safety Simplified Configuration
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
2300/20-CN
Contact Us
Request A Quote
Product Details
Country Of Origin:
USA
Weight:
0.98kg
Brand:
Bently Nevada
Part Number:
2300/20-CN
Description:
Vibration Monitor
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
Dual-Channel Monitoring Seamless DCS Integration
,Ruggedized Protection On-Board Alarming
,Cost-Effective Safety Simplified Configuration
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

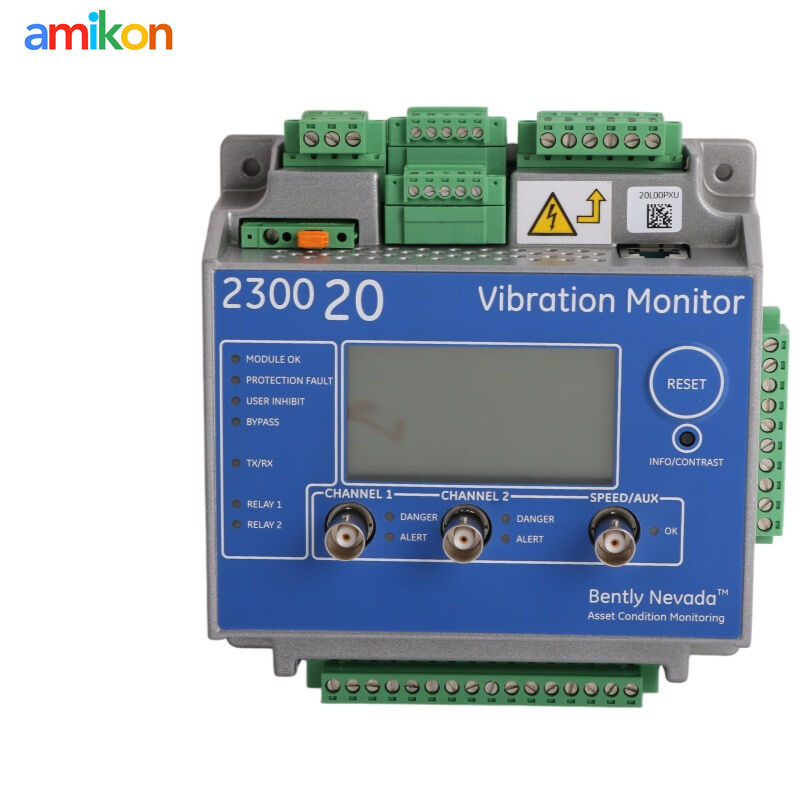

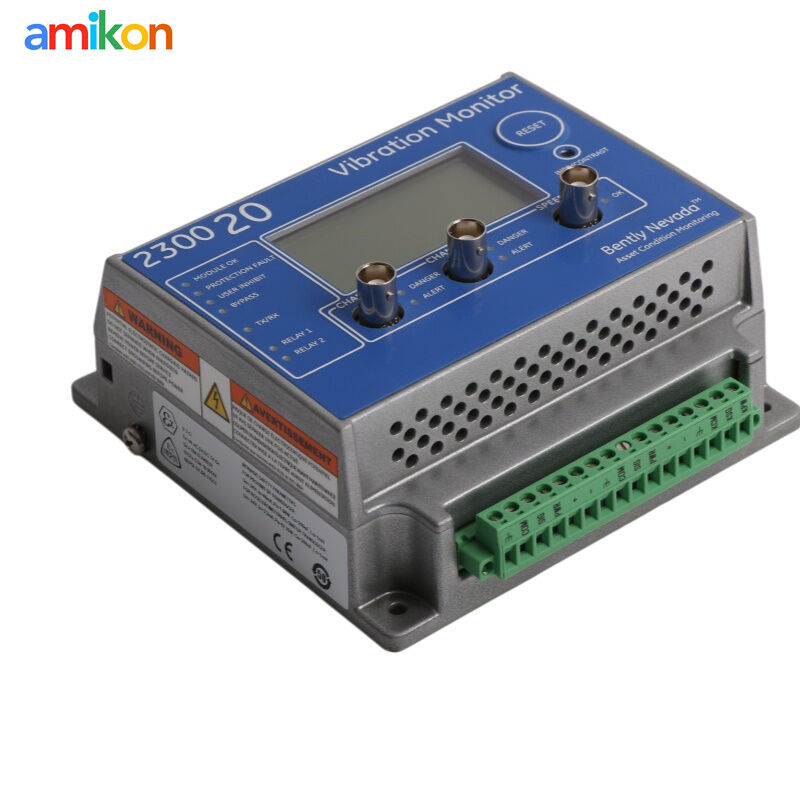

Bently Nevada 2300/20-CN Vibration Monitor
| Dimension | 14.8x15.2x7cm | Input Channels | 2 vibration, 1 speed |
|---|---|---|---|
| Sensor Support | Accelerometers, Velocity, Proximity | Analog Outputs | 2 x 4-20 mA |
| Operating Temp | -40°C to +70°C | Version Note | China localized variant with region-specific labeling and documentation |
Key Features
Analog Outputs
Two 4-20 mA outputs with internal current loop power supplyMonitoring Capability
Continuous monitoring and protectionVibration Inputs
Two acceleration/velocity/proximity inputs with synchronized sampling for advanced diagnosticsSpeed Channel
One dedicated speed channel supporting Proximity probes, Magnetic pickup and Proximity switch type sensorsProcess Variable Support
Supports process variable on all three input channelsKey Measurements
Acceleration pk, Acceleration rms, Velocity pk, Velocity rms, Displacement pp, Displacement rms, Speed real-time provided with alarm configurationMeasurement Groups
Each channel has one measurement group, and can add additional two bandpass measurements and several nX measurementsDisplay
LCD and LED for real time value and status displayCommunication
Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration software (Included) with RSA encryptionLocal Controls
Local contacts for positive engagement of monitor bypass, configuration lockout, and latched alarm/relay resetRelay Outputs
Two relay outputs with programmable setpointsBuffered Outputs
Three buffered transducer outputs (including Keyphasor signal) providing short circuit and EMI protection. Buffered outputs for each signal are through BNC connectors
Frequently Asked Questions
What is the 2300/20-CN used for?
It provides continuous vibration monitoring and basic protection for industrial rotating equipment such as pumps, motors, fans, and compressors.
How many channels does it support?
It supports 2 vibration channels plus 1 speed (Keyphasor) input.
What sensor types are compatible?
It accepts signals from accelerometers, velocity sensors, and proximity probes.
What outputs are available?
It provides 4-20 mA analog outputs and relay outputs for alarm and trip functions.
Does it support communication protocols?
Yes, it supports Ethernet communication and Modbus TCP for system integration.
What measurements does it provide?
It measures acceleration, velocity, displacement, and speed in RMS and peak values.
