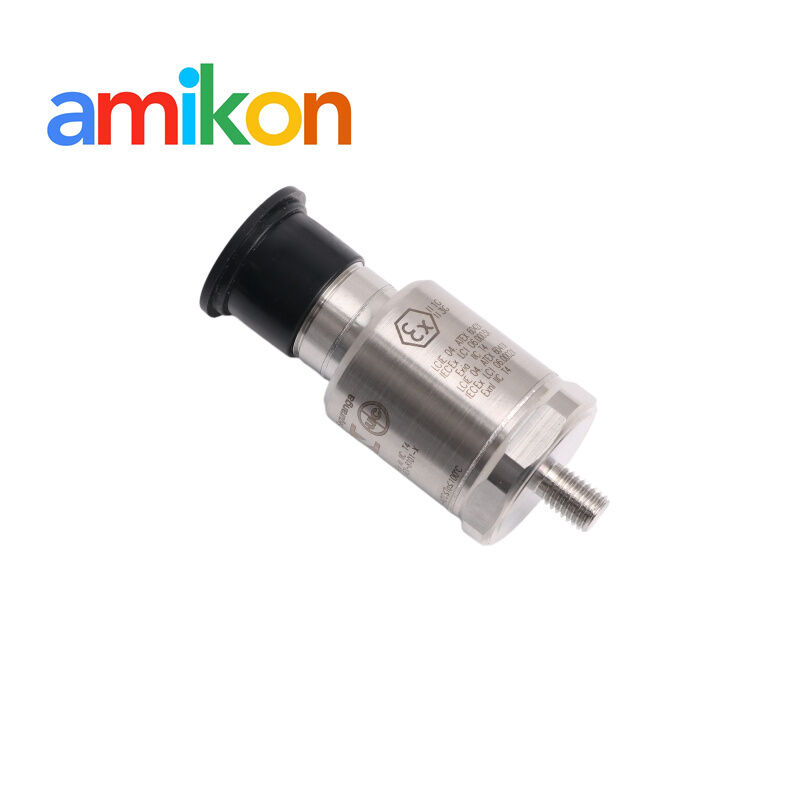

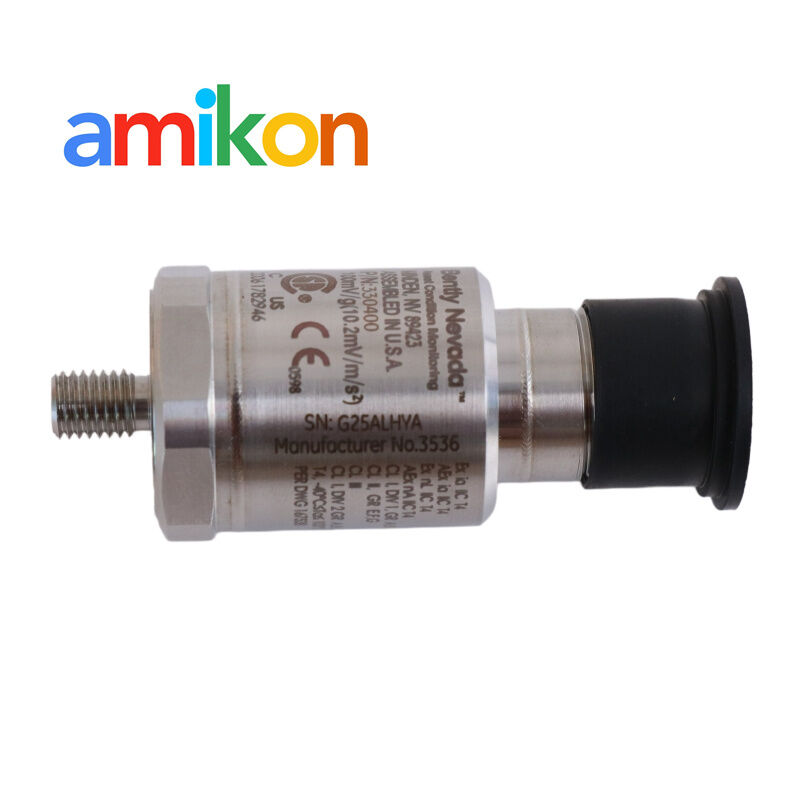

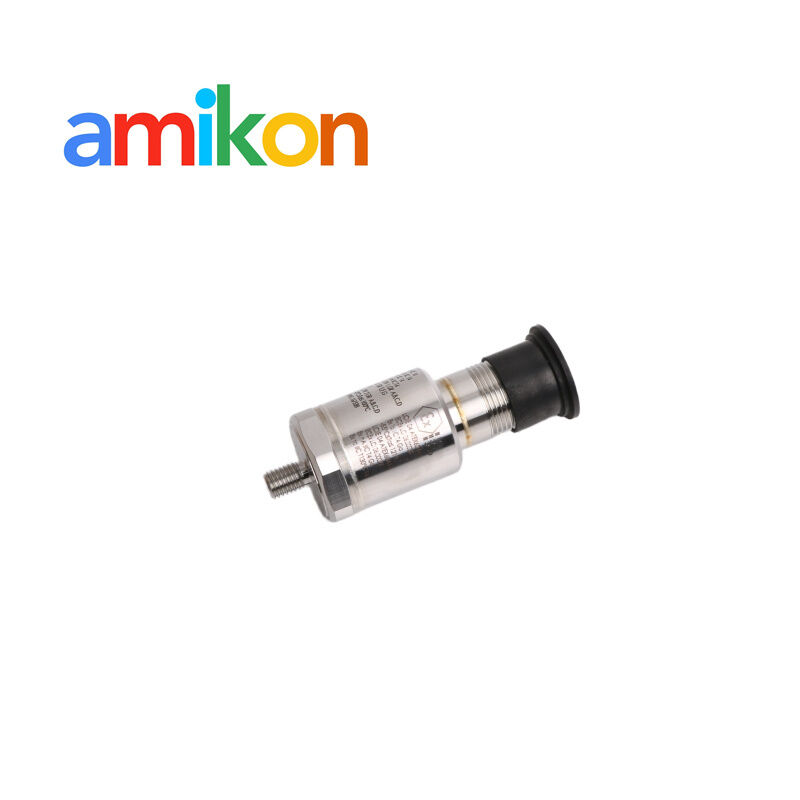

Bently Nevada 330400-01-05 Accelerometer Acceleration Transducers
Bently Nevada 330400-01-05 Accelerometer Sensor
Vibration Accelerometer Machinery Protection System
High Sensitivity Vibration Sensor Accelerometer
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330400-01-05
Contact Us
Request A Quote
Product Details
Transverse Sensitivity:
Less Than 5% Of Axial.
Mounted Resonant Frequency:
Greater Than 30 KHz.
Country Of Origin:
USA
Amplitude Of Resonant Peak:
20 DB Maximum
Operating And Storage Temperature:
-55°C To +121°C (-67°F To +250°F)
Manufacturer:
Bently Nevada
Shock Survivability:
49,050 M/s2 (5000 G) Peak, Maximum
Relative Humidity:
100% Condensing, Nonsubmerged. Case Is Hermetically Sealed.
Highlight:
Bently Nevada 330400-01-05 Accelerometer Sensor
,Vibration Accelerometer Machinery Protection System
,High Sensitivity Vibration Sensor Accelerometer
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Bently Nevada 330400-01-05 Accelerometer Acceleration Transducers
Product Overview
These accelerometers are designed for critical machinery applications where casing acceleration measurements are required, such as gear mesh monitoring. The 330400 model meets American Petroleum Institute Standard 670 requirements for accelerometers, providing an amplitude range of 50 g peak and a sensitivity of 100 mV/g.
Technical Specifications
- Mounting Thread: 1 ¼-28 UNF integral stud
- Agency Approval: Multiple approvals (CSA, ATEX, IECEx)
- Sensitivity: 10.2 mV/m/s² (100 mV/g) ±5%
- Acceleration Range: 490 m/s² (50 g) peak overall acceleration over 10 Hz to 15 kHz range
- Amplitude Linearity: ±1% up to 490 m/s² (50 g) peak
- Broadband Noise Floor: 0.039 m/s² (0.004 g) rms (10 Hz to 15 kHz)
- Frequency Response: 10 Hz to 15 kHz (600 cpm to 900,000 cpm) ±3dB; 30 Hz to 10 kHz (1800 cpm to 600,000 cpm) ±10%
- Temperature Sensitivity: -11% to +3% typical over operating temperature range
Key Applications
- Gearbox Monitoring: Wide frequency range (up to 15 kHz) detects gear mesh signals and identifies worn or broken teeth
- Rolling Element Bearing Analysis: Captures high-frequency impacts caused by pits and cracks in ball or roller bearings
- Casing Vibration Measurement: Used on machines where internal shaft vibration transmits to exterior, such as small pumps or motors
- High-Speed Turbomachinery: Applied to steam turbines and compressors for condition monitoring of machines and supporting components
- Harsh & Hazardous Environments: -05 approval rating enables safe installation in oil refineries, gas processing plants, and chemical facilities (Class I, Div 1/Zone 0 areas)
- API 670 Compliance: Meets American Petroleum Institute standards for vibration monitoring in critical machinery protection systems
Frequently Asked Questions
What is the 330400-01-05?
It's an industrial accelerometer used for vibration monitoring in machinery condition systems.
Operating temperature?
It works from -55°C to +121°C (-67°F to +250°F), suitable for harsh environments.
Shock resistance?
It can handle up to 49,050 m/s² (around 5000 g peak) without damage, making it very rugged.
Can it measure high-frequency vibration?
Yes, its mounted resonance is above 30 kHz, so it performs well for high-frequency vibration signals.
Is it protected against tough environments?
Yes, the housing is hermetically sealed and it can operate even in 100% condensing humidity conditions.
Compatible Products
| Model 1 | Model 2 | Model 3 |
|---|---|---|
| 3300/55 | 3500/70M 176449-09 | 330703-000-070-10-02-00 |
| 330780-50-00 | 330130-040-02-00 | 330101-10-27-05-02-05 |
| 330180-50-00 | 3500/45 140072-04 | 330878-50-00 |
| 330130-045-00-00 | 330130-045-01-00 | 330103-00-12-10-01-00 |
| 330180-51-05 | 330130-080-00-05 | 330103-00-16-10-01-00 |
| 330130-040-00-05 | 990-04-70-02-00 | RS901104-03-050-10-01 R200602-400808 |
| 330103-00-05-05-02-00 | 330104-15-23-10-02-00 | 330105-02-12-50-02-00 |
| 330180-51-00 | 330104-19-25-10-11-05 | 350500-00-00-00-11-00 |
| 330103-00-03-05-02-00 | 330103-00-05-10-02-05 | 330190-080-01-00 |
| 330730-040-00-00 | 330103-00-18-05-02-05 | 3500/77M 140734-07 |
| 330780-90-00 | 330130-045-02-05 | 2201/03-01 |
| 330180-91-00 | 330101-00-08-05-02-05 | 1900/65 |
| 3500/25 149369-01 | 330130-085-00-05 | 21747-080-00 |
| 3500/20 125744-02 | 125388-01 | 330730-080-01-00 |
| 133827-01 | 128275-01/128275-01F 130944-01 | 330930-060-00-00 |
| JNJ5300-08-03-000-060-10-00-00-03 | 330780-91-00 | 125388-01H 125388-01 |
| JNJ5300-08-045-00-00 | 330103-00-14-10-01-00 | 125720-02 |
| JNJ5300-08-06-005-030-05-00-00-03 | 330730-080-02-00 | 138708-01 |
| 3500/90 | 330104-05-13-10-02-00 | 330104-00-08-10-02-00 |
| 330130-080-00-00 | 3500/23E | 330105-02-12-05-02-CN |
| 330130-045-00-05 | 3500/15E | 330130-045-00-CN |
| 330130-085-00-00 | 136711-01 | 330103-00-04-05-02-00 |
| 09E01KPS 3300XL 8MM | 330703-000-040-10-11-00 | 330850-90-05 |
| 330180-50-05 | 330705-02-18-10-02-00 | 3500/32 125712-01 |
