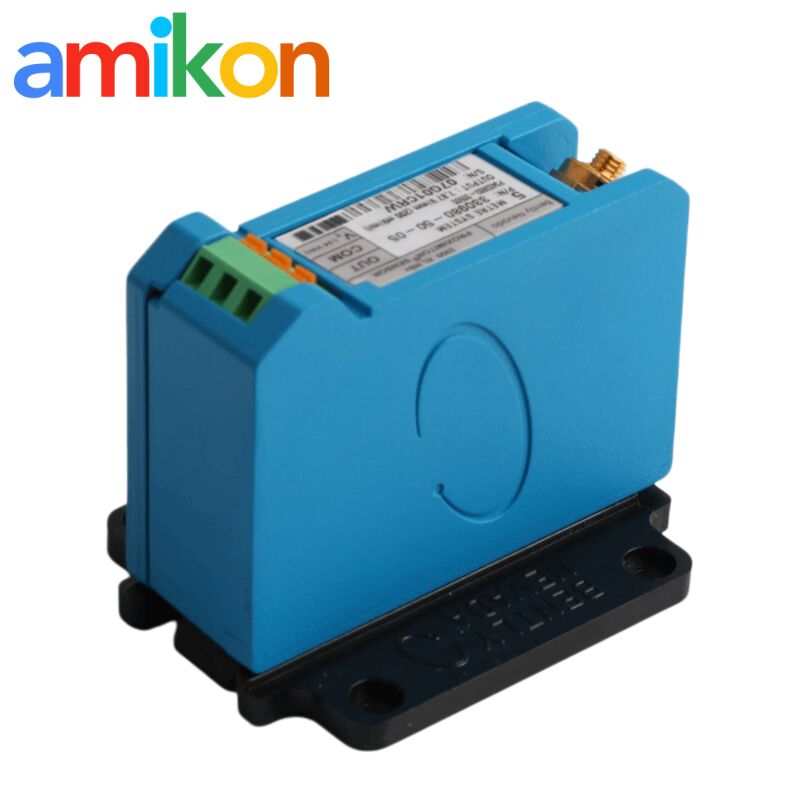

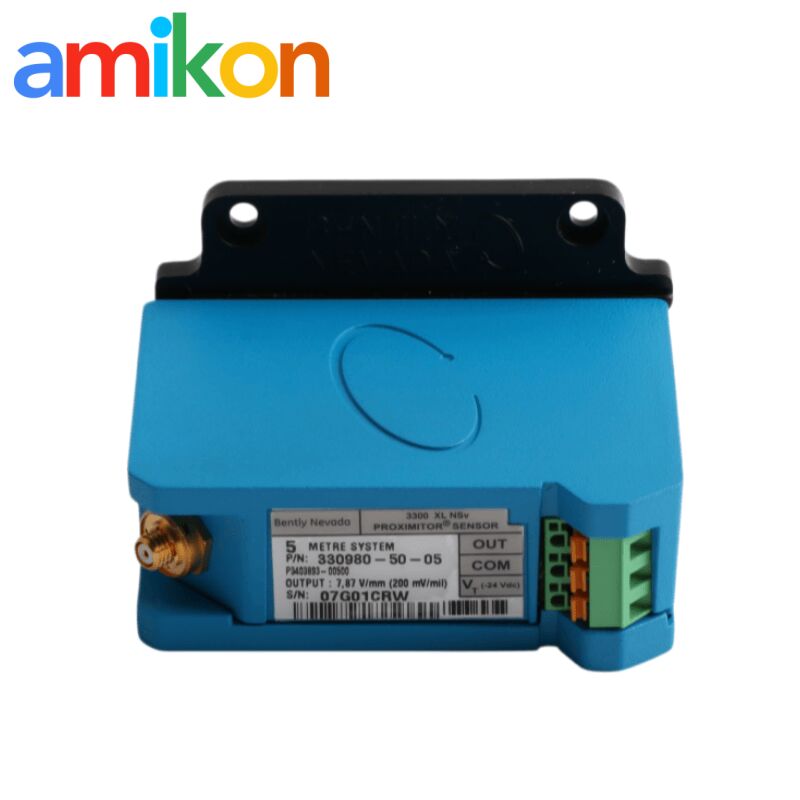

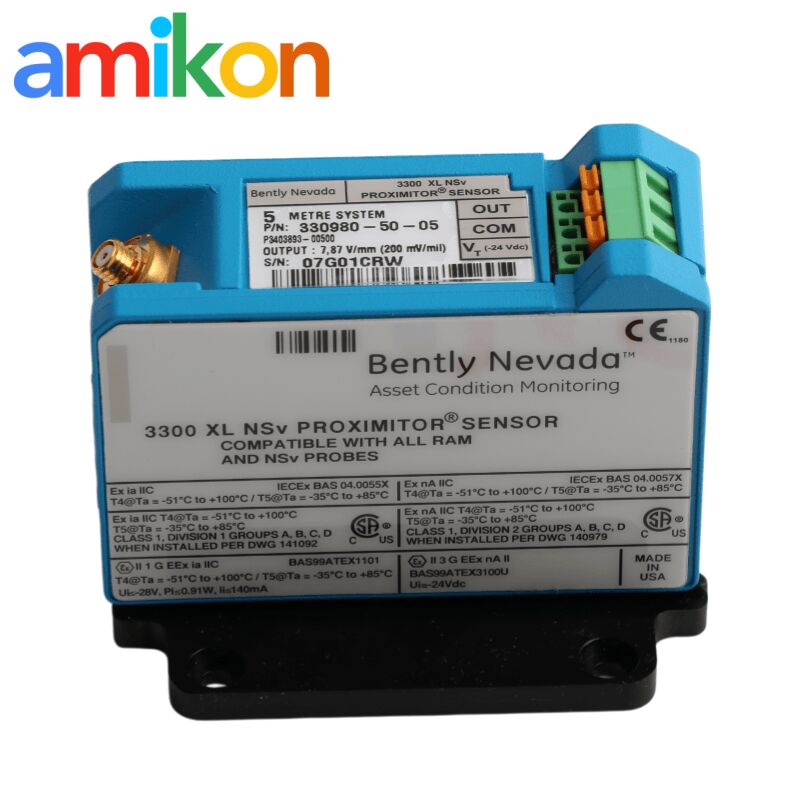

Bently Nevada 330980-50-05 3300 XL NSv Proximitor Sensor for Narrow Side View Applications
Bently Nevada 330980-50-05 3300 XL NSv Proximitor Sensor for Narrow Side View Applications
5.0 Metres System Length Proximitor Sensor
AISI 304 Stainless Steel 3300 XL NSv Proximitor Sensor
Narrow Side View Eddy Current Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330980-50-05
Contact Us
Request A Quote
Product Details
Product Parameters:
3300 XL NSv Proximitor Sensor
Weight:
0.2 Kg
Brand:
Bently Nevada
MOQ:
1 Piece
Total Length And Mounting Option:
5.0 Metres (16.4 Feet)
Condition:
100% Original
Agency Approval Option:
Multiple Approvals
Product Model:
330980-50-05
Highlight:
5.0 Metres System Length Proximitor Sensor
,AISI 304 Stainless Steel 3300 XL NSv Proximitor Sensor
,Narrow Side View Eddy Current Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Bently Nevada 991-01-XX-01-00 MOD:284318-01 Thrust Transmitter for Axial Displacement Monitoring
Get Best Price
video
Bently Nevada 330730-040-00-05 3300 XL 11 mm Extension Cablea with 50 Ω Output Resistance
Get Best Price
Contact Us
Contact Now
Product Description
Bently Nevada 330980-50-05 3300 XL NSv Proximitor Sensor
Technical Specifications
| Parameter | Specification |
|---|---|
| Transducer Type | 3300 NSv Proximitor System (Narrow Side View) |
| Thread Interface | 3/8-24 UNF (Standard Inch) |
| Physical Armor | Without Armor (Flexible Lead Configuration) |
| System Length | 5.0 Metres (16.4 Feet) |
| Case Material | AISI 304 Stainless Steel (High-Corrosion Resistance) |
| Sensor Housing | A380 Aluminum (Proximitor Side) |
| Output Impedance | 50 Ω |
| Agency Approvals | Option 05 (Multiple Global Certifications) |
| Torque Specification | Finger Tight (Critical for thread integrity) |
Hardware Status: Operational Critical / High-Precision Monitoring
The Bently Nevada 330980-50-05 is a specialized 3300 NSv (Narrow Side View) proximity probe engineered for environments where standard 3300 XL sensors face spatial constraints. This 5.0-metre transducer is a cornerstone of TSI (Turbine Supervisory Instrumentation), providing sub-micron radial vibration and axial displacement data to prevent catastrophic machine failure.
The Bently Nevada 330980-50-05 is a specialized 3300 NSv (Narrow Side View) proximity probe engineered for environments where standard 3300 XL sensors face spatial constraints. This 5.0-metre transducer is a cornerstone of TSI (Turbine Supervisory Instrumentation), providing sub-micron radial vibration and axial displacement data to prevent catastrophic machine failure.
Engineering Highlights
- Tight-Clearance Optimization (The NSv Edge): Standard eddy-current probes require significant "side-view" clearance to avoid false signals from surrounding metal. The 3300 NSv is specifically tuned for narrow gaps, making it the industry standard for monitoring shafts with small target areas or confined bearing housings.
- 5.0m Unarmored Versatility: The -50 configuration provides a 5.0-metre total length, allowing for direct routing from the machine internally to the junction box without the bulk of external armor. This reduces the weight (only 0.2kg) and increases flexibility during complex installations in centrifugal compressors.
Field Applications
The 330980 series is essential for high-speed, small-diameter shaft applications, including:
- Centrifugal Compressors: Radial vibration monitoring in tight bearing bores
- Aero-derivative Gas Turbines: Axial position sensing where space is at a premium
- Hydro-Pumps: Monitoring shaft stability in fluid-handling systems
- Reciprocating Machinery: Measuring rod drop and crosshead stability
Condition: Original New (NIB)
Installation Protocol
Field Warning: The 330980-50-05 utilizes a 3/8-24 UNF thread. To prevent cross-threading in delicate bearing housings, the manufacturer recommends Finger Tight torque. Over-torquing can deform the 304 SS casing and shift the calibration curve of the 50 Ω output.
When a critical turbine or compressor goes dark, your bottom line takes the hit. Amikon Limited isn't a catalog pusher; we are a high-velocity fulfillment engine designed for one outcome: Zero-Friction Procurement.
Procurement FAQ
Q: Is the 330980-50-05 ready for immediate export?
A: Yes. We maintain ready-to-ship stock to avoid customs bottlenecks.
Q: How do you handle high-value vibration sensors during transit?
A: Every probe is ESD-sealed and triple-layered in impact-neutral foam. We use high-tier DHL/FedEx/UPS accounts for door-to-door visibility.
Q: Do you offer a warranty on discontinued Bently Nevada lines?
A: Every unit carries our Standard 12-Month Replacement Guarantee. We back the hardware because we've already verified it.
A: Yes. We maintain ready-to-ship stock to avoid customs bottlenecks.
Q: How do you handle high-value vibration sensors during transit?
A: Every probe is ESD-sealed and triple-layered in impact-neutral foam. We use high-tier DHL/FedEx/UPS accounts for door-to-door visibility.
Q: Do you offer a warranty on discontinued Bently Nevada lines?
A: Every unit carries our Standard 12-Month Replacement Guarantee. We back the hardware because we've already verified it.
Emergency Support Contact
Email: sales@amikon.cn
Phone: +86 180 2077 6792 (Miya Zheng)
Response within 60 minutes during business hours
