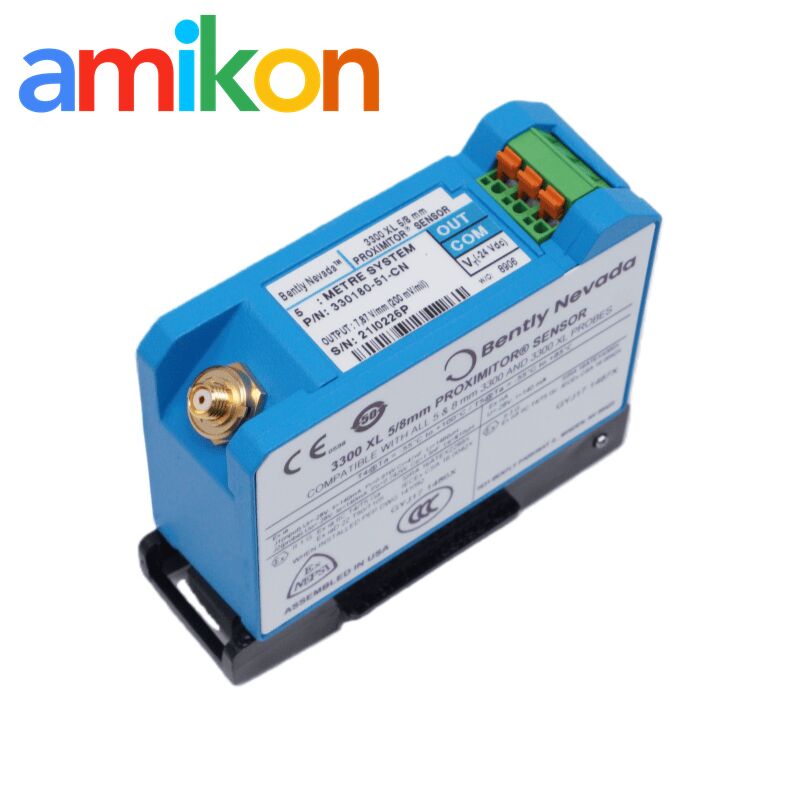

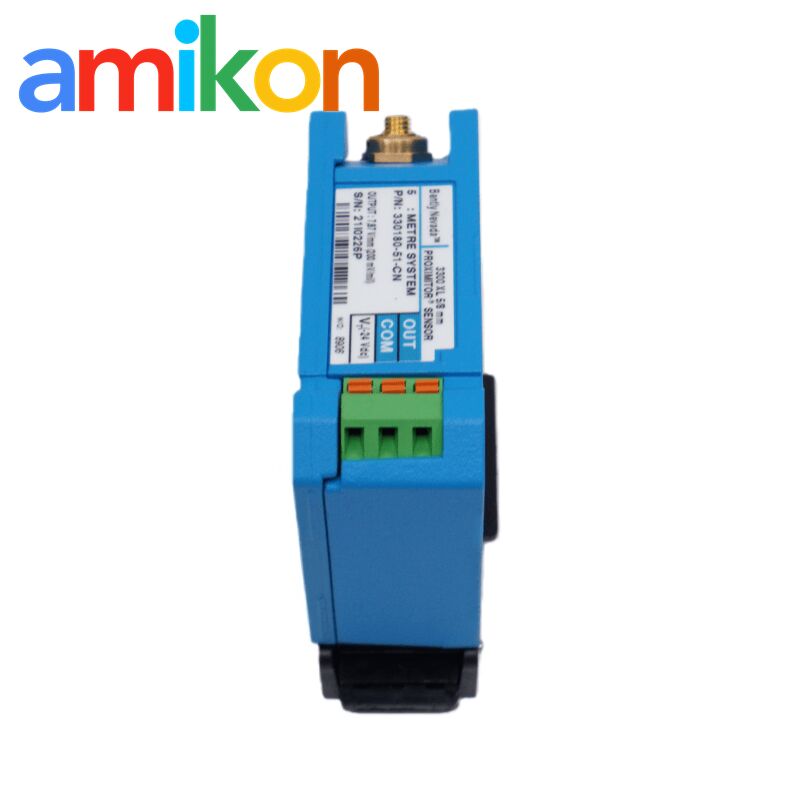

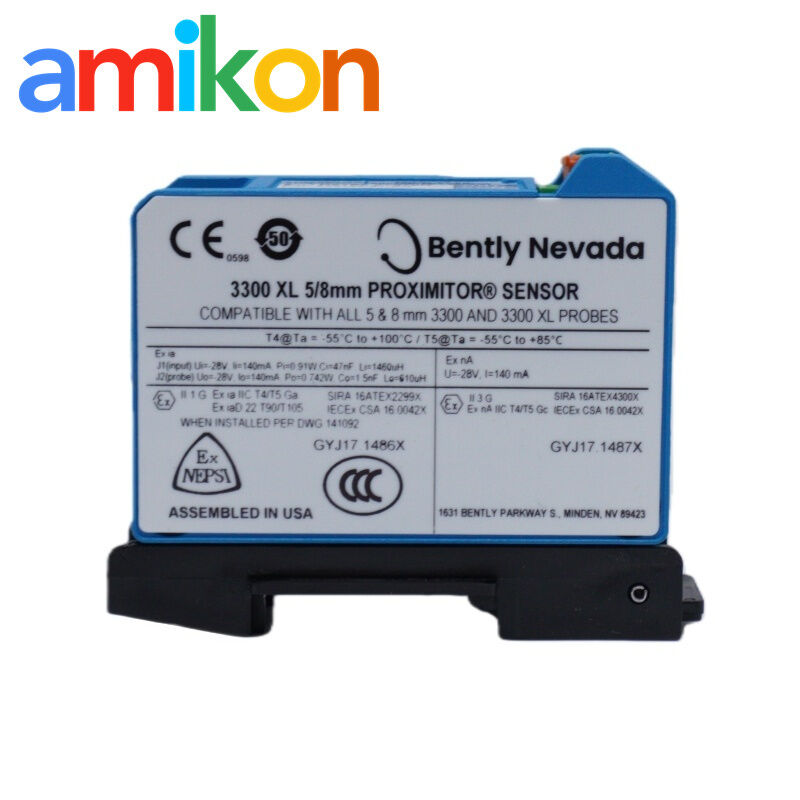

Bently Nevada 330180-51-R0 Proximitor Sensor with 5.0 Meters System Length DIN Mount
Bently Nevada 330180-51-R0 Proximitor Sensor with 5.0 Meters System Length DIN Mount
5.0 meters system length Proximitor Sensor
DIN mount 3300 XL Proximitor
365 days warranty Eddy Current Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330180-51-R0
Contact Us
Request A Quote
Product Details
Shipping:
TNT, DHL, FedEx, EMS, UPS
Packaging:
Original New Packaging
MOQ:
1 Piece
Product Parameters:
Proximitor Sensor
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Warranty:
365 Days
Total Length And Mounting Option:
5.0 Meters (16.4 Feet) System Length, DIN Mount
Highlight:
5.0 meters system length Proximitor Sensor
,DIN mount 3300 XL Proximitor
,365 days warranty Eddy Current Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Bently Nevada 330180-51-R0 Proximitor Sensor
Technical Specifications & Compatibility
Does the 330180-51-R0 require a mandatory 5.0-meter total system length for operation?
YES. The "-51" hardware suffix specifies internal tuning for a 5.0-meter electrical length. Matching with a 7.0m or 9.0m cable string will induce significant Incremental Scale Factor (ISF) non-linearity and catastrophic DC gap error.
Is this Proximitor interchangeable with non-XL 3300 series transducers?
NO. The 3300 XL circuit architecture is optimized for 3300 XL probes and cables only. Cross-matching with legacy 3300 (5mm/8mm) components results in Average Scale Factor (ASF) deviation exceeding the ±5% API 670 tolerance.
Can the Proximitor operate reliably with a supply voltage deviation outside the -17.5 to -26 Vdc range?
NO. Operating outside these parameters risks internal oscillator instability. Standard deployment requires a regulated -24 Vdc supply provided by the 3500/15 power module or an equivalent high-stability source.
Does an output voltage pegged at the -24 Vdc supply rail indicate a transducer open-circuit?
YES. The 330180-51-R0 drives the signal to the negative supply limit during an Open Circuit (OC) event. Conversely, a voltage near 0 Vdc typically signifies a Shorted Circuit (SC) in the probe-to-extension cable interface.
End-of-Life Component Solutions
Is an EOL (End-of-Life) notice threatening your plant's uptime? Amikon bridges the gap for discontinued PLC processors, I/O modules, and HMI panels. We track down the parts that manufacturers no longer support.
- Authentication: Every module is verified for serial number integrity and physical condition.
- Reliability: Even for hard-to-find items, we provide a standard 12-month warranty.
- Shipping Hub: Direct export from Xiamen, China via DHL/FedEx/UPS Express.
- Terms: 100% T/T for stock items to ensure fastest possible release.
Don't rip and replace your entire system. Just replace the faulty module.
Specialized Industrial Component Sourcing
Searching for a discontinued PLC module or a rare Industrial PC backplane? Amikon specializes in the "impossible to find." Our 20-year footprint in China allows us to source surplus and NIB hardware that the primary market has abandoned.
Inventory Categories
- Control Systems: Large-scale DCS modules, PLC racks, and CPU cards.
- Visualization: Replacement HMI panels (Pro-face, PanelView) and displays.
- Power & Motion: Servo drives, Inverters, and specialized power units from ABB, Fanuc, and Indramat.
- Safety Systems: HIMA, ICS Triplex, and Triconex TMR modules.
Operational Fact: We quote in 30 minutes. We ship the same day. We provide a full global warranty. No "virtual stock"—just real parts for real industrial challenges.
Inquiry Portal
Miya Zheng | Senior Sales Manager
Email: sales@amikon.cn
WhatsApp/Mobile: +86 180 2077 6792
Compatible Bently Nevada Part Numbers
| Bently Nevada | Bently Nevada | Bently Nevada |
|---|---|---|
| 330881-28-04-045-03-02 | 330881-28-05-090-00-02 | 330881-28-10-148-03-02 |
| 330881-28-04-070-03-02 | 330881-28-05-114-03-02 | 330881-28-11-214-00-02 |
| 330881-28-04-090-03-02 | 330881-28-06-105-00-02 | 330881-28-11-265-00-02 |
| 330881-28-04-105-00-02 | 330881-28-06-155-00-02 | 330881-28-15-122-03-02 |
| 330881-28-04-110-06-02 | 330881-28-08-050-03-02 | 31000-30-05-40-014-03-02 |
| 330881-28-04-115-06-02 | 330881-28-08-090-00-02 | 31000-00-00-00-000-00-00 |
| 330881-28-04-145-06-02 | 330881-28-10-060-03-02 | 31000-00-00-00-059-03-02 |
| 330881-28-05-060-00-02 | 330881-28-10-060-06-02 | 31000-00-00-00-070-03-02 |
| 330881-28-05-070-00-02 | 330881-28-10-100-03-02 | 31000-00-00-00-082-03-02 |
| 330881-28-05-080-00-02 | 330881-28-10-140-00-02 | 31000-16-05-00-068-03-02 |
