Bently Nevada 330878-90-00 3300 XL 50 mm Proximitor Sensor for Differential Expansion Measurement
Bently Nevada 330878-90-00 3300 XL 50 mm Proximitor Sensor for Differential Expansion Measurement
50 mm Probe Proximitor Sensor
27.9 mm Linear Range Eddy Current Sensor
Differential Expansion Measurement 3300 XL Sensor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
330878-90-00
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
8x6x6.5cm
Weight:
0.22 Kg
Operating:
-40°C To +120°C (-40°F To +248°F)
Storage:
-50°C To +150°C (-58°F To +302°F)
Voltage:
-24 V DC ±10%
Dynamic:
Up To 10 KHz
Manufacturer:
Bently Nevada
Highlight:
50 mm Probe Proximitor Sensor
,27.9 mm Linear Range Eddy Current Sensor
,Differential Expansion Measurement 3300 XL Sensor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Bently Nevada 330103-00-03-05-02-00 3300 XL 8 mm Proximity Probe for Precision Displacement Sensing
Get Best Price
Video
Bently Nevada 330105-02-12-10-02-00 8 mm Reverse Mount Proximity Probe with API 670 Compliance
Get Best Price
CONTACT US
Contact Now
Product Description

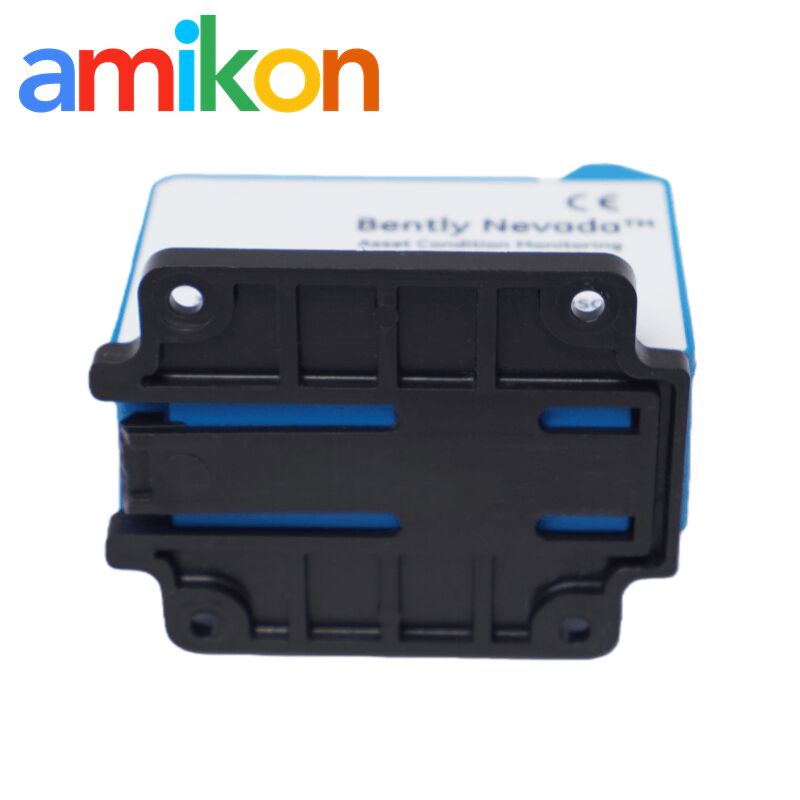

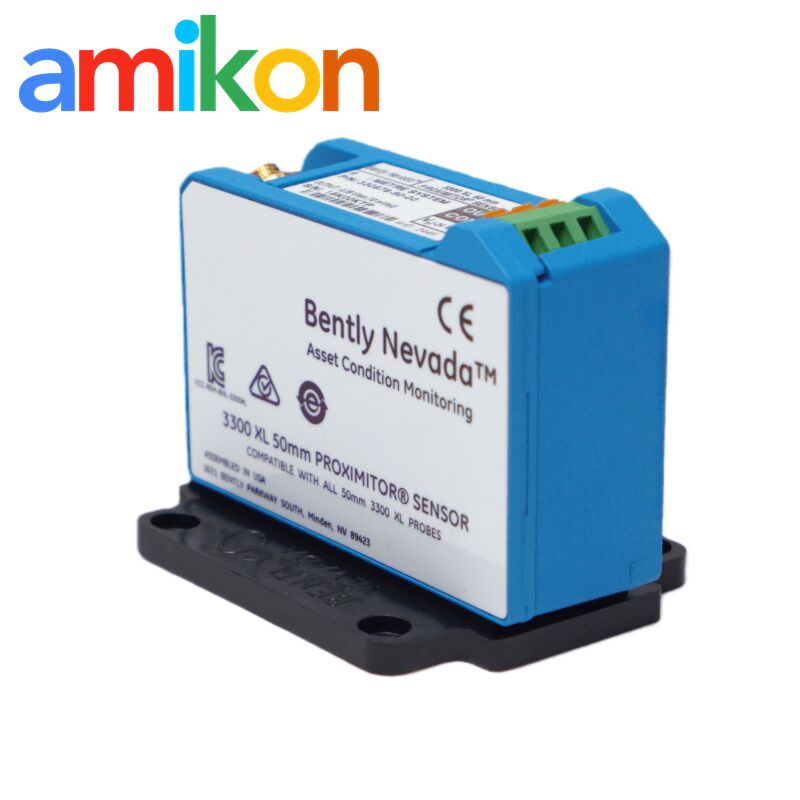

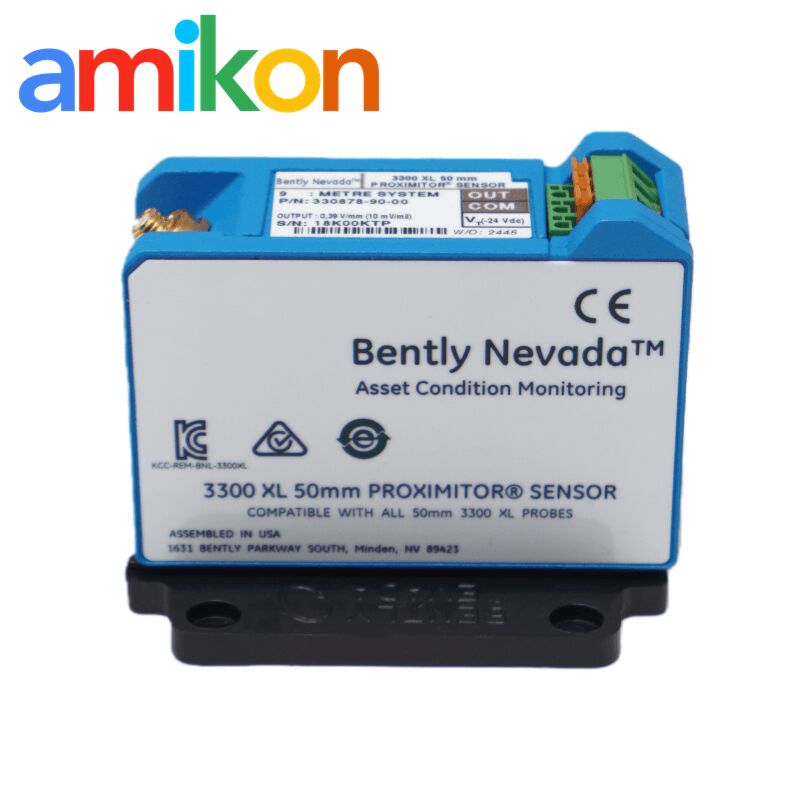

Bently Nevada 330878-90-00 3300 XL 50 mm Proximitor Sensor
The 3300 XL 50 mm Transducer System consists of a separate 50 mm probe, an extension cable, and a 3300 XL 50 mm Proximitor Sensor. The large-diameter coil provides a maximum linear range of 27.9 mm (1100 mils), the longest linear range in the eddy current transducer line. This extended linear range makes the 3300 XL 50 mm Transducer System ideal for measuring differential expansion (DE) or rotor expansion (RX) in large steam turbine generators, caused by the difference in growth rates between the turbine rotor and the machine stator (casing).
Differential Expansion Measurement
Differential Expansion is measured using two proximity transducers observing a collar or ramp located some distance from the thrust bearing. Typical mounting arrangements that require the 3300 XL 50 mm Transducer's long linear range include:
- Same-Side Configuration: Two transducers observe the same side of a collar
- Complementary-Side Configuration: Two complementary input transducers observe opposite sides of a collar, effectively doubling the measurable DE range
The selection of a mounting method depends on the size of the available target, the expected rotor axial movement, and the type of differential expansion target present in the machine.
Recommended Configurations
- If the collar height is sufficient and the required total measurement range is less than 27.9 mm (1.1 inches), use two transducers observing the same side of the collar for redundant measurements
- If the total measurement range is between 28 mm and 56 mm (1.1 to 2.2 inches), install the transducers on opposite sides of the differential expansion collar or other target material in a complementary fashion
