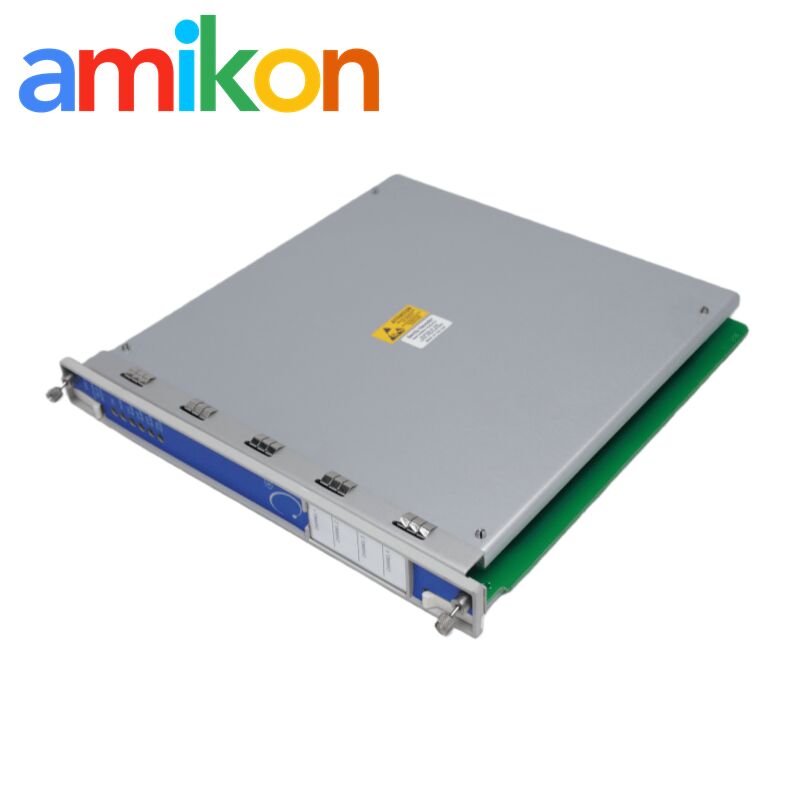

Bently Nevada 3500/32 125712-01 4-Channel Relay Module with 250 Vac Maximum
Bently Nevada 3500/32 125712-01 4-Channel Relay Module with 250 Vac Maximum
250 Vac Maximum Switched Voltage Relay Module
100
000 Contact Life Cycles 4-Channel Relay Module
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
3500/32 125712-01
Contact Us
Request A Quote
Product Details
Arc Suppressor:
250 Vrms, Installed Asstandard
Contact Life:
100,000 Cycles @ 5 A, 24 Vdcor 240 Vac
Maximum Switchedvoltage:
250 Vac
Maximum Switchedcurrent:
2 A
Maximum Switchedpower:
450 VA
Operating Temperature:
-30°C To +65°C(-22°F To +150°F)
Storage Temperature:
-40°C To +85°C(-40°F To +185°F)
Humidity:
95%, Non-condensing
Highlight:
250 Vac Maximum Switched Voltage Relay Module
,100
,000 Contact Life Cycles 4-Channel Relay Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Bently Nevada 133323-01 I/O Module with 24V DC Power Supply Modbus RTU Protocol
Get Best Price
CONTACT US
Contact Now
Product Description
The Bently Nevada 3500/32 125712-01 is a full-height 4-Channel Relay Module providing four dedicated relay outputs for the 3500 machinery protection system. This module features high slot flexibility, allowing any number of 4-Channel Relay Modules to be placed in any position to the right of the Rack Interface Module (RIM). Each output of the 125712-01 can be independently programmed to perform needed voting logic, ensuring decentralized control of machinery protection sequences.
Central to the module's functionality is the "Alarm Drive Logic" built into each relay. This logic is programmed using AND and OR logic gates to process data from various monitor channels. By utilizing these logic strings, the module can execute sophisticated voting schemes across multiple monitor channels in the rack. This architecture allows the 3500/32 to trigger specific relay states based on the complex operational requirements of the machinery being monitored.
All configuration of the Alarm Drive Logic is handled via the 3500 Rack Configuration Software. The module utilizes alarming inputs—including Alerts and Dangers—from any single monitor channel or any combination of channels within the rack. This software-driven setup allows the 4-Channel Relay Module to be precisely tailored to meet specific application needs, mapping sensor-driven alerts directly to physical relay outputs for critical machine trips or annunciator functions.
3500 System Compatible Modules
| Module Category | Compatible Modules |
|---|---|
| Frames & Structural Modules | 3500/05 - System Instrumentation Frame |
| Power & Interface Modules | 3500/15 - Power Supply Module 3500/22M - Frame Interface Module with TDI |
| Monitoring Modules | 3500/40M - Proximitor Monitor Module 3500/42M - Proximitor / Displacement / Velocity / Acceleration Monitor 3500/45 - Position Monitor 3500/60 / 3500/61 - Temperature Monitor Modules 3500/62 - Process Variable Monitor 3500/64M - Dynamic Pressure Monitor 3500/65 - 16-Channel Temperature Module 3500/70M - Reciprocating Compressor Impact / Speed Monitor 3500/72M - Piston Rod Position Monitor 3500/77M - Cylinder Pressure Monitor 3500/63 - Gas Monitor |
| Relay Modules | 3500/32 - 4-Channel Relay Module 3500/33 - 16-Channel Relay Module 3500/34 - TMR Relay Module |
| Speed & Overspeed Detection Modules | 3500/50 - Speed Module 3500/53 - Overspeed Detection Module |
| Display & Integration Modules | 3500/92 - Communication Gateway 3500/93 - LCD Display 3500/94 - VGA Display 3500/95 - System Integration PC Display |
