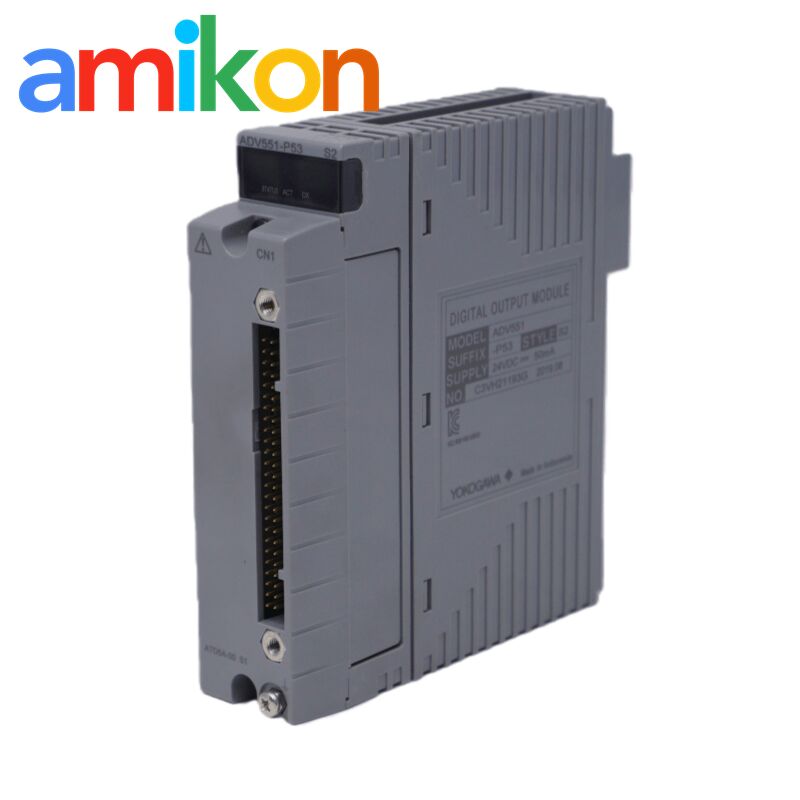

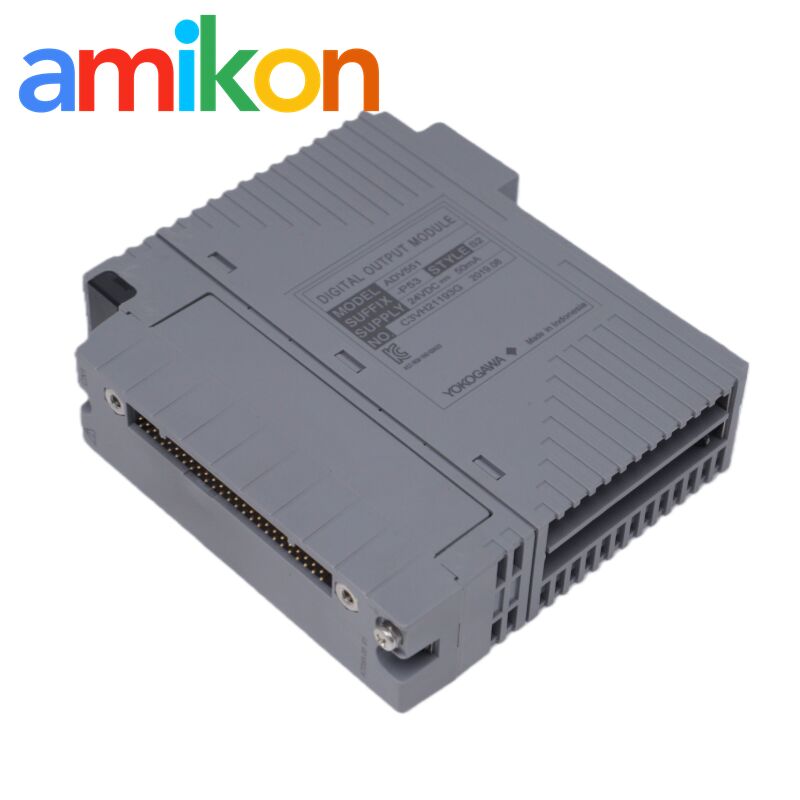

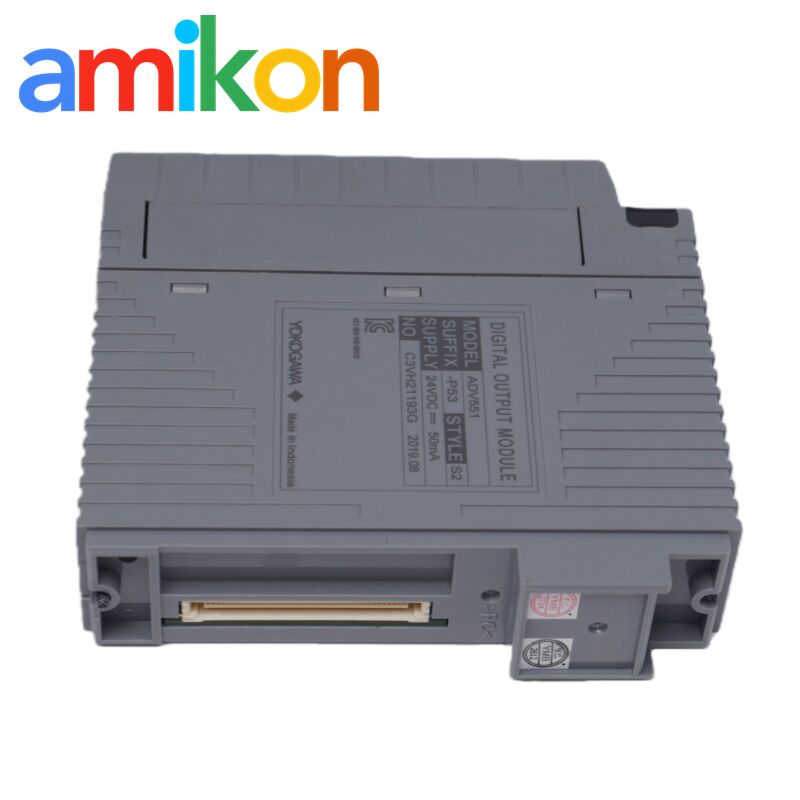

Yokogawa ADV551-P53 S2 32-channel 24V DC Hot-swappable Digital Output Module
Yokogawa ADV551-P53 S2 32-channel 24V DC Hot-swappable Digital Output Module
32-channel Digital Output Module
24V DC Yokogawa Module
Hot-swappable ADV551-P53 S2
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Model Number:
ADV551-P53 S2
Contact Us
Request A Quote
Product Details
Manufacturer:
Yokogawa
Estimated Shipping Size:
3.2x12.3x13cm
Weight:
0.24 Kg
Country Of Origin:
JAPAN
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Place Of Shipment:
Xiamen, China
Highlight:
32-channel Digital Output Module
,24V DC Yokogawa Module
,Hot-swappable ADV551-P53 S2
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Yokogawa ADV169-P00 S1 Digital I/O Module with 64-channel input, 8 ms response time
Get Best Price
CONTACT US
Contact Now
Product Description
The ADV551-P53 S2 is a high-density, 32-channel discrete output interface purpose-built for the Yokogawa CENTUM VP FIO (Fieldbus I/O) architecture. Designed to handle 24V DC logic for solenoid valves, interposing relays, and motor starters, the module utilizes a robust galvanic isolation barrier between the internal logic backplane and the field-side circuitry.
This decoupling is vital for protecting the control system's CPU from the inductive kickback and transient spikes inherent in driving field-side electromagnetic loads. The "P53" designation identifies the pressure-clamp terminal configuration, which provides a gas-tight, vibration-resistant connection point that eliminates the need for periodic re-tightening in high-vibration industrial plant environments.
Reliability and Performance Features
From a reliability standpoint, the Style S2 revision is optimized for high-availability process loops where hardware downtime is not an option. The module supports full dual-redundancy and is hot-swappable, allowing for bumpless hardware transitions and online maintenance without interrupting the current process image or PLC scan cycle.
Integrated diagnostic logic provides channel-level feedback, while localized LED indicators allow field technicians to verify output states and identify open-circuit or short-circuit faults instantly. By maintaining a low-power dissipation profile, the ADV551-P53 S2 minimizes the heat-load within the FIO node unit, effectively reducing the thermal stress on adjacent I/O modules and extending the MTBF (Mean Time Between Failures) for the entire control segment.
Technical Specifications
| Item | ADV551 |
|---|---|
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Output ON Voltage (Max.) | 2 V DC |
| Leak Current (Output OFF) | 0.1 mA |
| Output Format | Current sink |
| Maximum Load Current (1) | 100 mA/channel, 26.4 V |
| Withstanding Voltage | Between output signal and system: 2 kV AC, 1 min Between commons: 500 V AC, 1 min (common every 16 channels) |
| Status Output Function | ON/OFF status output |
| Pulse Width Output Function | One-shot pulse width output |
| Time-Proportioning Output | Time-proportioning ON/OFF |
| Output Response Time | 3 ms or less (status output) 10 ms or less (mixed status & pulse outputs) |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (additional max. 1 ms ON/OFF delay) |
| Maximum Current Consumption | 700 mA (5 V DC) 60 mA (external power supply) |
| Weight | Approx. 0.20 kg |
| External Connection | Pressure clamp terminal Dedicated cable (AKB331), MIL connector cable |
Quality and Service Commitment
- The Parts: Always brand new. Always genuine. A full one-year warranty comes with every quote.
- The Proof: We believe in "Show, Don't Tell." Request a pre-shipment video to verify your part's condition and specs.
- The Logistics: Courier: DHL / FedEx / UPS / Aramex. Timeline: ~5 days worldwide. Terms: EXW (Email us for a shipping quote!). Payment: 100% Bank Transfer.
- The Clock: This quote is valid for 30 days. Need an extension? Just ask.
Let's get you back to 100%.
Miya Zheng | Sales Manager
WhatsApp: +86 180 2077 6792
Email: sales@amikon.cn
Compatible Yokogawa Parts
| Brand | Model | Compatible Module |
|---|---|---|
| YOKOGAWA | AIP512 | ADV151-P00 S2 ATD5A-00 |
| YOKOGAWA | CP345 | AFV10D S2 |
| YOKOGAWA | F3RP45-2P/L1 | ATA4D-00 S2 |
| YOKOGAWA | KS1*B | EC401-10 S2 |
| YOKOGAWA | MRI-234*B | PW482-10 S2 |
| YOKOGAWA | NP53*A | ATA4S-00 S2 |
| YOKOGAWA | NP53*C | ALR121-S00 S1 |
| YOKOGAWA | PW482-10 | AAI143-H00 S1 |
| YOKOGAWA | PW482-S01 | ANB10D-S1 |
| YOKOGAWA | SR1220E2 | SB401-10 S1 |
| YOKOGAWA | SR1B-045N-1KC | ADV551-P03 S2 |
| YOKOGAWA | AAI543-S00 S1 | AAT141-S00 S2 |
| YOKOGAWA | CP451-10 | ADV161-P00 S2 |
| YOKOGAWA | DP97*B | AAI143-S00 S1 |
| YOKOGAWA | AMM12T S2 | AAI141-S00 S2 |
