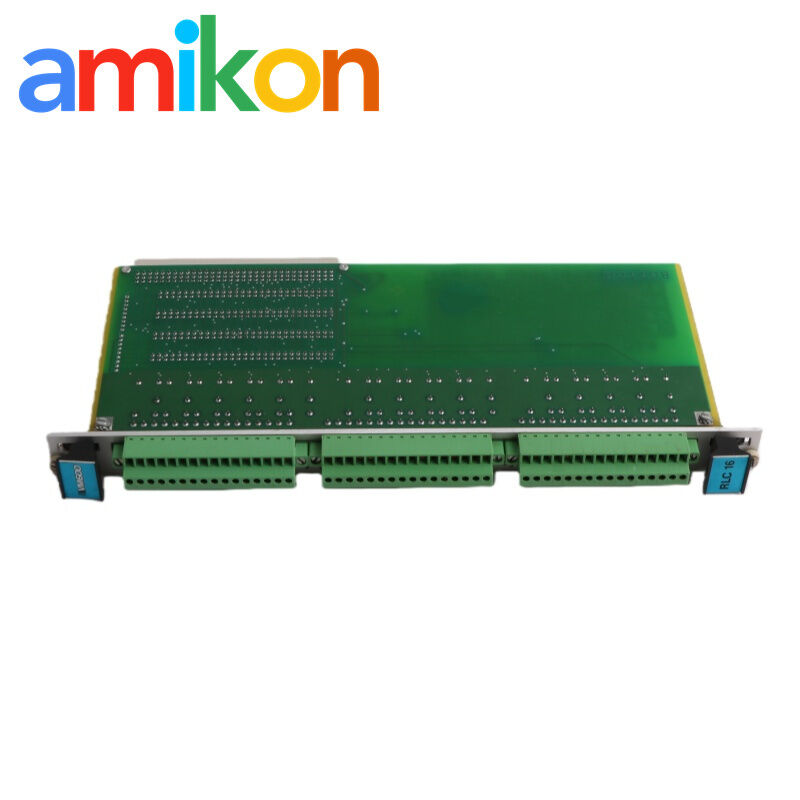

VIBRO METER VM600 RLC16 200-570-000-014 Relay Card with 16 Relays Change-over Contacts
VIBRO METER VM600 RLC16 200-570-000-014 Relay Card with 16 Relays Change-over Contacts
16 relays Relay Card
Change-over contacts RLC16
Hot-swappable VM600 Relay Card
Place of Origin:
USA
Brand Name:
VIBRO METER
Model Number:
VM600 RLC16 200-570-000-014
Contact Us
Request A Quote
Product Details
Nominal Rated Voltage:
250 VAC
Nominal Rated Current:
5 AAC
Presentation:
16 Relay PCB
Operating Temperature:
−25 To 65 °C (−13 To 149 °F)
Storage Temperature:
−40 To 85 °C (−40 To 185 °F)
Operating Humidity:
0 To 90 % Non-condensing
Storage Humidity:
0 To 95 % Non-condensing
Power Source:
VM600 Rack Power Supply
Highlight:
16 relays Relay Card
,Change-over contacts RLC16
,Hot-swappable VM600 Relay Card
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
VIBRO METER GSI 127 244-127-000-017 A2-B02 Galvanic Separation Unit with 18 to 30 VDC Input Voltage
Get Best Price
Video
VIBRO METER EA402 913-402-000-013 Proximity Measurement System with API 670 Compliance, Temperature Compensation, and 2 mm Measurement Range
Get Best Price
Video
VIBRO METER VM600 MPC4 200-510-041-021 Machinery Protection Card with 60 dB MRR
Get Best Price
CONTACT US
Contact Now
Product Description
The RLC16 relay card is designed for use in the VM600 series of machinery protection systems and condition and performance monitoring systems from Meggitt's Vibro-Meter® product line. It is an optional card intended for applications where the four relays on the IOC4T input/output card are insufficient and additional relays are required. The RLC16 is installed in the rear of a VM600 rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector.
The RLC16 provides 16 relays with change-over contacts, with each relay associated with three terminals on a screw-terminal connector accessible at the rear of the VM600 rack. The relays are controlled by open-collector drivers under software control, and jumpers on the RLC16 card allow the selection of relay operation as normally energized (NE) or normally de-energized (NDE).
Key Features and Benefits
- Equipped with screw-terminal connectors for simple and accessible wiring
- Provides 16 relays with change-over contacts for extensive switching capacity
- Selectable inverter logic using onboard jumpers for flexible relay behavior configuration
- Built with low contact resistance and low capacitance for clean, reliable switching
- Handles high through-power for demanding industrial environments
- Fully hot-swappable for insertion or removal without rack shutdown
- Designed to meet EC EMC standards for reliable performance in electrically noisy areas
Technical Specifications and Approvals
| Category | Parameter | Value / Standard |
|---|---|---|
| Approvals | Conformity | CE marking, European Union (EU) declaration of conformity. EAC marking, Eurasian Customs Union (EACU) certificate/declaration of conformity. |
| Electromagnetic compatibility | EN 61000-6-2 EN 61000-6-4 EN 61326-3-1 TR CU 020/2011 |
|
| Electrical safety | EN 61010-1 TR CU 004/2011 |
|
| Vibration | IEC 60255-21-1 (Class 2) | |
| Insulation coordination for measuring relays and protection equipment | Separate circuits according to IEC 60255-5 for the "separate circuits" version of the RLC16 | |
| Environmental management | RoHS compliant | |
| Russian federal agency for technical regulation and metrology (Rosstandart) | Pattern approval certificate CH.C.28.004.A N° 60224 |
