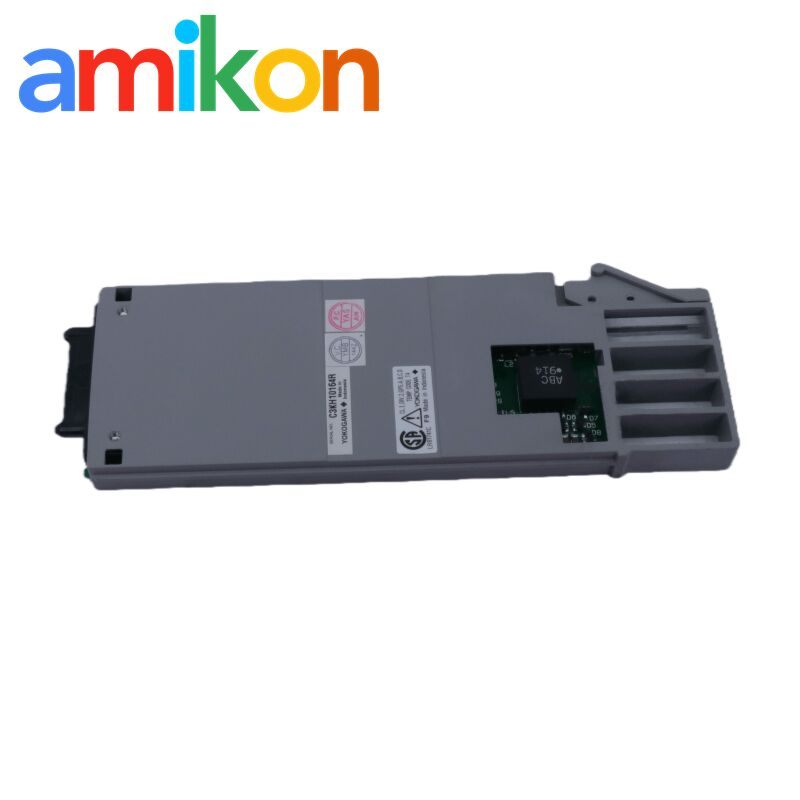

Yokogawa AAM50 Current Output Module with 4 to 20 mA DC Output, 1500V AC Isolation
Yokogawa AAM50 Current Output Module with 4 to 20 mA DC Output, 1500V AC Isolation
4 to 20 mA DC Output Current Output Module
1500V AC Isolation AAM50 Module
20ms Data Update Yokogawa Output Module
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Model Number:
AAM50
Contact Us
Request A Quote
Product Details
Module Type:
Output Module
Model / Style:
S1 Style
Chipset:
J12
Product Model:
AAM50
Manufacturer:
Yokogawa
Country Of Origin:
JAPAN
Estimated Shipping Size:
7.6 Cm X 2.5 Cm X 17.8 Cm
Weight:
0.1 Kg
Highlight:
4 to 20 mA DC Output Current Output Module
,1500V AC Isolation AAM50 Module
,20ms Data Update Yokogawa Output Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Yokogawa ADV169-P00 S1 Digital I/O Module with 64-channel input, 8 ms response time
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications
| Item | Specifications |
|---|---|
| Model | AAM50 |
| Output Signal | 4 to 20 mA DC |
| Output Resistance | 500 kΩ or more |
| Allowable Load Resistance | 0 to 750 Ω |
| Output Range | 1.0 to 21.5 mA DC |
| Output Voltage Limit | 25.5 V DC or less |
| Output Open Detection | 0.65 mA or less |
| Accuracy Rating | Current output: ±48 µA |
| Effect of Ambient Temp. Change | 10 °C of change: Current output ±32 µA |
| Effect of Load Resistance Change | 0 to 75 Ω of change: ±16 µA |
| Data Update Period | 20 ms; Step response is 100 ms |
| Current Consumption | 250 mA or less (5.0 V DC) |
| Signal Insulation | Output signals are insulated between systems. Withstanding voltage: 1500 V AC/min |
| Installation Method | Install in the I/O Module Nest |
| Wiring Connection | Connect to the terminal of the I/O ModuleNest with M4 screws |
| Configuration | Output signal and its range are set with software |
Important Note: The AAM50 module is compatible with system software version R2.07 or later.
Key Features
- Superior Noise Immunity: With 1500V AC isolation, this module provides protection against ground loops and electrical spikes, safeguarding your control equipment.
- High Precision: Exceptional accuracy rating of ±48 µA ensures the signal you send is exactly what field devices receive.
- Fast Response: 20ms data update period provides near real-time performance for rapidly changing processes.
- Software Configuration: Configure output range and signal specifications entirely through software for cleaner, faster setup with reduced human error.
Primary Applications
- Control Valve Operation: Ideal for commanding proportional valves using the industry-standard 4-20mA signal for precise positioning.
- Variable Speed Drives (VFDs): Perfect for sending speed reference signals to motor drives for smooth pump and motor control.
- Chart Recorders & Datalogging: Retransmit process variables to monitoring equipment for secondary display and recording purposes.
