Bently Nevada 3500/60 Temperature Monitor with Six Independent Channels RTD and TC Inputs
Bently Nevada 3500/60 Temperature Monitor with Six Independent Channels RTD and TC Inputs
Six Independent Channels Temperature Monitor
RTD and TC Inputs 3500/60 Module
User-Programmable Alarm Setpoints Bently Nevada Monitor
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
3500/60
Contact Us
Request A Quote
Product Details
Inputs Signal:
Accepts From 1 To 6 RTD Or TC Transducer Signals
Input Impedance:
10 MΩ For Each Lead Input
Power Consumption:
Nominal Consumption Of 7 Watts
Storage Temperature:
-40°C To +85°C (-40°F To +185°F)
Manufacturer:
Bently Nevada
Place Of Shipment:
Xiamen, China
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Highlight:
Six Independent Channels Temperature Monitor
,RTD and TC Inputs 3500/60 Module
,User-Programmable Alarm Setpoints Bently Nevada Monitor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

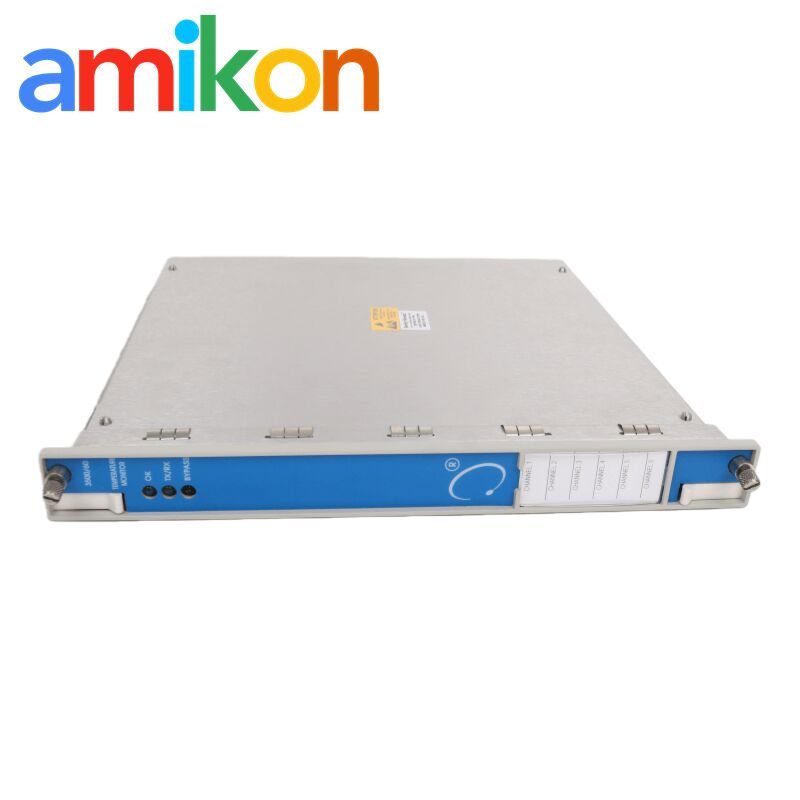

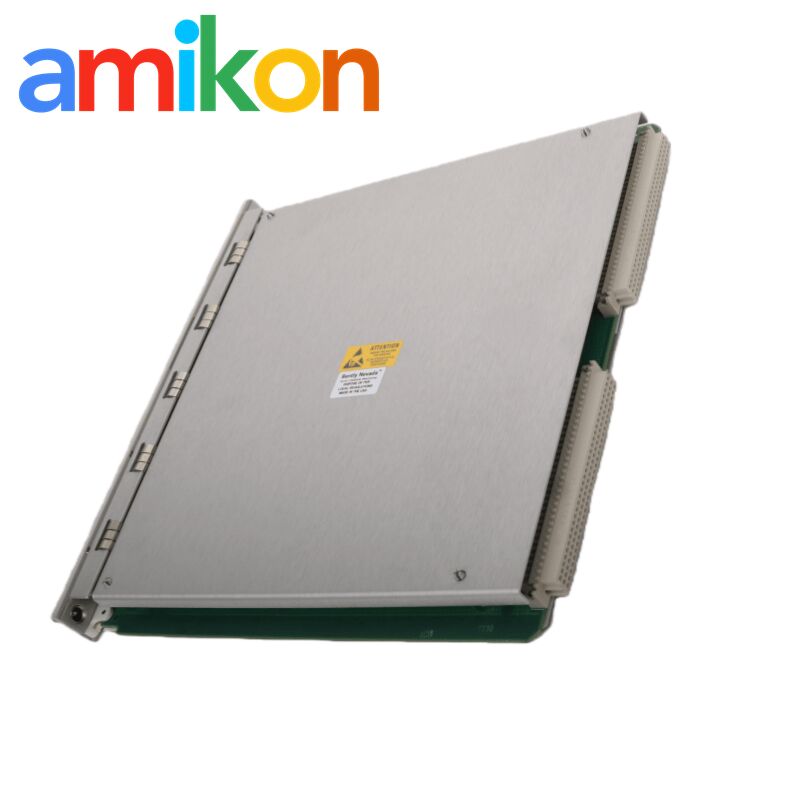

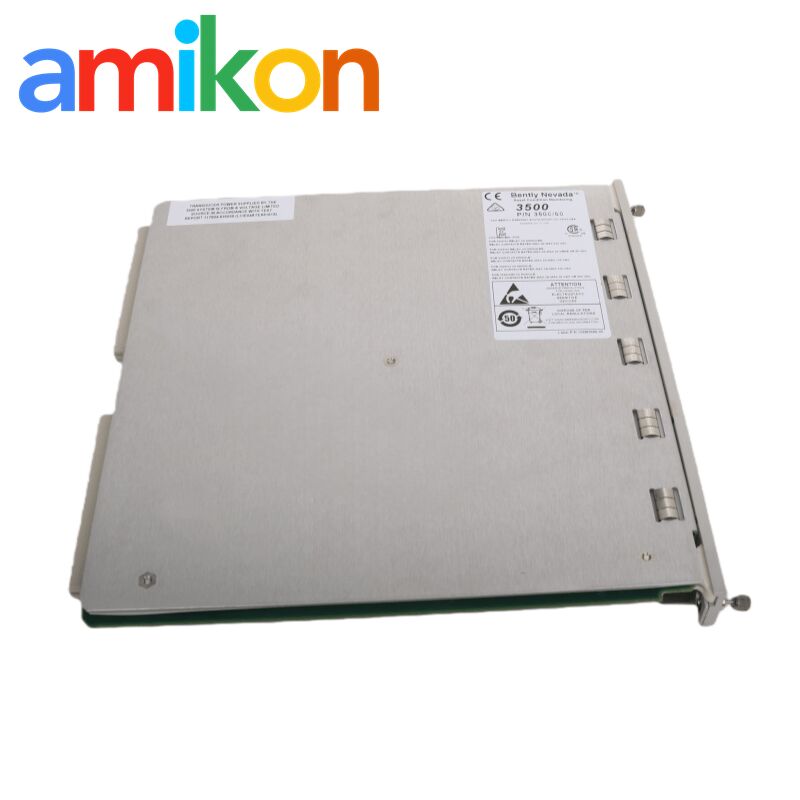

Bently Nevada 3500/60 Temperature Monitor
The 3500/60 and 3500/61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 offer identical functionality, with the exception that the 3500/61 includes recorder outputs for each of its six channels while the 3500/60 does not.
Users can program the modules for either RTD or TC temperature measurements through the 3500 Rack Configuration Software. I/O modules are available in RTD/TC non-isolated or TC isolated versions; the RTD/TC non-isolated version can accept RTD, TC, or a mixture of both, while the TC isolated version provides 250 Vdc of channel-to-channel isolation to reduce external interference.
When applied in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in sets of three. In this configuration, the system uses two types of voting to ensure accurate operation and to prevent single-point failures.
Key Features
- Six fully independent temperature channels
- Supports both RTD and TC inputs
- User-programmable alarm setpoints
- Flexible I/O: non-isolated RTD/TC or isolated TC
- 250 Vdc isolation for enhanced noise immunity
- TMR-ready with built-in voting logic for reliability
You know the drill — vibration gets all the glory, but temperature is usually the first sign that something's grinding. We've listed out the specific I/O modules below because getting the wrong termination type is a headache nobody needs. So, whether you're looking for the isolated versions or just the standard external terminations, here's exactly what we have available right now.
Available I/O Modules
| Part Number | Description |
|---|---|
| 163179-01 | 3500/60 Temperature Monitor (without recorders) |
| 133827-01 | 3500/60 RTD/TC Non-Isolated I/O Module, External Terminations |
| 133819-01 | 3500/60 RTD/TC Non-Isolated I/O Module, Internal Terminations |
| 133835-01 | 3500/60 TC Isolated I/O Module, Internal Terminations |
| 133843-01 | 3500/60 TC Isolated I/O Module, External Terminations |
| 136711-01 | 3500/60 RTD/TC I/O Module with Internal Barriers & Internal Terminations (Not-Isolated) |
Ordering & Shipping Information
Smart Savings: Buying more than one part? We combine shipping.
Flexible Logistics: We ship via TNT, DHL, UPS, and FedEx.
International Note: Price excludes import duties/taxes. Please verify your country's customs fees before buying to avoid unexpected costs.
