Bently Nevada 3500/20 Rack Interface Module with RS232 Serial Communications and Hayes AT-Compatible

Bently Nevada 3500/20 Rack Interface Module with RS232 Serial Communications and Hayes AT-Compatible

RS232 serial communications Rack Interface Module

38.4 k baud data rate RIM

Hayes AT-compatible Bently Nevada 3500/20

Place of Origin:

USA

Brand Name:

Bently Nevada

Model Number:

3500/20

Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
2.5x25x24cm
Power Consumption:
4.75 Watts, Typical
Standard:
RS232 Serial Communications
Data Rate:
38.4 K Baud
Communications:
Hayes AT-compatible
Baud Rate:
14.4 K Baud Maximum
Cable Length:
2.1 Metres (7 Feet) Maximum
Place Of Shipment:
Xiamen, China
Highlight:

RS232 serial communications Rack Interface Module

,

38.4 k baud data rate RIM

,

Hayes AT-compatible Bently Nevada 3500/20

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description

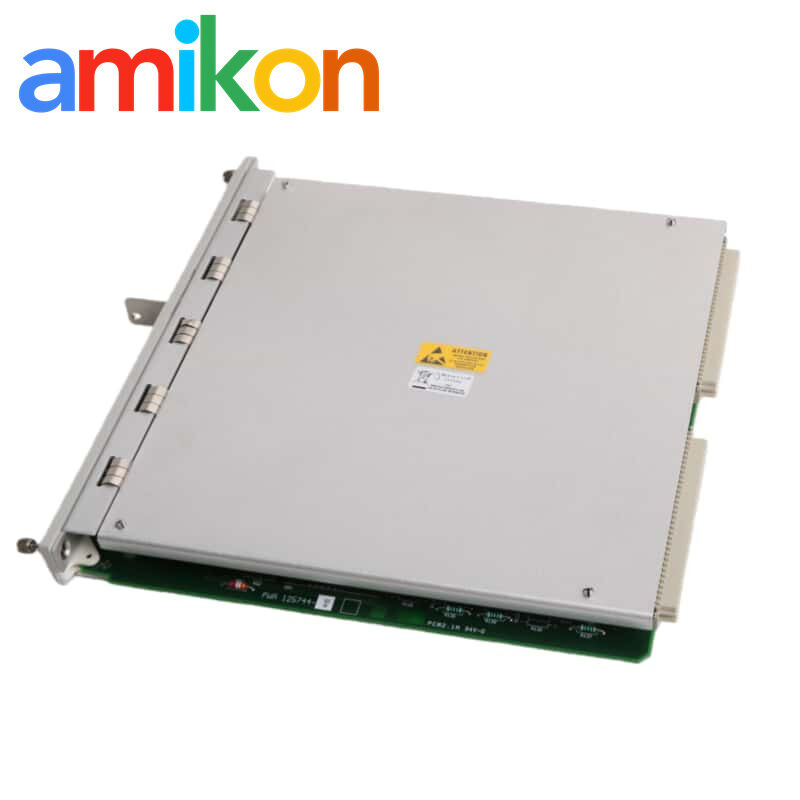

Bently Nevada 3500/20 Rack Interface Module with RS232 Serial Communications and Hayes AT-Compatible 0
The Rack Interface Module (RIM) serves as the primary interface to the Bently Nevada™ 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be installed in slot 1 of the rack, adjacent to the power supplies. It also supports compatible Bently Nevada external communications processors including TDXnet, TDIX, and DDIX. While the RIM provides essential functions for the entire rack, it operates outside the critical monitoring path and does not affect the normal operation of the overall monitoring system. One RIM is required per rack.
Triple Modular Redundant (TMR) Applications
For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all standard RIM functions, the TMR RIM also performs monitor channel comparison. The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options.
Using this method, the TMR RIM continually compares the outputs from three redundant monitors. If the TMR RIM detects that the information from one of those monitors is no longer within a configured percentage of the information from the other two monitors, it will flag that monitor as in error and place an event in the System Event List.
Bently Nevada 3500/20 Rack Interface Module with RS232 Serial Communications and Hayes AT-Compatible 1 Bently Nevada 3500/20 Rack Interface Module with RS232 Serial Communications and Hayes AT-Compatible 2
Module Features and Interfaces
  • LEDs: Indicate the operating status of the module
  • Hardware Switches: Manual configuration controls
  • Configuration Port: Configure or retrieve machinery data from only this rack using the RS-232 protocol
  • Rack Interface I/O Module: Daisy chain or configure racks using RS-232 and RS-422 protocols
  • Data Manager I/O Module: Connect two Bently Nevada Communication Processors to the 3500 rack
