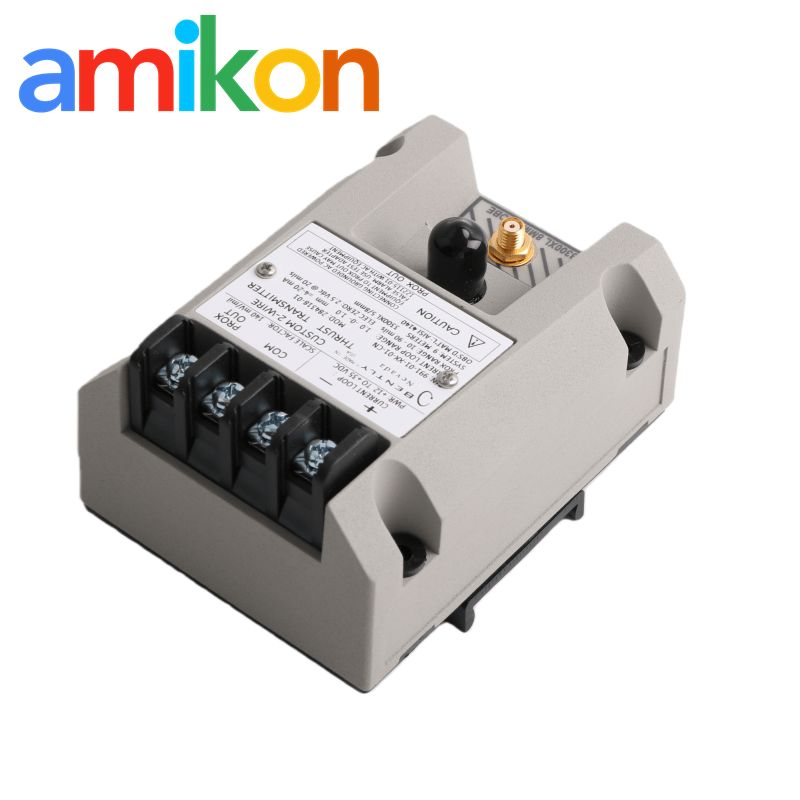

Bently Nevada 991-01-XX-01-CN Thrust Transmitter with 4-20 mA Signal Output
Bently Nevada 991-01-XX-01-CN Thrust Transmitter with 4-20 mA Signal Output
4-20 mA Signal Output Thrust Transmitter
Loop-Powered Device Thrust Transmitter
Compatible with 3300 NSv Proximity Probe Thrust Transmitter
Place of Origin:
USA
Brand Name:
Bently Nevada
Model Number:
991-01-XX-01-CN
Contact Us
Request A Quote
Product Details
Product Model:
991-01-XX-01-CN
Estimated Shipping Size:
10x7.5x6cm
Manufacturer:
Bently Nevada
Operating Temperature:
-35°C To +85°C (-31°F To +185°F)
Storage Temperature:
-51°C To +100°C (-60°F To +212°F)
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Packaging:
Original New Packaging
Highlight:
4-20 mA Signal Output Thrust Transmitter
,Loop-Powered Device Thrust Transmitter
,Compatible with 3300 NSv Proximity Probe Thrust Transmitter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
991 Thrust Transmitter — Product Overview
| Product Name | 991 Thrust Transmitter |
|---|---|
| Intended Use | Designed primarily for OEMs of centrifugal air compressors, small pumps, motors, or fans requiring a simple 4-20 mA proportional axial displacement (thrust) signal for machinery control systems. |
| Signal Output | 4-20 mA industry-standard signal proportional to shaft axial position. |
| Transmitter Type | 2-wire, loop-powered device |
| Compatible Sensor | 3300 NSv Proximity Probe |
| Extension Cable Options | 5 m and 7 m system length |
| Functionality | Conditions input from the proximity probe into appropriate engineering units and provides output for machine protection alarming and control logic. |
| Power Supply | Loop-powered (2-wire) |
| Applications | Machinery control systems requiring axial displacement monitoring; suitable for centrifugal air compressors, pumps, motors, and fans. |
| Environmental Considerations | Designed for industrial environments; supports rugged installation with compact footprint. |
Key Features of the 991 Thrust Transmitter
Integrated Design: Built-in Proximitor Sensor eliminates the need for an external unit.
Diagnostic Outputs: Non-isolated "PROX OUT" and "COM" terminals Coaxial connector providing dynamic vibration and gap voltage outputs for diagnostics.
Easy Calibration: Zero and span potentiometers (non-interacting) located under the transmitter label for convenient loop adjustment.
Quick Testing: Test Input pin enables rapid loop output verification using a variable DC voltage source.
Power Protection: Power-up inhibit circuit prevents signal errors caused by line voltage transients.
Fault Protection: Not OK / Signal Defeat circuit prevents false alarms and high outputs due to probe faults or loose connections.
Flexible Installation: Supports DIN-rail or bulkhead mounting--both included as standard options.
Rugged Construction: Fully potted housing ideal for high-humidity environments (up to 100% condensing).
Space-Efficient: Compatible with 3300 NSv proximity probes, allowing installation in tight or restricted spaces.
