Yokogawa EJA530E Gauge Pressure Transmitter DPharp In-Line Mount
Yokogawa EJA530E
Gauge Pressure Transmitter
DPharp Sensor Technology
Place of Origin:
JAPAN
Brand Name:
Yokogawa
Yokogawa EJA530E
,Gauge Pressure Transmitter
,DPharp Sensor Technology
Yokogawa EJA530E

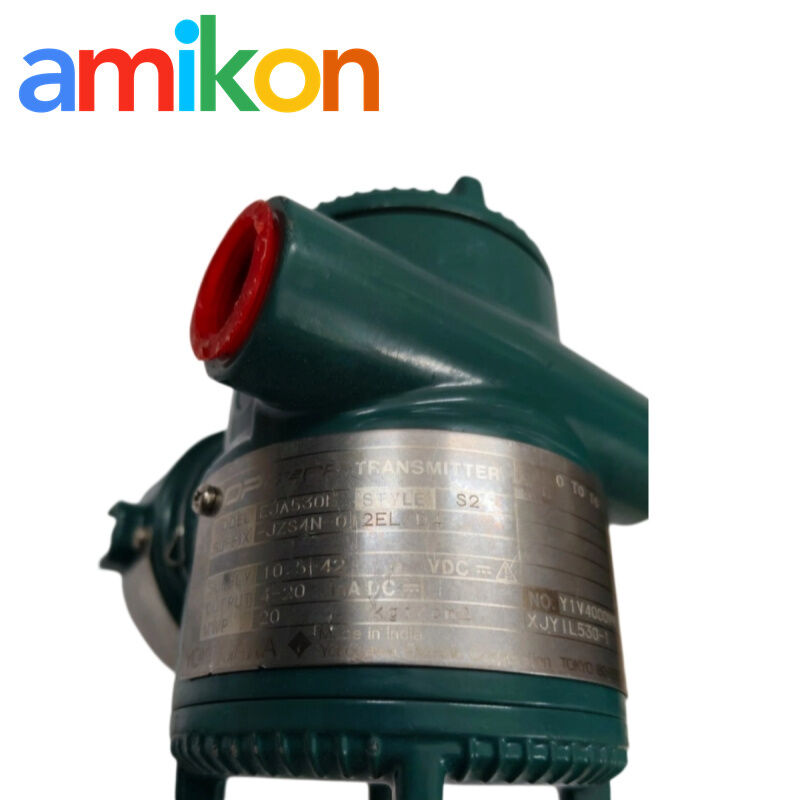

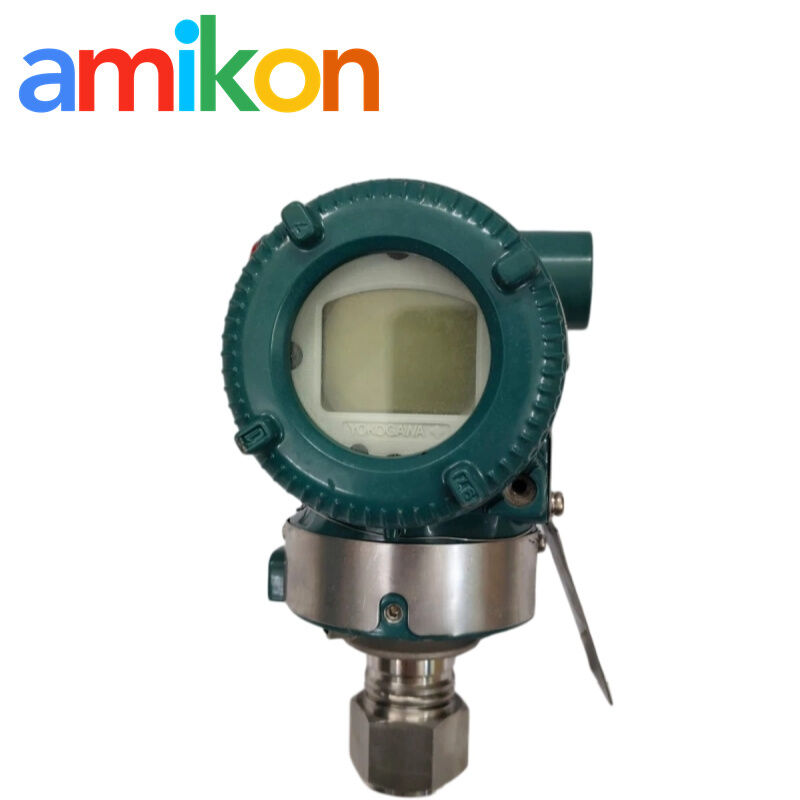

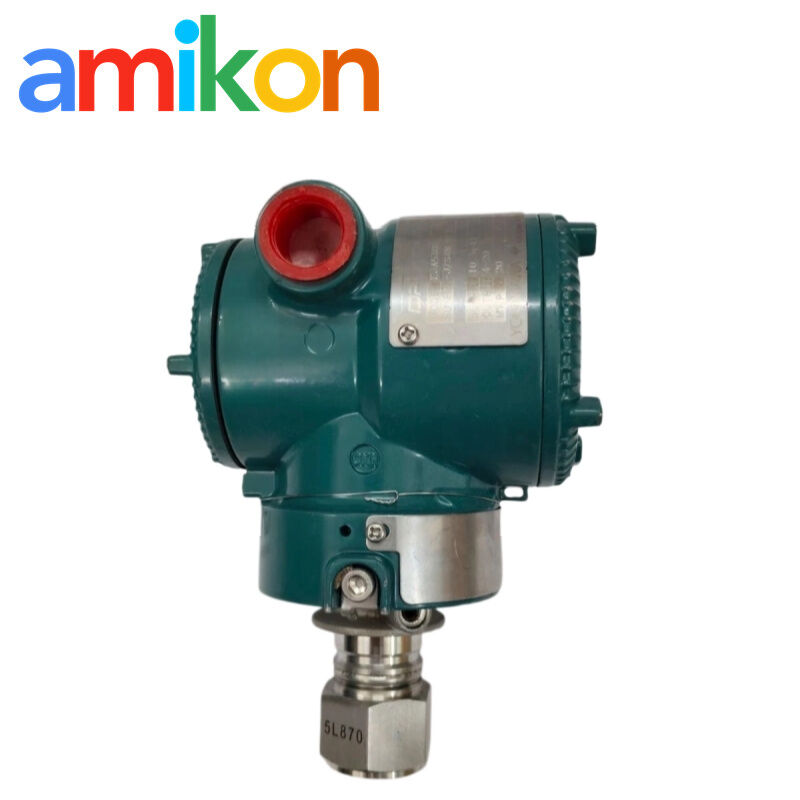

In-Line Mount Gauge Pressure Transmitter
The Yokogawa EJA530E is an in-line mount gauge pressure transmitter using a DPharp single-crystal silicon resonant sensor. It is designed to measure liquid, gas or steam pressure in industrial process installations. Confirm the complete model code and ordered configuration when sourcing a replacement.
Application & Failure Scenarios
Relevant process industries include chemical processing, oil and gas, power, and water and wastewater treatment.
| Unstable reading | Check the process condition, instrument setup and measurement loop. |
| Alarm or signal loss | Verify power, wiring, communication type and diagnostic status as applicable. |
| Replacement after failure | Match the range, process connection, output and material configuration. |
Unreliable pressure feedback may reduce process control quality or contribute to an unplanned shutdown where the measurement is operationally critical.
Technical Specifications
Published family specifications. Exact values depend on the selected model code and configuration.
| Measurement type | Gauge pressure |
| Sensor | Single-crystal silicon resonant sensor (DPharp) |
| Reference accuracy | ±0.055% of span; ±0.04% of span with the specified /HAC option |
| Long-term stability | ±0.1% of URL per 10 years under specified normal operating conditions |
| Response time | 90 ms |
| Rangeability | Capsule A: 20:1; capsules B, C and D: 100:1 |
| Process media | Liquid, gas or steam, subject to configuration and material compatibility |
| Mounting | In-line mount |
| Output / communication | 4–20 mA with BRAIN/HART; FOUNDATION Fieldbus; PROFIBUS PA; low-power 1–5 V DC with HART (model-dependent) |
Span codes & communication options
Published span values for the EJA530E family:
| Capsule | Specified span |
|---|---|
| A | 10–200 kPa (1.45–29 psi) |
| B | 0.1–2 MPa (14.5–290 psi) |
| C | 0.5–10 MPa (72.5–1450 psi) |
| D | 5–50 MPa (720–7200 psi) |
These are family span specifications, not confirmation of the range configured on a particular unit. Output options documented for the family include 4–20 mA DC with BRAIN or HART, FOUNDATION Fieldbus, PROFIBUS PA, and low-power 1–5 V DC with HART. Verify the exact variant before replacement.
Replacement Compatibility
Match the complete model code, pressure range, output protocol, process connection, wetted materials and required approvals with the installed instrument. A matching base model alone does not establish full interchangeability.
Delivery & Warranty
Testing scope, stock, lead time, return authorization and warranty remedies are confirmed by quotation. Warranty excludes damage caused by improper installation, misuse or unauthorized modification.
Practical Sourcing.
Reliable Order Support.
We support industrial buyers with part identification, configuration checks and sourcing coordination for maintenance and replacement projects. Send the complete model code and destination for a quotation.
Careful inspection and secure packaging for your industrial parts order.
Request a Quotation
Please include the five details below for a faster quotation.
| Part Number | Complete model / suffix code |
| Quantity | Required quantity |
| Destination | Country / city |
| Required Date | Target date |
| Machine/System Model | Installed equipment or system |
Frequently Asked Questions
1. What does the EJA530E measure?
It is an in-line mount gauge pressure transmitter designed for measuring liquid, gas or steam pressure in industrial process applications.
2. What are its published accuracy and response time?
The published reference accuracy is ±0.055% of span, and the response time is 90 ms. The specified /HAC option has a reference accuracy of ±0.04% of span.
3. Does every EJA530E use the same output protocol?
No. The product family includes different communication and output variants. Check the complete model code and the installed control-system interface.
4. What information is needed to select a replacement?
Provide the full model code and confirm the calibrated pressure range, output, process connection, wetted materials and required approvals.
5. Where can I find the EJA530E pdf, manual or datasheet?
Yokogawa provides general specifications, installation manuals and communication-specific documentation for the EJA530E family. Select the document matching the ordered variant.
