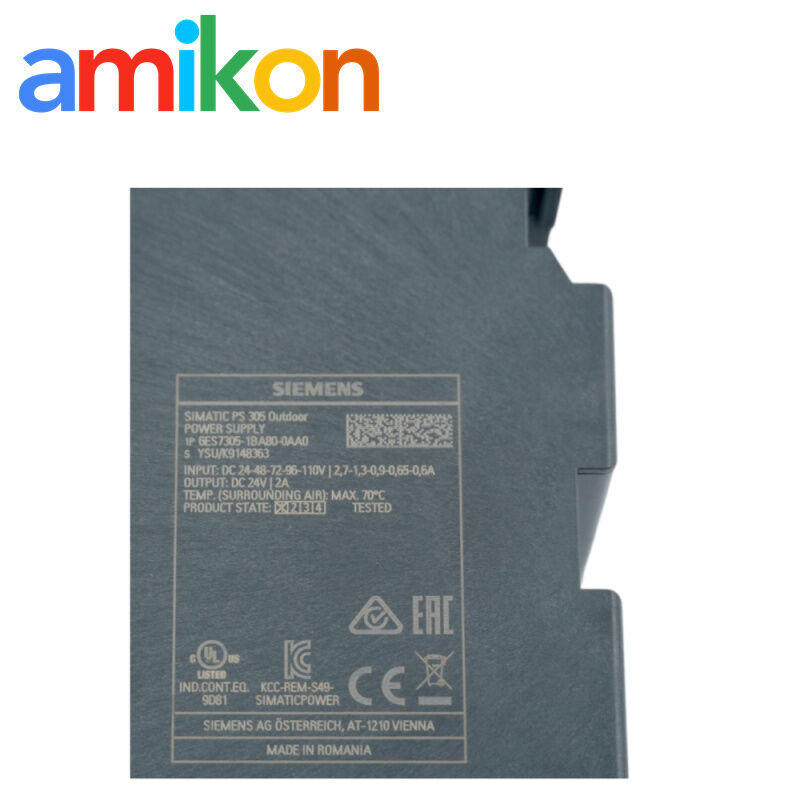

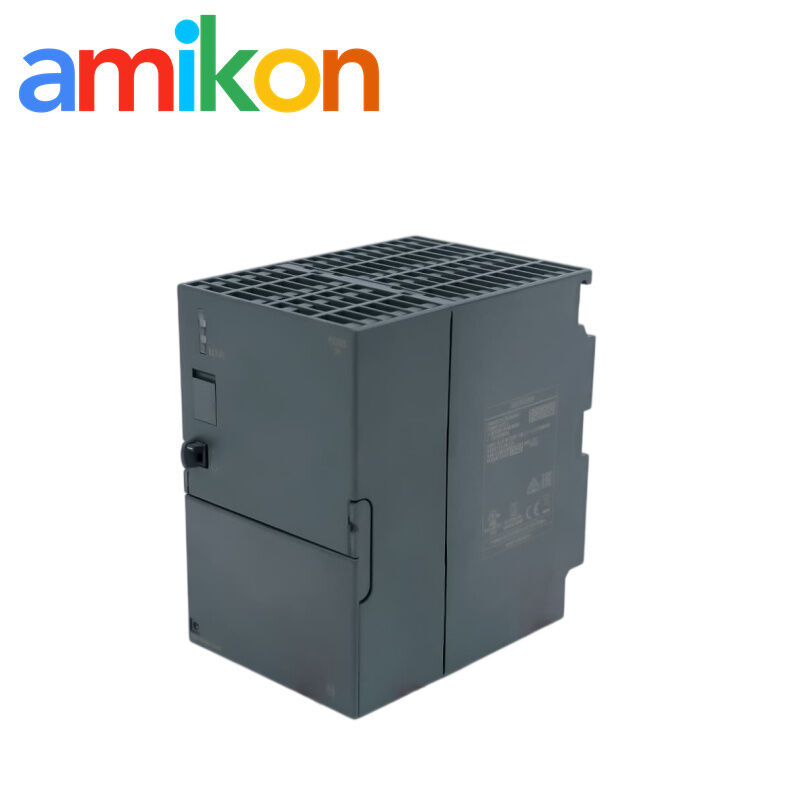

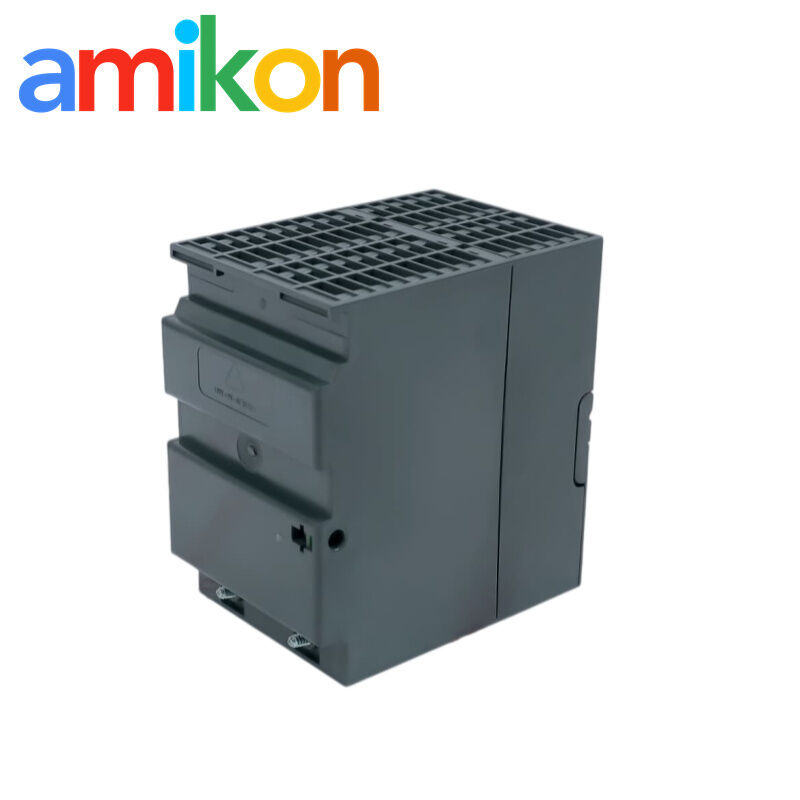

Siemens 6ES7305-1BA80-0AA0 SIMATIC S7-300 PS 305 24 V DC Power Supply
Siemens 6ES7305-1BA80-0AA0 SIMATIC S7-300 PS 305 24 V DC Power Supply
SIMATIC S7-300 PS 305
24 V DC Regulated Power Supply
24–110 V DC Input Voltage
Place of Origin:
Germany
Brand Name:
Siemens
Contact Us
Request A Quote
Product Details
Quotation Time:
Quick Quote Within 24 Hours
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
SIMATIC S7-300 PS 305
,24 V DC Regulated Power Supply
,24–110 V DC Input Voltage
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
PRODUCT OVERVIEW
Regulated Power for SIMATIC S7-300
Designed for power-supply applications in the Siemens SIMATIC S7-300 range, the PS 305 provides regulated DC power for connected control equipment.
For sourcing enquiries, compare the installed unit's complete order number, supply arrangement, load requirements and mounting space before confirming a replacement.
LIFECYCLE INFORMATION
Siemens lists this product as discontinued effective 1 October 2023.
IDENTIFICATION PROFILE
S
MANUFACTURER
Siemens
▦
PRODUCT FAMILY
SIMATIC S7-300
⌁
PRODUCT TYPE
PS 305 DC Supply
ENGINEERING REFERENCE
Technical Specifications
Electrical ratings, protection features and installation data
RATED INPUT
24–110 V
DC supply
OUTPUT VOLTAGE
24 V
DC regulated
RATED CURRENT
2 A
Rated output
RATED POWER
48 W
Nominal output
*The listed 3 A output capability is specified up to +60 °C when input voltage is above 24 V. Verify the applicable operating conditions before using this value for design or replacement.
MAINTENANCE & TROUBLESHOOTING
Application & Failure Scenarios
Common symptoms that may prompt inspection of a DC power supply in an S7-300 installation.
01
Missing DC output
Check the incoming supply, output terminals and connected load.
02
24 V OK LED unlit
Inspect input conditions, wiring, loading and protective devices.
03
Unstable supply voltage
Investigate supply stability and connected equipment demand.
04
Unexpected shutdown
Check for input interruption, overload or short-circuit conditions.
These are troubleshooting scenarios, not a diagnosis of the unit. A supply-related symptom does not by itself establish that the power supply has failed.
Replacement verification checklist
✓ Exact order number and nameplate
✓ Input source and voltage range
✓ Connected load and current demand
✓ Rail mounting and clearance
✓ Wiring, protection and operating conditions
Do not assume another S7-300 supply is a direct substitute based on appearance or family name alone.
ORDER SUPPORT
Delivery & Warranty
01 / Testing
Inspection and available functional testing are to be confirmed with the quotation.
02 / Packaging
Protective shipping packaging; product condition and packing details confirmed per order.
03 / DOA & Returns
Report suspected arrival damage promptly with photographs and order details. Obtain return authorization before shipping an item back.
04 / Warranty
The applicable warranty period, scope and exclusions must be confirmed in the quotation or order confirmation.
QUICK REFERENCE
Frequently Asked Questions
AMIKON SOURCING DIRECTORY
Related Models
Additional catalogue references for sourcing enquiries. These part numbers are directory entries only and are not asserted to be compatible replacements.
