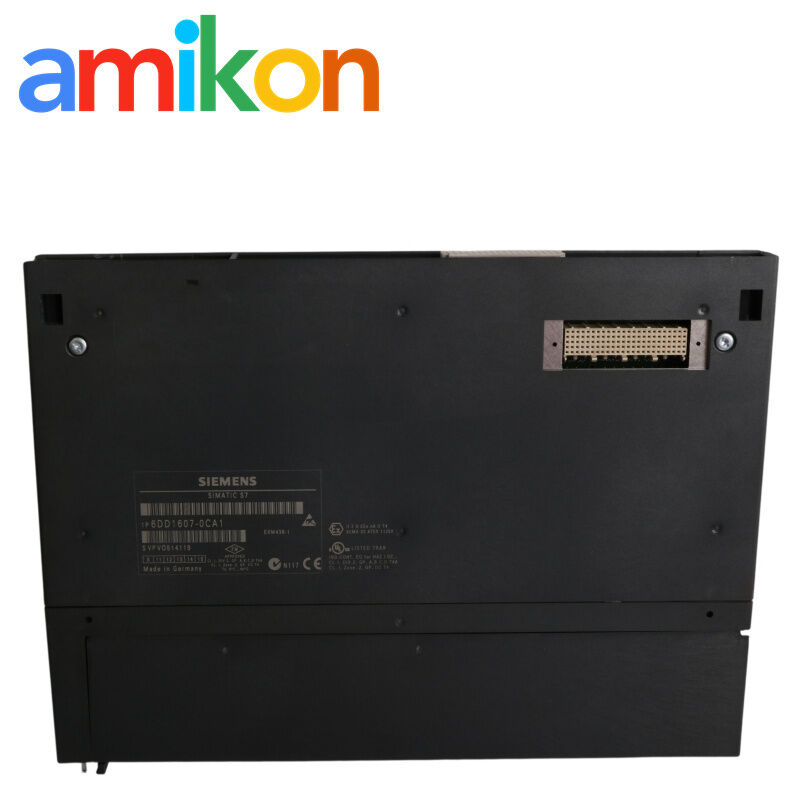

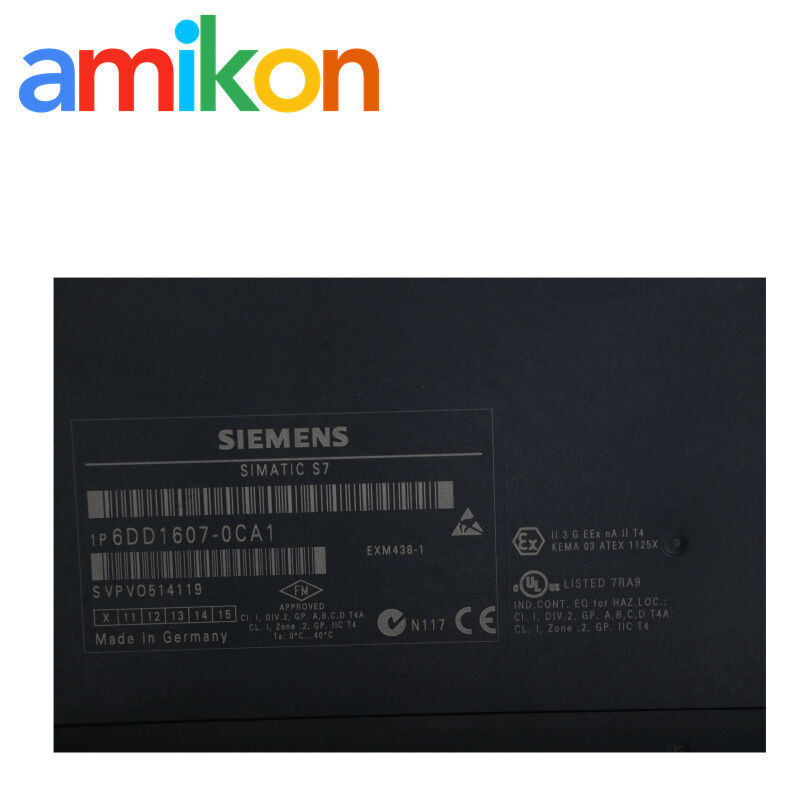

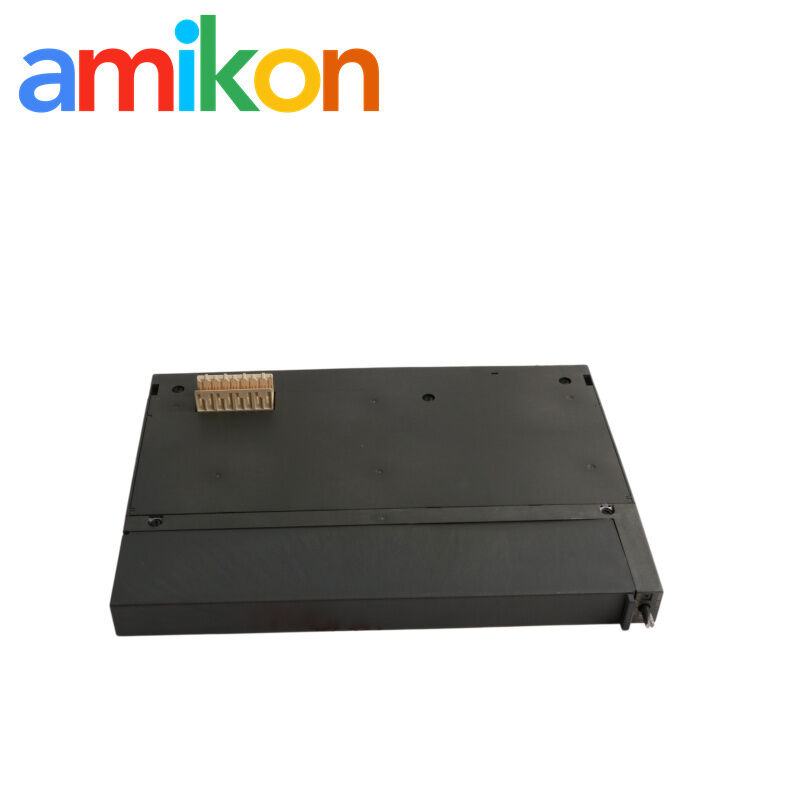

Siemens 6DD1607-0CA1 EXM 438-1 I/O Expansion Module
Siemens 6DD1607-0CA1
EXM 438-1 I/O Expansion Module
FM 458 Application System
Place of Origin:
Germany
Brand Name:
Siemens
Siemens 6DD1607-0CA1
,EXM 438-1 I/O Expansion Module
,FM 458 Application System
Siemens 6DD1607-0CA1
EXM 438-1 I/O Expansion Module
An I/O expansion module associated with the FM 458 application system, intended for installations that require additional digital, analog and encoder signal interfaces.
Signal Expansion for Existing Control Systems
The EXM 438-1 provides additional signal channels for FM 458-based applications, including digital I/O, analog outputs and encoder signal handling.
Technical Specifications
Technical data and interface overview
| Module Identification | |
|---|---|
| Module designation | EXM 438-1 I/O expansion module |
| I/O and Signal Interfaces | |
| Digital inputs | 16 |
| Digital outputs | 8 |
| High-resolution analog outputs | 4 channels, 16-bit resolution |
| Additional analog outputs | 4 channels, 12-bit resolution |
| Analog output voltage range | -10 V to +10 V |
| Maximum analog output current | ±10 mA |
| Encoder support | Incremental and absolute encoders |
| Electrical and Physical Data | |
| Supply voltage | 5 V DC; external 24 V DC where required by configuration |
| Typical current consumption | 1.5 A |
| Typical power loss | 7.5 W |
| Mounting / configuration | One required slot |
| Net weight | Approximately 1.031 kg |
Application & Failure Scenarios
Additional Signal Channels
Used where an FM 458-based control installation requires additional digital, analog or encoder interfaces.
I/O or Signal Faults
Consider sourcing a replacement when diagnostics indicate an expansion-module fault or relevant signal channels stop responding.
Delayed Recovery
Loss of required signal interfaces may interrupt control functions and extend machine or process recovery time.
Documentation & Compatibility
Technical Reference
For the Siemens 6DD1607-0CA1 PDF/manual/datasheet, consult the Siemens product catalog and the FM 458-1 DP application module documentation for system context, wiring and integration requirements.
Do not assume that another EXM 438 variant is interchangeable based on its family name alone. Check the exact order number and installed configuration before ordering.
AMIKON Industrial Supply
Kept Practical
Parts SourcingSend your part requirements to AMIKON for a quotation and sourcing review. Including the machine details and installed hardware information helps clarify the replacement requirement.
sales@amikon.cnWhatsApp: +86 180 2077 6792
Delivery & Warranty
Part-number and visible-condition checks; functional testing depends on the item and available test facilities.
Protective packing is prepared for the planned shipment and handling requirements.
Warranty coverage and duration are confirmed in the quotation or sales agreement. Report suspected DOA or transit damage promptly; returns require prior authorization.
Frequently Asked Questions
1. What is the Siemens 6DD1607-0CA1 used for?
It is identified as the EXM 438-1 I/O expansion module associated with the FM 458 application system, providing additional signal interfaces for control applications.
2. Is 6DD1607-0CA1 still an active Siemens product?
Siemens lists this order number as cancelled, with a cancellation date of October 1, 2022. Contact AMIKON to discuss current sourcing options.
3. Can I replace it with another EXM 438 module?
Do not assume interchangeability based on the product family name. Check the full order number, installed hardware and system documentation before replacement.
4. What information should I provide for a quotation?
Provide the part number, quantity, destination, required date and machine/system model. Nameplate photographs can also help clarify the installed version.
5. Where should I look for technical documentation?
Consult the Siemens product catalog and the relevant FM 458-1 DP application module documentation for technical data and integration requirements.
