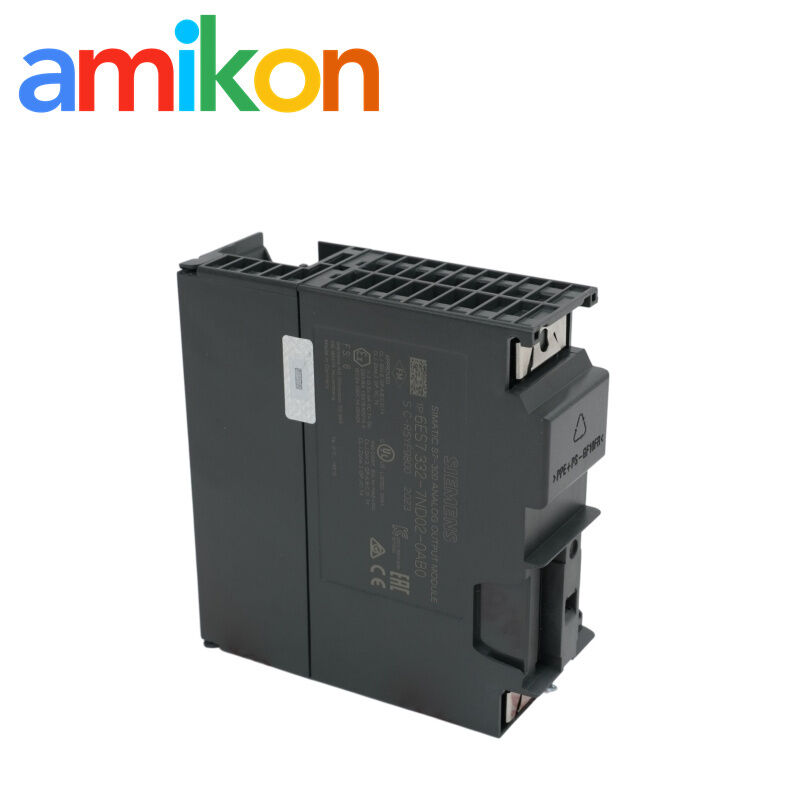

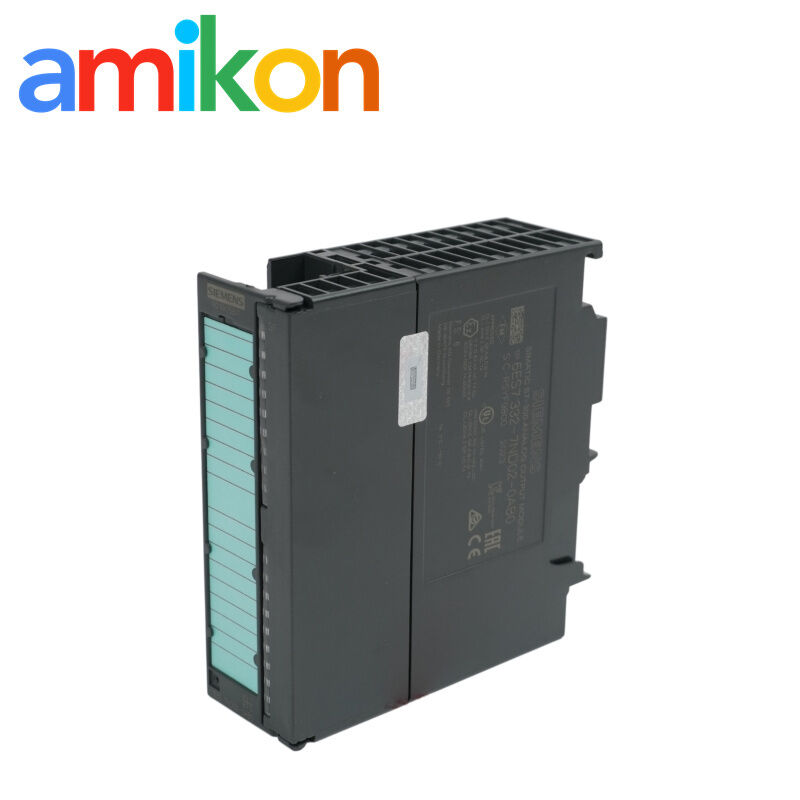

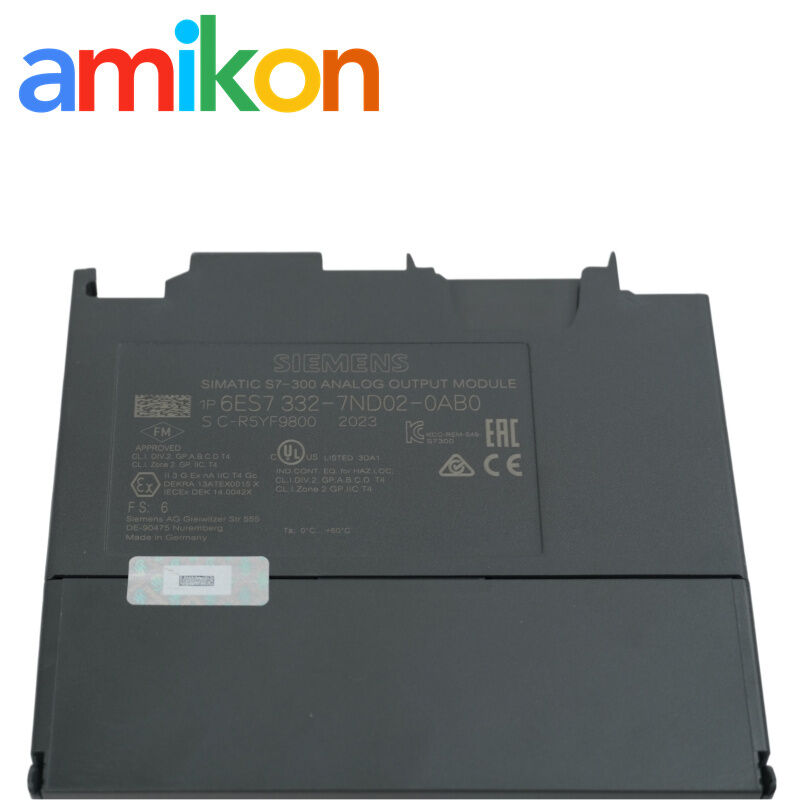

Siemens 6ES7332-7ND02-0AB0 SIMATIC S7-300 SM 332 Analog Output Module
Siemens 6ES7332-7ND02-0AB0
SIMATIC S7-300 SM 332
4 Analog Output Channels
Place of Origin:
Germany
Brand Name:
Siemens
Siemens 6ES7332-7ND02-0AB0
,SIMATIC S7-300 SM 332
,4 Analog Output Channels
Siemens 6ES7332-7ND02-0AB0
A SIMATIC S7-300 analog output module for industrial automation and control applications.
Product Identification
Order number: 6ES7332-7ND02-0AB0
Product family: SM 332 analog output modules
Manufacturer status: Siemens lists this product as phase-out since October 1, 2023. Confirm availability and the required part number before ordering.
Technical Specifications
| Manufacturer | Siemens |
|---|---|
| Product series | SIMATIC S7-300 |
| Module type | SM 332 analog output module |
| Analog output channels | 4 |
| Output signal types | Voltage and current |
| Voltage output ranges | 0 to 10 V; 1 to 5 V; -10 to +10 V |
| Current output ranges | 0 to 20 mA; 4 to 20 mA; -20 to +20 mA |
| Maximum resolution | 16 bit, including sign where applicable |
| Channel isolation | Isolated between channels and from the backplane bus and electronics supply |
| Rated load supply | 24 V DC (L+); reverse-polarity protection |
| Backplane bus current | Maximum 120 mA at 5 V DC |
| Load supply current | Maximum 290 mA from L+ without load |
| Typical power loss | 3 W |
| Maximum resolution / conversion time | 16-bit maximum resolution; 200 μs per channel in standard operation, 640 μs in isochronous mode |
Additional Electrical, Mechanical and Performance Data
| Connection system | 20-pole connection |
|---|---|
| Shielded cable length | Maximum 200 m |
| Dimensions (W × H × D) | 40 × 125 × 117 mm |
| Net weight | Approximately 0.296 kg |
| Voltage output load impedance | Minimum 1 kΩ |
| Maximum capacitive load, voltage output | 1 μF |
| Maximum load impedance, current output | 500 Ω |
| Maximum inductive load, current output | 1 mH |
| Voltage output short-circuit protection | Yes |
| Maximum voltage output short-circuit current | 40 mA |
| Maximum current-output no-load voltage | 18 V |
| Settling time, resistive load | 0.2 ms |
| Settling time, capacitive load | 3.3 ms |
| Settling time, inductive load | 0.5 ms |
| Potential difference between outputs | Maximum 200 V DC / 120 V AC |
| Isolation test voltage | 1500 V DC |
| Isochronous operation | Supported |
Check the applicable Siemens documentation and system configuration before installation or commissioning.
Application & Fault Scenarios
Used in SIMATIC S7-300 automation systems where the controller must deliver analog voltage or current reference signals to compatible field devices, such as control actuators or drive interfaces.
Customers commonly look for this module when an analog output channel stops responding, an output signal becomes unstable, a replacement is needed after module failure, or a maintenance team needs to restore an existing S7-300 installation. An unresolved output fault can interrupt process control and contribute to production downtime.
Delivery & Warranty
Inspection & Packaging
Part-number and condition checks are arranged before dispatch. Protective packaging is used to help safeguard the module during transport. Actual stock condition is confirmed with the quotation.
Returns, DOA & Warranty
Report transit damage or a suspected dead-on-arrival (DOA) issue promptly with order details and supporting evidence. Returns require prior authorization. Warranty coverage is subject to the agreed quotation and excludes damage caused by misuse, incorrect installation or unauthorized modification.
People, Parts & Practical Support
Industrial Parts Sourcing, Kept Practical.
Contact AMIKON to discuss availability, offered condition and quotation details for your required part.
Include the complete part number and delivery requirements when requesting a quotation.
Request a Quote
For a faster quotation, please provide:
Part Number: 6ES7332-7ND02-0AB0 | Quantity: Required units
Destination: Delivery city and country | Required Date: Target delivery date
Machine/System Model: Installed machine or control-system model
Technical Documentation
For selection and maintenance, consult the Siemens 6ES7332-7ND02-0AB0 datasheet PDF and the SIMATIC S7-300 module documentation relevant to the installed system.
Frequently Asked Questions
1. What is the Siemens 6ES7332-7ND02-0AB0 used for?
It is an SM 332 analog output module for SIMATIC S7-300 systems, providing four analog output channels for voltage or current signals.
2. Which analog output ranges does this module support?
Supported voltage ranges include 0–10 V, 1–5 V and -10 to +10 V. Supported current ranges include 0–20 mA, 4–20 mA and -20 to +20 mA.
3. Does the 6ES7332-7ND02-0AB0 support isochronous operation?
Yes. Siemens specifies support for isochronous operation. Confirm the system configuration and timing requirements before using this function.
4. What should I check before ordering a replacement?
Confirm the full order number, existing module configuration, required output signal ranges, connection arrangement and application requirements. Do not assume a different part number is interchangeable without checking Siemens documentation.
5. Is the Siemens 6ES7332-7ND02-0AB0 still in production?
Siemens lists the product as having entered phase-out on October 1, 2023. Contact AMIKON to confirm current availability and the condition of the offered unit.
