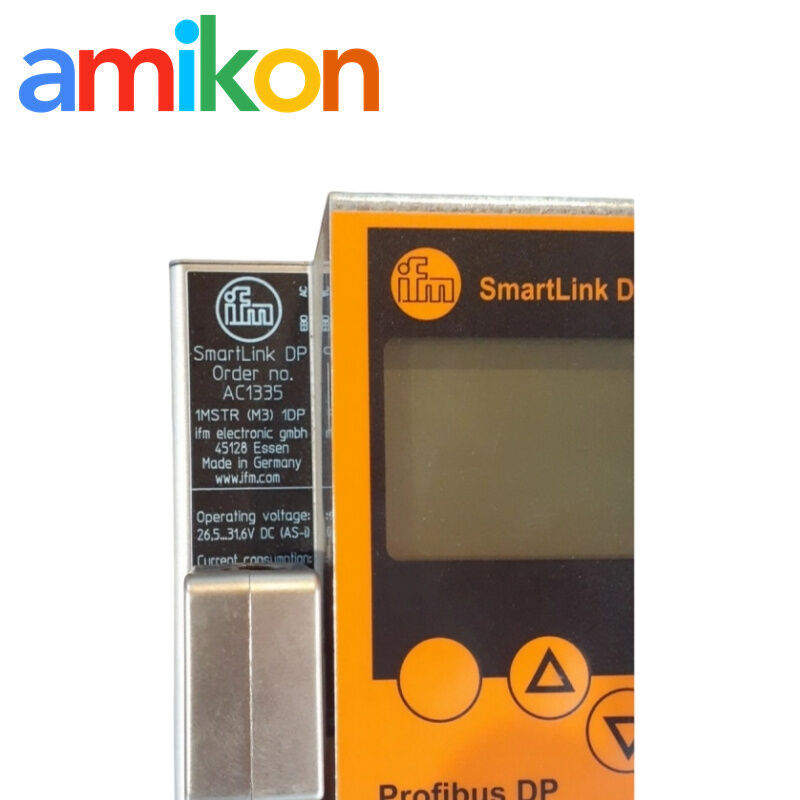

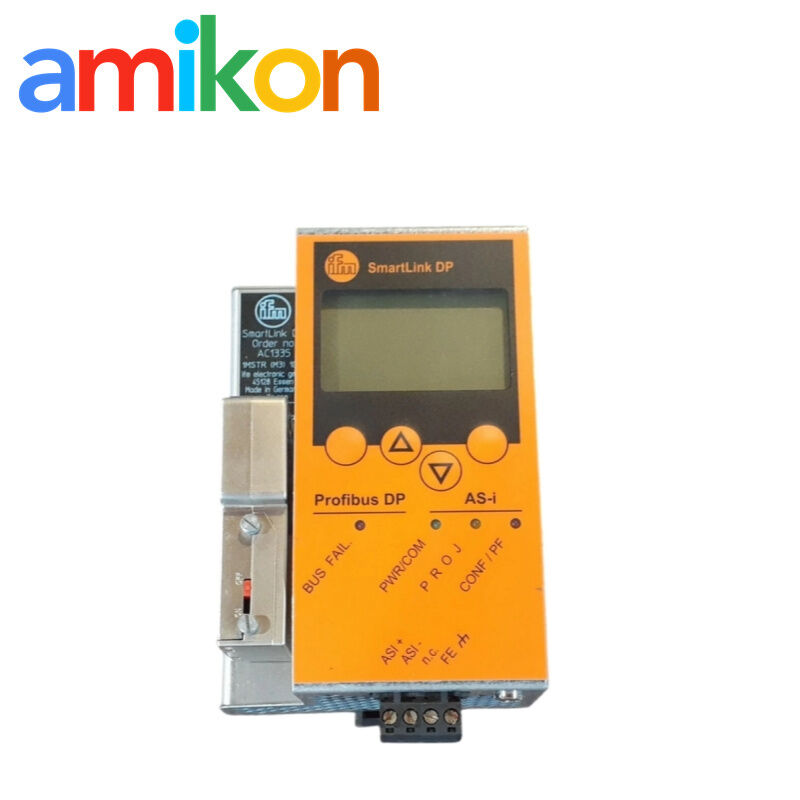

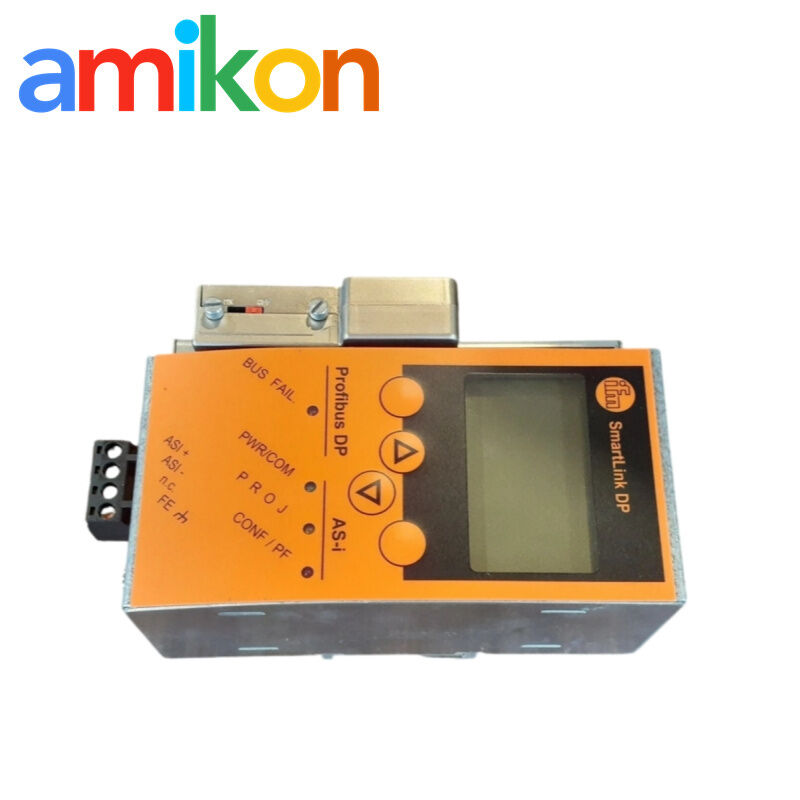

ifm SmartLink DP AC1335 AS-Interface PROFIBUS-DP Gateway
SmartLink DP gateway for connecting an AS-i field level with a PROFIBUS-DP control system. The AC1335 integrates one AS-i master and provides local operating and diagnostic functions.
Application
The AC1335 is used in industrial automation systems where AS-i sensors and actuators need to exchange data with a PROFIBUS-DP-based control level. It provides the gateway function between the AS-i network and the PROFIBUS-DP master system.
Failure Scenarios
Customers typically search for this gateway when an installed AC1335 fails, PROFIBUS-DP communication is interrupted, or AS-i communication and configuration diagnostics indicate a gateway-related problem. Since the unit links the field level with the control system, loss of the gateway can stop or disturb the affected field-data exchange and increase machine or line downtime.
Technical Specifications
AS-Interface
| Number of AS-i masters | 1 |
| AS-interface version | Version 2.1 |
| AS-interface profile | M3 |
| Operating voltage | 26.5...31.6 V DC |
| Current consumption | < 0.2 A |
| Electrical separation | Yes |
| AS-i functions | A/B slaves, peripheral fault detection, analogue Plug+Play (7.3 profile), extended ID codes, AS-i cycle counter, communication error counter per slave, configuration error counter, protected-mode change without AS-i reset and Easy Start-up. |
PROFIBUS-DP
| Interface type | PROFIBUS-DP slave |
| Baud rate | 9.6...12 Mbaud |
| Connector | SUB-D 9 |
| Signal connection | Pin 3: signal B · Pin 8: signal A |
| Maximum gateways | 31 gateways |
| Configuration | The AC1335 is represented in PROFIBUS configuration software as “ASI-DP-Gateway”. |
Interfaces, Mechanical & Environmental Data
| Serial interface | RS232C |
| RS232C baud rates | 9600, 19200, 38400, 57600, 115200 bits/s |
| RS232C communication parameters | 8 data bits, no start bit, 1 stop bit, no parity |
| RS232C connector | 6-pole RJ11 Western socket |
| Mounting | 35 mm DIN rail |
| Dimensions | 68 × 85 × 138 mm |
| Housing material | Aluminium |
| Protection rating | IP20 |
| Operating temperature | 0...+60 °C |
| Storage temperature | -20...+70 °C |
| Maximum relative humidity | < 95% |
| Display | Backlit graphic LC display, 128 × 64 |
| Operating elements | 4 function keys; 4 LEDs |
| Connection technology | Combicon screw clamps |
Configuration & Diagnostics
The front LC display and four function keys provide local operation and status information. Diagnostic functions include AS-i cycle monitoring, communication error counting per slave, configuration error counting and peripheral fault detection. The PROFIBUS-DP slave address is set through the gateway display and stored non-volatilely.
Installation
The unit is designed for 35 mm DIN-rail mounting in a protected control-cabinet environment. Its IP20 housing requires a suitable protected installation and unobstructed ventilation. The documented operating temperature range is 0...+60 °C.
AMIKON supports industrial automation spare-part sourcing with exact part-number identification, supply coordination, quotation support and shipment arrangements.
Delivery & Warranty
Supplied items are checked against the ordered part number and packed for shipment. DOA and return cases are handled according to the applicable order terms. Warranty applies to the supplied item within the agreed warranty conditions.
