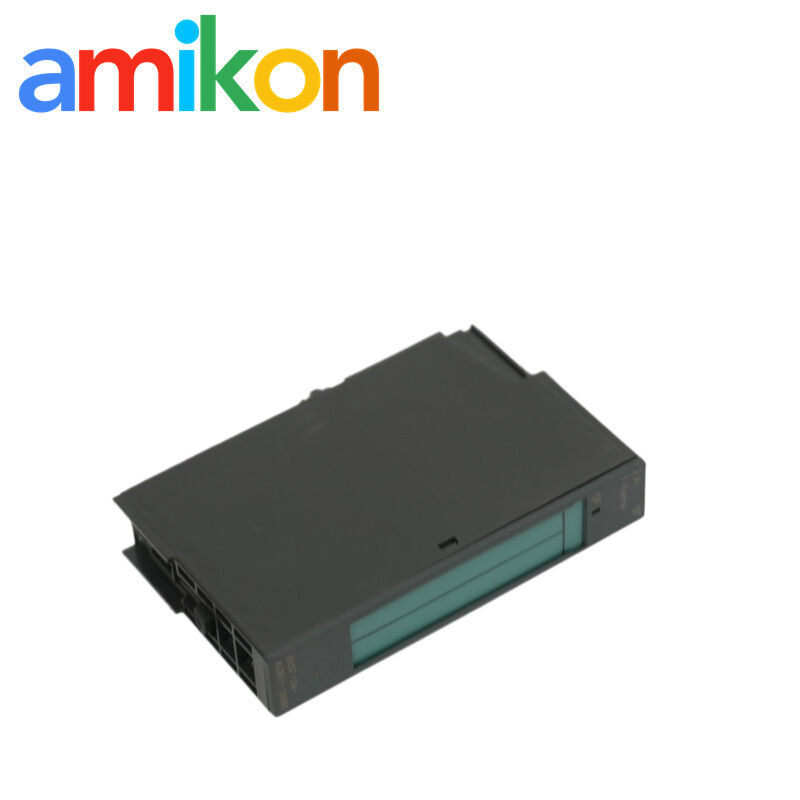

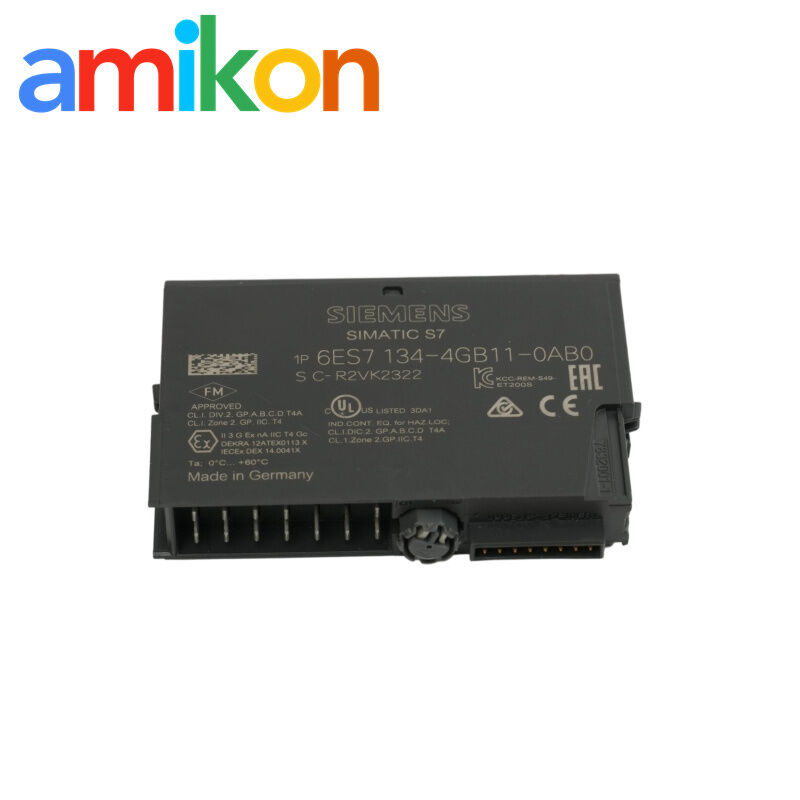

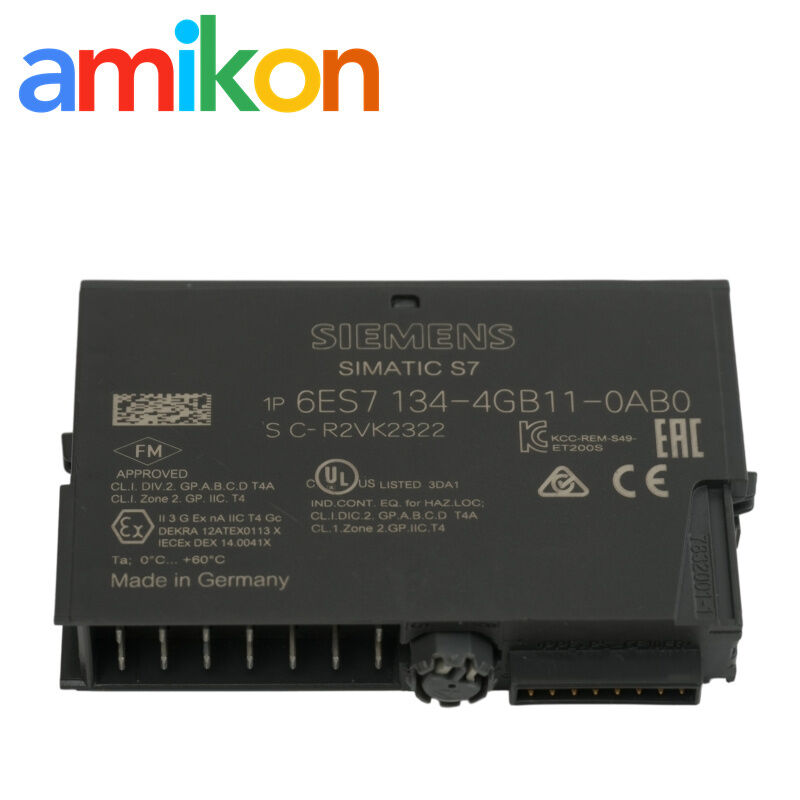

Siemens 6ES7134-4GB11-0AB0 SIMATIC ET 200S 2AI I-4WIRE ST Analog Input Module
Siemens SIMATIC ET 200S analog input module
2AI I-4WIRE ST analog module
SIMATIC PLC analog input module with warranty
Place of Origin:
Germany
Brand Name:
Siemens
Siemens SIMATIC ET 200S analog input module
,2AI I-4WIRE ST analog module
,SIMATIC PLC analog input module with warranty
6ES7134-4GB11-0AB0
SIMATIC DP electronics module for ET 200S with 2 analog current inputs for 4-wire measuring transducers, supporting ±20 mA and 4–20 mA signal ranges.
Product Role
The 6ES7134-4GB11-0AB0 is an ET 200S analog input electronics module for acquiring current signals from four-wire measuring transducers and transferring the measured values to the distributed I/O system.
Where It Fits
This module is intended for ET 200S distributed I/O installations where two analog current signals from 4-wire measuring transducers need to be acquired. The input channels can be configured for the supported current measurement ranges.
When Customers Search for It
Customers may search for this module when an ET 200S station loses an analog measurement channel, reports a module-related fault, or requires replacement of a failed input electronics module. A malfunction can affect the acquisition of process values and may interrupt monitoring or control functions that depend on those signals.
Technical Specifications
General & Electrical Data
| Product family | SIMATIC DP / ET 200S |
| Module type | 2AI I-4WIRE ST analog electronic module |
| Number of analog inputs | 2 |
| Load voltage L+ | 24 V DC, from power module |
| Current consumption from L+ | Max. 30 mA |
| Current consumption from backplane bus | Max. 10 mA at 3.3 V DC |
| Typical power loss | 0.6 W |
| Address space per module | Max. 4 bytes |
| Isochronous operation | No |
Analog Input Performance
| Input ranges | −20 mA to +20 mA; 4 mA to 20 mA |
| Input resistance | 50 Ω |
| Resolution, ±20 mA | 13 bits + sign |
| Resolution, 4–20 mA | 13 bits |
| Measurement principle | Integrating |
| Integration time | 16.7 ms / 20 ms |
| Conversion time per channel | 55 ms / 65 ms |
| Cycle time | Number of active channels × conversion time |
| Interference frequency suppression | 50 / 60 Hz |
| Measured-value smoothing | Parameterizable digital filtering, four stages |
| Input current destruction limit | Max. 40 mA |
| Shielded cable length | Max. 200 m |
Isolation, Protection & Diagnostics
| Reverse-polarity protection | Yes |
| Transducer power supply | Yes |
| Transducer short-circuit protection | Yes, 60 mA for both channels |
| Electrical isolation, channels to backplane bus | Yes |
| Electrical isolation, channels to L+ | No |
| Electrical isolation between channels | No |
| Permissible potential difference MANA / backplane bus | 75 V DC / 60 V AC |
| Insulation test | 500 V DC |
| Wire-break diagnosis | Yes, for 4–20 mA measuring range |
| Group error diagnosis | Yes |
| Overflow / underflow diagnosis | Yes |
| Diagnostic LED | Red SF LED, group fault |
Mechanical Data
| Width | 15 mm |
| Height | 81 mm |
| Depth | 52 mm |
| Approx. weight | 40 g |
Installation & Wiring
The module uses ET 200S terminal modules. Siemens documentation identifies spring, screw-type and FastConnect terminal-module variants for this module family.
| Terminal | Assignment | Function |
|---|---|---|
| 1 / 5 | M0+ / M1+ | Channel 0 / 1 positive input |
| 2 / 6 | M0− / M1− | Channel 0 / 1 negative input |
| 3 / 7 | L+ | Power supply for four-wire measuring transducer |
| 4 / 8 | MANA | Ground of power module |
| A3 / A4 / A7 / A8 | AUX1 | Auxiliary terminal function where provided by the terminal module |
Diagnostic Focus
During troubleshooting, review the module status, wiring, configured input settings and available diagnostic indications before replacing the electronics module.
Spare-Part Status
Siemens currently lists 6ES7134-4GB11-0AB0 as a spare part with product cancellation effective from 01 October 2023. Availability should therefore be checked by exact part number and required quantity.
Delivery & Warranty
AMIKON supplies industrial automation spare parts with order-specific inspection, protective packaging and shipment coordination. Returns and DOA cases are handled according to the supplied unit's condition and order terms; warranty covers the agreed product condition and excludes damage caused after delivery.
RFQ
Please provide:
Sourcing, Identification & Supply
AMIKON supports industrial automation spare-part sourcing with a practical focus on exact part-number identification, availability checks, quotation and shipment coordination.
FAQ
Which current signals does it support?
Does it provide wire-break diagnostics?
What is the module width?
Is 6ES7134-4GB11-0AB0 still an active Siemens product?
