Product Description
AMIKON | Siemens SIMATIC S7-400H

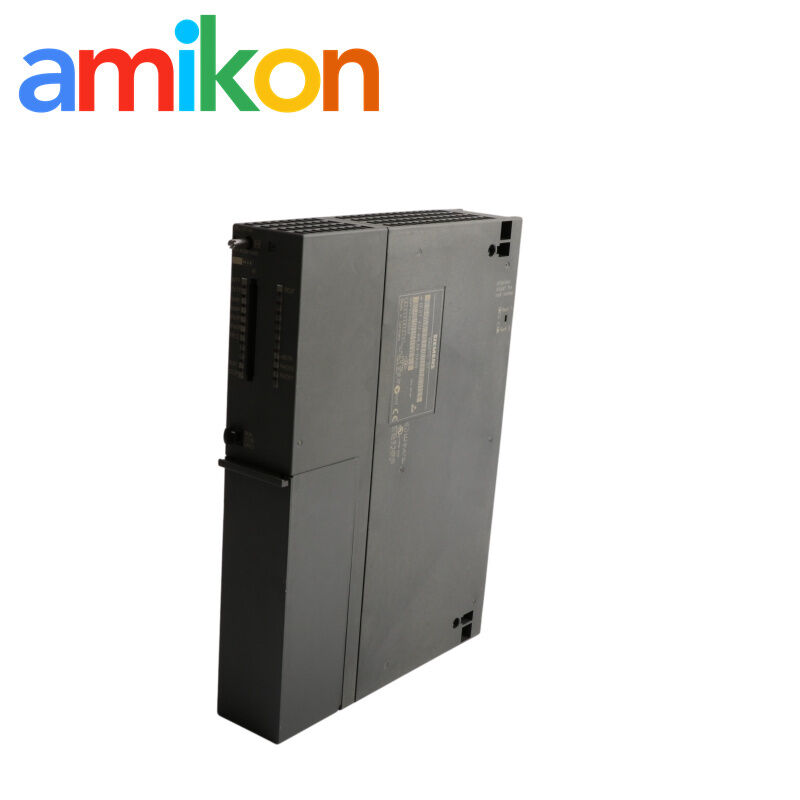

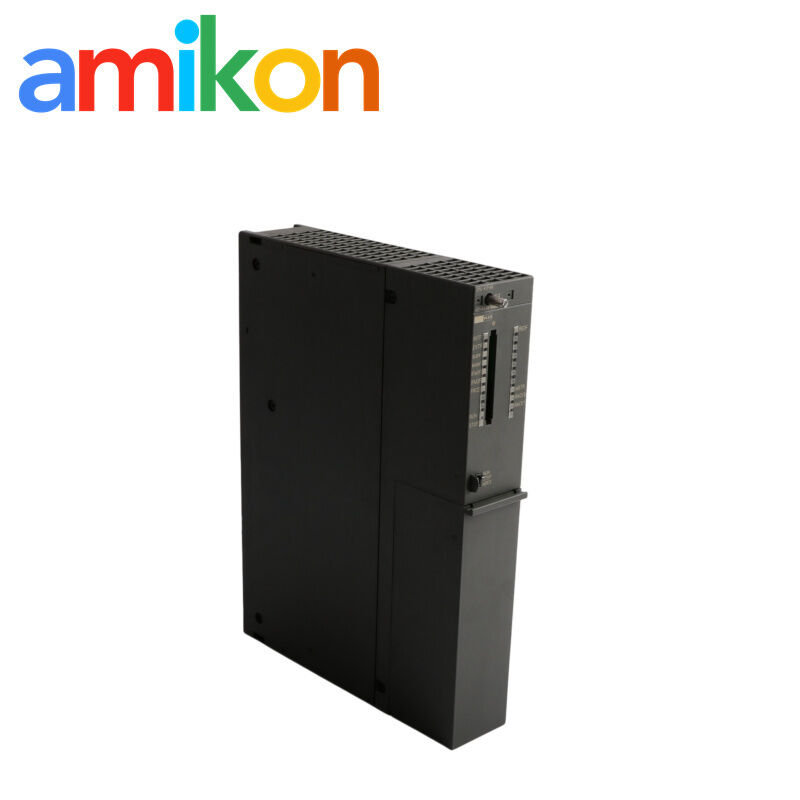

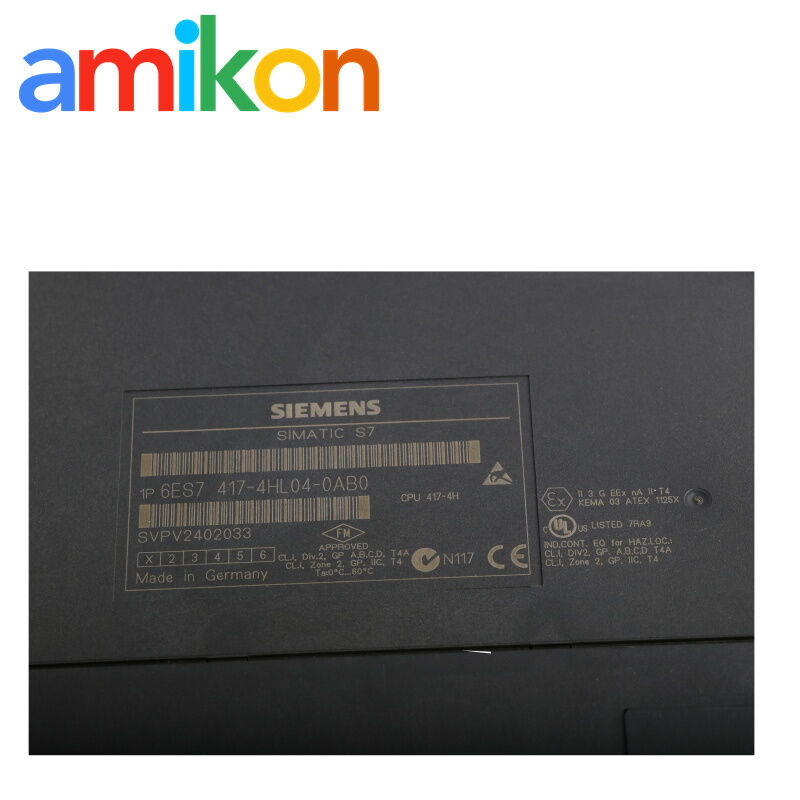

Siemens 6ES7417-4HL04-0AB0 CPU 417-4H
Central processing unit for SIMATIC S7-400H with MPI/DP, PROFIBUS DP and synchronization-module interfaces.
Product Overview
The CPU provides the central processing function for SIMATIC S7-400H systems and supports the documented processing, memory and communication functions of the CPU 417-4H.
Technical Specifications
Core specification
| Product type | CPU 417H |
| System | SIMATIC S7-400H |
| Rated supply voltage | 24 V DC |
| Backplane bus input current | Max. 1.7 A at 5 V DC |
| Typical power loss | 6 W |
| Integrated work memory | 20 MB |
| Program / data memory | 10 MB program / 10 MB data |
| Load memory | Expandable FEPROM with FLASH Memory Card; max. 64 MB |
| RAM expansion | Expandable with RAM Memory Card; max. 64 MB |
| Backup | Present; with battery |
| Backup current | Typ. 600 µA; max. 1,810 µA |
| External backup voltage | 5 V DC to 15 V DC |
| Bit operation time | Typ. 0.03 µs |
| Word operation time | Typ. 0.03 µs |
| Fixed-point arithmetic | Typ. 0.03 µs |
| Floating-point arithmetic | Typ. 0.09 µs |
Memory, blocks and address areas
| DB | Max. 8,192; max. size 64 kbyte; DB 0 reserved |
| FB | Max. 6,144; max. size 64 kbyte |
| FC | Max. 6,144; max. size 64 kbyte |
| OB | Max. size 64 kbyte; number according to instruction list |
| S7 counters | 2,048 |
| S7 timers | 2,048; range 10 ms to 9,990 s |
| Flag memory | 16 kbyte |
| I/O address area | Inputs 16 kbyte / Outputs 16 kbyte |
| Process image | Inputs and outputs adjustable to 16 kbyte; default 1,024 byte each |
| Subprocess images | Max. 8 |
| Digital channels | Inputs 131,072 / Outputs 131,072 |
| Analog channels | Inputs 8,192 / Outputs 8,192 |
Interfaces & communication
| Interface 1 | RS 485 / PROFIBUS; isolated; MPI or PROFIBUS DP master |
| MPI transmission rate | Max. 12 Mbit/s |
| MPI connections | Max. 44 |
| PROFIBUS DP master, interface 1 | Max. 32 connections; max. 32 DP slaves; max. 512 slots |
| Interface 2 | RS 485 / PROFIBUS; isolated; PROFIBUS DP master |
| PROFIBUS DP master, interface 2 | Max. 32 connections; max. 125 DP slaves; max. 2,048 slots |
| S7 communication | Supported as client and server; max. user data per job 64 kbyte |
| Overall connections | Max. 64 |
| S5-compatible communication | Supported via CP and loadable FC; max. user data per job 8 kbyte |
Hardware, configuration & physical data
| Expansion units | Max. 21 |
| Connectable IMs | Max. 6; IM 460 max. 6; IM 463 max. 6 |
| Integrated DP masters | 2 |
| FM / CP quantity | Recommended max. 64 each, limited by slots and connections |
| Required slots | 2 |
| Real-time clock | Hardware clock; retentive and synchronizable |
| Operating-hours counters | 8 |
| Configuration software | STEP 7 V5.0 SP2 |
| Programming languages | LAD, FBD, STL, SCL, CFC, GRAPH, HiGraph |
| User program protection | Password protection supported |
| Dimensions | 50 × 290 × 219 mm |
| Weight | Approx. 1,070 g |
Application & Fault Scenarios
This CPU is used in SIMATIC S7-400H systems where the documented CPU 417-4H processing and communication functions are required. Customers may search for this exact part number when an installed S7-400H CPU requires replacement or when CPU-related operation and communication need to be checked.
Downtime consideration: A CPU-level interruption can affect the control system and connected communication functions. For a replacement inquiry, matching the complete order number and existing system configuration is important before installation.
Configuration & Documentation
For 6ES7417-4HL04-0AB0 PDF, manual and datasheet requests, use the exact order number when checking technical documentation, configuration requirements and firmware-related information.
AMIKON Industrial Supply
About Us
Delivery & Warranty
Testing
Item condition and applicable functional checks are handled before shipment.
Item condition and applicable functional checks are handled before shipment.
Packaging
Industrial protective packaging suitable for shipment.
Industrial protective packaging suitable for shipment.
DOA / Returns
Report DOA or transit issues promptly with order details and supporting evidence.
Report DOA or transit issues promptly with order details and supporting evidence.
Warranty
Warranty covers the supplied item according to the quotation and confirmed warranty terms; damage caused by misuse or improper installation is excluded.
Warranty covers the supplied item according to the quotation and confirmed warranty terms; damage caused by misuse or improper installation is excluded.
Request a Quote
Contact AMIKON
Please provide the complete part number and application details for quotation and availability checking.
RFQ: Part Number · Quantity · Destination · Required Date · Machine/System Model
FAQ
What system is the CPU 417-4H designed for?
It is specified as a central processing unit for the SIMATIC S7-400H system.
How much integrated work memory does it have?
The integrated work memory is 20 MB, consisting of 10 MB program memory and 10 MB data memory.
Which communication interfaces are provided?
The documented interface arrangement comprises one MPI/DP interface, one PROFIBUS DP interface and two interfaces for synchronization modules.
Which software is specified for configuration?
The Siemens data sheet specifies STEP 7 V5.0 SP2 for configuration.
What should be included when requesting a replacement quote?
Provide the complete part number together with quantity, destination, required date and machine/system model so the requested CPU can be checked against the application.
