ABB CDP312R Control Panel for ACS800 Drive Systems
ABB CDP312R
ACS800 Drive
Drive Operator Panel
Place of Origin:
SWEDEN
Brand Name:
ABB
ABB CDP312R
,ACS800 Drive
,Drive Operator Panel

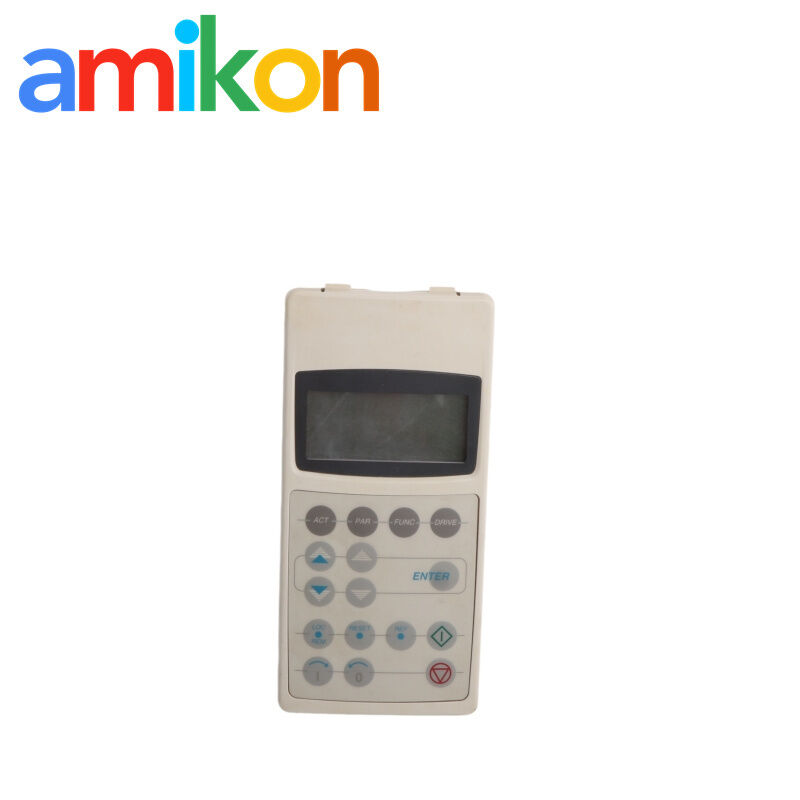

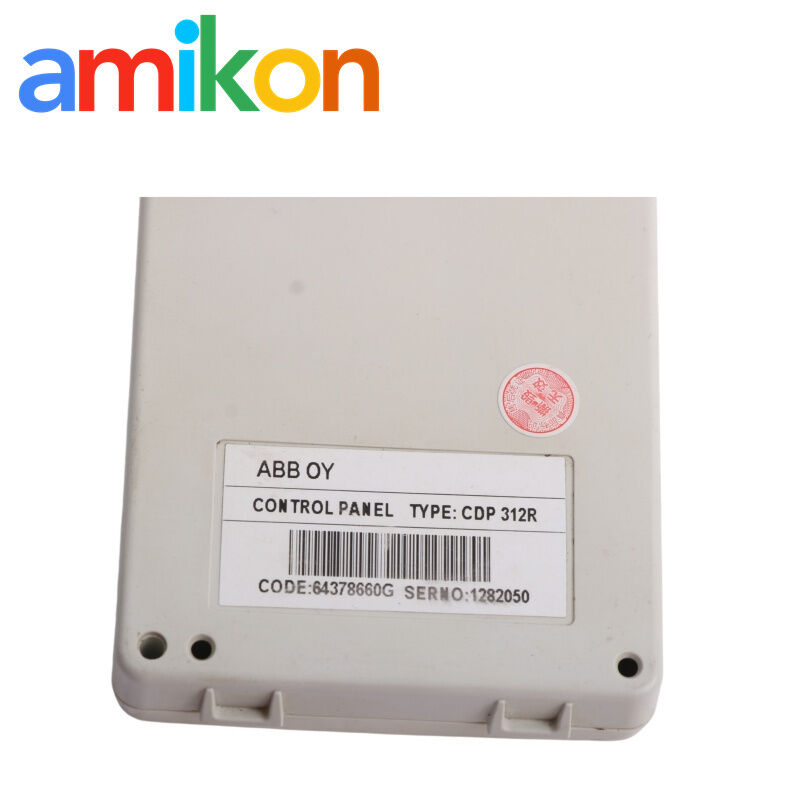

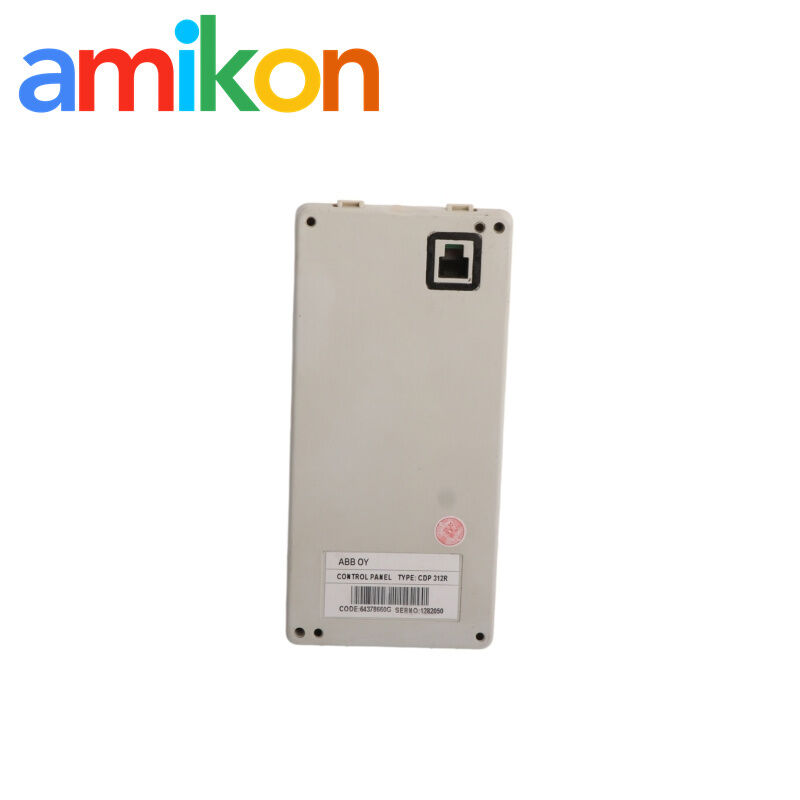

ABB CDP312R Control Panel
An operator panel for ABB drive systems, providing a local interface for drive operation, parameter access and status monitoring.
PART NUMBER: CDP312RApplication
CDP312R is used as a local operator interface for ABB drive equipment, particularly within ACS800 systems. ABB documentation also identifies CDP312R in PVS800 inverter documentation. It provides access to drive operation, parameters and operating information from the panel.
Technical Specifications
| Parameter | CDP312R |
|---|---|
| Manufacturer | ABB |
| Part Number | CDP312R / CDP-312R |
| Product Type | Control Panel |
| Display | LCD, 4 lines × 20 characters |
| Keys | 16 |
| Communication | Modbus, 9600 bit/s |
View additional specifications & installation information
| Parameter | Confirmed Information |
|---|---|
| Primary Drive Family | ACS800 |
| Additional Documented Application | PVS800 inverter documentation |
| Bus Capacity | 1 control panel plus up to 31 stations |
| Station Identification | Each station requires a unique ID number |
| Operating Functions | Local drive control, actual-value/status monitoring and parameter setting |
| Mounting | ABB documentation describes direct cabinet-door mounting using two screws, as well as mounting with a control-panel platform or holder. |
Fault & Search Scenarios
An existing panel may need replacement because of panel damage, display or keypad problems, or loss of the local operator interface.
Loss of the local panel can make local operation, parameter access and on-site drive diagnosis more difficult during maintenance.
Installation & Panel Mounting
ABB installation documentation describes cabinet-door installation for CDP312R, including direct fastening and the use of dedicated control-panel mounting platforms or holders.
- Direct cabinet-door fastening is documented by ABB.
- Mounting platforms and holders are documented for supported installations.
- For replacement work, confirm the existing panel arrangement and interface configuration before installation.
Service & Supply
AMIKON can arrange inspection and functional testing before shipment, followed by protective industrial packaging.
Contact AMIKON
Miya Zheng
Industrial automation spare parts sourcing & supply support.
Send the exact part number and system information for a focused quotation.
