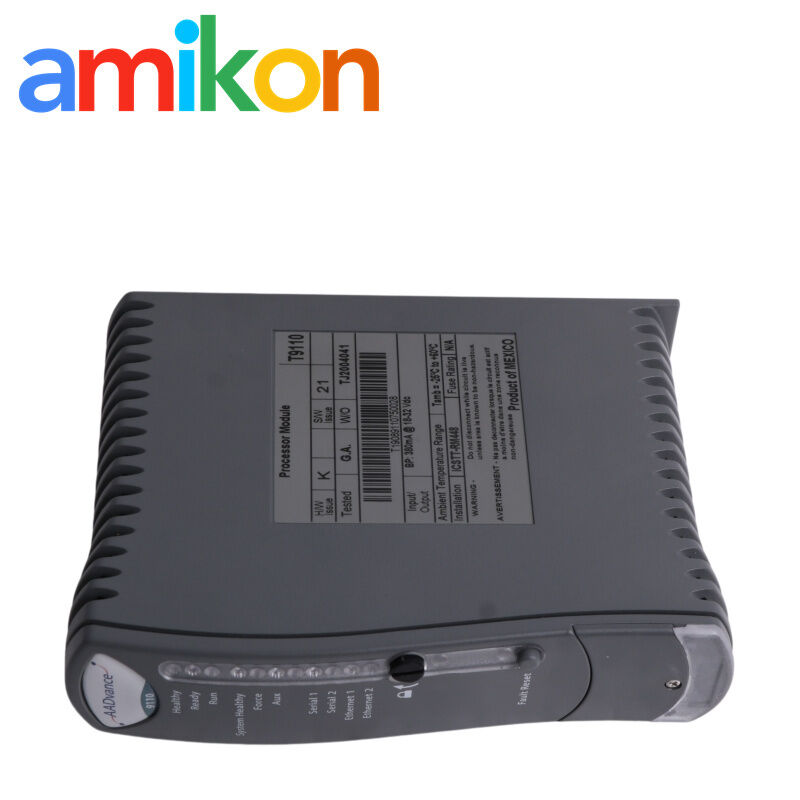

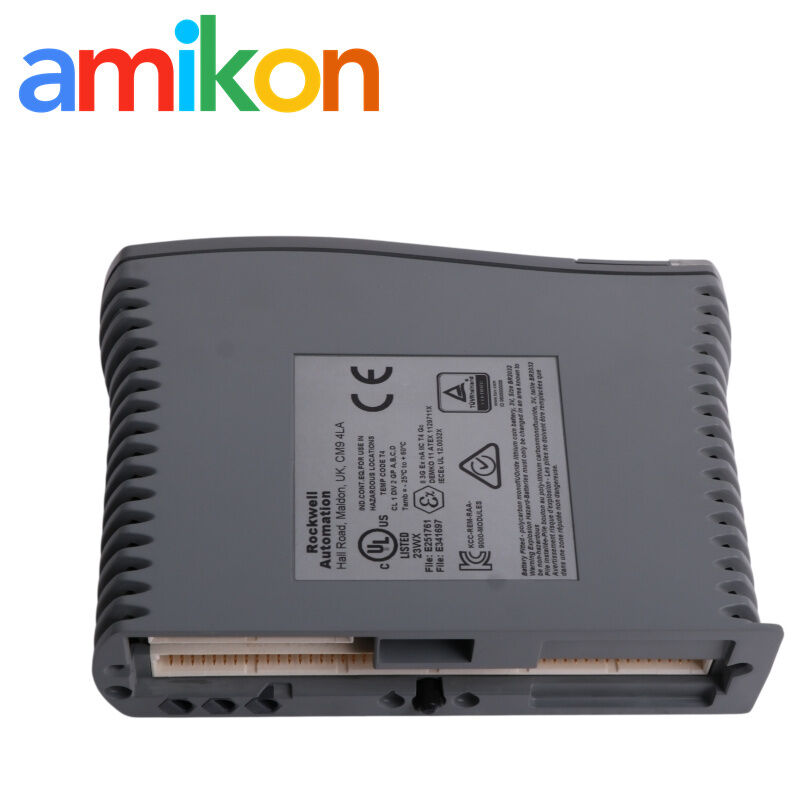

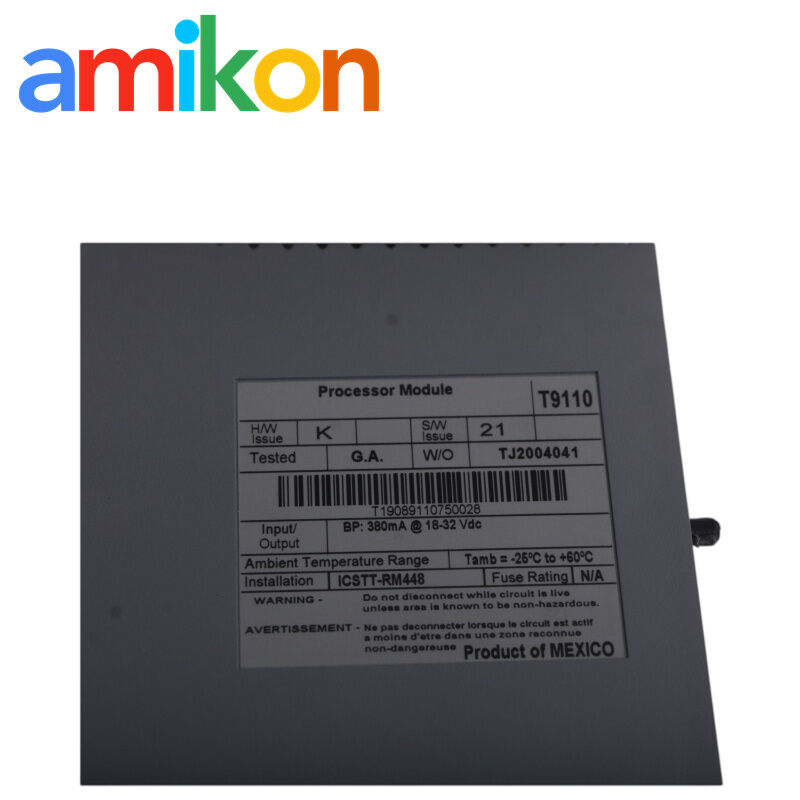

Rockwell Automation T9110 AADvance Processor Module | 400 MHz
AADvance Processor Module
400 MHz Processor
Fire & Gas Protection
Place of Origin:
USA
Brand Name:
ICS Triplex
AADvance Processor Module
,400 MHz Processor
,Fire & Gas Protection
Rockwell Automation T9110 AADvance Processor
Technical Specifications
| Product type | AADvance Processor Module |
|---|---|
| Processor clock | 400 MHz |
| Degradation / redundancy modes | 1oo1D, 1oo2D and 2oo3D |
| Boot flash | 512 kB |
| SRAM | 512 kB |
| Bulk flash | 64 MB |
| SDRAM | 32 MB |
SHOW MORE TECHNICAL SPECIFICATIONS
| Sequence-of-events resolution | 1 ms for internal variables |
|---|---|
| Self-test interval | < 5.5 hours |
| I/O modules supported | 48 |
| Module supply voltage | Redundant +24 Vdc nominal; 18–32 Vdc range |
| Module supply power dissipation | 8 W (27.3 BTU/h) |
| Typical operating surface temperature | 43 °C ± 5 °C |
| Dimensions | 166 mm × 42 mm × 118 mm (H × W × D) |
| Weight | 430 g (15 oz.) |
| Casing | Plastic, non-flammable |
Application & Fault Scenarios
AADvance safety and critical-control applications
T9110 serves as the processor within an AADvance controller. Documented application areas include critical process control, fire and gas protection, rotating machinery control, burner management, boiler and furnace control, and distributed process monitoring.
Installation & Configuration
Processor Base
Installed on the T9100 Processor Base Unit.
Redundancy
Official architectures include 1oo2D and 2oo3D configurations.
Online Replacement
Replacement can be performed online when the required operational processor remains available.
Firmware
Replacement processor firmware must match the processors already installed.
Locking Screw
The locking screw retains the processor and acts as an operational safety switch.
Recovery Mode
Supports firmware updating, IP-address programming and diagnostic information extraction.
Mounting & Environmental Notes
Environmental range
Operating temperature: −25 °C to 60 °C. Storage and transport: −40 °C to 70 °C. Operating humidity: 10%–95% RH, non-condensing.
Mounting
AADvance controller equipment is designed for upright installation. Keep the top and bottom ventilation openings clear for cooling.
Delivery & Warranty
Frequently Asked Questions
Can a T9110 processor be replaced while the AADvance controller is running?
Does a replacement T9110 need the same firmware revision?
How many T9110 processors are used in redundant AADvance configurations?
What should I check when a T9110 reports a processor fault?
What information should I provide when ordering a replacement T9110?
