ICS Triplex T8153 Trusted Communication Interface Adapter | 10/100BaseT & RS232/RS485

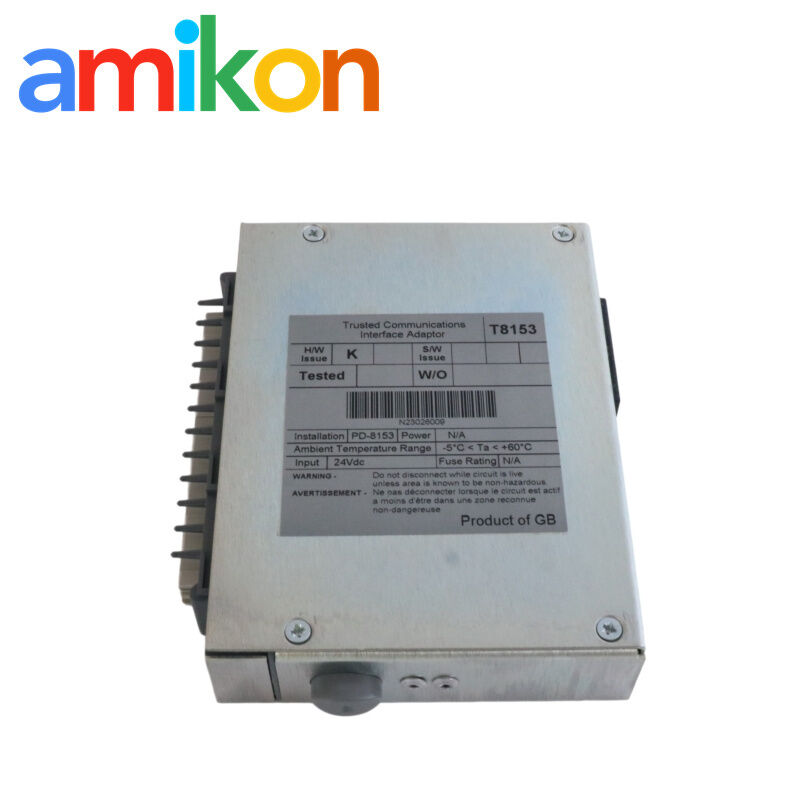

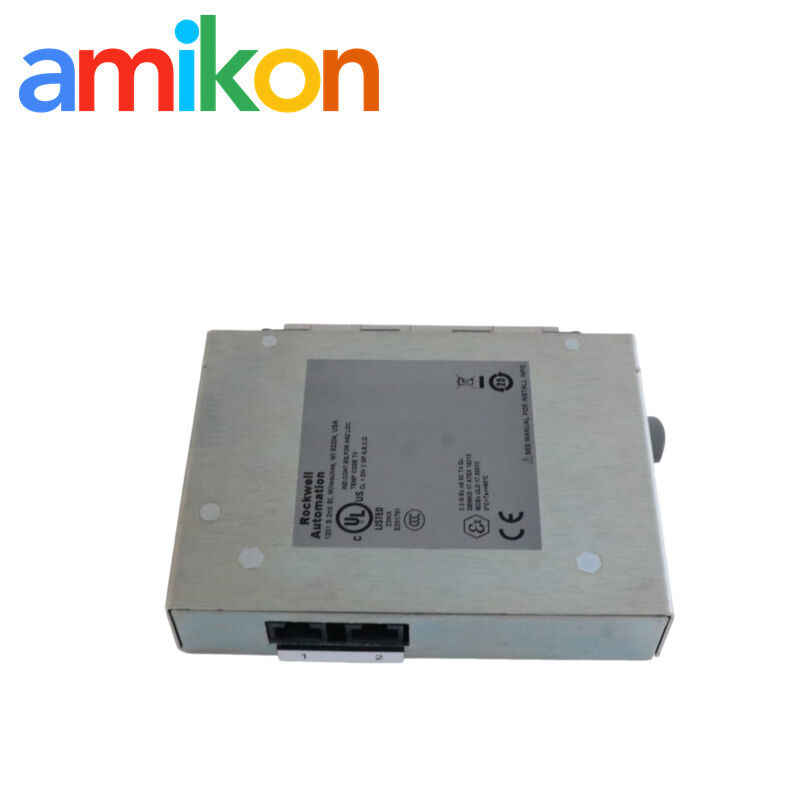

T8153 Trusted Communication Interface Adapter
ICS Triplex T8153
2 x 10/100BaseT
Place of Origin:
USA
Brand Name:
ICS Triplex
T8153 Trusted Communication Interface Adapter
,ICS Triplex T8153
,2 x 10/100BaseT
ICS Triplex T8153 Trusted Communication Interface Adapter | 10/100BaseT & RS422/485
Provides external access to the communications ports of Trusted Communication Interface Modules in the Controller Chassis for peer-to-peer communications, DCS and other links, networked PCs and external connections.

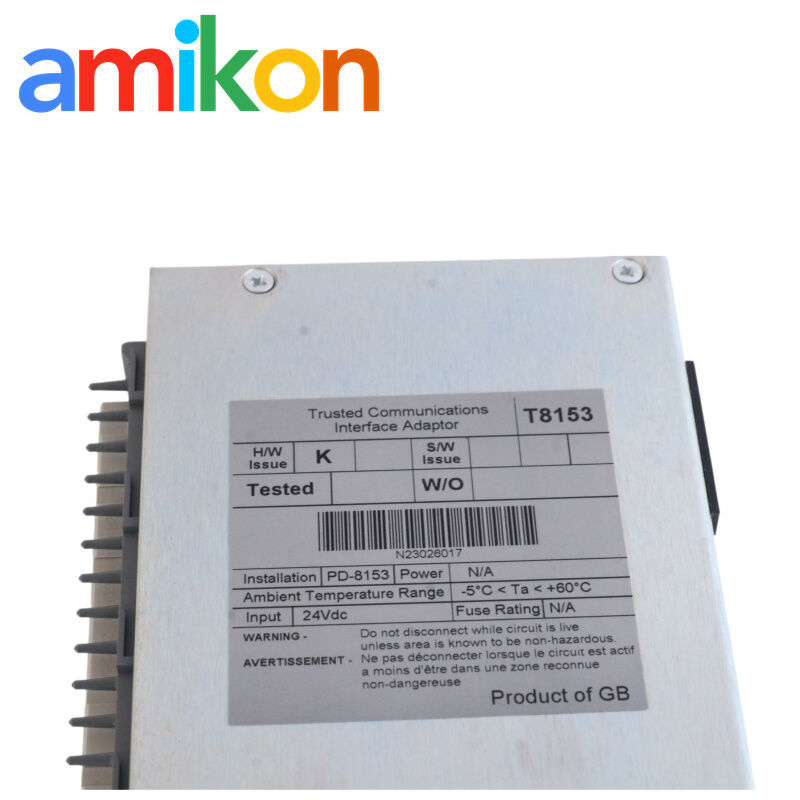

Technical Specifications
| Product Type | Trusted Communication Interface Adapter |
|---|---|
| Ethernet | 2 × 10/100BaseT |
| RS422/485 | 4 connections |
| RS232 | 2 connections; one full RS232 |
| Ethernet Connector | RJ45 |
| Chassis Connector | 78+2-way DIN41612 Inverse M-type connector, SK1 |
| Installation | Rear-mounted to the Trusted Communication Interface |
Show additional manufacturer specifications
| RS232 Bank 1 | J3, Phoenix Contact 2.5 mm pitch connector |
|---|---|
| RS232 Bank 2 | J7, Phoenix Contact 2.5 mm pitch connector |
| RS485 Connectors | J4, J5 and J9 to J14, Phoenix 2.5 mm pitch connectors |
| RS485 Termination | Link-selectable 120 Ω AC termination on transmit and transmit/receive circuits |
| Operating Temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
| Non-operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative Humidity | 10%–95%, non-condensing |
| Dimensions | 150 mm × 28 mm × 106 mm (H × W × D) |
| Weight | 418 g (0.92 lb.) |
Where the T8153 Fits
Trusted System Links
Used where a Trusted communication interface needs accessible external connections.
Peer-to-Peer & DCS
Relevant to peer-to-peer communications, DCS links and connections with networked PCs.
Communication Fault Search
Commonly checked when an affected external communication path requires hardware inspection or replacement.
Connection & RS485 Setup
Use SK1 to mate the adapter with the Trusted Communication Interface.
J3 provides the full RS232 connection; J7 provides the partial RS232 connection.
Use the designated RS485 connectors for direct or multi-drop connections.
Set the specified RS485 termination links according to the transmission-line position.
Compatibility & Replacement
T8100 Trusted Controller Chassis with a Trusted Communication Interface; T8151B is identified as associated equipment.
No historical replacement is identified in PD_T8153.
Talk to Miya
T8153 FAQ
What communication ports are available on the T8153?
Can T8153 be fitted directly to a Trusted Communication Interface?
What should be checked when RS485 communication is unstable?
Should T8153 be used with the T8170 Gateway Module?
What is the T8153 operating temperature range?
