AC450 process control
Executes the controller application for logic, sequence and regulatory-control duties in an Advant Controller 450 station.

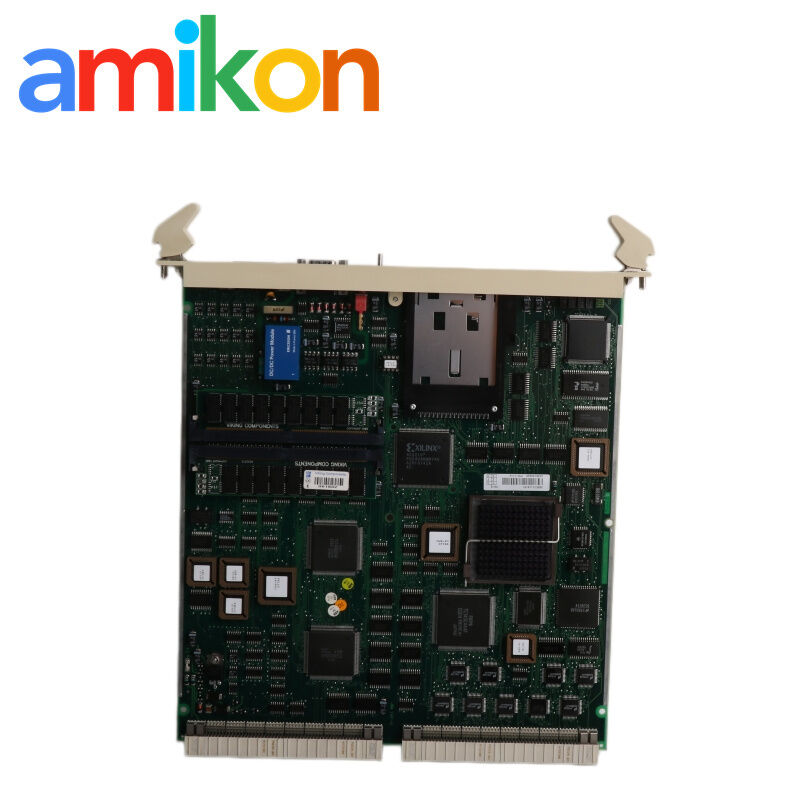

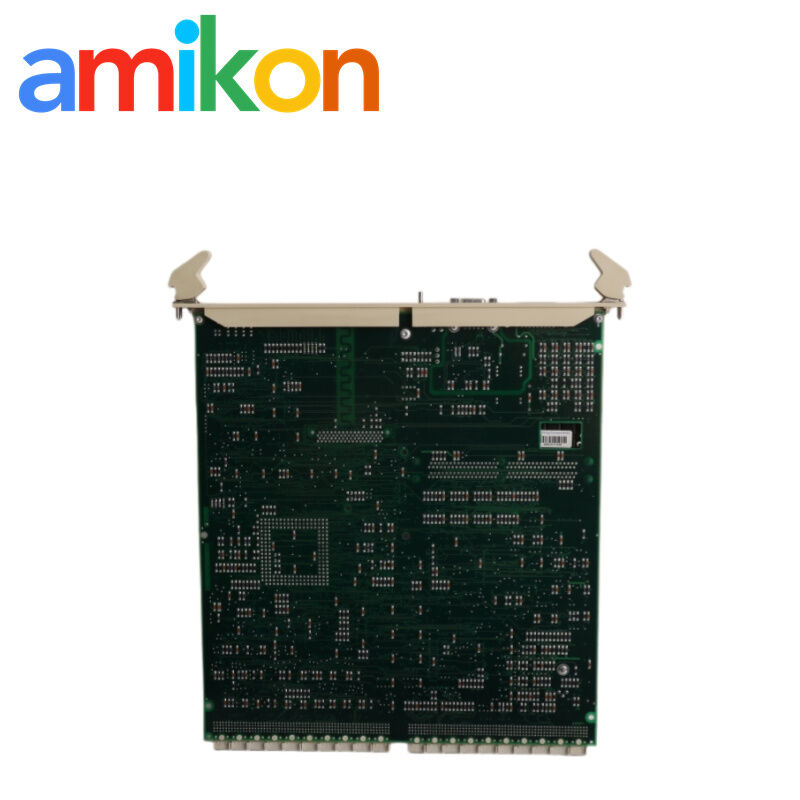

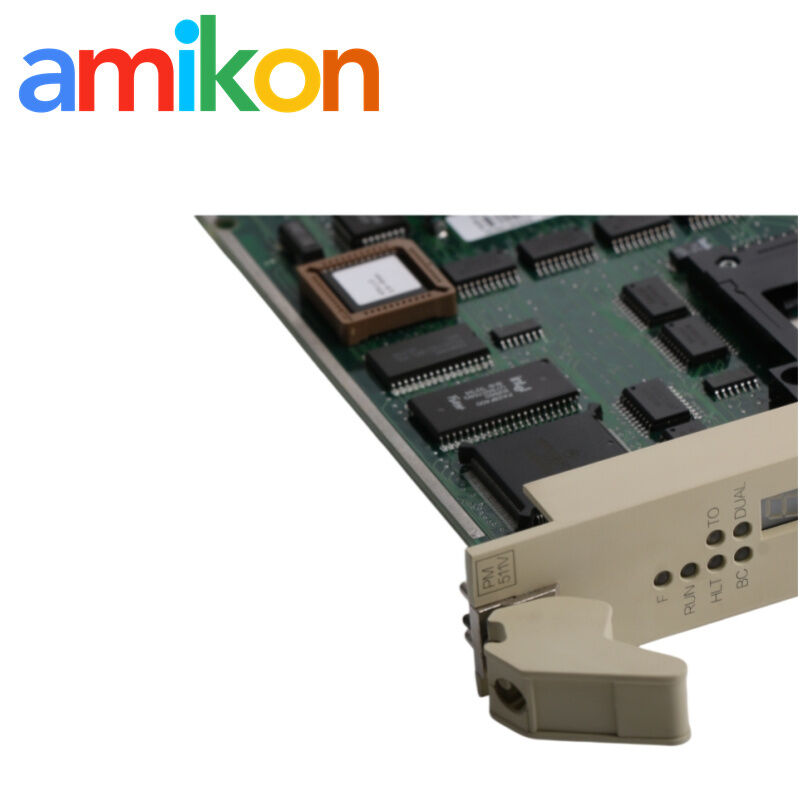

ABB PM511V16 Processor Module for Advant Controller 450
ABB PM511V16 processor module
Advant Controller 450 module
ABB PLC processor module
Brand Name:
ABB
Model Number:
PM511V16
Contact Us
Request A Quote
Product Details
ABB Article Number:
3BSE011181R1
Highlight:
ABB PM511V16 processor module
,Advant Controller 450 module
,ABB PLC processor module
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ABB · PM511V16
ABB PM511V16 Processor Module for Advant Controller 450
ABB PM511V16 processor module for the Advant Controller 450 / AC450A09 platform, supporting the controller CPU function and dual-CPU redundancy design.
TypeProcess controller CPU module
SystemABB Advant Controller 450
Focus16 MB AC450 processing platform
BrandABB
PM511V16 availability, lead time and order review
Send RFQProduct Introduction
PM511V16 is the processor module used in ABB Advant Controller 450 and the AC450A09 system unit. It executes process-control applications and can be installed in a dual-CPU redundancy design.
Engineering note: The memory and performance figures below are ABB AC450 system data for the PM511-based controller. Confirm application backup, software baseline and redundancy state before CPU work.
Technical Specifications
Select a category to view its specifications. All categories are closed by default.
Identification & functionView 5 specificationsHide specifications⌄
| ABB article number | 3BSE011181R1 |
|---|---|
| Product type | PM511V16 Processor Module |
| Controller family | Advant Controller 450 |
| System-unit relationship | AC450A09 uses PM511V16 |
| Primary role | Main process-control CPU board |
AC450 capacity & performanceView 5 specificationsHide specifications⌄
| Primary memory | 16 MB |
|---|---|
| Available for application | Approximately 13.4 MB |
| Processing capacity index | 3–4 |
| Selectable program execution cycle | 10 ms–2 s or 5 ms–32 s |
| Control scope | Logic, sequence, positioning and regulatory control in AC450 |
Redundancy & expansionView 5 specificationsHide specifications⌄
| PM511 CPU boards | Up to 2 |
|---|---|
| Dual CPU redundancy | Supported |
| Additional interface modules | Up to 12 or 14, depending on one or two PM511 CPUs |
| S100 I/O racks | Up to 5 in the AC450 system |
| Total S100/S800 I/O capacity | Up to 5,700 channels in the AC450 system |
Compatibility & Replacement
Confirmed platform. ABB identifies PM511V16 as the processor module for Advant Controller 450 and AC450A09.
Lifecycle scope. ABB lists Advant Controller 450 in the Classic lifecycle phase. No exact drop-in replacement relationship for PM511V16 is stated in the reviewed ABB documents, so migration must be treated as a controller-project decision.
Applications & Fault Scenarios
Redundant CPU stations
Can operate in an AC450 design with up to two PM511 CPU boards for improved controller availability.
Controller does not enter run
Check power regulation, CPU status, application media/backup and the exact PM511V16 hardware identity before attempting a reload.
Repeated restart or memory fault
Preserve diagnostics and the application backup, then check supply stability and the processor/module environment.
Redundancy degraded
Compare both CPU states and the approved switchover procedure; a running controller may have lost its backup CPU and outage protection.
Independent spare-parts support
Amikon can review the exact part number, installed system, quantity, destination and required date before quotation.
Pre-outage checkpoints
- Secure a current AC450 application backup.
- Record both CPU states in a redundant controller.
- Verify PM511V16 article number and memory version.
- Document communication interfaces before shutdown.
Amikon Supply & Service
Independent multi-brand support for maintenance, outage and legacy-system requirements.
Order reviewPart number, quantity, destination, required date and system model checked.
Inspection & testingLabel, condition and serial checks; testing when agreed.
Packing & dispatchProtective export packing and delivery coordination.
DOA, returns, warranty & supportAfter-sales review under the quoted return and warranty terms.
Request for Quotation
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
Direct RFQ contactMiya ZhengIndustrial automation spare-parts support
Emailsales@amikon.cn
WhatsApp+86 180 2077 6792
Websitedcscontroller.com
Multi-brand Spare Parts Also Requested
- MHF2-8DR
- VMPA-FB-EMG-P1
- 34C-AAA-GDDA-1KA
- E10N-STLPL09-12AN
- MVS0330X10S060 DP1020
- A10-SDUPL2
- MVS0400X08S060
- MVS0390X08S060
- C5-570-32-RF
- 82A-0A-BRA
- ATG-50140
- ATG-50120-SN
- KJ3001X1-BD1
- 6ES7194-4CA50-0AA0
- 5004 IC20
- FTD76-10-D
- FD-HCB10
- FTD77-8-D
- 49SPL0HWF
- 20-1702B
- 52NL04
- WMZT3D01T
- 800T-PF16A
- T21702
- 67000-0-160
- VS7-6-FG-D-3N
- 00334770-010101LD4
- LR63663
- 3RB2026-1PB0
- 266LKF-16-16-R
These models are listed only as independent sourcing references. They are not substitutes for PM511V16. Compatibility, configuration and stock must be confirmed separately for each item.
PM511V16 FAQ
What controller information should be supplied before buying ABB PM511V16?
Provide the installed Advant Controller model, the complete PM511V16 label or article identification, project or maintenance reference and photos of the existing processor.
Can ABB PM511V16 be purchased safely from the processor name alone?
No. The full variant, installed controller context and applicable ABB lifecycle documentation should be checked before committing to a legacy processor order.
Can current stock, condition and lead time for ABB PM511V16 be confirmed from this page?
No. Stock, condition, inspection scope and lead time change by offer and must be confirmed in the live quotation for ABB PM511V16.
What pre-shipment evidence can I request for ABB PM511V16?
Request clear label, condition and serial-number photos plus the agreed inspection or testing record for ABB PM511V16 before dispatch.
How should I submit an urgent shutdown requirement for ABB PM511V16?
Send the exact part number, quantity, destination, required date, machine or system model and failure context. Priority routing starts after the ABB PM511V16 identity is confirmed.
What DOA, return and warranty terms apply to ABB PM511V16?
They are defined in the quotation. If ABB PM511V16 arrives DOA or does not match the purchase order, report the serial number, label, packaging and fault evidence promptly for after-sales review.
