Product Description
ABB · TU830V1
ABB TU830V1 Extended Module Termination Unit for S800 I/O
ABB TU830V1 extended 16-channel, 50 V MTU with 2 × 16 signal terminals, per-channel I/O and ZP connections, ModuleBus interface and DIN-rail mounting.
TypeExtended module termination unit
SystemABB S800 I/O / System 800xA
FocusSignal, power and ZP terminals
BrandABB
TU830V1 availability, lead time and order review
Send RFQProduct Introduction

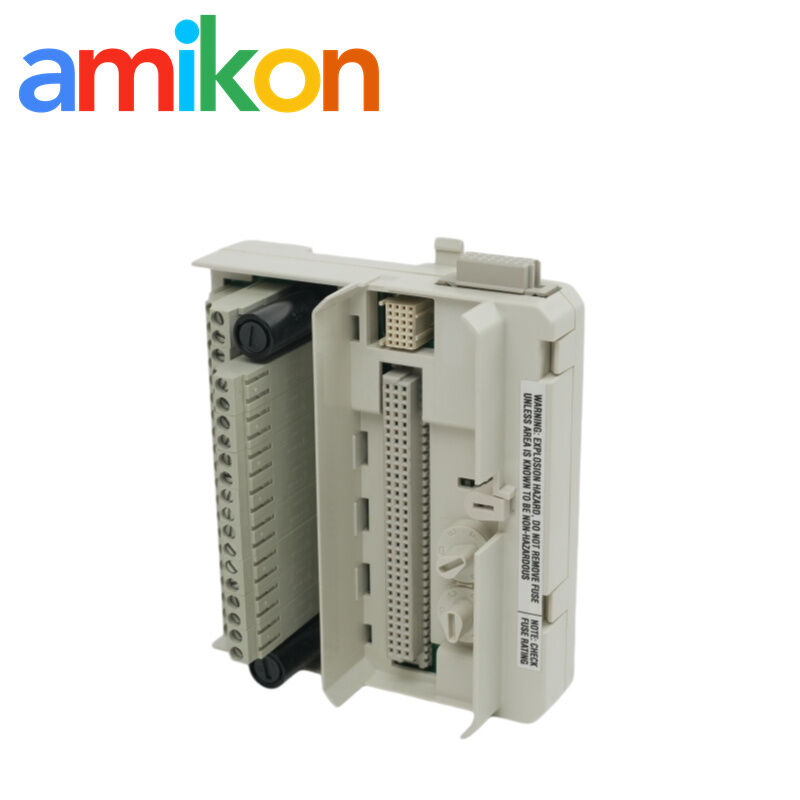

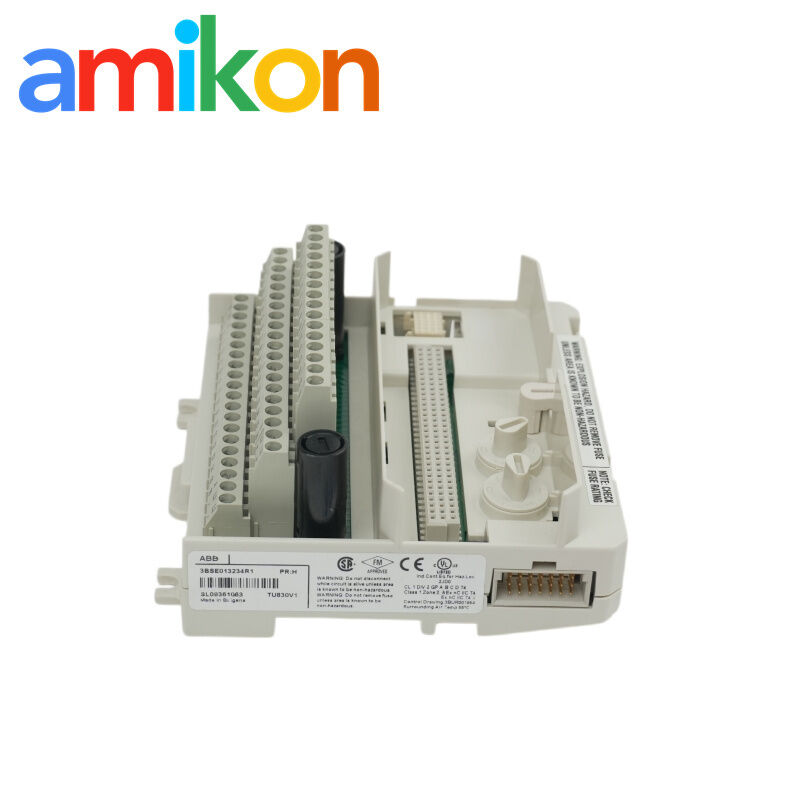

TU830V1 is an extended S800 I/O module termination unit for 16 field-signal channels and process-power connections. Each channel has two I/O connections and one ZP connection.
Engineering note: The extended terminal layout changes the field-wiring work. Preserve I/O, process-power and ZP identification separately before removing the installed MTU.
Technical Specifications
Select a category to view its specifications. All categories are closed by default.
Identification & functionView 5 specificationsHide specifications⌄
| ABB article number | 3BSE013234R1 |
|---|---|
| Product type | Extended Module Termination Unit (MTU) |
| System | ABB S800 I/O |
| Mounting | DIN rail |
| Primary function | Field-signal and process-power termination |
Terminal & electrical dataView 5 specificationsHide specifications⌄
| I/O channels | 16 |
|---|---|
| Signal terminals | 2 × 16 |
| Per-channel connections | Two I/O connections and one ZP connection |
| Rated isolation | 50 V |
| ModuleBus connection | Provided through the MTU |
Compatibility & Replacement
Confirmed family fit. ABB identifies TU830V1 as an extended MTU for S800 I/O modules.
Confirmed example. ABB product catalogs list TU830 among the permitted MTUs for DI818 and multiple 16-channel S800 input modules. Confirm the exact active-module data sheet before installation.
Applications & Fault Scenarios
Panel retrofit work
Useful when the original cabinet design depends on extended local marshalling at the I/O position.
Field power present but no signal
Separate the signal, process-power and ZP checks; do not assume that one healthy terminal proves the full channel path.
Multiple adjacent channels fail
Check shared field-power distribution, terminal mapping and I/O-module seating before replacing the controller-side module.
Unexpected state after rewiring
Compare both I/O terminals and the ZP terminal for every affected channel with the saved loop diagram.
Independent spare-parts support
Amikon can review the exact part number, installed system, quantity, destination and required date before quotation.
Pre-outage checkpoints
- Identify I/O, process-power and ZP wiring independently.
- Confirm the active I/O module names TU830/TU830V1 as permitted.
- Photograph the complete 2 × 16 terminal layout.
