Product Description
ABB · TU810V1
ABB TU810V1 Compact Module Termination Unit for S800 I/O
ABB TU810V1 compact 16-channel, 50 V module termination unit for S800 I/O field termination, ModuleBus connection and DIN-rail mounting.
TypeCompact module termination unit
SystemABB S800 I/O / System 800xA
Focus2 × 8 signal terminals
BrandABB
TU810V1 availability, lead time and order review
Send RFQProduct Introduction

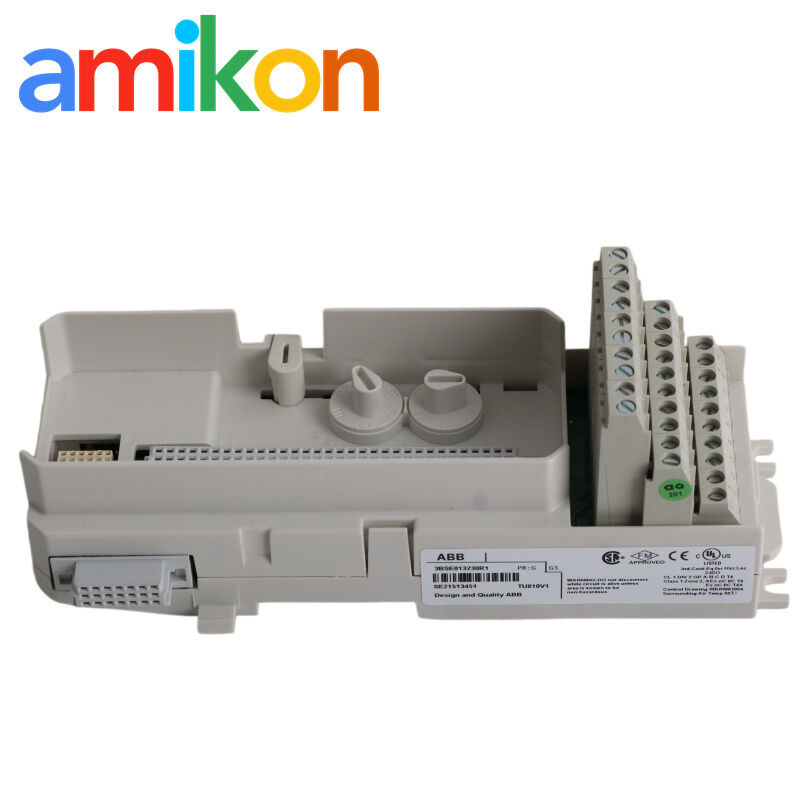

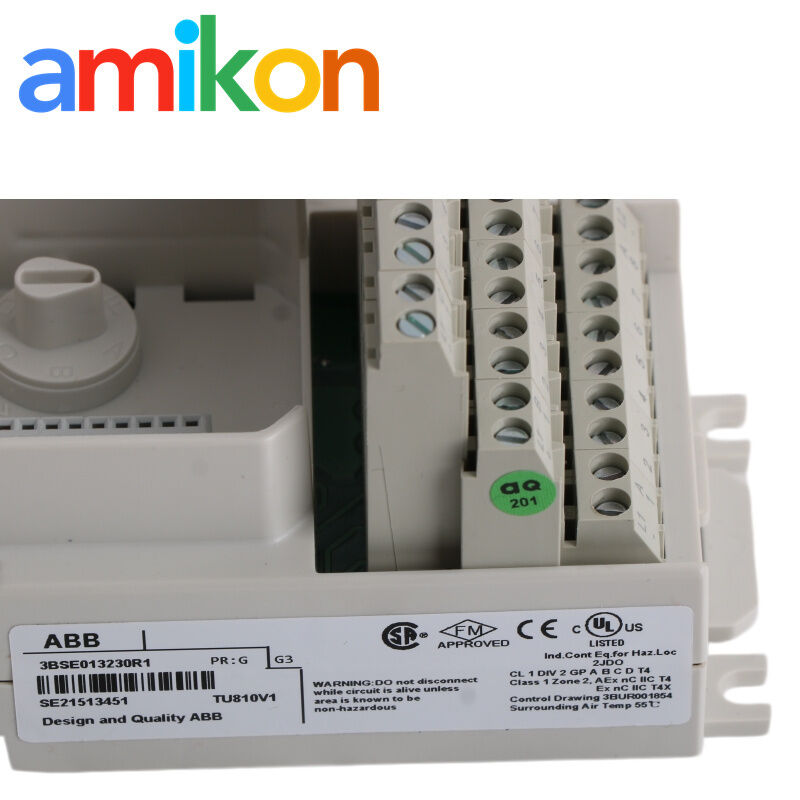

TU810V1 is a compact S800 I/O module termination unit that provides field-signal terminals and the mechanical/electrical connection between a supported I/O module and ModuleBus.
Engineering note: Match the I/O module and its approved MTU in the ABB product catalog before moving field wiring. Terminal count alone is not a compatibility check.
Technical Specifications
Select a category to view its specifications. All categories are closed by default.
Identification & functionView 5 specificationsHide specifications⌄
| ABB article number | 3BSE013230R1 |
|---|---|
| Product type | Compact Module Termination Unit (MTU) |
| System | ABB S800 I/O |
| Mounting | DIN rail |
| Primary function | Field termination and ModuleBus connection |
Terminal & electrical dataView 5 specificationsHide specifications⌄
| I/O channels | 16 |
|---|---|
| Signal terminals | 2 × 8 |
| Rated isolation | 50 V |
| ModuleBus connection | Provided through the MTU |
| Field connection format | Direct terminal landing on the compact MTU |
Compatibility & Replacement
Confirmed system fit. ABB identifies TU810V1 as a compact MTU in the S800 I/O family.
Confirmed module examples. ABB product catalogs list TU810 among the permitted termination units for DI810, DI811, DI830 and DI831. Verify the exact I/O module revision and project hardware definition before installation.
Applications & Fault Scenarios
Cabinet rebuilds and outage work
Used when maintenance teams must preserve field-wire organization while restoring an S800 I/O position.
I/O module will not seat correctly
Stop and compare the installed I/O type, MTU keying and part number; forcing a mismatched assembly can extend the outage.
Channel remains inactive
Trace the field wire at the assigned terminal, check terminal tightness and compare the channel assignment with the engineering drawing.
Repeated intermittent signals
Inspect the terminal landing, ModuleBus seating and mechanical retention before replacing the active I/O module.
Independent spare-parts support
Amikon can review the exact part number, installed system, quantity, destination and required date before quotation.
Pre-outage checkpoints
- Record the installed I/O module type and revision.
- Photograph and label all 2 × 8 field terminals.
- Confirm the cabinet circuit is within the 50 V rated-isolation application.
- Verify DIN-rail seating and ModuleBus continuity after work.
Amikon Supply & Service
Independent multi-brand support for maintenance, outage and legacy-system requirements.
Order reviewPart number, quantity, destination, required date and system model checked.
Inspection & testingLabel, condition and serial checks; testing when agreed.
Packing & dispatchProtective export packing and delivery coordination.
DOA, returns, warranty & supportAfter-sales review under the quoted return and warranty terms.
