Product Description
ABB · CI871AK01
ABB CI871AK01 PROFINET IO Master Interface for AC 800M

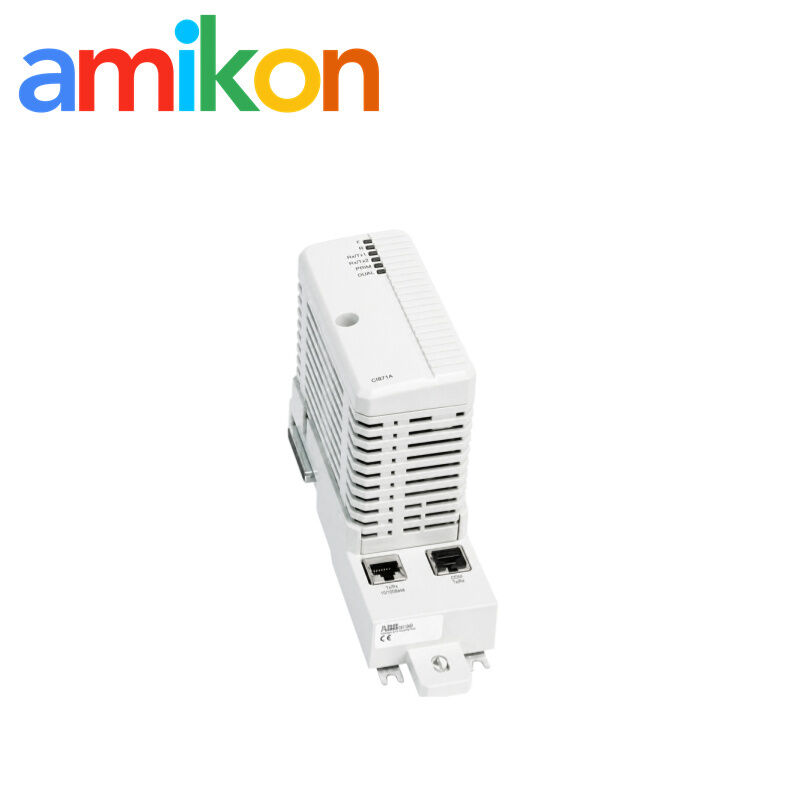

ABB CI871AK01 PROFINET IO master package with CI871A, TP867 baseplate, one Ethernet channel, module redundancy and hot-swap support.
TypePROFINET IO master interface kit
SystemABB AC 800M / System 800xA
FocusOne-channel PROFINET IO
BrandABB
CI871AK01 availability, lead time and order review
Send RFQProduct Introduction
CI871AK01 is the AC 800M PROFINET IO master kit with CI871A and TP867. It uses one 10/100 Mbit/s channel and supports module redundancy, hot swap and High Integrity controllers.
Engineering note: Use TP867 CH1 for PROFINET IO; ABB does not specify CH2 as a second PROFINET path.
Technical Specifications
Select a category to view its specifications. All categories are closed by default.
Identification & functionView 7 specificationsHide specifications⌄
| ABB article number | 3BSE092693R1 |
|---|---|
| Package contents | CI871A communication interface + TP867 baseplate, 60 mm wide |
| 24 V consumption | 160 mA typical |
| Pollution degree | Degree 2 to IEC/EN 61131-2 |
| Electrical safety | UL 61010-1 and UL 61010-2-201 |
| Hazardous location | UL 60079-15; cULus Class 1 Zone 2, AEx nA IIC T4, Ex nA IIC T4 Gc X |
| RoHS / WEEE | EU, UAE and China RoHS; WEEE Directive 2012/19/EU |
Interface & performanceView 5 specificationsHide specifications⌄
| Protocol / role | PROFINET IO master |
|---|---|
| Number of channels | 1 |
| Transmission speed | 10/100 Mbit/s |
| Active PROFINET port | TP867 CH1; connected through an Ethernet switch |
| Connector | RJ45 female, 8-pin |
Integration & diagnosticsView 5 specificationsHide specifications⌄
| Line redundancy | No |
|---|---|
| Module redundancy | Yes |
| Hot swap | Yes |
| High Integrity controller use | Yes |
| Max units on CEX-Bus | 12 |
Power, environment & sizeView 7 specificationsHide specifications⌄
| Operating / storage temperature | 0 to +55 °C / −40 to +70 °C |
|---|---|
| Altitude | 2,000 m to IEC/EN 61131-2 |
| Humidity | 5–95%, non-condensing |
| Corrosion protection | G3 to ISA 71.04 |
| Protection class | IP20 to EN 60529 / IEC 529 |
| Marine certificates | DNV-GL; ABS, BV and LR shown as pending in the cited selector |
| Dimensions / weight | 59 × 185 × 127.5 mm; 700 g including base |
Compatibility & Replacement
Required software. ABB states that the module works with System 800xA 6.0.3.3, 6.1.1 and subsequent versions. The Compact Product Suite catalog also states Compact Control Builder 6.0.0-3, 6.1.1 and later.
Network fit. The package is for AC 800M PROFINET IO master service. The PROFINET network connects through an Ethernet switch, using CH1 on the TP867 baseplate.
Replacement scope. No direct substitute or historical replacement relationship is stated in the cited ABB selector for this exact package. Match article number, system release and engineered redundancy rather than selecting by connector appearance.
Applications & Fault Scenarios
Redundant communication module design
ABB supports module redundancy, but not line redundancy. Confirm how the project handles primary/secondary modules and the upstream network.
Device not reachable
Check that the cable is on CH1, the Ethernet switch path is active and the project’s device name/IP configuration matches the commissioned node.
Wrong-port commissioning error
TP867 exposes two RJ45 connectors, yet only CH1 is used for PROFINET IO. A cable on CH2 will not create the intended connection.
Version-related startup failure
If hardware is recognized incorrectly or cannot be configured, compare the actual 800xA/Control Builder baseline with ABB’s stated minimum versions.
Independent spare-parts support
Amikon can review the part number, installed system, quantity, destination and required date before quotation, helping maintenance teams avoid incomplete purchase requests.
Pre-outage checkpoints
- Verify System 800xA or Compact Control Builder release.
- Record PROFINET device names, IP plan and switch port mapping.
- Confirm cable placement on TP867 CH1.
- For redundant modules, capture primary/secondary status and validate the switchover procedure.
Amikon Supply & Service
Independent multi-brand support for maintenance, outage and legacy-system requirements.
Order reviewPart number, quantity, destination and required date checked.
Inspection & testingLabel, condition and serial checks; testing when agreed.
Packing & dispatchProtective export packing and delivery coordination.
DOA, returns & warrantyPrompt issue review under quoted return and warranty terms.
Request for Quotation
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
Direct RFQ contactMiya ZhengIndustrial automation spare-parts support
Emailsales@amikon.cn
WhatsApp+86 180 2077 6792
Websitedcscontroller.com
Multi-brand Spare Parts Also Requested
- 6639363D1
- LR36536
- NTAI06PS083K
- FDNL-L1600-T
- GE IC600CB536L
- 1053-71-1975-03
- 1037589
- 1151DP3J12B2
- 6L-L45-F1A-RR
- 6L-E4-C1A-RR
- 449D701G07
- CU13S-11
- SAT-101BX
- 593CM-BOV16
- 810-E440582/2
- CB273 42185-800-01
- BF100F 65A974G01
- 9125DAV
- 1955565-E
- 6EC1660-3A
- CLV440-0010
- 809-112
- MSQB30R MHZL2-25D
- DU321
- CSC4T
- D4BL-K3
- TS500R
- F39-A01POG-D
- VS5M-1A-GBT-68-GD
- MJB-00-801 MJB-IN-V1.0
These models are listed only as independent sourcing references. They are not substitutes for CI871AK01. Compatibility, configuration and stock must be confirmed separately for each item.
CI871AK01 FAQ
Is ABB CI871AK01 a PROFINET IO master or slave?
ABB identifies the interface as a PROFINET IO master.
Which TP867 Ethernet port is used by ABB CI871AK01?
Use CH1. ABB states that only the 100 Mbit/s-capable CH1 connector is used for PROFINET IO.
Does ABB CI871AK01 support line redundancy?
No. The official selector records line redundancy as No and module redundancy as Yes.
Can ABB CI871AK01 be hot-swapped?
Yes, subject to the site’s approved maintenance procedure and the engineered module configuration.
Which software versions support ABB CI871AK01?
ABB specifies System 800xA 6.0.3.3, 6.1.1 and later; Compact Control Builder 6.0.0-3, 6.1.1 and later is also listed.
What should an ABB CI871AK01 RFQ include?
Send part number, quantity, destination, required date, controller/system model, software release and whether module redundancy is configured.
