Product Description
ABB · CI854BK01
ABB CI854BK01 PROFIBUS DP-V1 Interface for AC 800M

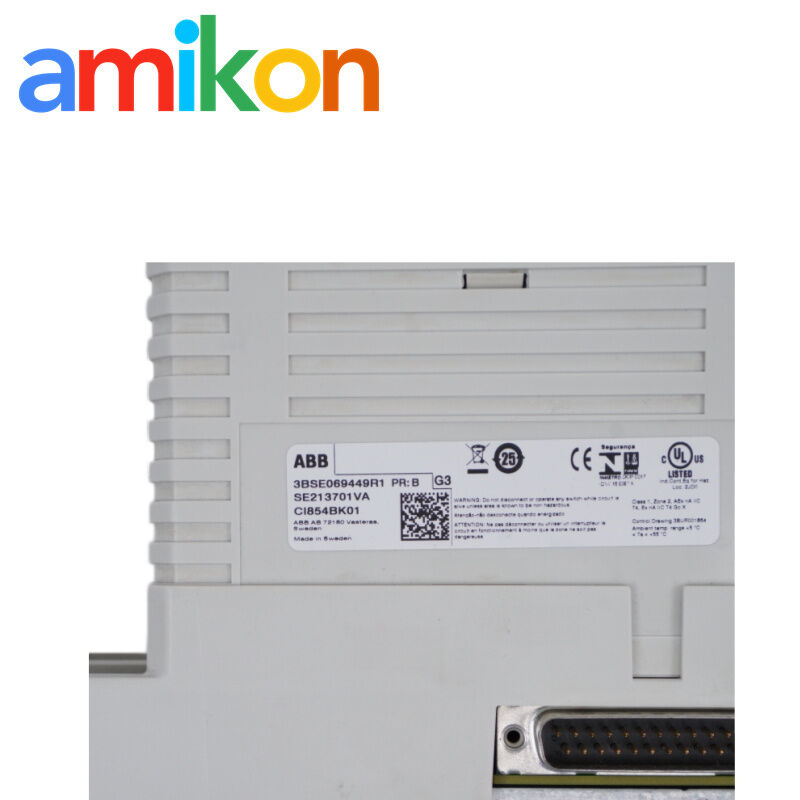

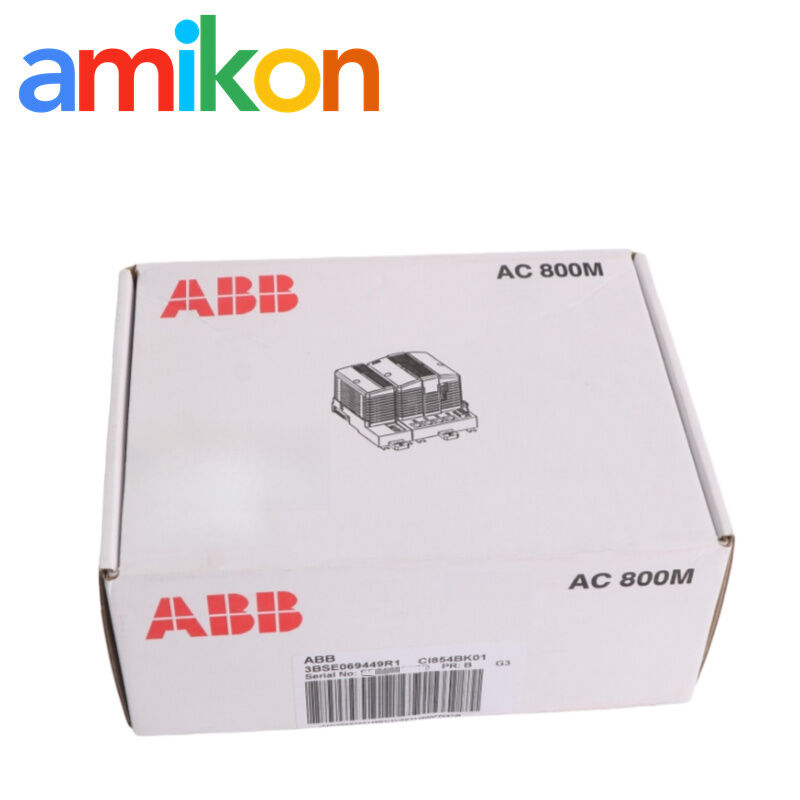

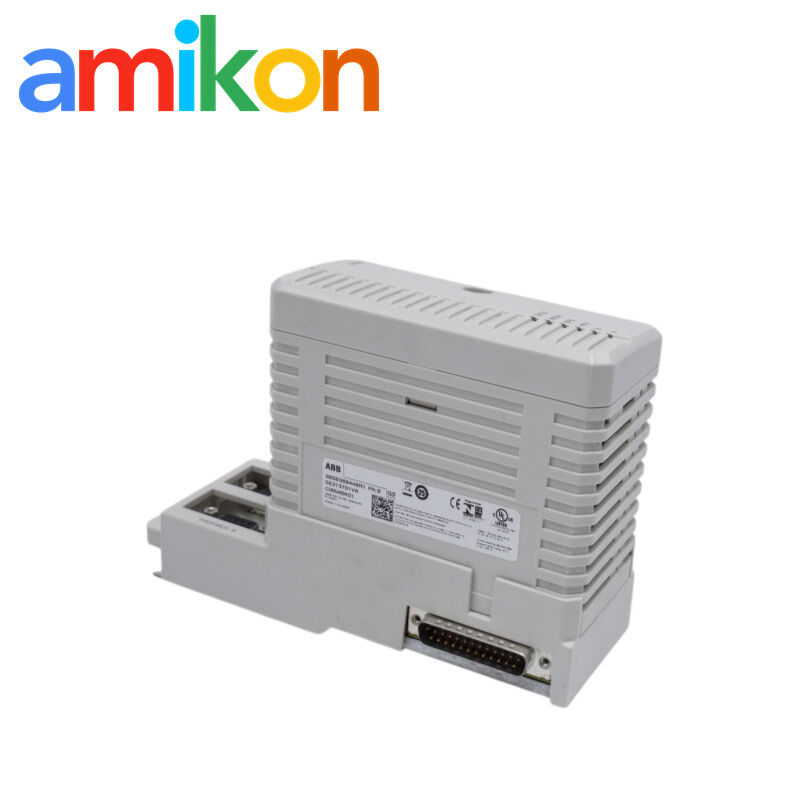

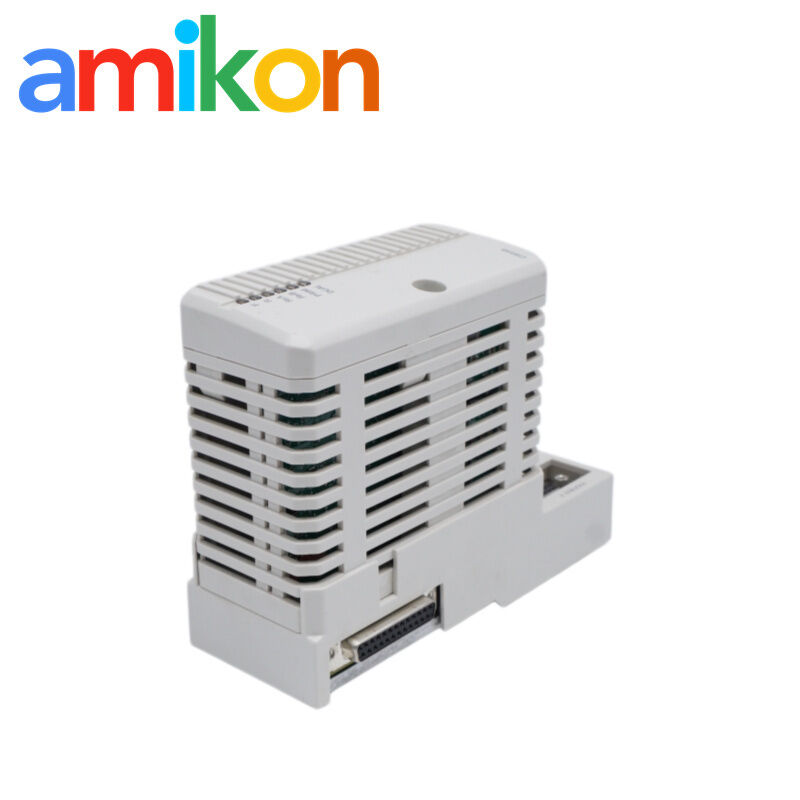

ABB CI854BK01 PROFIBUS DP-V1 master interface package with CI854B, TP854 baseplate, dual DB9 ports and verified redundancy support.
TypePROFIBUS DP-V1 interface kit
SystemABB AC 800M / System 800xA
FocusRedundant PROFIBUS master
BrandABB
CI854BK01 availability, lead time and order review
Send RFQProduct Introduction
CI854BK01 connects AC 800M controllers to PROFIBUS DP/DP-V1 networks. The kit includes the CI854B interface and TP854 baseplate, with line- and master-redundancy support.
Engineering note: Confirm the installed software meets ABB’s minimum: System 800xA 6.0.3.2 or Compact Control Builder 6.0.0-2.
Technical Specifications
Select a category to view its specifications. All categories are closed by default.
Identification & functionView 6 specificationsHide specifications⌄
| ABB article number | 3BSE069449R1 |
|---|---|
| Package contents | CI854B communication interface + TP854 baseplate |
| Galvanic isolation | Yes |
| 24 V consumption | Typical 190 mA; older product guide gives 240 mA maximum |
| Status indicators | Error, run, traffic, primary and dual-mode indications |
| Pollution degree | Degree 2 to IEC/EN 61131-2 |
Interface & performanceView 6 specificationsHide specifications⌄
| Protocol / role | PROFIBUS DP-V1 master |
|---|---|
| Channels / ports | 2 PROFIBUS channels |
| Transmission speed | 9.6 to 12,000 kbit/s |
| Services | DP-V0 master class 1 and 2; DP-V1 master class 2 services |
| Bus capacity | Maximum 32 nodes per segment; up to 124 nodes with repeaters in ABB hardware documentation |
| Connector | Two female 9-pin DB connectors on TP854 |
Integration & diagnosticsView 5 specificationsHide specifications⌄
| Line redundancy | Yes |
|---|---|
| Module / master redundancy | Yes |
| Hot swap | Yes |
| High Integrity controller use | Yes |
| Max units on CEX-Bus | 12 |
Power, environment & sizeView 6 specificationsHide specifications⌄
| Power dissipation | 4.6 W typical |
|---|---|
| Operating / storage temperature | 0 to +55 °C / −40 to +70 °C |
| Corrosion protection | G3 to ISA 71.04 |
| Protection class | IP20 to EN 60529 / IEC 529 |
| Marine certificates | ABS, BV, DNV-GL, LR |
| Dimensions / weight | 59 × 185 × 127.5 mm; 700 g including base |
Compatibility & Replacement
Required software. ABB states compatibility with System 800xA 6.0.3.2, Compact Control Builder 6.0.0-2 and later releases.
Network integration. PROFIBUS DP devices can connect directly. ABB also identifies LD 800P as the linking device for supported PROFIBUS PA connections. The bus must be terminated at its two outermost nodes; powered terminating connectors are required for a working termination.
Confirmed migration relationship. ABB lifecycle documentation identifies CI854BK01 as the replacement for CI854AK01. Treat the exchange as an engineered migration: verify the software baseline, hardware definition and redundancy arrangement before the outage.
Applications & Fault Scenarios
Availability-oriented architectures
Line redundancy uses the two PROFIBUS ports; master redundancy uses two communication interfaces and can be combined with controller/CEX-Bus redundancy where engineered.
Loss of a PROFIBUS segment
Check bus termination, connector power, cable continuity and traffic LEDs before replacing the interface.
Primary/dual state mismatch
Review primary and dual-mode indicators and the Control Builder configuration. A hardware swap does not correct an inconsistent redundancy definition.
Intermittent device dropout
Compare configured baud rate, segment length/topology, repeater use and node count with the commissioned design.
Independent spare-parts support
Amikon can review the part number, installed system, quantity, destination and required date before quotation, helping maintenance teams avoid incomplete purchase requests.
Pre-outage checkpoints
- Verify System 800xA/Control Builder release.
- Record DP addresses, bus parameters and redundancy settings.
- Confirm both outermost terminations are powered and active.
- After replacement, check run, traffic, primary and dual indications before returning control.
Amikon Supply & Service
Independent multi-brand support for maintenance, outage and legacy-system requirements.
Order reviewPart number, quantity, destination and required date checked.
Inspection & testingLabel, condition and serial checks; testing when agreed.
Packing & dispatchProtective export packing and delivery coordination.
DOA, returns & warrantyPrompt issue review under quoted return and warranty terms.
Request for Quotation
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
Direct RFQ contactMiya ZhengIndustrial automation spare-parts support
Emailsales@amikon.cn
WhatsApp+86 180 2077 6792
Websitedcscontroller.com
Multi-brand Spare Parts Also Requested
- WL160-F330 6022771
- CXS-A1000-10
- EF-A20-A12
- 787-1662/0106-0000
- 787-1664
- 095-902-514-006
- PE3MSA00575-6
- HB04IJ8DC
- 3NC2 425-3
- P0916JY FBM242
- P0916NG
- P0960AW
- TA-2-81325
- ABB FLTR75V05
- 8G-416-9A
- WP 125
- 67A2510H04
- BGS-B-Bo-175-510
- 1041A-5B171
- FW3.5G.8316
- 5988-040
- 03-408-608-303
- TA-2-81217
- J1234
- 1771-OWNA
- FC24020AB
- 4115-0500
- RTF8401
- A10530
- 801-023-07NF6-7SA
These models are listed only as independent sourcing references. They are not substitutes for CI854BK01. Compatibility, configuration and stock must be confirmed separately for each item.
CI854BK01 FAQ
Is ABB CI854BK01 a PROFIBUS master or slave?
It is a PROFIBUS DP-V1 master with two channels.
Can ABB CI854BK01 be used in a redundant configuration?
Yes. ABB confirms line redundancy and module/master redundancy; the engineered project must define the intended arrangement.
Which software versions support ABB CI854BK01?
ABB specifies System 800xA 6.0.3.2, Compact Control Builder 6.0.0-2 and later releases.
Does ABB CI854BK01 replace CI854AK01?
Yes. ABB lifecycle documentation explicitly names it as the replacement. Verify the system software and project hardware definition before migration.
What termination check is required for ABB CI854BK01 networks?
Terminate the two outermost PROFIBUS nodes. ABB notes that terminating connectors must be plugged in and powered.
What should an ABB CI854BK01 RFQ include?
Provide part number, quantity, destination, required date and the AC 800M/System 800xA model and release; include redundancy details if applicable.
