Current-loop command service
Use where the control design calls for eight grouped 0/4–20 mA outputs. Confirm the driven device input type and total loop burden.
ABB AO810V2 8-Channel Analog Output Module for S800 I/O
ABB AO810V2 analog output module
8-channel S800 I/O module
ABB PLC analog output module
Brand Name:
ABB
Model Number:
AO810V2
Contact Us
Request A Quote
Product Details
ABB Article Number:
3BSE038415R1
Highlight:
ABB AO810V2 analog output module
,8-channel S800 I/O module
,ABB PLC analog output module
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ABB · AO810V2

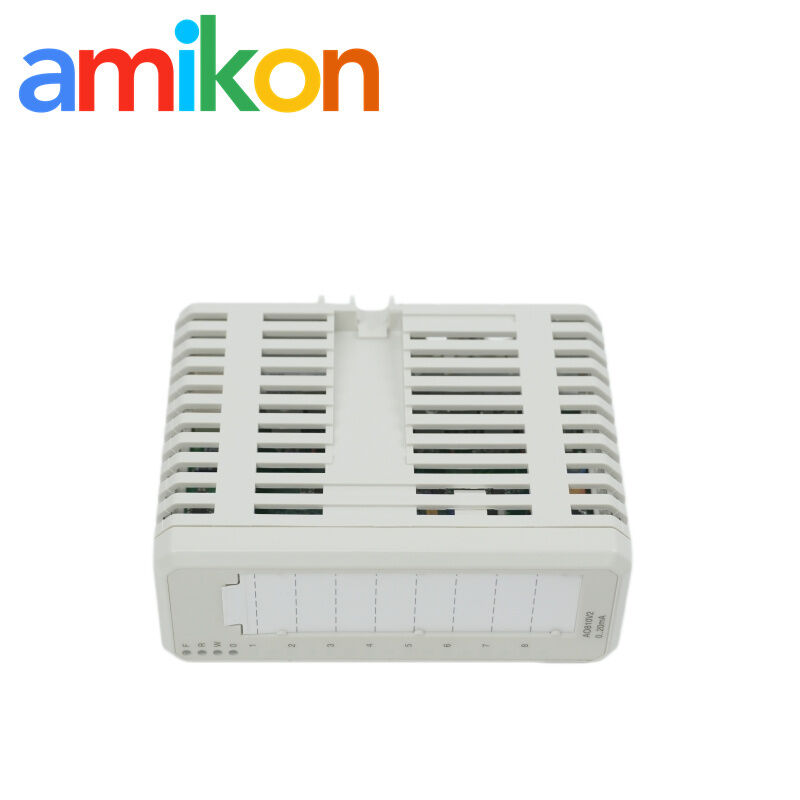

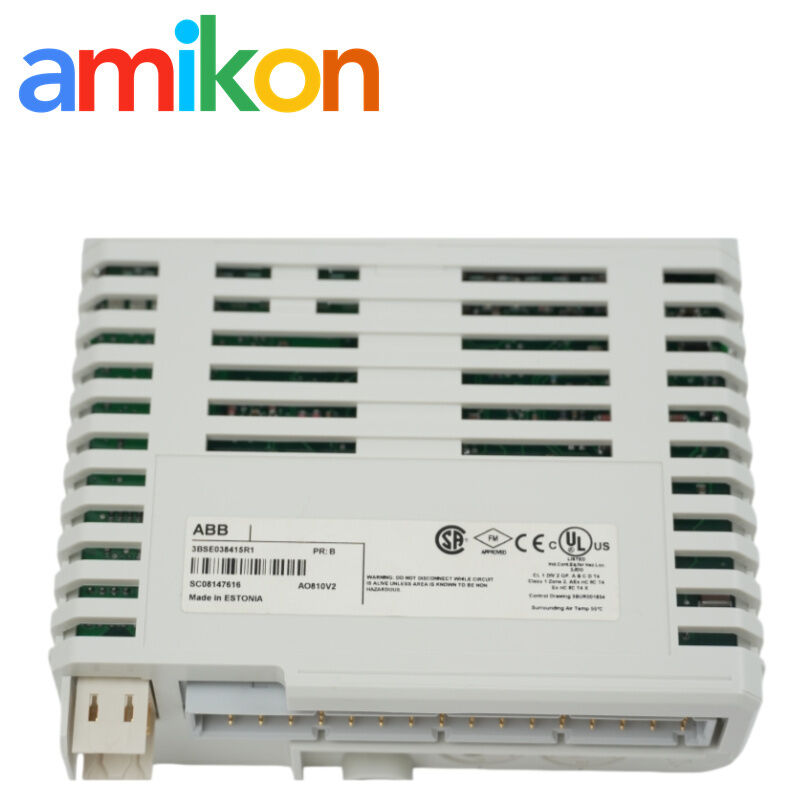

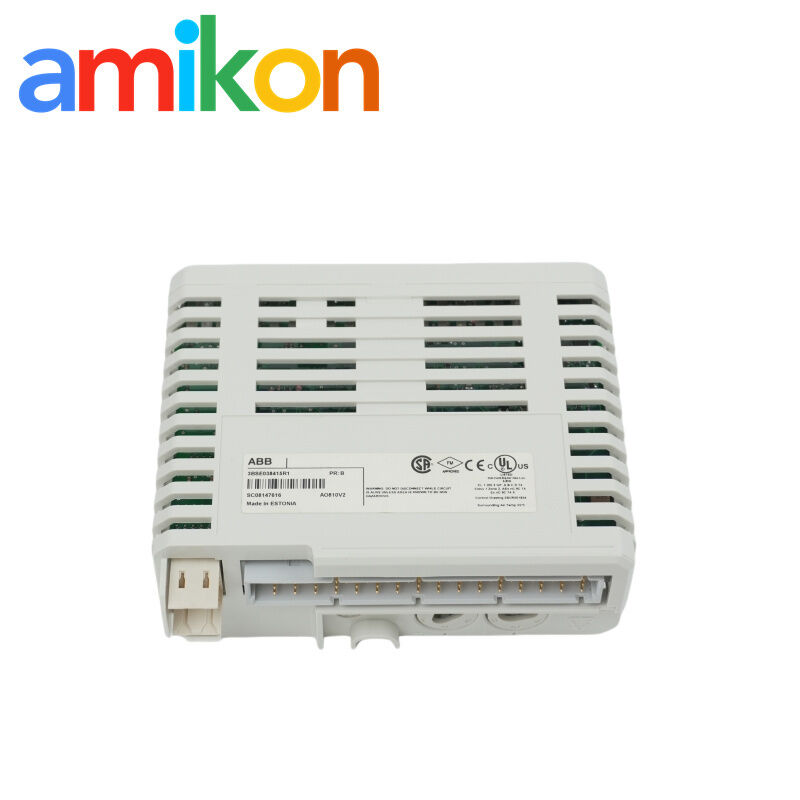

ABB AO810V2 8-Channel Analog Output Module for S800 I/O
ABB AO810V2 S800 analog output module with eight 0/4–20 mA channels, 14-bit resolution, open-circuit diagnostics and verified MTU compatibility.
TypeAnalog output module
SystemABB S800 I/O
FocusEight 0/4–20 mA outputs
BrandABB
AO810V2 availability, lead time and order review
Send RFQProduct Introduction
AO810V2 provides eight grouped 0/4–20 mA outputs for ABB S800 I/O. It combines 14-bit resolution with active-channel open-circuit supervision.
Engineering note: Match the installed MTU and L1+/L2+ field-power wiring; the permitted loop load changes with the selected supply input.
Technical Specifications
Select a category to view its specifications. All categories are closed by default.
Identification & functionView 4 specificationsHide specifications⌄
| ABB article number | 3BSE038415R1 |
|---|---|
| Product type | S800 analog output module |
| Isolation | Groupwise isolated from ground |
| Output protection | Short-circuit-proof, current-limited output |
Interface & performanceView 9 specificationsHide specifications⌄
| Signal specification | 0–20 mA or 4–20 mA |
|---|---|
| Channels | 8 unipolar outputs; one group of eight |
| Resolution | 14 bit |
| Under / over range | – / +15% |
| Output load | ≤500 Ω with supply on L1+ only; 250–850 Ω with supply on L2+ only |
| Accuracy error | Maximum 0.1% at 0–500 Ω (current) |
| Rise time | 0.35 ms at PL = 500 Ω |
| Update cycle | ≤2 ms |
| Maximum field cable length | 600 m (656 yd) |
Integration & diagnosticsView 5 specificationsHide specifications⌄
| HART / SOE / redundancy | No / No / No |
|---|---|
| Front LEDs | F (Fault), R (Run), W (Warning), OSP |
| Supervision | Output power low; open circuit when current is >1 mA; module, warning and channel status |
| Compatible MTUs | TU810, TU812, TU814, TU830, TU833 |
| Keying code | AE |
Power, environment & sizeView 9 specificationsHide specifications⌄
| Temperature drift | Typical 30 ppm/°C; maximum 60 ppm/°C |
|---|---|
| Rated / test insulation | 50 V rated; 500 V AC dielectric test |
| Power dissipation | 2.3 W |
| Current consumption | +5 V ModuleBus: max 70 mA; +24 V ModuleBus: 0; +24 V external: 245 mA |
| Operating / storage temperature | 0 to +55 °C / −40 to +70 °C; approvals issued for +5 to +55 °C |
| Humidity | 5–95%, non-condensing |
| Corrosion protection | ISA-S71.04 G3 |
| Protection class | IP20 to IEC 60529 |
| Dimensions / weight | 45 × 119 × 102 mm; 111 mm depth including connector; 0.18 kg |
Compatibility & Replacement
System fit. ABB identifies this as an S800 I/O module and lists it in current System 800xA and Compact Product Suite hardware material. It must be installed on a supported S800 Module Termination Unit.
Verified MTUs. TU810, TU812, TU814, TU830 and TU833 are the MTUs named by ABB. Check the installed MTU version, keying and field-power connection before exchanging the module.
Replacement scope. No direct successor or cross-model substitute is stated in the cited ABB selector. Do not replace it with a HART, redundant or intrinsically safe output module solely because the current range is similar.
Applications & Fault Scenarios
Valve and actuator loop maintenance
A lost command may appear as a fixed process position or failed final-control response. Isolate the loop and verify field power, wiring and channel status.
S800 cabinet spare planning
Match article number, MTU, keying code AE and field-power feed so that a scheduled swap does not become a wiring change.
Open-loop troubleshooting
For an active channel with a set value above 1 mA, ABB reports open-circuit conditions as a channel error; inspect terminals and the field circuit before condemning the module.
Independent spare-parts support
Amikon can review the part number, installed system, quantity, destination and required date before quotation, helping maintenance teams avoid incomplete purchase requests.
Pre-outage checkpoints
- Record the installed MTU and keying before removal.
- Measure or calculate loop burden against the applicable L1+/L2+ load limit.
- Back up the channel configuration and OSP behavior.
- After installation, confirm F/R/W/OSP indications and each active loop response.
Amikon Supply & Service
Independent multi-brand support for maintenance, outage and legacy-system requirements.
Order reviewPart number, quantity, destination and required date checked.
Inspection & testingLabel, condition and serial checks; testing when agreed.
Packing & dispatchProtective export packing and delivery coordination.
DOA, returns & warrantyPrompt issue review under quoted return and warranty terms.
Request for Quotation
- Part Number
- Quantity
- Destination
- Required Date
- Machine / System Model
Direct RFQ contactMiya ZhengIndustrial automation spare-parts support
Emailsales@amikon.cn
WhatsApp+86 180 2077 6792
Websitedcscontroller.com
Multi-brand Spare Parts Also Requested
- 5004 IC20
- FTD76-10-D
- FD-HCB10
- FTD77-8-D
- 49SPL0HWF
- 20-1702B
- 52NL04
- WMZT3D01T
- 800T-PF16A
- T21702
- 67000-0-160
- VS7-6-FG-D-3N
- 00334770-010101LD4
- LR63663
- 3RB2026-1PB0
- 266LKF-16-16-R
- MSS1278T-184KLB
- 12334-370
- EH100-S
- 750-638
- 750-438
- ESX10-TA-100-DC24V-2A-E
- Allen Bradley 440R-N23135
- MPDB67013
- F2-08TR
- NLDFT-2-WL-C107-M40A
- NLDFT-1-RL-C107-M40A
- 4000-06NQ
- Allen Bradley 60-2828
- SSA-EB1PLGR-0DED1Q8 808881
These models are listed only as independent sourcing references. They are not substitutes for AO810V2. Compatibility, configuration and stock must be confirmed separately for each item.
AO810V2 FAQ
What signals does ABB AO810V2 output?
Eight unipolar channels support 0–20 mA or 4–20 mA current signals.
Which termination units are approved for ABB AO810V2?
ABB lists TU810, TU812, TU814, TU830 and TU833. Match the exact installed MTU and keying before ordering.
How does ABB AO810V2 report an open circuit?
On an active channel, the channel diagnostic is raised when output current is below the set value and the set value is greater than 1 mA.
Does ABB AO810V2 support HART or redundancy?
No. The ABB selector records HART, SOE and redundancy as not supported for this module.
What should be checked before replacing ABB AO810V2?
Confirm article number, MTU, keying code, L1+/L2+ field-power wiring, loop burden and the saved channel/OSP configuration.
What information is needed for an ABB AO810V2 quotation?
Send the part number, quantity, destination, required date and machine or system model; an MTU photo or installed MTU number is also useful.
