ABB-listed MTUs
TU810, TU812, TU814, TU818, TU830, TU833, TU838 and TU850. ABB lists keying code BD.
48 VDC Input Overview

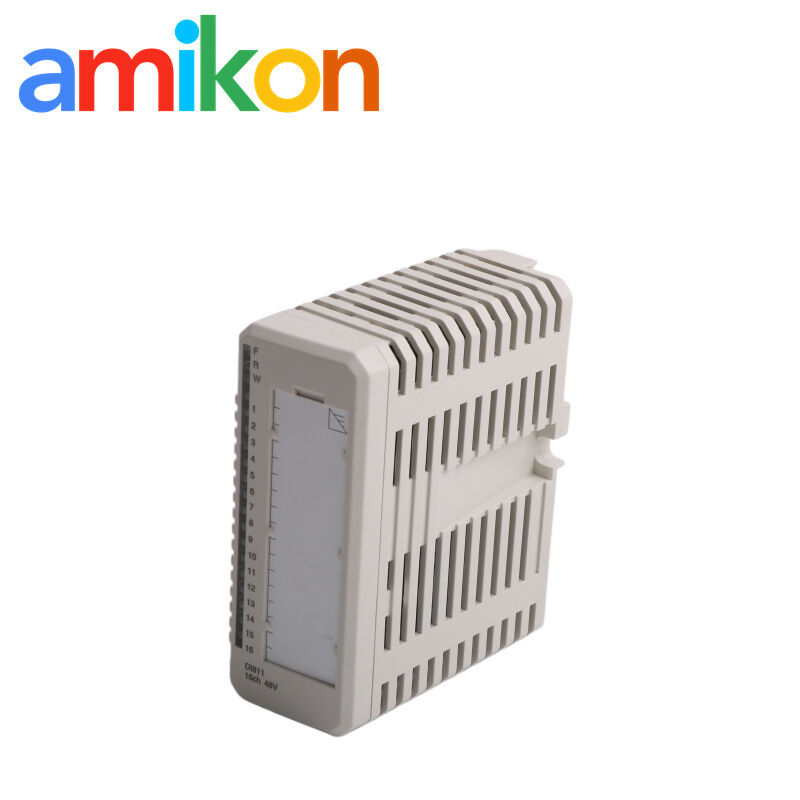

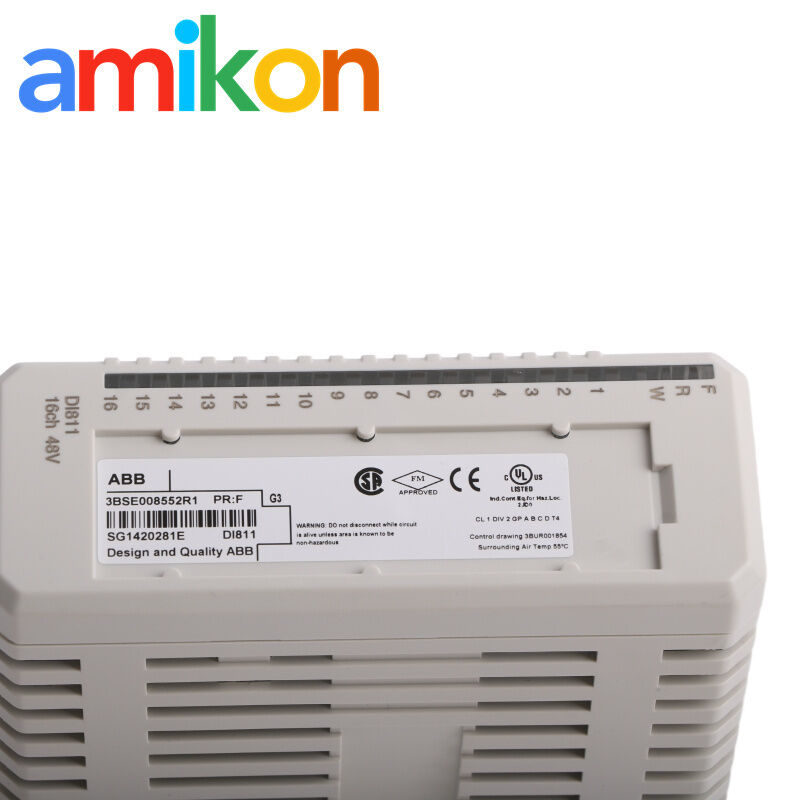

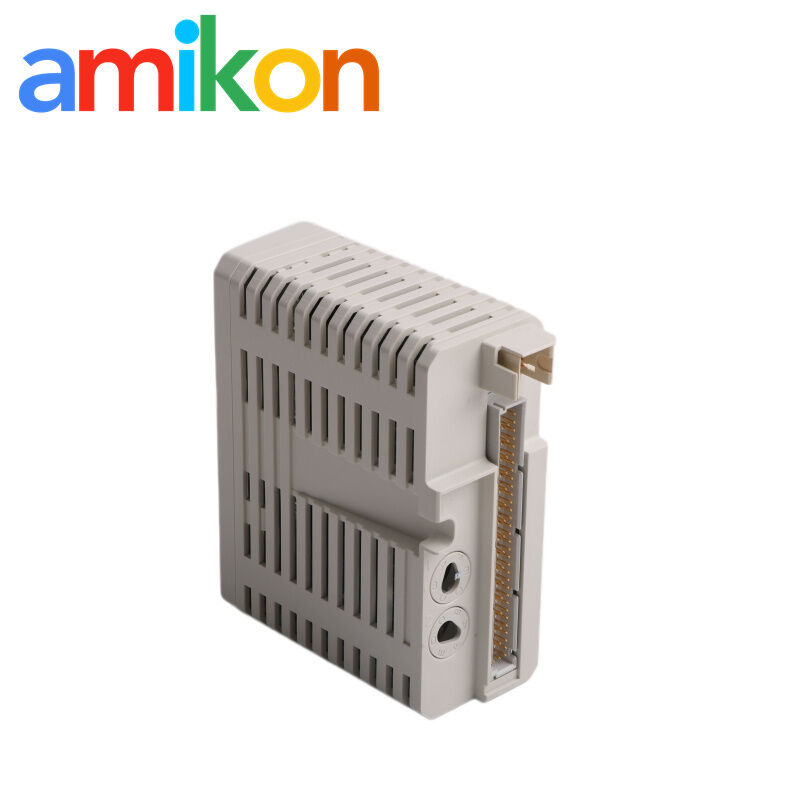

ABB DI811 connects 48 VDC field-status signals to S800 I/O. Its 16 current-sinking inputs are divided into two individually isolated groups of eight. Each group has a process-voltage supervision input; loss of the supervised voltage can be reported through the ModuleBus as a channel-related error.
Verified 48 V Input Data
01Identity & Signal6 items
Model / article number
DI811 / 3BSE008552R1
Product type / mechanics
Digital input / S800
Number of channels
16
Signal specification
48 VDC
Signal type
Current sinking
Nominal input current
4 mA at 48 VDC
02Input Behavior6 items
Stated signal range
36 to 60 VDC
Input voltage for state 0
−60 to +10 V
Input voltage for state 1
30 to 60 V
Input impedance
11 kΩ
Selectable digital filter
2, 4, 8 or 16 ms
Maximum field cable length
600 m (656 yd)
03Isolation, Power & Diagnostics8 items
Channel grouping
Two groups of 8
Isolation
Groupwise isolated from ground
Sensor-power limiting
Can be current-limited by the MTU
Process-voltage supervision
One input per group
Front LEDs
Fault, Run, Warning and channel 1–16 state
Status indications
Module Error, Module Warning and Channel error
Power dissipation
2.7 W typical
ModuleBus consumption
50 mA at +5 V; 0 mA at +24 V
04Environment & Mechanics8 items
HART / SOE / redundancy
No / No / No
Rated insulation / dielectric test
50 V / 500 VAC
Operating / storage temperature
0 to +55 °C / −40 to +70 °C
Relative humidity
5 to 95%, non-condensing
Protection / corrosion class
IP20 / ISA-S71.04 G3
Dimensions
45 × 119 × 102 mm; 111 mm deep with connector
Weight
0.15 kg
Keying code
BD
MTU Compatibility & 48 V Design Fit
System context
DI811 is an S800 I/O digital input module. ABB describes S800 I/O as a distributed modular I/O system connected to parent controllers through industry-standard fieldbus technology.
ABB does not designate a direct replacement for DI811. A 24 V digital input is not a like-for-like substitute; field voltage, grouping, supervision, MTU compatibility and keying must all match the installed arrangement.
48 V Input Applications & Fault Scenarios
48 VDC contact-state collection
Bring supported field-status circuits into an S800 station when the installed design uses current-sinking 48 V inputs.
Grouped voltage supervision
Use the two supervision inputs to distinguish a lost group supply from ordinary changes at individual field contacts.
All channels in one group change state
Check the relevant group process voltage and return wiring before treating multiple simultaneous channel errors as separate device faults.
Unstable or short pulses
Confirm the field-voltage level, wiring quality and the selected 2/4/8/16 ms digital filter against the real signal duration.
48 V Input Commissioning
01Confirm voltage class
Verify that the circuit is a supported 48 VDC input and not a 24 V, AC or source-input design.
02Map both groups
Document channels 1–8 and 9–16 with their supervision and return arrangements.
03Set input filters
Select 2, 4, 8 or 16 ms based on the required response and expected contact behavior.
04Test supervision
Remove and restore each group supply under an approved procedure and confirm the expected diagnostic indication.
If eight related channels fail together, inspect the group process supply and field common before replacing the module.
48 V Input Spare Support
Order clarity
Record the field voltage and MTU before shipment
A clear installed-part record helps avoid sending a 24 V or differently keyed module into a 48 V input position.
- Available testing and visible-condition checks stated on the quote
- Protective packing with a defined DOA reporting route
- Return, warranty and after-sales terms confirmed before order
Official ABB Documentation
- ABB Product Details — DI811Article 3BSE008552R1 | Current ABB product pageView ABB product page
- ABB Ability™ System 800xA® 7.0 Product Catalog7PAA015938 Rev A | S800 I/O module and MTU overviewOpen ABB catalog
Multi-brand Spare Parts Also Requested
ESK2A1MRK002614-CA r01ASIABLB3004RDT815F2223906GIR794UE00AKM22C-ANBNR-B0PSR-SPP-24DC/MXF4/4X1/2X2/B1756-EN2T /AVF1202S,G8,B11LTMR08CBDBMENOC0301SCHMERSAL AES 2535IBI-8ARM-3-HA1EM-RS485EM-RS485-GATEWAY-IFSRC-EIO2-MIXT1-D RC500440R-K23041ABB C355/0000/STDABB FLON-01MTL825KM51148344V000RM3 JA112MU7XMLR016G0T25REG48PUN2RLLUE5ES-R1KJ-520ABB C355/0000HLCB1D1CC-TAIX11
These part numbers are independent purchasing references only. They are not replacements for DI811. Compatibility and stock must be confirmed separately for each item.
DI811 FAQ
What input voltage is DI811 designed for?
It is a 48 VDC current-sinking input module. ABB states a 36–60 VDC signal range, with detailed state limits of −60 to +10 V for 0 and 30–60 V for 1.
How are DI811 channels isolated?
The 16 inputs are divided into two groups of eight, and each group is isolated from ground.
Does DI811 support redundant operation or SOE?
No. ABB marks both redundancy and Sequence of Events as not supported for this module.
Which MTUs are listed for DI811?
ABB lists TU810, TU812, TU814, TU818, TU830, TU833, TU838 and TU850. The keying code is BD.
How can DI811 report a lost field supply?
Each group has a process-voltage supervision input. Loss of the supervised voltage can produce diagnostic indications through the ModuleBus.
What should an RFQ for DI811 include?
Provide the full part number, quantity, destination, required date and machine or system model. Add the installed MTU and confirm the 48 VDC field circuit.
