ABB-listed MTUs
TU810, TU812, TU814, TU830 and TU833. The hardware-selector keying code is AF.
RTD Module Overview
ABB AI830A accepts Pt100, Cu10, Ni100, Ni120 and compatible resistive sensors. Each channel is configured individually, with module linearization and Celsius or Fahrenheit conversion. ABB requires connected RTDs to remain isolated from ground; supervision covers sensor faults, the reference channel and internal power.
Verified RTD & Electrical Data
01Identity & Package2 items

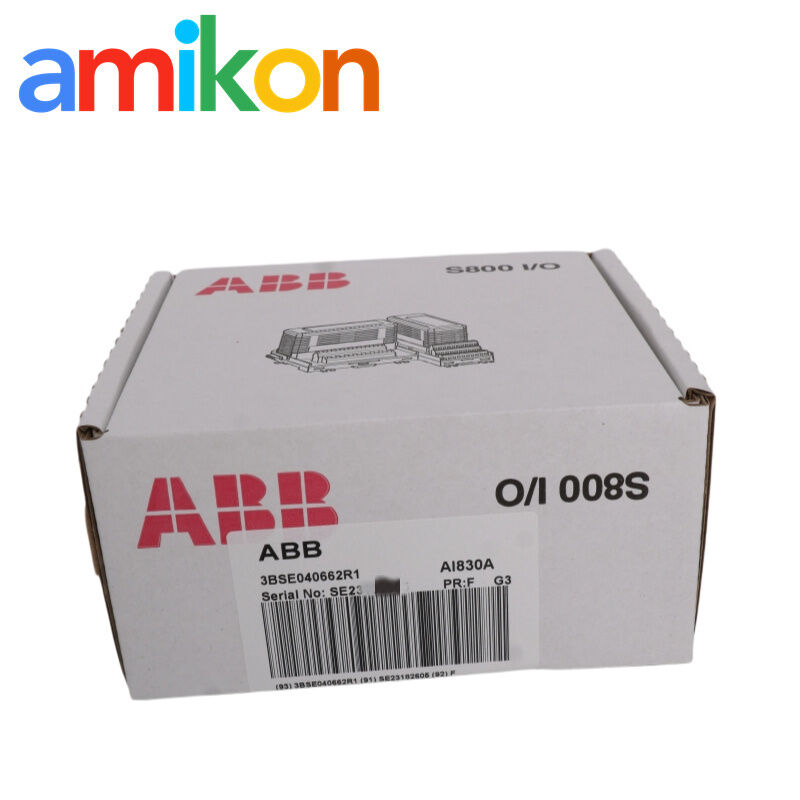

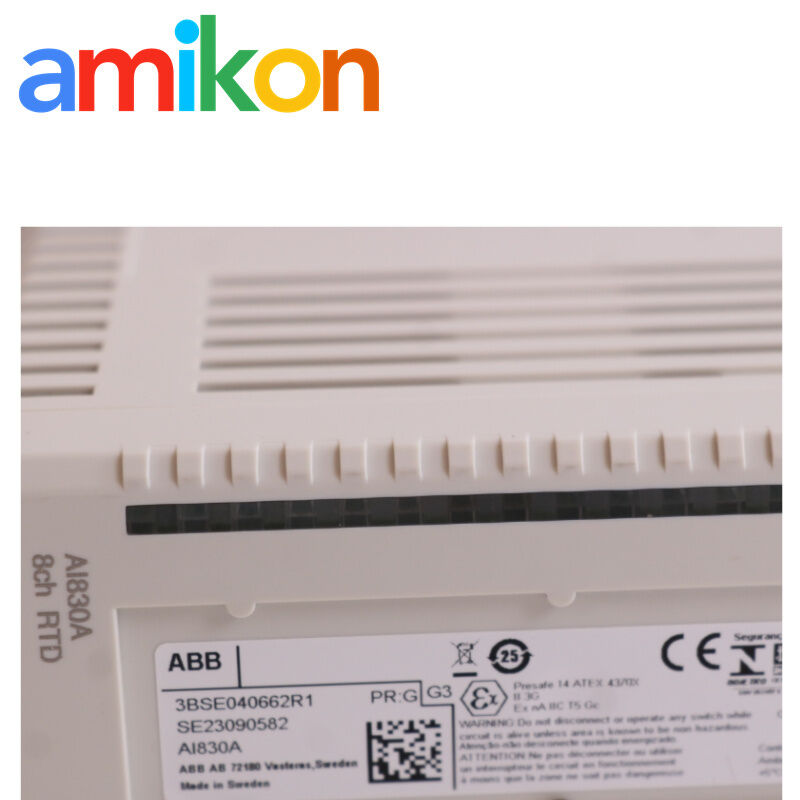

Model / article number
AI830A / 3BSE040662R1

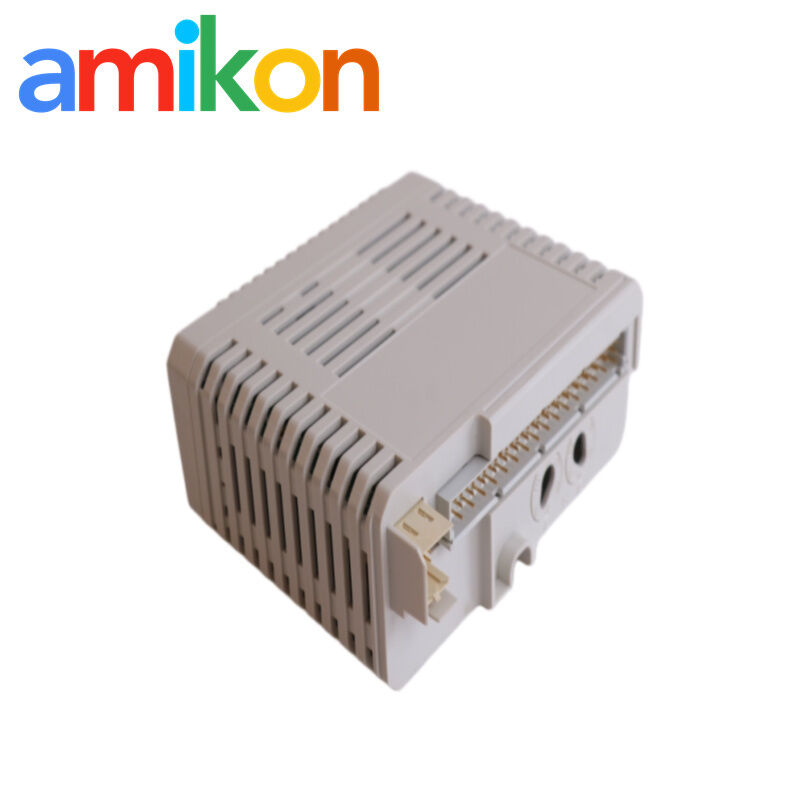

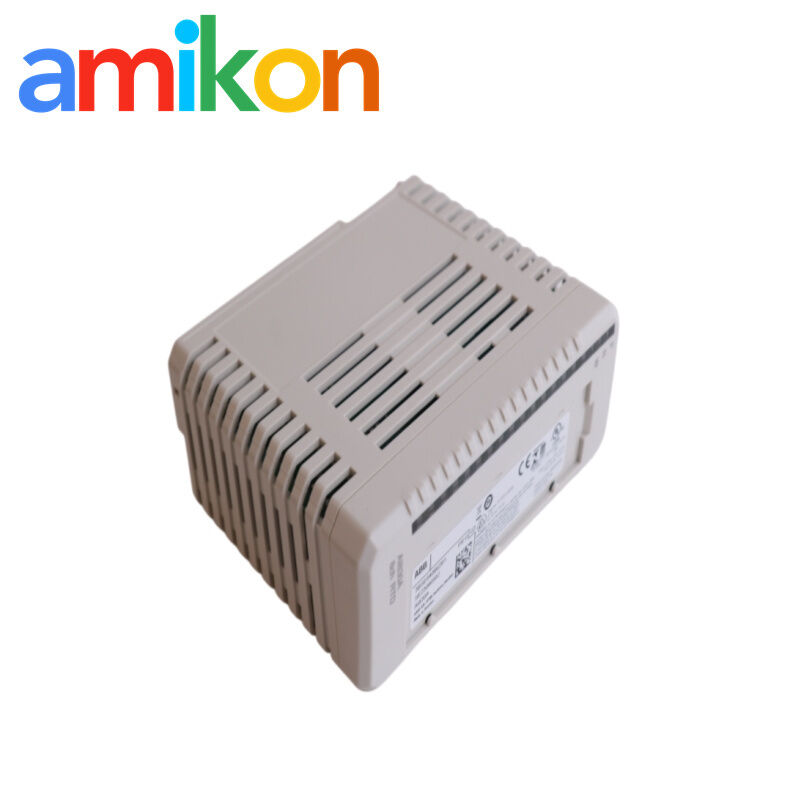

Product type / mechanics
RTD analog input / S800
02Function & Performance9 items
Number of channels
8
Supported inputs
Pt100, Cu10, Ni100, Ni120 and resistive potentiometer / resistive sensor
Connection
3-wire
Sensor grounding
All RTDs must be isolated from ground
Channel configuration
Individually configurable
Mains-frequency filter
Configurable 50 Hz or 60 Hz notch filter
Resolution
14 bit
Update cycle
150 + 95 × number of active channels ms
HART / SOE / redundancy
No / No / No
03Interfaces & Power3 items
Power dissipation
1.6 W
ModuleBus current
70 mA at +5 V; 50 mA at +24 V
External 24 V consumption
0
04Diagnostics & Environment13 items
Temperature conversion
Module linearization; Celsius or Fahrenheit
Isolation
Groupwise isolated from ground
Common-mode rejection, 50/60 Hz
>120 dB at 10 Ω load
Normal-mode rejection, 50/60 Hz
>60 dB
Rated insulation / dielectric test
50 V / 500 VAC
Front indications
F(ault), R(un), W(arning)
Supervision
Open circuit, short circuit, reference channel and internal power supply
Status indications
Module Error, Module Warning and eight channel-error indications
High Integrity / intrinsic safety
No / No
Operating / storage temperature
0 to +55 °C / −40 to +70 °C
Protection / corrosion class
IP20 / ISA-S71.04 G3
Dimensions (W × H × D)
45 × 119 × 102 mm; 111 mm deep including connector
Weight
0.22 kg
System Fit & Termination Units
S800 and Freelance use
ABB lists AI830A in the S800 remote I/O assortment for Freelance, with eight channels for Pt100, Ni100, Ni120, Cu10 and 0–400 Ω resistance measurement.
The reviewed ABB sources do not identify a direct replacement for AI830A. Sensor type, three-wire field wiring, grounding, range, keying and controller hardware definition must all be checked before any substitution.
RTD Fault Patterns
Process temperature measurement
Use Pt100, Ni100, Ni120 or Cu10 elements for machinery, utilities and process temperatures within the engineered sensor range.
Resistance monitoring
Acquire compatible resistive sensors or potentiometer signals through three-wire connections where the field device remains isolated from ground.
Open or shorted sensor loop
Use the channel diagnostic to identify a wiring break or short, then verify field continuity and terminal condition before module replacement.
Unstable or biased temperature
Check sensor type, three-wire lead resistance, equal lead routing, ground isolation and the configured 50/60 Hz MainsFreq setting.
RTD Commissioning Notes
01Confirm the element
Identify Pt100, Cu10, Ni100, Ni120 or the approved resistive sensor.
02Check three wires
Verify field continuity, equal lead routing and the ABB terminal arrangement.
03Prove isolation
Confirm the RTD is isolated from ground before energizing the channel.
04Set and compare
Configure sensor type and 50/60 Hz filter, then compare with a trusted temperature reference.
AI830A is not a thermocouple module. Do not transfer thermocouple wiring, cold-junction assumptions or calibration practice to this RTD input.
Sensor Context & Support
Responsive coordination
Keep the RTD type and MTU with the RFQ
Send the part number, quantity, destination, date and controller context.
- Identity and available checks stated on the quote
- Protective packing and DOA reporting process
- Return and warranty terms confirmed before order
ABB RTD Reference Index
- ABB Compact Product Suite Hardware Selector — AI830AVersion 6.2 | Article 3BSE040662R1Open official ABB source
- ABB S800 Remote I/O for FreelanceOfficial S800 system page | Live revisionOpen official ABB source
- ABB S800 I/O MTU Hardware SelectorOfficial termination-unit compatibility outline | Live revisionOpen official ABB source
Multi-brand Spare Parts Also Requested
A200MICAC 765A840G011J-169-07614130-7505027000160118, Rl142557675R5630-090 TSK5PR6A08A080 30266 3D86709G05364393300183A7825P1CSHFD8X-Z---04GRWS150A-24GE CL00D310TDJSM-725PBA100F-24ML6161B2024100S-C16EJ422CRSD-500C-24135163000024253-321.50TC2ALUS13A2.250FLCT1 1/4S1502MRRHR11253801A16R-STFCL 11-B1HCX8210C0330622925HPS-44-XP36C53WMZS3D40ST121UTP2002-12042RK6GN-AW2M
These part numbers are independent purchasing references only. They are not replacements for AI830A. Compatibility and stock must be confirmed separately for each item.
AI830A RTD FAQ
Which sensor types can AI830A accept?
ABB lists Pt100, Cu10, Ni100, Ni120 and resistive sensors or potentiometers.
Does AI830A require three-wire RTDs?
Yes. ABB specifies three-wire connections for the supported RTD and resistance inputs.
Can AI830A RTDs be grounded?
No. ABB states that all RTDs connected to the module must be isolated from ground.
How is the mains-frequency filter set on AI830A?
The MainsFreq parameter selects the filter cycle and provides a notch at the specified 50 Hz or 60 Hz frequency.
What diagnostics are available on AI830A?
The module supervises open circuits, short circuits, the reference channel and internal power. It provides module, warning and per-channel error indications.
What should an RFQ for AI830A include?
Send the full part number, quantity, destination, required date and machine or system model. Include the RTD type, installed MTU and controller family if available.
