ABB-listed MTUs
TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838 and TU850. The hardware-selector keying code is AE.
Signal Module Overview

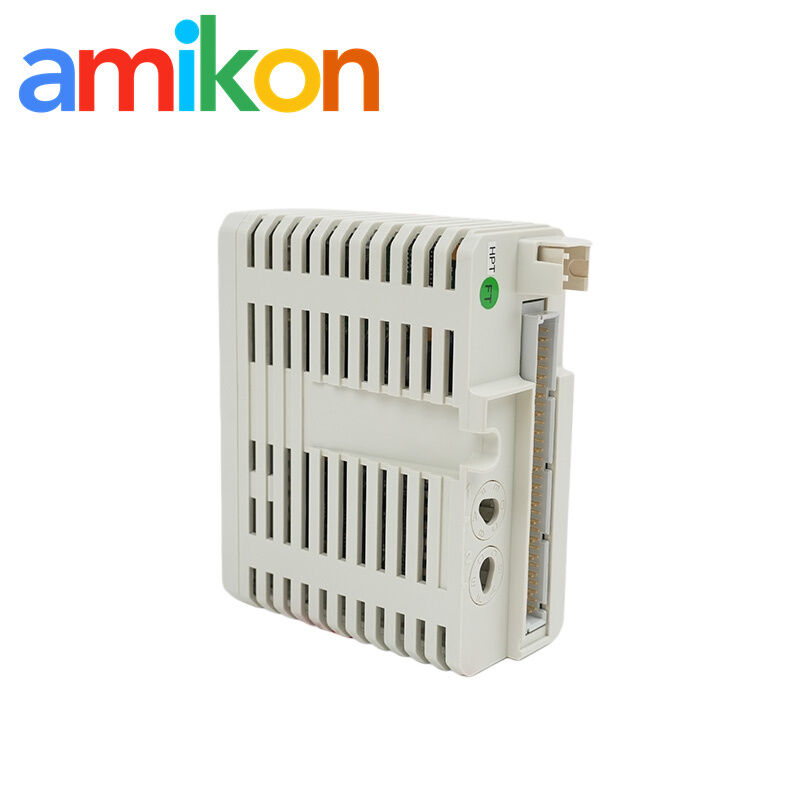

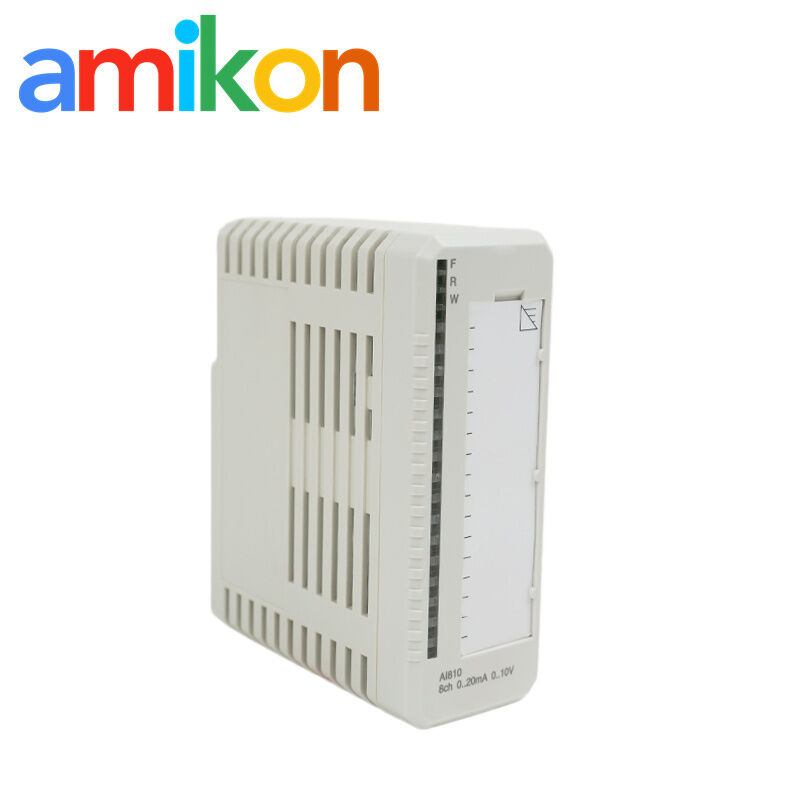

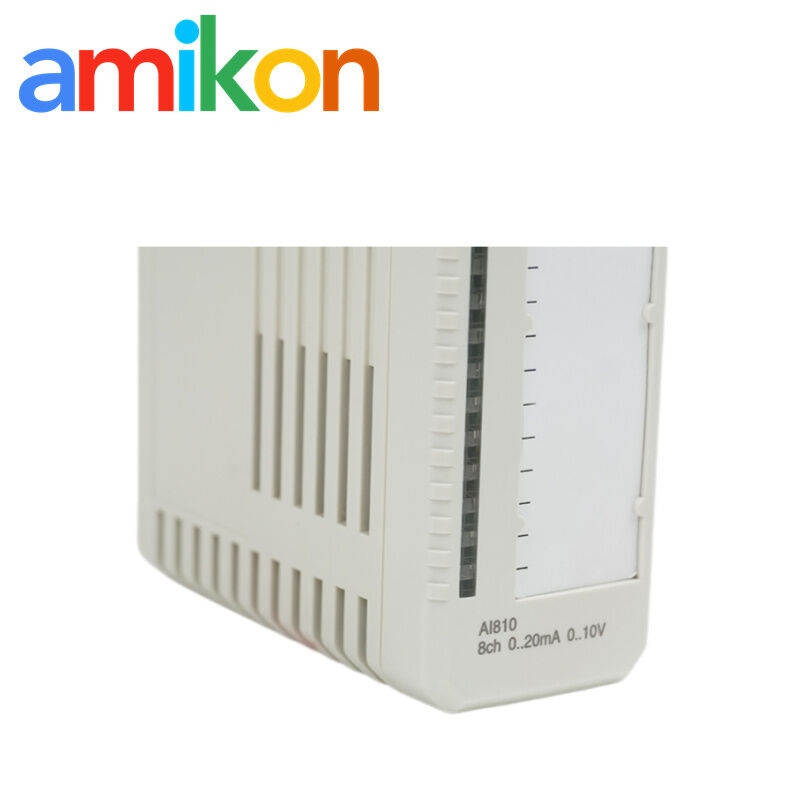

ABB AI810 provides eight single-ended inputs in one group isolated from ground. Each channel can be set for a supported current or voltage range. PTC protection is fitted to the current shunts, and ABB states that the current and voltage inputs withstand at least 30 VDC without damage.
Verified Input & Electrical Data
01Identity & Package5 items
Model / article number
AI810 / 3BSE008516R1
Product type / mechanics
Analog input / S800
Under-range / over-range
−5% / +15%
Maximum field cable length
600 m (656 yd)
Maximum non-destructive input voltage
30 VDC
02Function & Performance8 items
Number of channels
8
Signal ranges
0–20 mA, 4–20 mA, 0–10 V, 2–10 VDC
Signal type
Unipolar, single-ended
Resolution
12 bit
Input impedance
290 kΩ voltage input; 230–275 Ω current input
Input filter, 0–90% rise time
140 ms
Update cycle
8 ms
HART / SOE / redundancy
No / No / No
03Interfaces & Power3 items
Power dissipation
1.5 W
ModuleBus current
70 mA at +5 V; 40 mA at +24 V
External 24 V consumption
0
04Diagnostics & Environment10 items
Channel grouping / isolation
1 group of 8; groupwise isolated from ground
Maximum error
0.1%
Normal-mode rejection, 50/60 Hz
>40 dB
Rated insulation / dielectric test
50 V / 500 VAC
Diagnostics
F, R and W LEDs; internal power-supply supervision; module, warning and channel status indications
High Integrity / intrinsic safety
No / No
Operating / storage temperature
0 to +55 °C / −40 to +70 °C
Protection / corrosion class
IP20 / ISA-S71.04 G3
Dimensions (W × H × D)
45 × 119 × 102 mm; 111 mm deep including connector
Weight
0.20 kg
System Fit & Termination Units
S800 system integration
ABB lists AI810 in S800 I/O and in the S800 remote I/O assortment for Freelance, which communicates with Freelance controllers via PROFIBUS.
ABB does not identify a direct replacement in the reviewed sources. A visually similar eight-channel module may have different voltage ranges, HART handling, diagnostics, MTU keying or transmitter-power arrangements.
Current-Loop Fault Patterns
Conventional 4–20 mA loops
Connect standard current transmitters where HART pass-through is not part of the required maintenance workflow.
0–10 V process signals
Acquire unipolar voltage signals from drives, converters or analyzers within the specified range and isolation arrangement.
Channel reading fixed high or low
Check channel range selection, field polarity, common return, transmitter power and wiring before changing the module.
Several channels fail together
Because the eight channels form one group, inspect the group return, MTU, ModuleBus connection and internal power-supply diagnostic state.
Loop Commissioning Notes
01Identify the signal
Confirm 0/4–20 mA or 0/2–10 V and the intended single-ended wiring.
02Match the MTU
Use an ABB-listed MTU and verify the AE mechanical keying arrangement.
03Configure the channel
Select the current or voltage range for each channel in the controller hardware configuration.
04Prove the loop
Compare the field signal, scaled value and F/R/W indications before return to service.
The selector marks HART as “No.” ABB separately states that the input withstands HART communication; this is not a claim of HART pass-through or asset-management support.
Loop Context & Support
Commercial follow-through
Keep the MTU and signal range with the RFQ
Send the part number, quantity, destination, date and installed system details.
- Identity and available checks stated on the quote
- Protective packing and DOA reporting process
- Return and warranty terms confirmed before order
ABB S800 Reference Index
- ABB Compact Product Suite Hardware Selector — AI810Version 6.2 | Article 3BSE008516R1Open official ABB source
- ABB S800 Remote I/O for FreelanceOfficial S800 system page | Live revisionOpen official ABB source
- ABB S800 I/O MTU Hardware SelectorOfficial termination-unit compatibility outline | Live revisionOpen official ABB source
Multi-brand Spare Parts Also Requested
TM30050TM80125CJ2MCPU1122TM25020FT-351000X-4F3042.UW31.031.Z02.15GE 4116J81GE 137D5195GH1099 1977047C-D0GE 872D445-0Allen Bradley 634275WT-40-271-AWT-40-283-AMTS0312C8716UNMT7VTX5900EV717FR2228-24922DSK-95064IC600BF831KBT-000-K-3 1/2-60-2M8301-60014RA265.2-100E6639363D1, LR36536, NTAI06PS083KFDNL-L1600-TGE IC600CB536L1053-71-1975-0310375891151DP3J12B26L-L45-F1A-RR
These part numbers are independent purchasing references only. They are not replacements for AI810. Compatibility and stock must be confirmed separately for each item.
AI810 Signal & Procurement FAQ
Can AI810 use current and voltage inputs on different channels?
Yes. ABB states that each channel can be configured as a supported current or voltage input.
Does AI810 provide HART pass-through?
No. The hardware selector marks HART as “No.” The statement that the input withstands HART communication should not be read as pass-through support.
Which MTUs are listed for AI810?
ABB lists TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838 and TU850. The keying code is AE.
What diagnostics are available on AI810?
The module has F, R and W front LEDs, internal power-supply supervision and module, warning and channel status indications.
What should be checked when an AI810 reading is incorrect?
Verify the configured range, field polarity, common return, transmitter supply, loop signal, MTU seating and ModuleBus status before replacing the module.
What should an RFQ for AI810 include?
Send the full part number, quantity, destination, required date and machine or system model. The installed MTU and input range are useful for a compatibility review.
