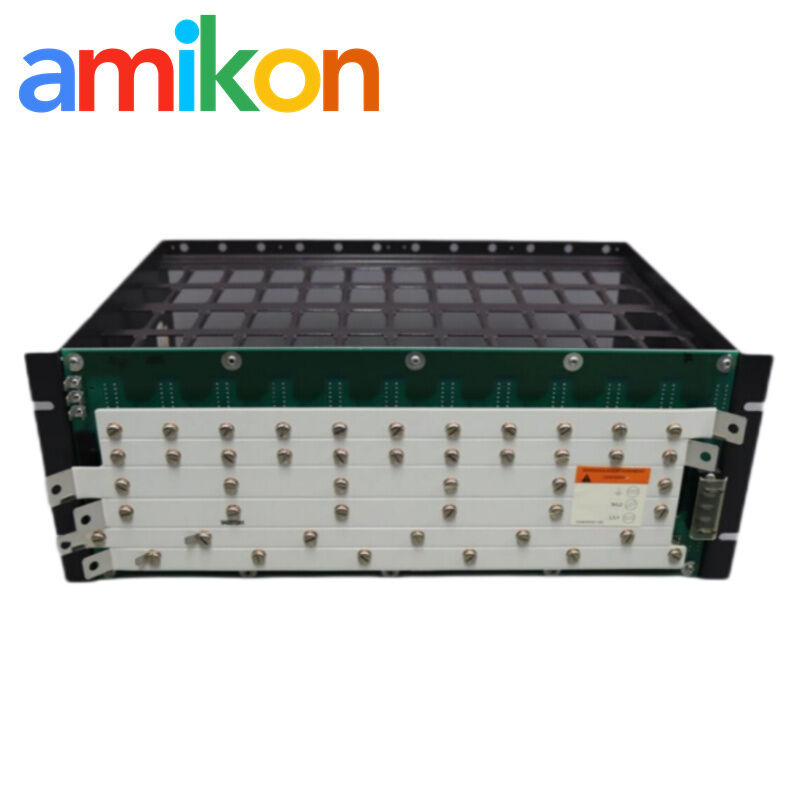

ABB Bailey IEPMU01 Rear-Mount Power Mounting Unit – INFI 90 / Network 90

ABB Bailey IEPMU01 Rear-Mount Power Mounting Unit – INFI 90 / Network 90

ABB Bailey IEPMU01 power mounting unit

INFI 90 rear-mount power unit

Network 90 PLC mounting module

Brand Name:

ABB

Model Number:

IEPMU01

Contact Us
Request A Quote
Product Details
Highlight:

ABB Bailey IEPMU01 power mounting unit

,

INFI 90 rear-mount power unit

,

Network 90 PLC mounting module

Product Description
template-layout-hook

ABB Bailey Modular Power Hardware

IEPMU01 Rear-Mount Power Mounting Unit

The rear-access chassis and high-current connection point for up to ten power modules in ABB Bailey INFI 90 and Network 90 modular power systems.

Type
Power Mounting Unit
System
INFI 90 / Network 90
Focus
Rear-Mount Power-Module Chassis
Brand
ABB / Bailey
Contact: Miya Zheng Email: sales@amikon.cn WhatsApp: +86 180 2077 6792 Send RFQ

Product Introduction

IEPMU01 is the rear-mounted power mounting unit used in ABB Bailey INFI 90 and Network 90 modular power systems. It houses the associated power modules, carries their high-current power connections and keeps the power-module section separate from the process-control module section.

It is a chassis and connection assembly, not a standalone AC/DC converter. System input selection, output ratings and redundancy are determined by the installed power entry panel, power modules, bus monitor and cabinet wiring.

Technical Specifications

Part number IEPMU01
Product type Power mounting unit (PMU)
Mounting orientation Rear mount
System INFI 90 / Network 90 modular power system
Power-module capacity Up to 10 power modules
Dimensions 177.8 × 428.6 × 317.5 mm (7.0 × 19 × 12.5 in.)
Room ambient temperature 0 to 55 °C (32 to 131 °F)
Maximum module ambient 70 °C (158 °F)
Humidity 5–90% to 55 °C; 0–45% at 70 °C, noncondensing
System cooling 180 cfm typical fan airflow
Atmospheric pressure Sea level to 3 km (1.86 mi)
Air quality Noncorrosive
System certification stated in manual IEEE-472-1974 surge requirements; CSA process-control equipment for ordinary (nonhazardous) locations

System Compatibility

AC modular power

The AC system manual associates the PMU with IEPAS02 system-power and IEPAF02 field-power modules plus the appropriate IEPEP01/02/03 power entry panel.

DC modular power

The DC system manual associates the PMU with IEPDS01/02 system-power and IEPDF01/02 field-power modules plus IEPEP04.

Front-mount version

IEPMU02 is the front-mounted PMU. ABB identifies the orientation difference but does not document it as a drop-in replacement for every IEPMU01 cabinet arrangement.

Before ordering, verify rear access, cabinet generation, input architecture, installed power-module types, power-entry panel and bus-bar cable set.

Installation & Wiring Position

01
Safety isolation

Turn off source power and power-entry-panel circuit breakers before installation, retrofit or wiring.

02
Cabinet position

Install from the rear, directly below the fan assembly, and secure both sides to the cabinet rails.

03
Bus connections

Follow the exact system manual for input harness, ground, MCOM, +5 V and other bus-bar connections.

04
Commissioning

Verify input voltage, module switch/jumper settings and green status indication as each power module is seated.

High-current bus work is not a plug-and-play task. ABB's manual requires trained electrical personnel and a volt/ohmmeter; conductor size, color code and heat-shrink steps must match the cabinet drawing.

Applications & Fault Scenarios

Power-section rebuild

Relevant when corrosion, overheated joints, damaged guides or backplane connections make the original PMU unreliable.

Repeated module alarms

Multiple power modules reporting bad status may indicate a shared PMU, bus-bar or power-entry connection rather than several independent supply failures.

Low bus voltage

Investigate source input, breaker state, power-module loading, PMU connections and bus-monitor readings before replacing parts.

Thermal stress

Fan failure, blocked airflow or open cabinet conditions can increase module temperature and shorten service life.

Loose high-current joints

Discoloration, odor or intermittent resets require a shutdown inspection; do not retighten energized power connections.

Wrong cabinet orientation

A front-mount chassis ordered for a rear-access cabinet can create mechanical and wiring conflicts that delay the outage.

Official Documentation

  • ABB — Harmony Modular Power System III Product Overview
    WBPEEUS210509A1 — later power-system architecture and migration context
    Open official manufacturer source

Amikon Service

The service terms below are Amikon commercial support and are separate from ABB technical documentation.

Inspection & testing

Incoming identity and condition checks; functional or power checks are applied where the part and available fixture allow. The agreed scope can be stated on the quotation.

Packaging & DOA

Protective industrial packing appropriate to the item. Report any dead-on-arrival issue promptly with label, package and installation evidence.

Returns, warranty & support

Returns require prior RMA approval and condition review. Warranty term and coverage are confirmed on the quotation; after-sales support assists with claim evidence and part verification.

Multi-brand Spare Parts Also Requested

5X00063G 5X00070G04 5X00105G14 5X00105G16 5X00119G01 5X00224G04 5X00225G01 5X00226G01 5X00226G02 5X00226G03 5X00226G04 5X00241G01 5X00270G01 5X00300G01 5X00300G02 5X00301G01

These part numbers are independent purchasing references only. They are not replacements for the product on this page. Compatibility and stock must be confirmed separately for each item.

FAQ

What is ABB IEPMU01 used for?

It is the rear-mounted housing and power-connection assembly for the power modules in an INFI 90 or Network 90 modular power system.

How many power modules can ABB IEPMU01 hold?

The manufacturer manual states that the power mounting unit can service up to ten modules.

Is ABB IEPMU01 the same as IEPMU02?

No. The first is installed from the rear and the second from the front. The cabinet access and wiring arrangement must be checked before substitution.

Which power modules are associated with ABB IEPMU01?

The AC manual covers IEPAS02 and IEPAF02; the DC manual covers IEPDS01/02 and IEPDF01/02. The correct set depends on the installed power architecture.

Where is ABB IEPMU01 installed in the cabinet?

The AC system instruction places the rear-mounted PMU directly beneath the fan assembly and secured to both cabinet rails.

What details are needed to quote ABB IEPMU01?

Provide the part number, quantity, destination, required date, system model, cabinet generation, installed PEP and power-module types, and rear-access confirmation.
