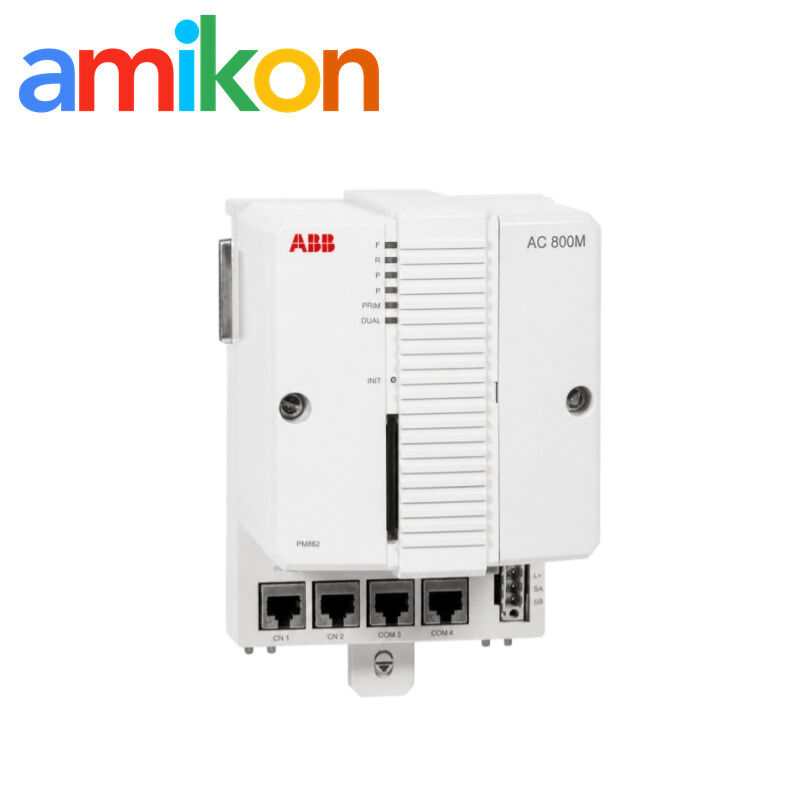

ABB PM862K01 Processor Unit
ABB PM862K01 PLC processor
ABB processor unit PM862K01
ABB PLC with warranty
Brand Name:
ABB
Model Number:
PM862K01
Contact Us
Request A Quote
Product Details
Highlight:
ABB PM862K01 PLC processor
,ABB processor unit PM862K01
,ABB PLC with warranty
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
ABB AC 800M Controller Hardware
PM862K01 Processor Unit
A single PM862 AC 800M processor kit with TP830 baseplate, two Control Network ports, CEX-Bus expansion and electrical plus optical ModuleBus.
TypeSingle Processor Kit
SystemAC 800M / System 800xA
FocusControl & S800 I/O
BrandABB
Product Introduction
ABB PM862K01, article 3BSE076940R1, is a single AC 800M processor kit with a 67 MHz CPU, TP830 baseplate and the hardware listed in ABB's official package. ABB confirms use from System 800xA 6.0.2 and Compact Control Builder 6.0.0-1 onward.
Core Specifications
| Model / article number | PM862K01 / 3BSE076940R1 |
|---|---|
| Package configuration | Single processor kit |
| Processor type / clock | MPC866 / 67 MHz |
| Performance, 1,000 Boolean operations | 0.18 ms |
| Memory | 32 MB |
| Application program cycle time | Down to 1 ms |
| Power supply | 24 VDC; permitted range 19.2–30 VDC |
Compatibility & Package Contents
ABB states that this processor is compatible with System 800xA 6.0.2 and Compact Control Builder 6.0.0-1 onward. Confirm the installed controller firmware and engineering environment before replacement; no direct replacement or migration equivalence is asserted here.
| Official kit contents | PM862 CPU; TP830 baseplate; TB850 CEX-Bus terminator; TB807 ModuleBus terminator; TB852 RCU-Link terminator; memory-backup battery 4943013-6 |
|---|---|
| License | Not included |
| Single-CPU I/O connection | 1 electrical + 7 optical ModuleBus clusters |
| Redundant conversion | Use the ABB-defined redundant package/architecture; electrical ModuleBus is not used with redundant CPUs |
Installation & Commissioning Checks
01DIN-rail and baseplate
Inspect the TP830, grounding contact, locking mechanism and ventilation clearance before mounting the CPU.
02Power and supervision
Verify 24 VDC at L+/L− and check the SA/SB redundant power-supply status inputs where they are used.
03Network identity
Record the Ethernet address on the TP830 and confirm CN1/CN2 network assignment before restoring the project.
Applications & Fault Scenarios
Version mismatch
An older engineering station or unsupported controller release can block firmware or application work. Verify the ABB minimum releases before shutdown.
Battery alarm or lost retention
Check the internal lithium battery, its installation history and the external SB821/SB822 option if fitted.
Additional Specifications
| Internal battery backup time | At least 158 hours |
|---|---|
| Ethernet channels | 2 × RJ45 Control Network ports |
| Serial interfaces | COM3 RS-232C, 75–19,200 baud; isolated COM4 service port, 9,600 baud |
| ModuleBus capacity | Up to 96 I/O modules in single-CPU configuration; 84 in redundant configuration |
| Dimensions (W × H × D) | 119 × 186 × 135 mm |
| Operating temperature | 0 to +55 °C (+32 to +131 °F) |
Official Documentation
- ABB — Compact Product Suite Hardware Selector — PM862K01 Data SheetData sheet dated 2026-02-06 | Article 3BSE076940R1Open official ABB source
- ABB — ABB Ability System 800xA 6.1 — AC 800M Controller Hardware Product Guide3BSE036352-610 A | System version 6.1Open official ABB source
- ABB — System 800xA 7.0 Product Catalog — AC 800M Processor Units7PAA015938 en A | System version 7.0Open official ABB source
Amikon Service
Commercial supply support, separate from ABB technical documentation.
Practical supply support from inventory review to dispatch.
Identity check
Part number and visible condition reviewed.
Test scope
Available testing stated on the quotation.
Packing & DOA
Protective packing and prompt issue review.
RMA & warranty
Terms confirmed before the order is placed.
Multi-brand Spare Parts Also Requested
XCPBDP00MI-B501AP-IV9907-028NXC1 NetAXS-123eTOP11-0050ML7421B1023ML7425A6008VS-4450EDSC318BRC-H700U1241B/U1242BAE2S-P01
These part numbers are independent purchasing references only. They are not replacements for the product on this page. Compatibility and stock must be confirmed separately for each item.
FAQ
Which software releases support PM862K01?
ABB specifies System 800xA 6.0.2 and Compact Control Builder 6.0.0-1 or later.
What is included in PM862K01?
The official kit contains the CPU, TP830, TB850, TB807, TB852 and memory-backup battery; no license is included.
Can PM862K01 use both electrical and optical ModuleBus?
Yes in a single-CPU configuration: one electrical cluster and seven optical clusters are supported.
How is firmware loaded to an empty PM862K01?
Use the isolated COM4 service port, then download the released firmware before loading the application.
Is PM862K01 a complete redundant controller set?
No. It is a single-processor kit; redundancy requires the ABB-defined second processor, RCU/CEX links and optical I/O arrangement.
What should be included in a PM862K01 RFQ?
Provide the part number, quantity, destination, required date, machine/system model, software release, existing TP830 details and nameplate photos.
