The manufacturer instruction documents NTMF01 for IMMFC03, IMMFC04 and IMMFC05 multi-function controllers.
01
Overview
Product Introduction

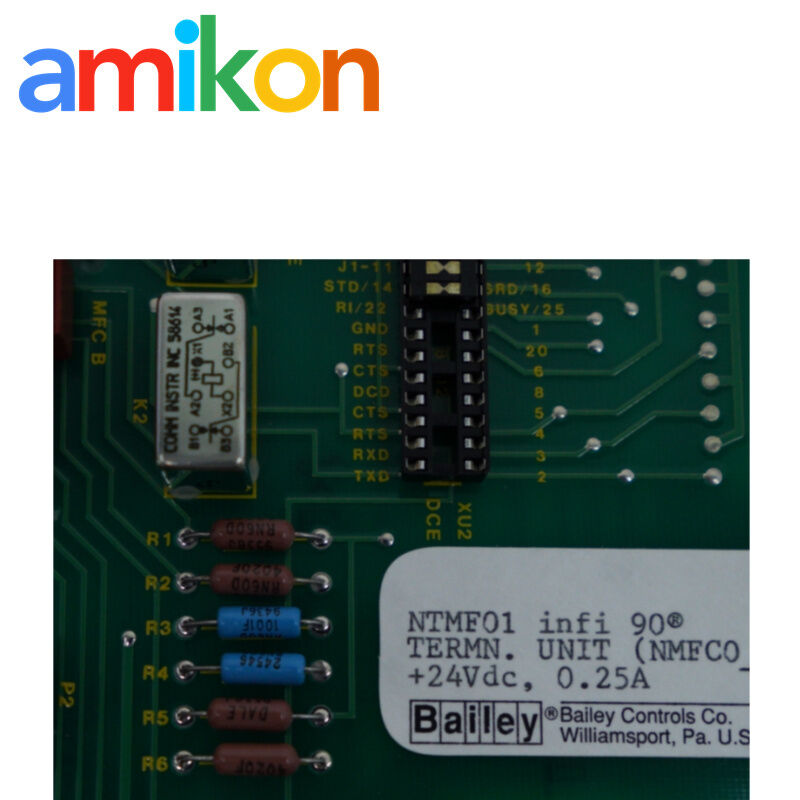

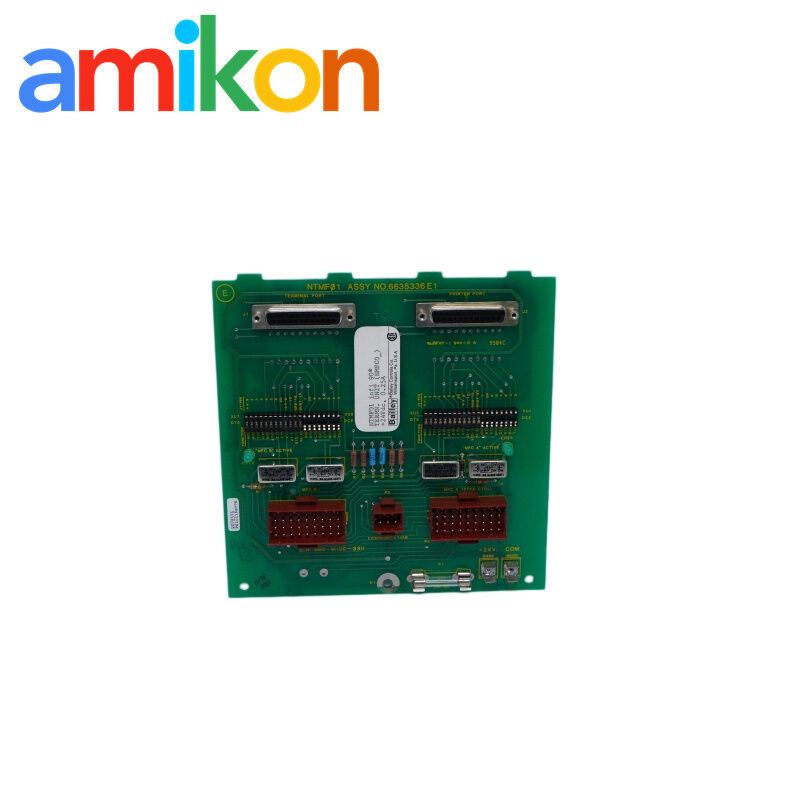

NTMF01 terminates serial communication and station links for documented ABB Bailey multi-function controller and transfer-module applications. Manufacturer literature covers the IMMFC03/04/05 controller family and specified INFI-NET or Plant Loop transfer interfaces.
The board provides two independent RS-232-C channels and a separate control-station serial link through NTCS04. Application-specific dipshunts set port behavior, and the front LEDs are only active in the documented IMMFC03 application.
02
Verified manufacturer data
Technical Specifications
| Serial interfaces | Two separate RS-232-C ports |
|---|---|
| Station interface | One control-station serial link through NTCS04 |
| RS-232 role | DTE or DCE by documented dipshunt arrangement |
| Configuration devices | Four dipshunts; two assigned to each RS-232 port |

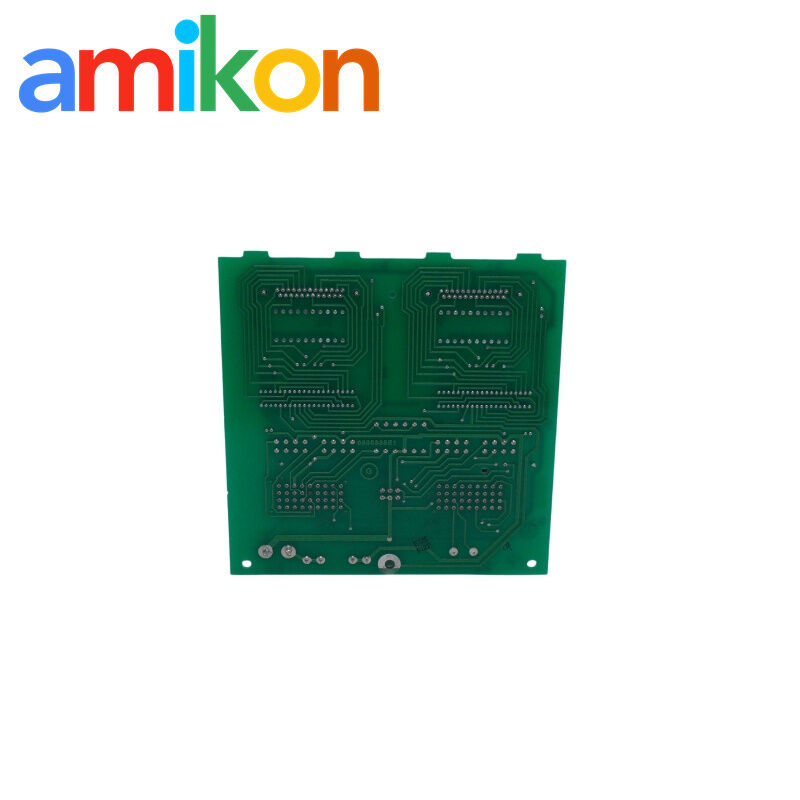

| Board format | 7 × 7 in. printed circuit board |
| Mounting | NFTP01 Field Termination Panel |
| Power | +24 VDC |
| Maximum current | 160 mA, including 10 mA LED allowance |
| Cable types documented | NKSE01/11 and NKTU01/11 as assigned by application |
| External connectors | Two DB-25 serial connectors plus station and power connections |
| Operating temperature | 0 to 70 °C (32 to 158 °F) |
| Relative humidity | 5–90% ±5% to 70 °C, noncondensing |
| Altitude | Sea level to 3 km (1.86 mi) |
| Atmosphere | Noncorrosive |
| Legacy certification stated | CSA certified for ordinary (nonhazardous) locations |
03
System fit
Compatibility & Application Limits
It also documents applications with INICT01 INFI-NET-to-computer transfer, INPCT01 Plant-Loop-to-computer transfer and the specified Plant-Loop transfer modules in the instruction architecture.
The front LEDs are driven in the IMMFC03 application; ABB states that they do not light when the unit is used with IMMFC04 or IMMFC05. An unlit LED is therefore not automatically a failure.
No direct replacement relationship is stated. Match the controller or transfer module, cable and port configuration.
04
Maintenance context
Applications & Fault Scenarios
RS-232 communication loss
A host computer or transfer interface stops exchanging data and the DTE/DCE setup, cable and port path must be isolated.
Misleading LED state
A technician sees dark indicators in an IMMFC04/05 application and needs to distinguish normal behavior from loss of +24 V power.
Station link failure
Control-station communication is absent while both RS-232 ports continue operating, focusing checks on NTCS04 and the station serial path.
Intermittent cabinet fault
Loose fastons, oxidized connectors or contaminated board surfaces cause resets or sporadic serial errors.
05
Field practice
Port Configuration, Indication & Maintenance
Set both halves of each port
Each RS-232 port uses two dipshunts. Configure the complete application-specific pattern for DTE or DCE operation and record it before changing hardware.
Use indicators in context
Only the IMMFC03 application drives the documented LEDs. With IMMFC04 or IMMFC05, diagnose from power, signal activity and end-to-end communication rather than light state.
Separate serial and station paths
Trace the two DB-25 RS-232 circuits independently from the NTCS04 station link. A fault on one path need not implicate the others.
Maintain connections
During scheduled shutdown, inspect and tighten power and field wiring, clean the board using the approved method and replace only the specified fuse type after correcting the cause.
06
Source record
Official Documentation
| Manufacturer | Document | Document no. / version | Link |
|---|---|---|---|
| Elsag Bailey | Multi-Function Controller Termination Unit (NTMF01) Instruction (manufacturer-issued; archived copy) | I-E96-427B | Open document |
07
Order support
Amikon Service
Test scope and unit condition are confirmed before dispatch, with ESD-safe export packing. DOA, returns, warranty and after-sales support follow the quotation.
08
Product-specific answers
FAQ
Which controller modules are documented with NTMF01?
The manufacturer instruction lists IMMFC03, IMMFC04 and IMMFC05, plus specified transfer-module applications described in its system diagrams.
How many RS-232 ports does NTMF01 provide?
It provides two separate RS-232-C ports, each configured by two dipshunts, plus a separate control-station serial link.
Why are the NTMF01 LEDs dark with an IMMFC04 or IMMFC05?
ABB states that the indicators are only driven by IMMFC03. Dark LEDs in the other documented controller applications do not by themselves prove a fault.
Can NTMF01 operate as either DTE or DCE?
Yes. Use the application-specific dipshunt settings in the manufacturer instruction and verify the connected device and cable.
What maintenance is recommended for NTMF01 connections?
During a controlled shutdown, inspect cleanliness and damage, tighten power and field connections, and investigate the circuit before replacing an open fuse.
What should be provided in an NTMF01 RFQ?
Include the exact part number and revision, controller or transfer module, cable numbers, quantity, destination, required date and installed system model.
