Legacy Harmony SOE architectures pair NTST01 with the INTKM01 time keeper and IMSET01 timing functions.
01
Overview
Product Introduction

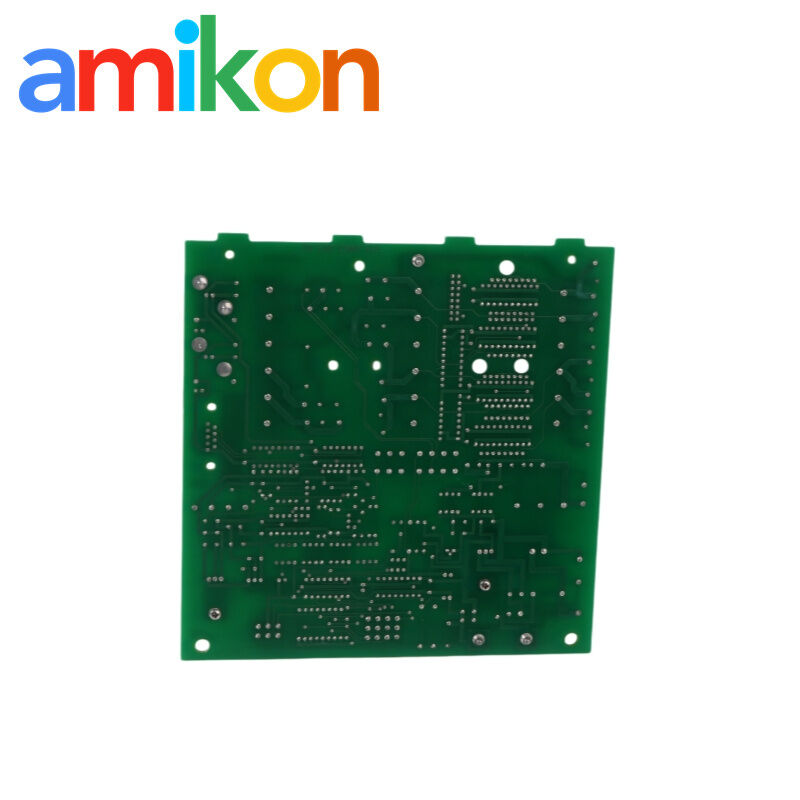

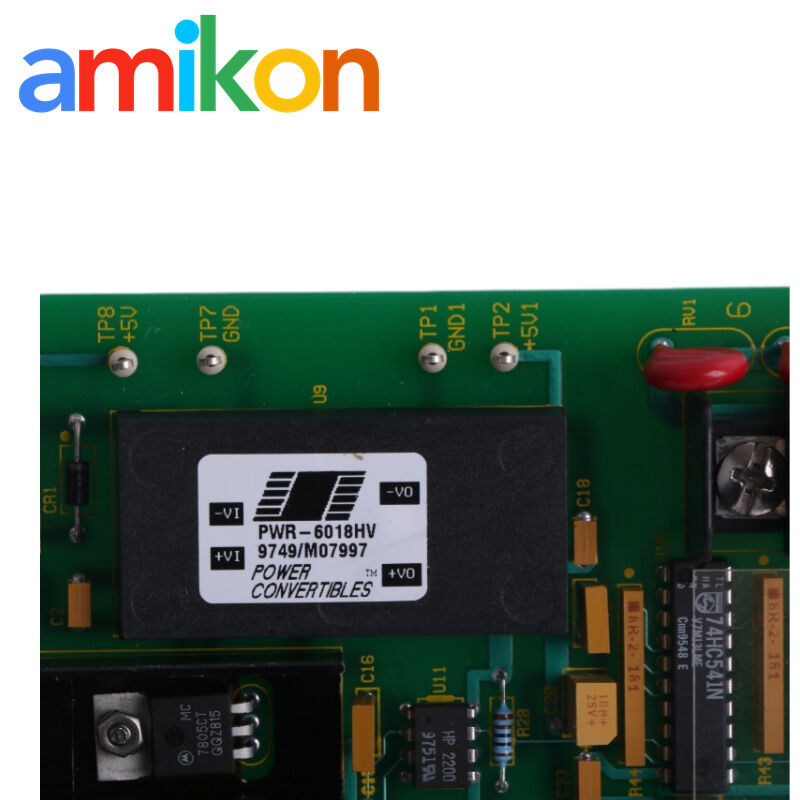

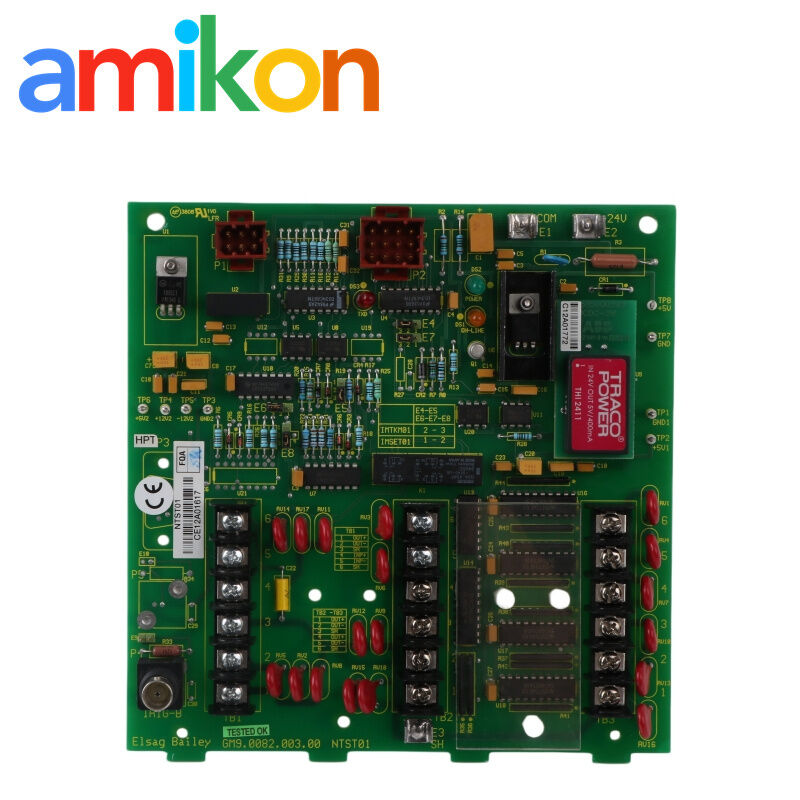

NTST01 distributes synchronized time to controller and Sequence of Events equipment in ABB Harmony and Symphony Plus architectures. It carries the IRIG-B and RS-485 synchronization paths used to keep events in the correct time order.
Reliable event chronology depends on the complete time chain. Cable routing, isolation, source quality, controller configuration and the SOE server path should be checked whenever timestamps drift, disappear or lose quality.
02
Verified manufacturer data
Technical Specifications
| Function | Termination for Sequence of Events time-synchronization links |
|---|---|
| Time inputs / links | IRIG-B and RS-485 synchronization path |
| RS-485 data rate | 62.5 kbaud |
| Synchronization cable | Twinaxial cable |
| Voltage isolation, 50 Hz | 1000 VAC |
| Impulse isolation | 2000 V peak, 1.2/50 µs pulse |
| Maximum link between two HCU cabinets | 4000 m (13,123 ft) |
| Maximum INSOE01 node to farthest HCU | 40,000 m (131,233 ft) |
| Legacy module context | INTKM01 Time Keeper Master; IMSET01 Sequence of Events Timing |
| Current catalog context | SPTKM or SPSET |
| System role | Time-source and synchronization termination; not the SOE database or controller itself |
03
System fit
Compatibility & Architecture
Symphony Plus SOE applications pair NTST01 with SPTKM or SPSET modules.
Mixing module generations is not a direct replacement path. Match the installed timing architecture, cabinet layout and project configuration before changing hardware.
04
Maintenance context
Applications & Fault Scenarios
Timestamp drift
Events are captured but time alignment with other controllers or the plant historian gradually separates.
Missing synchronization
SOE records continue with local time or invalid quality after loss of the IRIG-B or RS-485 reference.
Cabinet-link fault
One HCU cabinet loses synchronized time while upstream cabinets remain stable, suggesting a local cable, termination or module-path issue.
Post-outage sequence dispute
Operations needs confidence that trip and interlock events are ordered correctly before root-cause analysis.
05
Field practice
Time-Sync Commissioning & Diagnostics
Trace the full time chain
Start at the IRIG-B source and follow the time keeper, NTST01 links, timing modules, controllers and SOE server. Record where quality or synchronization is first lost.
Control twinax routing
Maintain the specified cable, shield and termination arrangement. Separate the synchronization link from noise sources and respect cabinet bonding practice.
Validate distance and isolation
Check the 4 km inter-cabinet and 40 km server-node architecture limits against the site design; do not treat them as unrestricted single-cable lengths.
Prove chronology
After service, generate controlled events at known times and confirm timestamp order and quality across all affected nodes before relying on SOE data for incident analysis.
06
Source record
Official Documentation
| Manufacturer | Document | Document no. / version | Link |
|---|---|---|---|
| ABB | Harmony Sequence of Events Data Sheet | WBPEEUD240008A2 | Open document |
| ABB | ABB Ability™ Symphony® Plus Product Catalog | 2VAA005340 en G | Open document |
07
Order support
Amikon Service
Test scope and unit condition are confirmed before dispatch, with ESD-safe export packing. DOA, returns, warranty and after-sales support follow the quotation.
08
Product-specific answers
FAQ
What is the role of NTST01 in an SOE system?
It terminates and distributes time-synchronization links. Event collection, controller logic and database functions remain in other system components.
Which timing modules work with NTST01?
Legacy Harmony systems use INTKM01 and IMSET01. Symphony Plus applications use SPTKM or SPSET.
What cable type is specified for the NTST01 synchronization link?
Use twinaxial cable and match the installed shielding, termination and cabinet wiring arrangement.
What distance limits apply to NTST01-based SOE links?
The limits are 4000 m between two HCU cabinets and 40,000 m from an INSOE01 server node to the farthest HCU within the defined architecture.
How should NTST01 timestamp problems be diagnosed?
Trace source quality from IRIG-B through the time keeper, RS-485 path, termination, timing modules and SOE server, then compare a controlled event across nodes.
What should an NTST01 RFQ include?
Provide the exact part number, timing-module type, cabinet or HCU arrangement, quantity, destination, required date and Symphony or Harmony system model.
