Captures digital transitions
Records off-to-on and on-to-off event changes supplied to the SER path.
Bailey INFI 90 · Sequence of Events

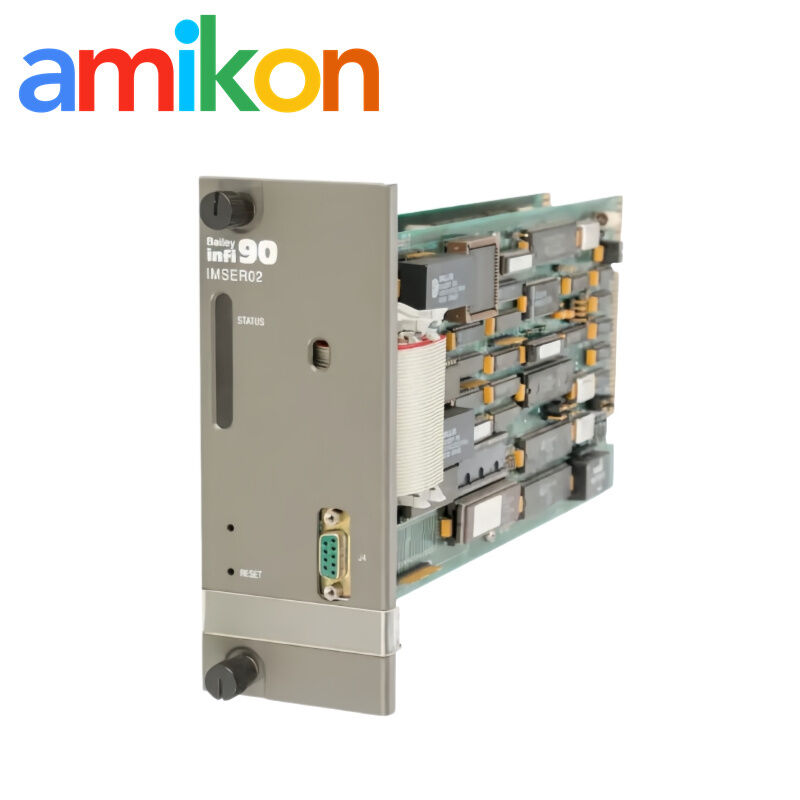

ABB Bailey IMSER02 Sequence of Events Recorder
A sequential events recorder used with Bailey INFI 90 operator and reporting systems to put critical digital transitions into time order. The documented SER workflow provides one-millisecond event time tagging and supports scheduled, prefault, postfault, snapshot and operator-initiated summary reports.
TypeSequence of Events Recorder
SystemBailey INFI 90
FocusChronological event analysis
BrandABB Bailey
Talk to a spare-parts specialistMiya Zheng
Email for quotationsales@amikon.cn
WhatsApp+86 180 2077 6792
04 / Product Introduction
Turn rapid state changes into a usable incident timeline
IMSER02 belongs to the sequence-of-events function, where event order matters more than an ordinary alarm list. It supports maintenance teams investigating trips, interlocks and fast equipment sequences.
Applies precise time order
The Bailey operator system describes one-millisecond time tagging for critical event occurrence.
Feeds event reports
Recorded information is used for standard, fault-window, snapshot and operator-requested reports.
Process eventDigital state transition
→
RecorderIMSER02 SER
→
Operator analysisTime-ordered report
05 / Technical Specifications
Confirmed recorder identity and reporting capabilities
| Model | IMSER02 |
|---|---|
| Product type | Sequential / Sequence of Events Recorder (SER) |
| System family | Bailey INFI 90 |
| Primary data type | Digital state transitions |
| Event-time resolution | 1 ms in the Bailey SER reporting workflow |
| Standard report mode | Scheduled standard report |
| Fault-window report modes | Prefault and postfault reports |
| Snapshot report | Supported |
| Operator report | Operator-initiated summary report |
| Operator-system access | Sequence of Events Log |
| Related Bailey event sources | SER, Sequence of Events Slave Function Code 210, or INSEM01 Sequence of Events Module |
| Report purpose | Chronological review of critical event time of occurrence |
02 / Event Reporting
Five report views support different maintenance questions
The recorder data can be presented differently depending on whether the team needs routine history, the lead-up to a trip, the aftermath or an immediate captured state.
Scheduled standard
Produces a regular record of configured events for routine review.
Prefault and postfault
Separates events before and after the trigger so engineers can reconstruct the incident sequence.
Snapshot and summary
Supports captured-state reporting and an operator-initiated overview when immediate analysis is needed.
03 / System Integration
The operator console turns recorder data into a Sequence of Events Log
Bailey operator documentation distinguishes the SOE log from the broader system event log. The SER path is intended for precise critical-event order, while the system event log also includes alarms, operator actions and notes.
SOE investigation flow
- Critical digital status changes enter the configured sequence-of-events path.
- The recorder applies the event time reference and retains the sequence for reporting.
- The operator interface retrieves the data and builds the selected report type.
- Maintenance compares the event order with process trips, permissives and protection actions.
04 / Diagnostics & Commissioning
Protect the time reference, event source and report path
A complete SOE result depends on more than the recorder identity. Confirm that field transitions reach the event source, time synchronization is valid and the operator system can retrieve the report.
1Prove the event sourceUse a controlled state change to confirm that the configured digital event reaches the SOE path.
2Check time synchronizationA correct event sequence requires a valid common time reference across the participating system components.
3Verify trigger and report setupConfirm the selected standard, prefault, postfault, snapshot or summary workflow.
4Compare adjacent eventsMissing or out-of-order records can indicate source configuration, time or communication problems rather than recorder hardware alone.
06 / Applications & Fault Scenarios
Where IMSER02 adds value during plant troubleshooting
Trip sequence reconstruction
Engineers need to know which permissive, protection input or command changed first around a shutdown.
Interlock dispute
Operations and maintenance compare millisecond event order to distinguish cause from consequence.
SOE report missing
The recorder, time reference, configured event source or operator-report path is being isolated after a failed capture.
07 / Official Documentation
IMSER02 manufacturer documents
| Manufacturer | Document | Number / Version | Official link |
|---|---|---|---|
| Bailey Controls / ABB | 40 Series Operation — Sequence of Events Log | WBPEEUI220756A1 | View document |
| Bailey Controls / ABB | 40 Series Configuration — SER Reference | Revision J; references I-E93-917-1 | View document |
08 / Supply & RFQ
Inspection, packing and quotation support
Amikon Service
InspectionPart identity and agreed test scope
Export packingAnti-static and impact-protective
DOA supportPrompt review with photos and evidence
Warranty & returnsTerms confirmed on the quotation
09 / FAQ
IMSER02 questions from buyers and maintenance teams
What is ABB Bailey IMSER02 used for?
It records sequence-of-events information so critical digital transitions can be reviewed in chronological order after trips or fast process changes.
What time resolution is associated with ABB Bailey IMSER02 reporting?
The Bailey Sequence of Events reporting workflow provides one-millisecond time tagging for critical event occurrence.
Which reports can use ABB Bailey IMSER02 event data?
The documented operator workflow includes scheduled standard, prefault, postfault, snapshot and operator-initiated summary reports.
How is ABB Bailey IMSER02 different from a general event log?
The SER path is designed for precise critical-event order; the broader system event log also records general alarms, operator actions and notes.
What should be checked when ABB Bailey IMSER02 events are out of order?
Check time synchronization, the event-source configuration and communication to the operator reporting system before replacing hardware.
What should be provided for an ABB Bailey IMSER02 quotation?
Send the part number, quantity, destination, required date and system model. Photos of the recorder identity and its connected system context are also useful.
