Collects and organizes data
Receives controller information, sorts it and holds it until the host application requests it.
ABB Symphony Plus · Ethernet Computer Interface

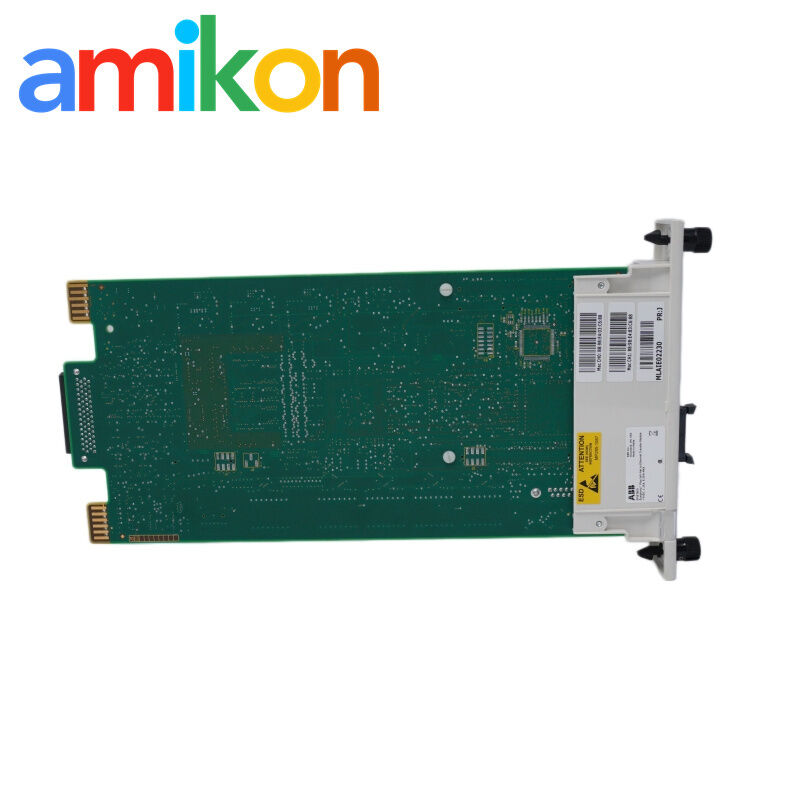

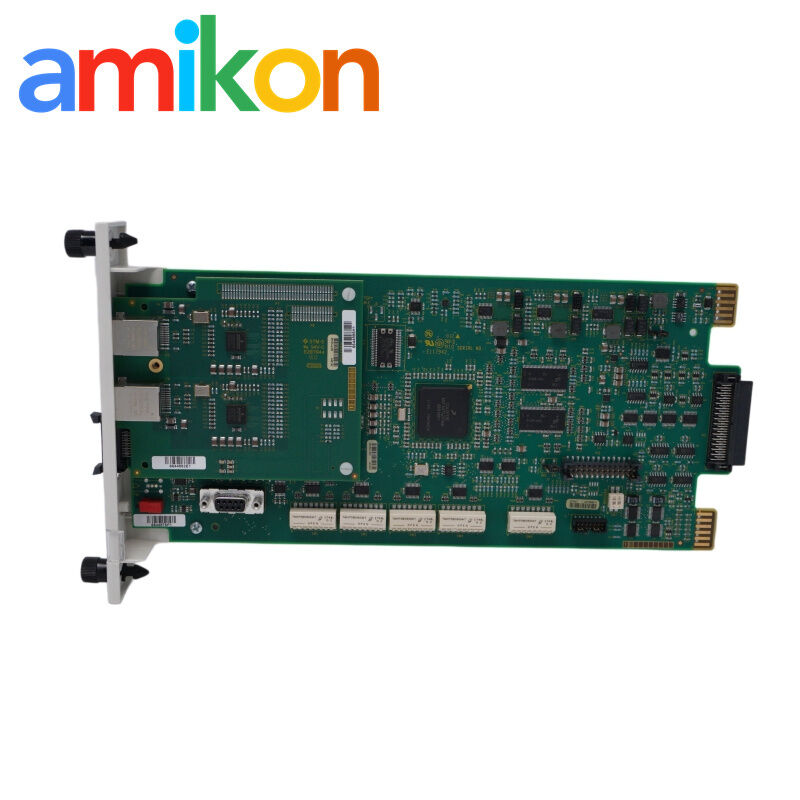

ABB SPIET800 / IET800 INFI-Net to Ethernet Transfer Module
SPIET800 is the Symphony Plus order identity for the IET800 transfer module. It connects INFI-NET / Cnet data to an Ethernet host environment, stores up to 30,000 point definitions and supports high-throughput exception reporting for engineering, operator and OPC applications.
TypeEthernet transfer module
ModuleIET800
Order identitySPIET800
BrandABB
Talk to a spare-parts specialistMiya Zheng
Email for quotationsales@amikon.cn
WhatsApp+86 180 2077 6792
05 / Product Introduction
One product record for SPIET800 and IET800
SPIET800 and IET800 refer to the same transfer hardware in the ABB Symphony Plus ordering context: SPIET800 is the order identity and IET800 is the module designation. The interface links the INFI-NET control system to an Ethernet host connection.
Ethernet host access
Uses TCP/IP over a 10/100 Mbps Ethernet connection for host communication.
Large interface database
Supports 30,000 point definitions with exception-report throughput above 1,500 reports per second.
Control networkINFI-NET + SPNIS21
→
Transfer moduleSPIET800 / IET800
→
Host network10/100 Ethernet
06 / Technical Specifications
Processor, memory, capacity, communication and power
| ABB order identity | SPIET800 |
|---|---|
| Module designation | IET800 |
| Product type | INFI-Net-to-Ethernet transfer module |
| Communication protocol | TCP/IP over Ethernet |
| Processor | Freescale ColdFire MCF5475, 32-bit, 256 MHz, approximately 400 MIPS |
| Flash / ROM | 2 MB flash ROM; ABB catalog also identifies 4 MB ROM for SPIET800 |
| Dynamic memory | 64 MB DRAM / RAM |
| Nonvolatile memory | 2 MB NVRAM |
| Ethernet channels | Channel 0 active; Channel 1 reserved |
| Ethernet connector | RJ45 |
| Ethernet rate | 10/100 Mbps |
| Maximum copper segment | 100 m with Category 5 or better cable |
| Point-definition capacity | 30,000 points |
| Exception report performance | More than 1,500 exception reports per second |
| Composer clients | Up to 10 clients |
| Serial rates through TMP01 | 19.2, 38.4, 57.6 or 115.2 kbaud |
| Power requirement | +5 VDC at 1.05 A |
| Typical power consumption | 5.25 W |
| Operating temperature | 0 to 70°C (32 to 158°F) |
| Client connection model | Dedicated control-system connection; license required |
02 / Data Path & Performance
Built for continuous host access to a large control database
The module receives controller data from INFI-NET, sorts and stores it, and supplies requested information to host applications over Ethernet.
Host interface capacity
- Up to 30,000 configured point definitions
- More than 1,500 exception reports per second
- Up to 10 Composer clients
- 10/100 Mbps TCP/IP connection through the active RJ45 channel
03 / Related Hardware
SPICI800 is ABB's complete Ethernet computer-interface kit
For a new interface or a migration project, the surrounding hardware matters as much as the transfer module.
Network modules
One SPIET800 and one SPNIS21 provide the transfer and INFI-NET interface functions.
Termination and cable
The kit includes one NTCL01 and one NKLS01-10 cable.
Mounting hardware
One IEMMU21 module mounting unit and one NFTP01 field termination panel complete the listed kit.
04 / Compatibility & Migration
An Ethernet evolution path for older computer interfaces
ABB positions ICI800, built from NIS21 and IET800, as a 100 Mb Ethernet connection to INFI-NET. It supports INFI 90, Harmony and Symphony Plus host-integration projects, including Harmony OPC environments.
1Confirm the installed control networkIdentify INFI-NET / Cnet nodes, the NIS interface and available rack positions.
2Define the host softwareDocument OPC, Composer or other client requirements and the required licenses.
3Plan network addressingReserve the Ethernet address, switch port, VLAN/security rules and Cat 5+ cable path.
4Validate data scopeReview point count, report load and client count against the documented interface limits.
05 / Firmware & Cybersecurity
Use corrected firmware and protect the host connection
ABB's cybersecurity advisory identifies vulnerabilities in firmware A_B and earlier and states that firmware A_D contains corrections. Firmware should be checked as part of any spare or recommissioning activity.
Operational impact described by ABB
An affected or unavailable module interrupts data transactions for connected operations and engineering workstations. ABB notes that this does not change the control-system configuration or the INFI-NET control network itself.
07 / Applications & Fault Scenarios
When SPIET800 / IET800 becomes the focus of troubleshooting
Host data freezes
Operator, engineering or OPC clients lose updated values while the INFI-NET control functions continue.
Ethernet link is down
Port, cable, switch, addressing or module status interrupts the active Channel 0 connection.
Legacy CIU modernization
A site is replacing an older computer interface with the ABB Ethernet ICI800 / SPICI800 architecture.
08 / Official Documentation
SPIET800 / IET800 manufacturer documents
| Manufacturer | Document | Number / Version | Official link |
|---|---|---|---|
| ABB | ABB Ability Symphony Plus Product Catalog | 2VAA005340, Rev. G | View document |
| ABB | Symphony Roadmap — Part B | 3BUS095560 | View document |
| ABB | Cyber Security Advisory: SPIET800 / PNI800 Firmware | 7PAA001353, Rev. D | View document |
| ABB | Symphony Plus Upgrade: Harmony OPC / ICI800 | 3BUS095880 | View document |
09 / Supply & RFQ
Inspection, packing and quotation support
Amikon Service
InspectionPart identity and agreed test scope
Export packingAnti-static and impact-protective
DOA supportPrompt review with photos and evidence
Warranty & returnsTerms confirmed on the quotation
10 / FAQ
SPIET800 / IET800 questions from buyers and maintenance teams
Are ABB SPIET800 / IET800 the same product?
Yes. SPIET800 is the Symphony Plus order identity and IET800 is the transfer-module designation used in ABB's interface documentation.
What is ABB SPIET800 / IET800 used for?
It transfers INFI-NET control-system data to Ethernet host applications using TCP/IP.
How many points can ABB SPIET800 / IET800 support?
The documented interface database capacity is 30,000 point definitions.
Which Ethernet port is active on ABB SPIET800 / IET800?

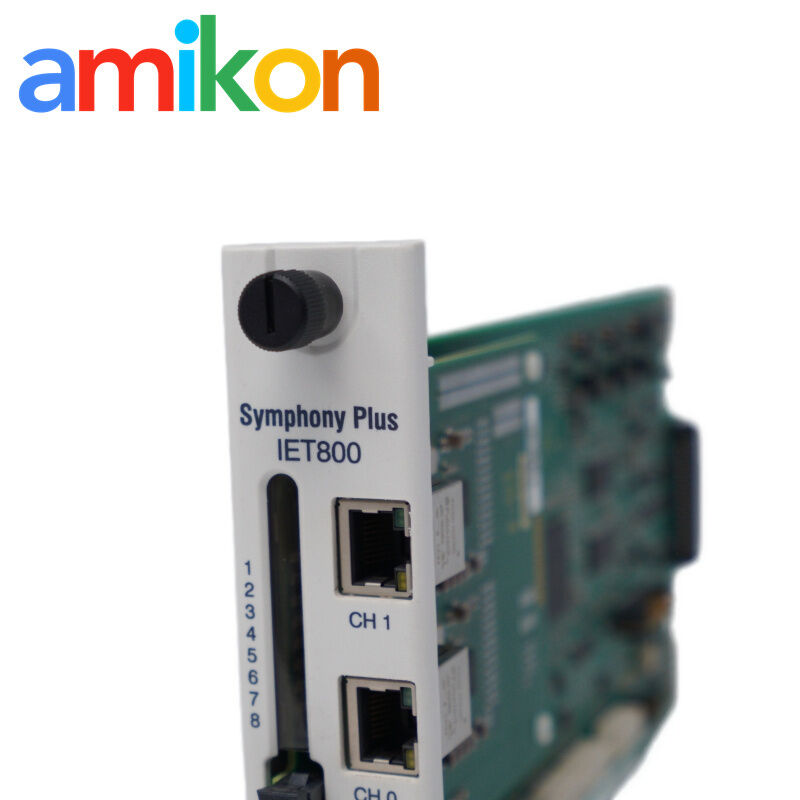

Channel 0 is the active 10/100 Mbps RJ45 connection; Channel 1 is reserved.
What hardware is supplied in the ABB SPIET800 / IET800 interface kit?
SPICI800 includes SPIET800, SPNIS21, NKLS01-10, NTCL01, IEMMU21 and NFTP01, one of each.
Which firmware should be checked on ABB SPIET800 / IET800?
ABB identifies A_B and earlier as affected by the published vulnerabilities and A_D as the corrected firmware level in the advisory.
