Local network transfer
Facilitates communication between two local control networks within the plant architecture.
ABB Bailey INFI 90 · Local Network Transfer

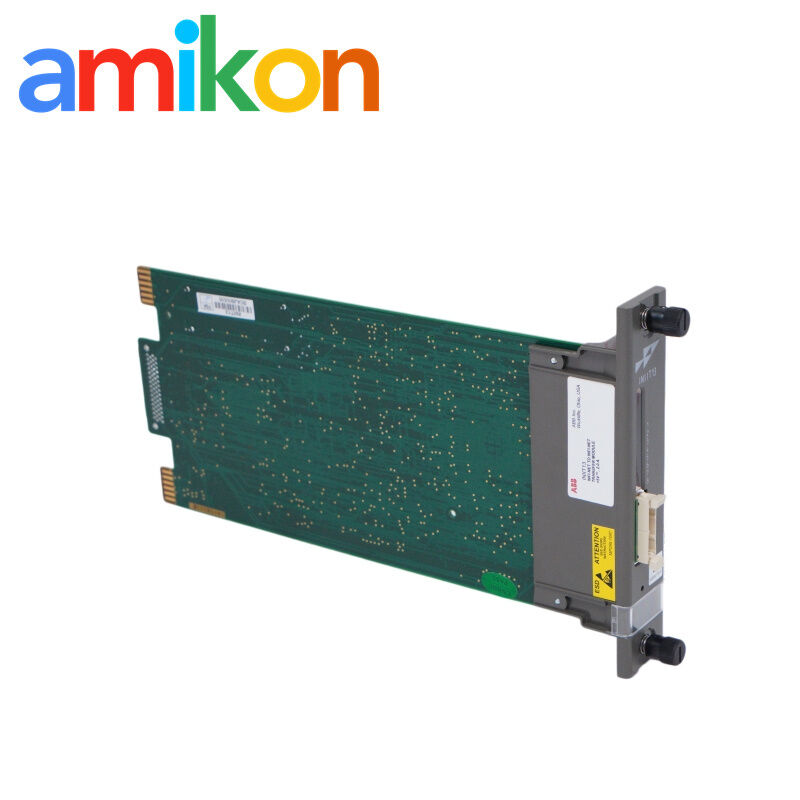

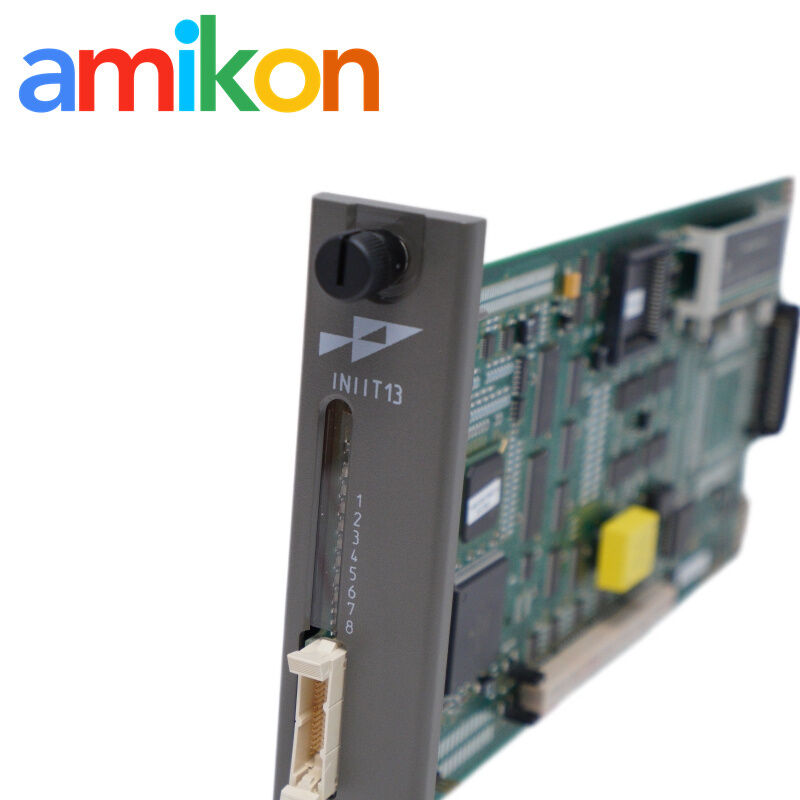

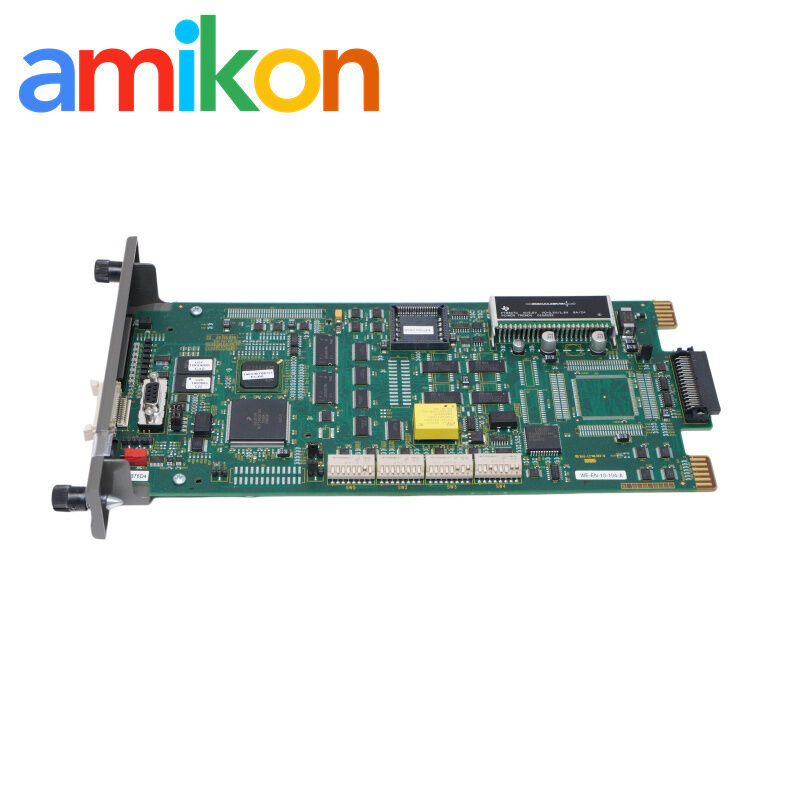

ABB INIIT13 INFI-to-INFI-Net Local Transfer Module
A local transfer module used to facilitate communication between two local INFI-NET / Cnet networks. The installed INIIT13 remains a legacy spare-parts identity, while ABB's current Symphony Plus platform documents SPIIT13 and the SPIIL02-L local-transfer kit for the same architectural role.
TypeLocal transfer module
SystemINFI 90 / Harmony
FocusTwo local networks
BrandABB Bailey
Talk to a spare-parts specialistMiya Zheng
Email for quotationsales@amikon.cn
WhatsApp+86 180 2077 6792
04 / Product Introduction
A local bridge between two control networks
INIIT13 belongs in a paired local-transfer architecture, not a remote modem link. For sourcing, capture the full faceplate identity and the surrounding network-interface hardware at both connected networks.
Legacy installed identity
INIIT13 remains the exact model to match when maintaining an existing INFI 90 or Harmony rack node.
Current platform context
ABB's Symphony Plus catalog documents SPIIT13 and the SPIIL02-L kit for current local-transfer applications.
Local network AINFI-NET / Cnet
→
Local transferINIIT13
→
Local network BINFI-NET / Cnet
05 / Technical Specifications
Product identity and documented system position
| Model | INIIT13 |
|---|---|
| Product type | INFI-to-INFI-Net local transfer module |
| System family | Bailey INFI 90 / Symphony Harmony rack communications |
| Functional position | Communication between two local control networks |
| ABB catalog identity | INIIT13R |
| Catalog description | INIIT13, Infi to Infi-Net Local Transfer |
| ABB product type | Spare_Parts |
| Installation context | Local transfer interface with companion network-interface and termination hardware |
| Current Symphony Plus transfer module | SPIIT13 |
| Current bundled local-transfer kit | SPIIL02-L |
02 / Local Transfer Architecture
Keep the two network sides visible during fault finding
Because the transfer path joins two networks, a communication symptom may originate on either side of the bridge or in the transfer hardware itself.
1Identify both network nodesRecord the addresses and interface modules serving network A and network B.
2Compare network statusDetermine whether one network is healthy locally before investigating the bridge.
3Capture the full installed assemblyPhotograph the INIIT13, companion cards, termination hardware and cable labels.
4Preserve configurationSave the transfer and network settings before disturbing a working partner or replacing the module.
03 / Evolution & Related Hardware
ABB's current local-transfer platform uses SPIIT13
The current catalog describes SPIIT13 as the local transfer module and offers the SPIIL02-L bundle for a complete local-transfer interface. This is an evolution reference, not a license to swap a single card without engineering review.
SPIIL02-L kit content
- Two SPNIS21 network interface modules
- Two NKLS01-10 cables and two NTCL01 termination units
- One SPIIT13, one IEMMU21 mounting unit and one NFTP01 panel
04 / Replacement Preparation
Treat the network pair as one engineered interface
A module-only match is useful for spare identification, but commissioning depends on the companion modules, termination, cabling, addresses and revision context.
Nameplate match
Use INIIT13 as the required spare identity and include any suffix or revision visible on the unit.
Assembly match
Compare the connected network-interface modules and cable/termination part numbers.
Planned evolution
If moving to SPIIT13 or SPIIL02-L, review the full ABB migration design rather than treating it as a direct plug-in exchange.
06 / Applications & Fault Scenarios
Why maintenance teams source INIIT13
One local network is isolated
Each network operates locally, but messages no longer cross the local-transfer interface.
Intermittent cross-network data
Transfer status, companion interfaces, rack connections or configuration produce an unstable bridge.
Lifecycle spare planning
A site wants a tested INIIT13 on hand while it plans a later move to the current SPIIT13 platform.
07 / Official Documentation
INIIT13 manufacturer documents
| Manufacturer | Document | Number / Version | Official link |
|---|---|---|---|
| ABB | INIIT13R Product Details | ABB Product ID INIIT13R | View document |
| ABB | Symphony Plus Product Catalog | 2VAA005340, Rev. C | View document |
08 / Supply & RFQ
Inspection, packing and quotation support
Amikon Service
InspectionPart identity and agreed test scope
Export packingAnti-static and impact-protective
DOA supportPrompt review with photos and evidence
Warranty & returnsTerms confirmed on the quotation
09 / FAQ
INIIT13 questions from buyers and maintenance teams
What is ABB INIIT13 used for?
It provides the local-transfer function between two local INFI-NET or Cnet control networks.
Is ABB INIIT13 a remote modem transfer module?
No. Its documented role is local network-to-network transfer; remote serial transfer uses a different interface family.
What current ABB module is related to ABB INIIT13?
The current Symphony Plus catalog documents SPIIT13 for the local-transfer role and the SPIIL02-L complete kit.
What is included in the current kit related to ABB INIIT13?
SPIIL02-L includes SPIIT13, two SPNIS21 modules, two NKLS01-10 cables, two NTCL01 units, one IEMMU21 and one NFTP01.
Can ABB INIIT13 be replaced by one SPIIT13 card without further checks?
A migration should be reviewed at interface level because companion modules, termination, mounting, cables and configuration are part of the local-transfer design.
What should be provided for an ABB INIIT13 RFQ?
Send part number, quantity, destination, required date and system model, plus photos of the faceplate and the connected local-transfer assembly.
